NETSILON

TIME SERVER

Quick start

On receipt, ensure that the product has not been damaged during transportation and report any concerns to the carrier.

BODET SA

BP30001

49340 Trementines, France

Tel. support France: 02.41.71.72.99

Fax France: 02.41.71.72.01

Ref.: 608072 A

www.bodet-time.com

This document refers to the following products:

907,900 NETSILON 7 (100-240 VAC)

907,901 NETSILON 7 (18-36 VDC)

907,902 NETSILON 7 (100-240 VAC + 18-36 VDC)

CONTENTS

1. GENERAL POINTS 3

1.1 Introduction 3

1.2 Netsilon presentation 3

1.2.1. Front panel 3

1.2.2. Rear panel 3

2. INSTALLATION 5

2.1 Checking the package 5

2.2 Safety 5

2.2.1. Installing the equipment 5

2.2.2. Opening the equipment 5

2.2.3. Earth connection 5

2.3 Mechanical rack installation 6

2.4 Electrical installation 6

2.4.1. Power supply 6

2.4.2. Backup battery - CR2032 6

2.4.3. Ethernet 6

2.4.4. Alarm relay circuits 6

3. COMMISSIONING 7

3.1Factoryconguration 7

3.2 Choosing the LCD screen display language 8

3.3CongurationwithaDHCPserver 8

3.4CongurationwithoutaDHCPserver 9

4. WEB SERVER MENUS 10

5. SUPPORT 10

1. GENERAL POINTS

Thank you for choosing the BODET Netsilon time server. This product has been carefully designed to meet your

needs in accordance with ISO 9001 quality standards.

1.1 Introduction

We recommend that you read this manual carefully before using the product for the first time.

Three versions are available, depending on the power supply:

> Netsilon 7 (100-240 VAC).

> Netsilon 7 (18-36 VDC).

> Netsilon 7 (100-240 VAC + 18-36 VDC).

1.2 Netsilon presentation

1.2.1. Front panel

The Netsilon front panel contains:

>a USB11port

> three status LEDs for power supply, synchronisation and alarms (Power, Sync. and Alarm) 2.

See Chapter 7.1 Status of LEDs on front panel, page 57,

>a two-line LCD display 3,

> control keys 4for initial setup (full setup from the web server).

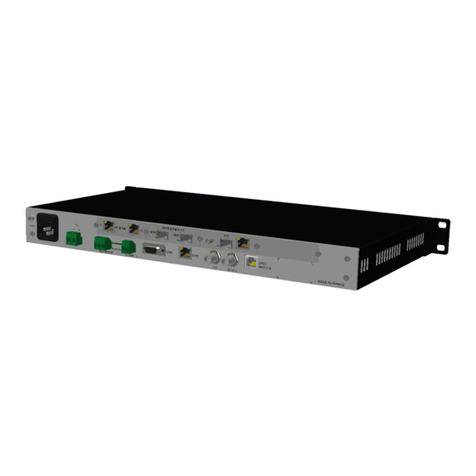

1.2.2. Rear panel

> NETSILON 7 (100-240 VAC + 18-36 VDC)

1Earth.

2On/Off switch.

3Mains. IEC 320 AC power inlets.

418-36 VDC power supply terminal. 3.81mm terminal.

5Slots for option cards:

> NETWORK expansion card, ref. 907920.

> AFNOR expansion card, ref. 907940.

> PULSE expansion card, ref. 907942.

> CURRENT LOOP expansion card, ref. 907944.

1 2

3 6

5 5 5 5

7 8 9 10

SLOT A SLOT B SLOT C SLOT D

1 Netsilon supports USB keys formatted to AT16/FAT32 and NTFS

The option cards are installed in our production factory. For subsequent installation, refer to the expansion card

installation guide.

6Common/Normally-Closed/Normally-Open relay contact output.

If contact Normally-Open: no alarms / If contact Normally-Closed: alarms.

7Terminal for GPS antenna:

8Alarms input: interfaces with the dry contact of the client equipment.

9Serial port.

10 ETH0 network card.

> NETSILON 7 (100-240 VAC)

> NETSILON 7 (18-36 VDC)

2. INSTALLATION

This chapter provides an overview of the steps to be followed to install Netsilon.

Several factors must be taken into account when installing Netsilon:

1) The type of power supply: 18-36 VDC and/or 100-240 VAC.

2) The type of installation: Netsilon integration into an existing Ethernet network or new installation (ensure

cable accessibility).

3) A PC connected to the Ethernet network with a web browser1such as Google Chrome®, Mozilla Firefox or

Microsoft Internet Explorer® is required.

If Netsilon is equipped with option cards, they must be configured from the web server once network configuration

is complete (via the ETH0 port).

2.1 Checking the package

Carefully unpack the time server and check the contents of the package. These should include:

> The Netsilon unit, with its option cards,

> The two brackets for mounting in a 19’’ rack,

> Aquick start guide.

> A safety instructions notice.

2.2 Safety

This product has been carefully designed to meet your needs in accordance with ISO 9001 quality standards.

Before beginning to install and configure Netsilon, carefully read the various safety instructions.

Ensure that you observe the safety warnings and precautions at all times during the installation, operation and

maintenance of your product.

2.2.1. Installing the equipment

The installation and maintenance of this device must be performed by accredited personnel. This product must not

be installed by unauthorised users / operators.

Electrical installation of the equipment must comply with applicable electrical standards.

2.2.2. Opening the equipment

There are no user-repairable parts inside this equipment. Please contact BODET customer support if the equipment

needs to be repaired.

Do not open the product except when adding or replacing expansion cards:

> Never open the product while the power supply is connected.

> Ensure that all power supply sources are removed from the device before installing the option cards: unplug

the AC and/or DC power supplies connected to the equipment (according to model).

DANGER:theON/OFFswitchisoffunctionaltype.Itisnotapowersupplydisconnectswitch.Disconnect

thepowersupplyandrelaycircuitsbeforeanyintervention.

2.2.3. Earth connection

Never run the equipment without an earth connection.

Contact an electrician if you are not certain that your electrical network is earthed.

This device must be directly connected to an earthed mains power outlet

The device’s mains power supply must have a phase-neutral C curve circuit breaker of 16A maximum, rapidly

accessible upstream from the power supply line.

1 It is recommended that you use the latest version of your internet browser.

2.3 Mechanical rack installation

The Netsilon time server should be installed in a 19” rack or cabinet, using the two brackets supplied.

2.4 Electrical installation

All cables must be securely attached to the chassis before being connected to the various terminal blocks in order

to prevent traction on connections.

2.4.1. Power supply

Power supply management according to version:

> Netsilon 7 (100-240 VAC): mains power supply only.

> Connect the power cord to the AC connector at the rear of the device.

> Netsilon 7 (18-36 VDC): direct current only.

> Connect a DC cable and observe the polarity indicated at the rear of the device.

> NETSILON 7 (100-240 VAC + 18-36 VDC): priority mains power supply. If the latter is lost, the power supply

will automatically switch over to 18-36 VDC.

> Connect the power cable supplied to the AC connector, together with a DC cable, and observe the

polarity indicated at the rear of the device.

2.4.2. Backup battery - CR2032

If replacing the CR2032 battery, it is essential to observe the polarity, as indicated on the slot of the battery.

There is a risk of explosion if the battery is replaced by a non-compliant battery.

Dispose of used batteries in accordance with the instructions given on our website.

2.4.3. Ethernet

The ETH0 Ethernet port, accessible on the rear panel of the device, enables easy connection to routers, switches

or hubs.

1) Use a shielded CAT.5E or CAT.6 cable Ethernet cable (RJ45)

2) Connect the Ethernet network cable to the RJ45 connector on the Netsilon rear panel.

TheproductiscommissionedbyactivatingtheON/OFFswitchontherearpanelofthedevice.

2.4.4. Alarm relay circuits

For the relay circuits, provide protection by means of a fused disconnect switch or circuit breaker of 1A maximum.

Maintenance must be performed with power off. Disconnect the power supply and relay circuits under hazardous

voltage.

Breaking capacity: 1A / 50V AC DC.

3. COMMISSIONING

Netsilon configuration is performed exclusively on the web server. In order to be able to access the web server it is

necessary to configure the ETH0 port via the front panel keypad and the LCD screen.

TIP:inordernottodisruptNetsilonsynchronisationwiththeotherproductspresentonthenetwork,itis

importanttomaintainidentificationofthetimeserver.

There are two solutions for accessing the web server:

> With a DHCP server: automatic assignment of an IP address.

> Without a DHCP server: manual assignment of a xed IP address via the control panel in the Netsilon network

menu.

3.1 Factoryconguration

The default configuration parameters have been selected to facilitate initial configuration. A single account is

activated on shipment from the factory.

> Default web server user account:

> Username: bodetadmin

> Password: admin49

  Thisaccountcannotbedeleted.However,itisstronglyrecommendedtochangethepassword

When first running Netsilon, the default parameters are as follows:

Functions Default status Means of configuration

Control panel & LCD

screen

Unlocked Control panel (technician menu) + web server

Language: English Web Server

Rotation of information: time,

network, synchronisation and

system status

Web Server

USB port Enabled Web Server

ETH0 Ethernet port

DHCP: ON Control panel + web server

IP address not given Control panel + web server

Services DNS: ON (only)

HTTP: ON

Web Server

(only HTTPS can be enabled or disabled)

3.2 Choosing the LCD screen display language

The network settings for configuration of the ETH0 port (assignment of an IP address) can be read or configured via

the Netsilon control panel. It is first necessary to select the product’s display language:

3.3 CongurationwithaDHCPserver

1) On start-up, the Netsilon time server waits for automatic assignment of an IP address by the DHCP server. This

may take a few minutes.

2) Once assigned, this IP address is shown on the LCD screen. By default, the LCD screen alternately displays

several parameters. To read the IP address on the LCD screen, consult the network menu using the Netsilon

control panel and LCD screen:

3) Enter the IP address, as seen on the LCD screen, into the web browser (Google Chrome®, Mozilla Firefox or

Microsoft Internet Explorer®).

4) See Chapter 4.Webservermenus,page15.

N.B. 192.168.1.0/24istheIPaddresswithCIDRnotation.

Exit the menu by pressing the button.

L a n g u a g e     o k 

   õ

L a n g u a g e     o k 

   õ

Language:ENGLISHú

   ok

Language:FRENCHú

   ok

Selection of languages available:

English, French, Italian, Dutch, German

and Spanish

10:54.32

Mon19SEP2016

S y s t e m     o k 

Network  õ

Productinfo ok

Version  õ

Version  ok

Optioncards õ

Optioncards ok

Language  õ

10:54.32

Tues19SEP2016

S y s t e m     o k 

Network  õ

Network  ok

USBtransfer õ

DisplayETH0 ok

Config.ETH0 õ

192.168.1.0/24

Nogatewayok

3.4 CongurationwithoutaDHCPserver

Without automatic assignment of an IP address by a DHCP server, it is necessary to manually assign a fixed IP

address.

To manually configure the Netsilon network settings, enter the following three parameters:

> IP address assignment

> This is a unique address assigned to Netsilon by the network administrator. Ensure that the chosen

address is available.

> Subnet mask

> The subnet mask defines the number of bits taken by the IP address. The number of bits used in the

netmask may range from 8 to 30 bits.

> Gateway

> The gateway address is required if communication with Netsilon is outside the local network. By

default, the gateway is disabled.

To configure these three parameters, use the Netsilon network menu, via its control panel:

10:54.32

Tues19SEP2016

10:54.32

Tues19SEP2016

S y s t e m     o k 

Network  õ

Network  ok

USBtransfer õ

DisplayETH0 ok

Config.ETH0 õ

DHCP:YESú

IPaddressAutook

IPAddress:

192.168.1.0ok

IPmask:

255.255.255.000ok

IPgateway:

---.---.---.---ok

Savinginprogress...

Resettinginpro-

gress...

DHCP:NOú

FixedIPaddresso k

Config.ETH0 ok

õ

Enter the values with the and

keys.

Note:thesevaluesaredetermined

bythenetworkadministrator.

4. WEB SERVER MENUS

To access the Netsilon web server, follow these steps:

1) Note the Netsilon IP address.

2) Open a web browser page.

3) Enter the IP address into the browser’s address bar.

4) Enter the username and default password to access the web server. For info:

>Username: bodetadmin

>Password: admin49

> For more information, download full manual : SYSTEM > General > Online help

5. SUPPORT

> To request technical assistance for this equipment :

http://www.bodet-time.com/assistance-clientele.html

> Telephone support is available from Monday to Friday from 8 am to 12 pm and from 1:30 pm to 5 pm.

To speed up the diagnosis of your Netsilon, perform a system backup and note the Netsilon MAC address.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Bodet Server

Bodet

Bodet NETSILON 9 Manuale utente

Manuali Server popolari di altre marche

HP AlphaServer ES47 Manuale utente

Dell

Dell PowerEdge R410 Manuale utente

PowerNAS

PowerNAS CMA Manuale utente

Supero

Supero FatTwin F617R3-FT Manuale utente

MSI

MSI P1-109N-L70 Manuale utente

Dell

Dell PowerEdge XE9640 Manuale

Dell

Dell PS4100 Istruzioni di montaggio

EtroVISION

EtroVISION EV3151 Manuale utente

NEC

NEC Express5800/T110j Manuale utente

HP ProLiant Gen9 Manuale utente

Compaq

Compaq ProLiant 3000 Manuale

Dell

Dell PowerEdge 3YPMN Manuale utente

iRobo

iRobo IPC2U Manuale utente

Nortel

Nortel 1000 Con?guration guide Manuale utente

Asus

Asus AP7500 Manuale operativo e di manutenzione

Avid Technology

Avid Technology AirSpeed 5000 Manuale utente

HP Integrity rx2600 Guida all'installazione

Milestone

Milestone Husky IVO 350T Manuale utente
