Bosch B426 Istruzioni operative

Conettix Ethernet Communication Module

B426

en Installation and Operation Guide (UL)

Table of contents

1Safety 4

2Introduction 5

2.1 About documentation 5

2.2 Bosch Security Systems, Inc. product manufacturing dates 5

3System overview 6

3.1 Overview 8

3.2 Bus address settings 8

4Installation 10

4.1 Mount the module in the enclosure 10

4.2 Mount and wire the tamper switch (optional) 10

4.3 Wire to the control panel 10

5Configuration 13

5.1 Configure for SDI2 control panels 13

5.2 Configure for SDI or option bus control panels 13

5.2.1 Plug and Play configuration 13

5.2.2 Web-based configuration 13

5.3 Determine a module's hostname or IP address 14

5.3.1 Determine a module’s hostname 14

5.3.2 Use an SDI/SDI2 keypad or RPS to discover the IP address of a module 14

5.3.3 Use DHCP to look up the IP address of a network-connected module 14

5.3.4 Use AutoIP with a directly connected module 14

5.4 Use web-based configuration menus 16

5.5 Device Information (home) page 16

5.6 Change and save settings using the web 17

5.7 Basic Network Settings page 17

5.8 Advanced Network Settings page 20

5.9 Panel Address Settings page 21

5.10 Encryption and Security Settings page 22

5.11 Maintenance page 23

5.12 Factory Default page 25

5.13 Firmware Update page 25

5.14 Exiting the web-based configuration pages 26

6Maintenance and troubleshooting LEDs 27

6.1 Show the firmware version 28

7Specifications and certifications 29

7.1 Technical specifications 29

7.2 Certifications 30

Conettix Ethernet Communication

Module Table of Contents | en 3

Bosch Security Systems, Inc. Installation and Operation Guide (UL) 2013.08 | 02 | F.01U.281.208

Safety

ESD Precaution

Please note that the B426 board comes without any case/box and all components are exposed

for finger touches - therefore extra attention must be paid to ESD (electrostatic discharge)

precaution. Make sure there is no static interference when using the board. Appropriate ESD

protections must be taken and wearing electrostatic equipment is recommended, such as anti-

static wrist strap.

ESD damage can range from subtle performance degradation to complete device failure.

Precision integrated circuits may be more susceptible to damage because very small

parametric changes could cause the device not to meet its published specifications.

Warning!

Failure to follow these instructions can result in a failure to initiate alarm conditions. Bosch

Security Systems, Inc. is not responsible for improperly installed, tested, or maintained

devices. Follow these instructions to avoid personal injury and damage to the equipment.

Notice!

Inform the operator and the local authority having jurisdiction (AHJ) before installing the

module in an existing system.

Disconnect all power to the control panel before installing the module.

Before installing a B426, refer to Technical specifications, page 29.

4en | Safety Conettix Ethernet Communication

Module

2013.08 | 02 | F.01U.281.208 Installation and Operation Guide (UL) Bosch Security Systems, Inc.

Introduction

About documentation

This document is the intellectual property of Bosch Security Systems, Inc. and is protected by

Trademarks

All hardware and software product names used in this document are likely to be registered

trademarks and must be treated accordingly.

Bosch Security Systems, Inc. product manufacturing dates

Use the serial number located on the product label and refer to the Bosch Security Systems,

Inc. web site at http://www.boschsecurity.com/datecodes/.

The following image shows an example of a product label and highlights where to find the

manufacturing date within the serial number.

2.1

2.2

Conettix Ethernet Communication

Module Introduction | en 5

Bosch Security Systems, Inc. Installation and Operation Guide (UL) 2013.08 | 02 | F.01U.281.208

System overview

Warning!

Failure to follow these instructions can result in a failure to initiate alarm conditions. Bosch

Security Systems, Inc. is not responsible for improperly installed, tested, or maintained

devices. Follow these instructions to avoid personal injury and damage to the equipment.

Notice!

Inform the operator and the local authority having jurisdiction (AHJ) before installing the

module in an existing system.

Disconnect all power to the control panel before installing the module.

Before installing a B426, refer to Technical specifications, page 29.

Use the B426 for bi-directional communication over an Ethernet network.

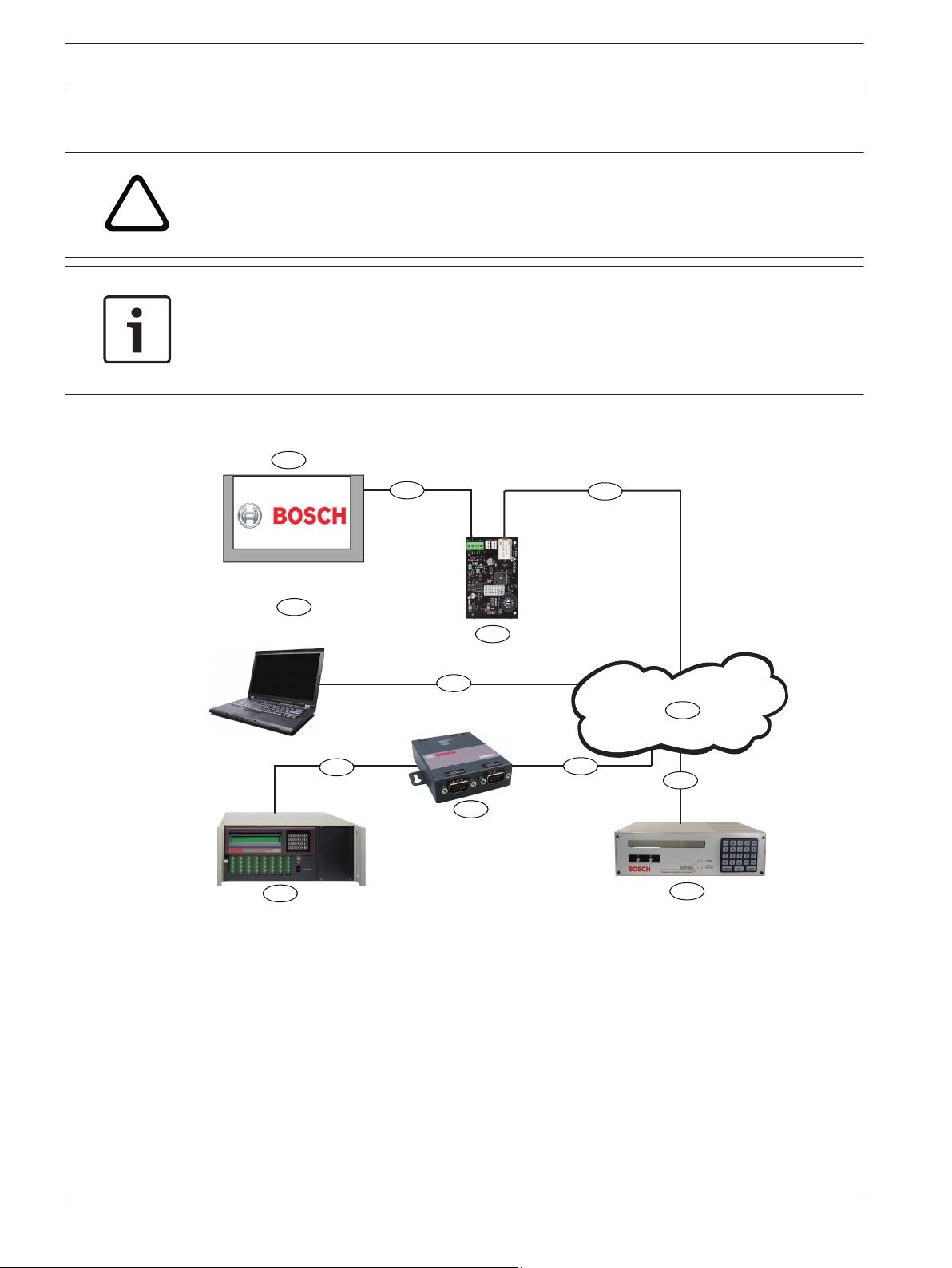

Figure 3.1: B426 system connections overview

6en | System overview Conettix Ethernet Communication

Module

2013.08 | 02 | F.01U.281.208 Installation and Operation Guide (UL) Bosch Security Systems, Inc.

Callout ᅳ Description Callout ᅳ Description

1 ᅳ Compatible Bosch control panel 8 ᅳ Ethernet network connection to the

Ethernet adapter (D6680/ITS-D6682/

ITS-D6686) (ITS-D6682 shown) Ethernet

Network Adapter

2 ᅳ Data bus connection between the control

panel and the module

9 ᅳ Conettix Ethernet Network Adapter

(ITS-D6682 shown)

3 ᅳ B426 10 ᅳ Connection from ITS-D6682 to the

COM4 Port on the Conettix D6600

Communications Receiver/Gateway

4 ᅳ Ethernet connection between module and

Ethernet network

11 ᅳ Conettix D6600 Communications

Receiver/Gateway

5 ᅳ Ethernet network, Local Area Network

(LAN), Metropolitan AreaNetwork (MAN), Wide

Area Network (WAN), or Internet

12 ᅳ Ethernet network connection

between the host computer Ethernet

network interface card (NIC) and the

Ethernet network

6 ᅳ Ethernet network connection to the D6100i

Communications Receiver (D6100i/D6100IPv6)

13 ᅳ Host PC running Remote

Programming Software, Automation, or

the Conettix D6200 Programming/

Administration Software

7 ᅳ Conettix D6100i Communications

Receiver/Gateway

Conettix Ethernet Communication

Module System overview | en 7

Bosch Security Systems, Inc. Installation and Operation Guide (UL) 2013.08 | 02 | F.01U.281.208

B426 module overview

PWR

COM

MODE

TMPR

LINK

100 MB

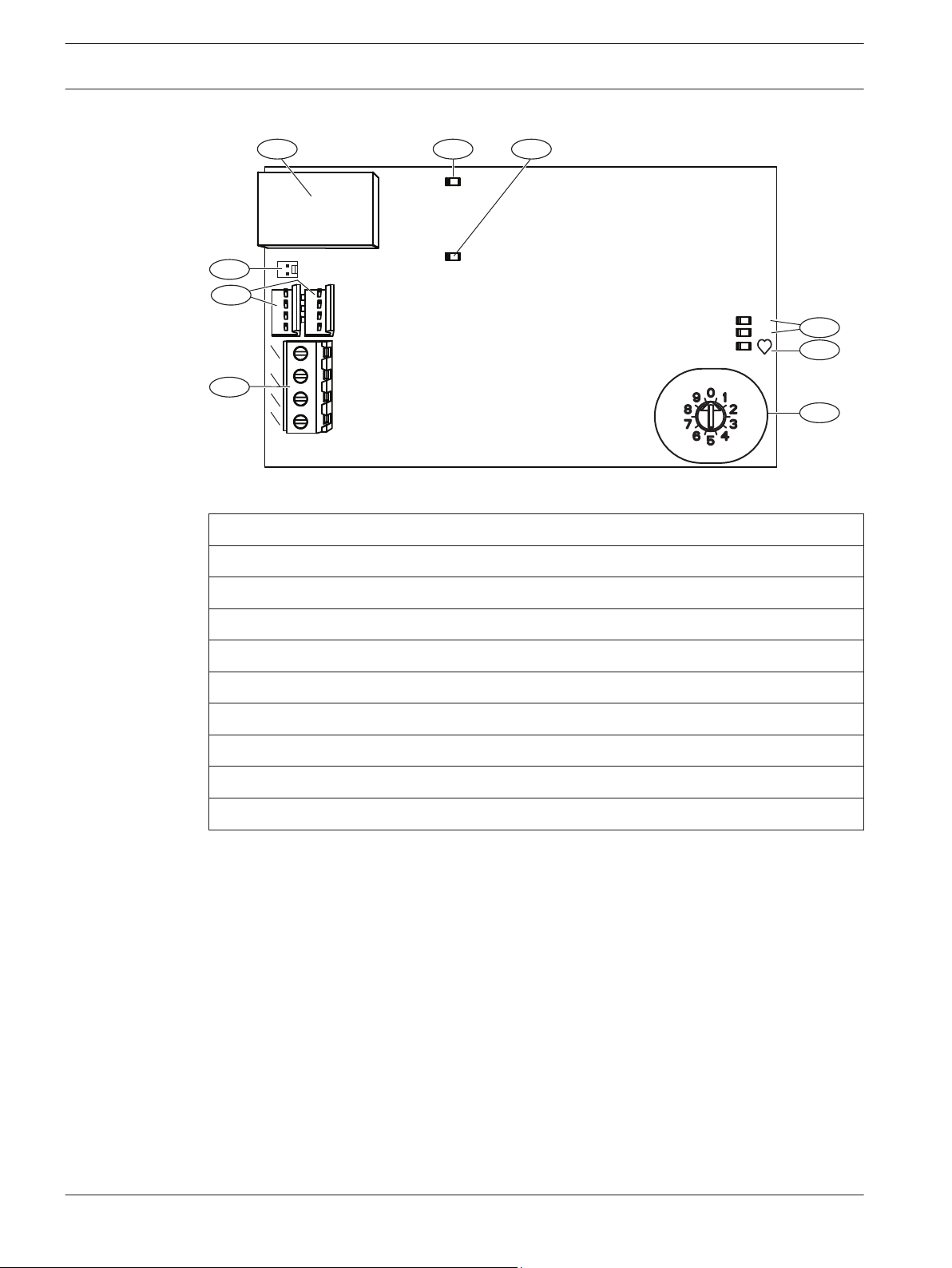

Figure 3.2: B426 Conettix Ethernet Communication Module

Callout ᅳ Description

1 ᅳ Ethernet RJ-45 port

2 ᅳ Yellow LINK LED

3 ᅳ Green 100MB LED

4 ᅳ Data bus communication LEDs (TX and RX)

5 ᅳ Heartbeat LED

6 ᅳ Address switch

7 ᅳ Terminal strip (to control panel)

8 ᅳ Interconnect wiring connectors (to control panel or other compatible modules)

9 ᅳ Tamper switch connector

Overview

The B426 Conettix Ethernet Communication Module is a four-wire powered SDI, SDI2, or

option bus device that provides two-way communication with compatible control panels over

IPv6 or IPv4 Ethernet networks.

The B426 on-board switch determines the bus address of the device. Configuration of the

B426 is performed through the B426 configuration web pages. On SDI2 control panels,

configuration can also be done on the keypad or through Remote Programming Software

(RPS). The B426 Conettix Ethernet Communication Module is compatible with IPv6.

Bus address settings

The address switch determines the bus address for the B426 Conettix Ethernet

Communication Module. The control panel uses the address for communications. Use a

slotted screwdriver to set the address switch.

3.1

3.2

8en | System overview Conettix Ethernet Communication

Module

2013.08 | 02 | F.01U.281.208 Installation and Operation Guide (UL) Bosch Security Systems, Inc.

Notice!

The module reads the address switch setting only during power up. If you change the

switches after you apply power to the module, you must cycle the power to the module in

order for the new setting to be enabled.

The B426 address switch provides the value for the module's address. The figure below shows

the address switch setting for address 1. Refer to the table below for panel-specific settings.

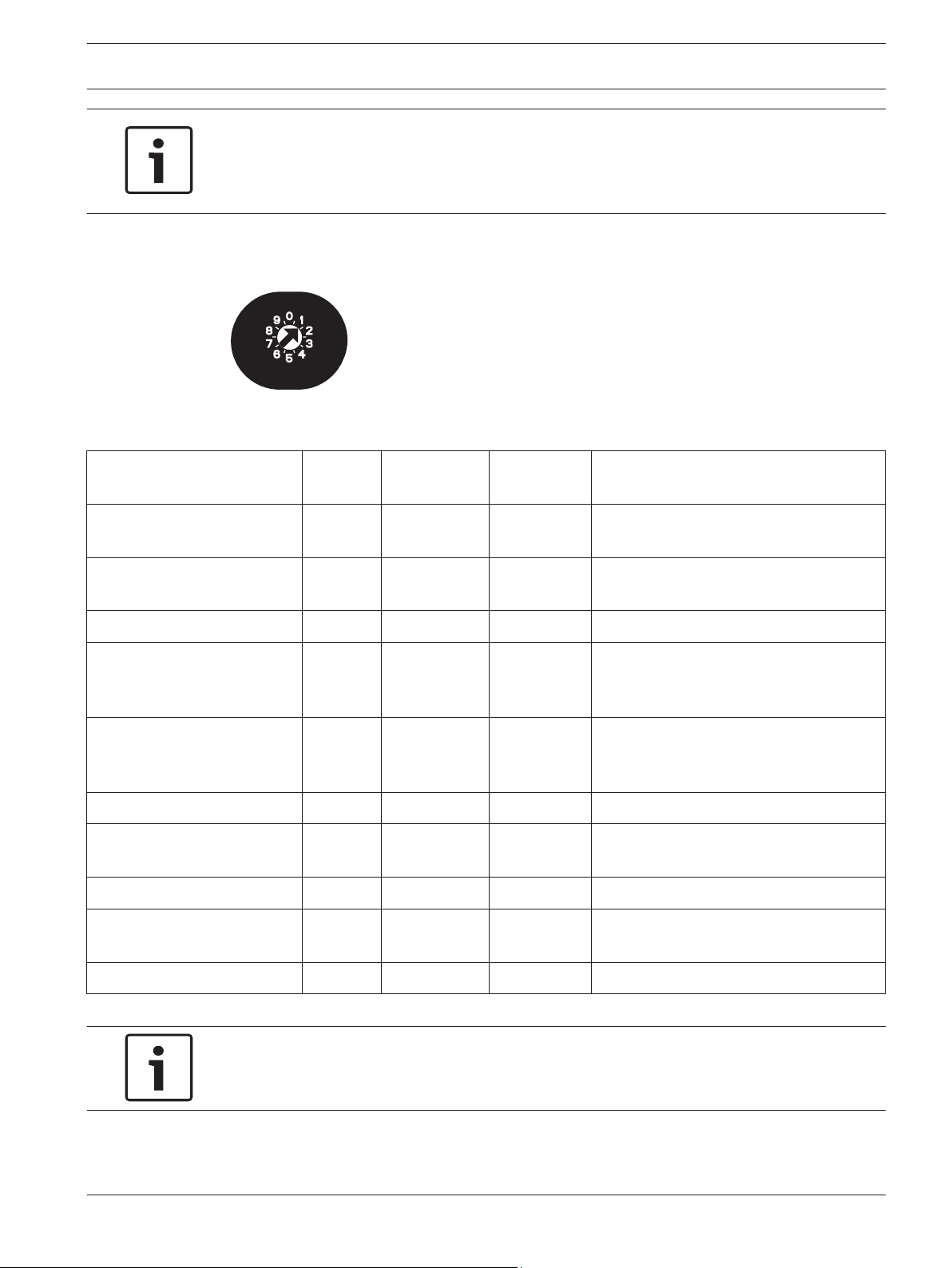

Figure 3.3: Address switch set to address 1

Control panels Switch

position

B426 address Bus type Function

Web-based configuration

setting

0 Configurable Any Web-based configuration

GV4 Series, B5512/B4512/

B3512

1 1 SDI2 Automation, RPS, or Reporting

GV4 Series 2 2 SDI2 Automation, RPS, or Reporting

GV4 Series, GV3 Series, GV2

Series, G Series v6.3 or

higher

3 80 SDI Automation

GV4 Series, GV3 Series, GV2

Series, G Series v6.3 or

higher

4 88 SDI Reporting or RPS

GV4 Series, GV3 Series 5 92 SDI Reporting or RPS

DS7240V2, DS7220V2, Easy

Series V3+, AMAX 2000

6 134 Option Remote programming, Reporting

DS7400Xi 7 13 Option Remote programming, Reporting

DS7400Xi

8 14 Option Reporting

FPD-7024 9 250 Option Remote programming, Reporting

Table 3.1: B426 address switch settings

Notice!

You can use web browser configuration of the module's bus address setting only when the

switch is in the ’0’ position.

Conettix Ethernet Communication

Module System overview | en 9

Bosch Security Systems, Inc. Installation and Operation Guide (UL) 2013.08 | 02 | F.01U.281.208

Installation

After you set the address switch for the proper address, install the module in the enclosure

and then wire the module to the control panel and to the Ethernet connection.

Mount the module in the enclosure

Mount the B426 into the enclosure’s 3-hole mounting pattern using the supplied mounting

screws and mounting bracket.

You must mount the module in the control panel enclosure or in a UL listed enclosure (for

example, the D8103 Universal Enclosure).

All communicators shall be housed in tampered enclosures, compliant with the following

clauses within Standard CAN/ULC-S304-06: 5.2.6; 5.2.9; 5.2.10 and 5.2.15.

Figure 4.1: Mounting the module

Callout ᅳ Description

1 ᅳ B426 with mounting bracket installed

2 ᅳ Enclosure

3 ᅳ Mounting screws (3)

Mount and wire the tamper switch (optional)

You can connect an enclosure door tamper switch for one module in an enclosure.

Installing the optional tamper switch for use with a B426:

1. Mount the EZTS Cover and Wall Tamper Switch (P/N: F01U009269) into the enclosure’s

tamper switch mounting location. For complete instructions, refer to the Cover and Wall

Tamper Switch (ICP- EZTS) Installation Guide (P/N: F01U003734).

2. Plug the tamper switch wire onto the module’s tamper switch connector. For the tamper

switch connector location, refer to B426 module overview, page 8.

Wire to the control panel

When you wire a B426 to an SDI or SDI2 control panel, you can use either the module's

terminal strip labeled R, Y, G, B (PWR, A, B, COM) or the module's interconnect wiring

connectors (wire included). The figure below indicates the location of both the terminal strip

and the interconnect wiring connectors on the module.

4.1

4.2

4.3

10 en | Installation Conettix Ethernet Communication

Module

2013.08 | 02 | F.01U.281.208 Installation and Operation Guide (UL) Bosch Security Systems, Inc.

Altri manuali per B426

Indice

Altri manuali Bosch Unità di controllo

Bosch

Bosch FLM-420-NAC-D Manuale utente

Bosch

Bosch Rexroth 4WS2EM 10 Series Manuale utente

Bosch

Bosch FLM-320-EOL4W-S Manuale utente

Bosch

Bosch VCU MS 50.4P Manuale utente

Bosch

Bosch REXROTH 4WRZ 7X/XE Series Manuale utente

Bosch

Bosch FLM-420-RLV1-D Guida alla risoluzione dei problemi

Bosch

Bosch Conettix DX4020 Manuale utente

Bosch

Bosch MP 100 Manuale utente

Bosch

Bosch ConnectModule Manuale del proprietario

Bosch

Bosch ISM 1 Manuale utente

Bosch

Bosch Rexroth IndraControl XM42 Manuale utente

Bosch

Bosch FLM-420-O2-D Manuale utente

Bosch

Bosch Rexroth IndraDrive CSB02 Manuale tecnico

Bosch

Bosch ConnectModule BCM3100 Manuale utente

Bosch

Bosch CM751B Come usare

Bosch

Bosch B520 Istruzioni operative e di manutenzione

Bosch

Bosch Rexroth WMM6 Series Manuale utente

Bosch

Bosch Rexroth H-4WEH...XE Series Manuale utente

Bosch

Bosch DS7461i Manuale utente

Bosch

Bosch ReadykeyPRO LNL-1200 Manuale utente

Bosch

Bosch CCU-Modul Manuale operativo

Bosch

Bosch FLM-420-I8R1-S Manuale utente

Bosch

Bosch BEA 030 Manuale utente

Bosch

Bosch RTM 430 Guida all'installazione

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
