Bosch GLM165-22 Istruzioni per il montaggio

IMPORTANT:

Read Before Using

IMPORTANT :

Lire avant usage

IMPORTANTE:

Leer antes de usar

For English Version

See page 8

Version française

Voir page 29

Versión en español

Ver la página 52

Call Toll Free for

Consumer

Information and

Service Locations

Pour obtenir des informations

et les adresses de nos centres

de service après-vente, appelez

ce numéro gratuit

Llame gratis para obtener

información para el

consumidor y ubicaciones

de servicio

Operating/Safety Instructions

Consignes de sécurité/d’utilisation

Instrucciones de funcionamiento

y seguridad

1-877-BOSCH99 (1-877-267-2499) www.boschtools.com

0.0°

1/x

164

" ⁄

GLM165-22

GLM165-27C

-2-

GLM165-22

(1)(2)(3)

(4)

(5)

(6)

(7)

(8)

(a) (d) (e)

(f)

(g)

(9)

4'02"

8'05"

12'08"

164

" ⁄

1/x

(b)

4'02"

8'05"

12'08"

164

" ⁄

-3-

GLM165-27C

0.0°

(1)(2)(3)

(4)

(5)

(6)

(7)

(8)

(a) (c) (d)(e)

(f)

(g)

(h)

(b)

(9)

4'02"

8'05"

12'08"

164

" ⁄

1/x

0.0°

4'02"

8'05"

12'08"

164

" ⁄

-4-

(10)

(11)

(12)

(13)

(14)

(15)

(16)

GLM165-22

3601K72S10

2 x 1.5V (AA)

LASER RADIATION.

DO NOT STARE INTO

BEAM. CLASS 2

LASER PRODUCT.

RAYONNEMENT

LASER. NE RE-

GARDEZ PAS DI-

RECTEMENT DANS

LE FAISCEAU. PRO-

DUIT LASER DE

CLA SSE 2 .

IEC 60825-1:2014

< 1 mW, 635 nm

Robert Bosch Tool Corp.,

Mount Prospect, IL

Made in Malaysia

(25)

(24)

(26)

(27)

-5-

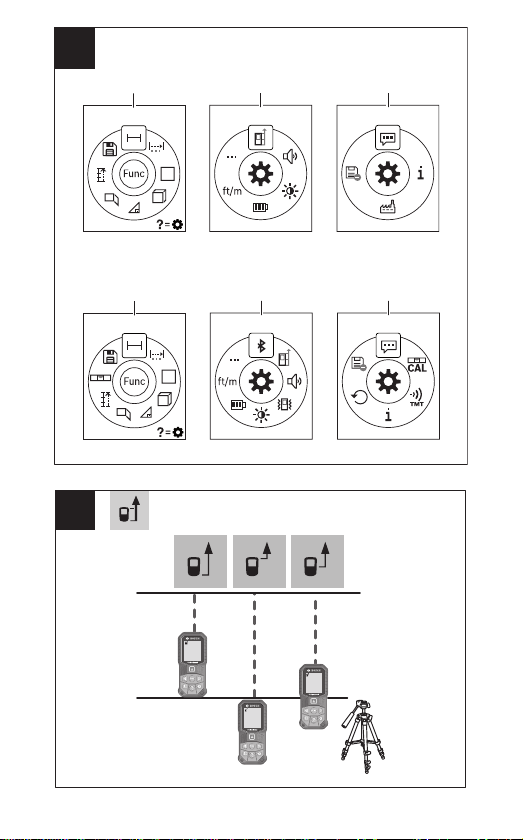

1/x

(i) (j) (k)

GLM165-27C

GLM165-22

-6-

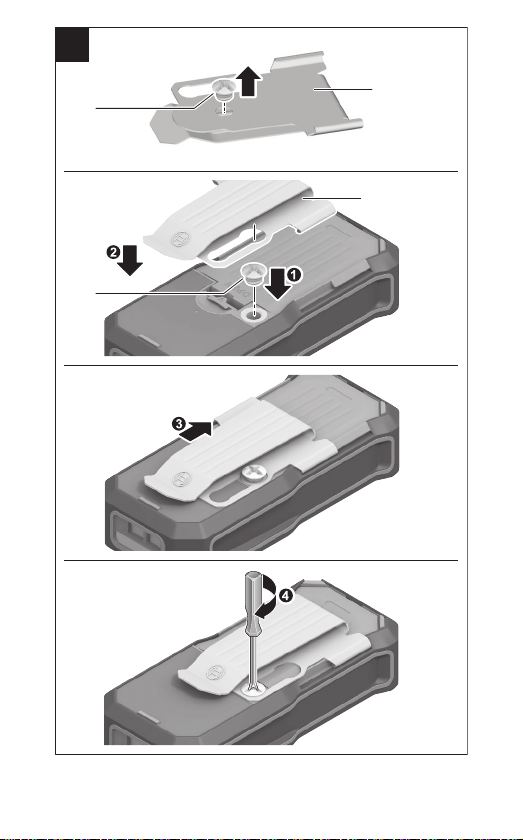

(17)

(18)

(17)

-7-

GLM50C

Professional

(17)

(18)

(19)

(20)

(21)

(22)

(23)

1.600.A01.6A8

-8-

Safety Symbols

The definitions below describe the level of severity for

each signal word. Please read the manual and pay

attention to these symbols.

This is the safety alert

symbol. It is used to alert

you to potential personal

injury hazards. Obey all

safety messages that follow

this symbol to avoid possible

injury or death.

DANGER indicates a

hazardous situation which,

if not avoided, will result in

death or serious injury.

WARNING indicates a

hazardous situation which, if

not avoided, could result in

death or serious injury.

CAUTION indicates a

hazardous situation which, if

not avoided, could result in

minor or moderate injury.

-9-

Read all instructions. Failure to

follow all instructions listed below

may result in hazardous radiation exposure, electric

shock, ﬁre and/or serious injury.

The term “laser measure” in the warnings listed below

refers to your battery-operated (cordless) laser mea-

suring tool.

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTURE REFERENCE

The following label is on your laser

measure for your safety. ALWAYS BE

AWARE of its location when using the

laser measure.

DO NOT direct the laser beam

at persons or animals and do

not stare into the laser beam

yourself. This laser measure

produces class 2 laser radia-

tion and complies with 21 CFR 1040.10 and 1040.11

except for conformance with IEC 60825-1 Ed. 3.,

as described in Laser Notice No. 56, dated May 8,

2019.” This can lead to persons being blinded.

DO NOT stare directly at the laser beam or project

the laser beam directly into the eyes of others. Seri-

ous eye injury could result.

DO NOT place the laser measure in a position that

may cause anyone to stare into the laser beam inten-

tionally or unintentionally. Serious eye injury could

result.

DO NOT operate the laser measure around children

or allow children to operate the laser measure. Seri-

ous eye injury could result.

ALWAYS: Make sure that any bystanders in the vicin-

ity of use are made aware of the dangers of looking

directly into the laser measure.

Never aim the beam at a workpiece with a reﬂective

surface. Bright shiny reﬂective sheet steel or similar

General Safety Rules

LASER RADIATION.

DO NOT STARE INTO

BEAM. CLASS 2

LASER PRODUCT.

RAYONNEMENT

LASER. NE RE-

GARDEZ PAS DI-

RECTEMENT DANS

LE FAISCEAU. PRO-

DUIT LASER DE

CLASSE 2.

IEC 60825-1:2014

< 1 mW, 635 nm

-10-

reﬂective surfaces are not recommended for laser

use. Reﬂective surfaces could direct the beam back

towards the operator.

Use of controls or adjustments or performance of

procedures other than those speciﬁed herein may

result in hazardous radiation exposure.

DO NOT use any optical tools such as, but not limited

to, telescopes or transits to view the laser beam. Se-

rious eye injury could result.

DO NOT leave the laser measure “ON” unattended in

any operation mode. ALWAYS turn the laser measure

“OFF” when not in use. Leaving the laser measure

“ON” increases the risk of someone inadvertently star-

ing into the laser beam.

DO NOT operate the laser measure in combustible

areas such as in the presence of ﬂammable liquids,

gases or dust.

Do not use the laser viewing glasses as safety gog-

gles. The laser viewing glasses are used for improved

visualization of the laser beam, but they do not protect

against laser radiation.

Do not use the laser viewing glasses as sun glasses

or in traﬃc. The laser viewing glasses do not aﬀord

complete UV protection and reduce color perception.

ALWAYS position the laser measure securely. Dam-

age to the laser measure and/or serious injury to the

user could result if the laser measure falls.

Take care to recognize the accuracy and range of the

laser measure. Measurement may not be accurate if

used beyond the rated range of the laser measure.

DO NOT remove or deface any warning or caution

labels. Removing labels increases the risk of exposure

to laser radiation.

Battery tool use and care

Recharge only with the charger speciﬁed by the man-

ufacturer. A charger that is suitable for one type of

battery pack may create a risk of ﬁre when used with

another battery pack.
