Bosch Plena PLE-1CS Guida di riferimento

Plena Call Station

Quick Reference Card

PLE-1CS

Guide de Référence Rapide

PLE-1CSfr

Kurzanleitung

PLE-1CS

Beknopte Handleiding

PLE-1CS

Guía de Referencia Rápida

PLE-1CS

Guida Rapida

PLE-1CS

Quick Reference Card

PLE-1CS

Bosch Security Systems | 2007-10 | PLE-2MA120-EU, PLE-2MA240-EU en

Plena Mixer Amplifier | Installation and User Instructions | Connections and settings en | 16

4.1.2 Priority microphone (input 1)

The priority microphone (or a generic call station) that

can be used with push to talk (PTT) should be

connected to “microphone/line 1 input”. The PTT

mode can be activated by setting the DIP switch (4) at

the rear of the unit. Microphone/line 1 input has

priority over all other microphone/line inputs.

If, however, the “Tel. emergency/100V input” receives a

signal, all inputs including microphone/line 1 input will

be overruled.

The microphone/line 1 input has two connectors wired

in parallel:

• an XLR connector (for a 3 pole microphone), and

• a Euro style pluggable screw terminal connector.

The Euro style pluggable screw terminal connector has

a trigger input, which can be used in combination with

the Euro and XLR connector.

The priority microphone can be connected to the

microphone/line 1 input as follows:

• XLR connector only. See figure 4.2.

• XLR connector with trigger. See figure 4.3.

• Euro connector with trigger. See figure 4.4.

• Euro connector only (without trigger).

Set the DIP switch settings next to the XLR connector

for microphone/line 1, as required. See section 4.3.

Note

If a microphone is connected to both the

XLR connector and the Euro connector for the

microphone/line 1 input, the input signals will be

added together.

Note

When connecting an unbalanced line level

(200 mV) signal to the microphone/line input,

connect it as follows: Signal to pin 2, pin 1 and

pin 3 to ground.

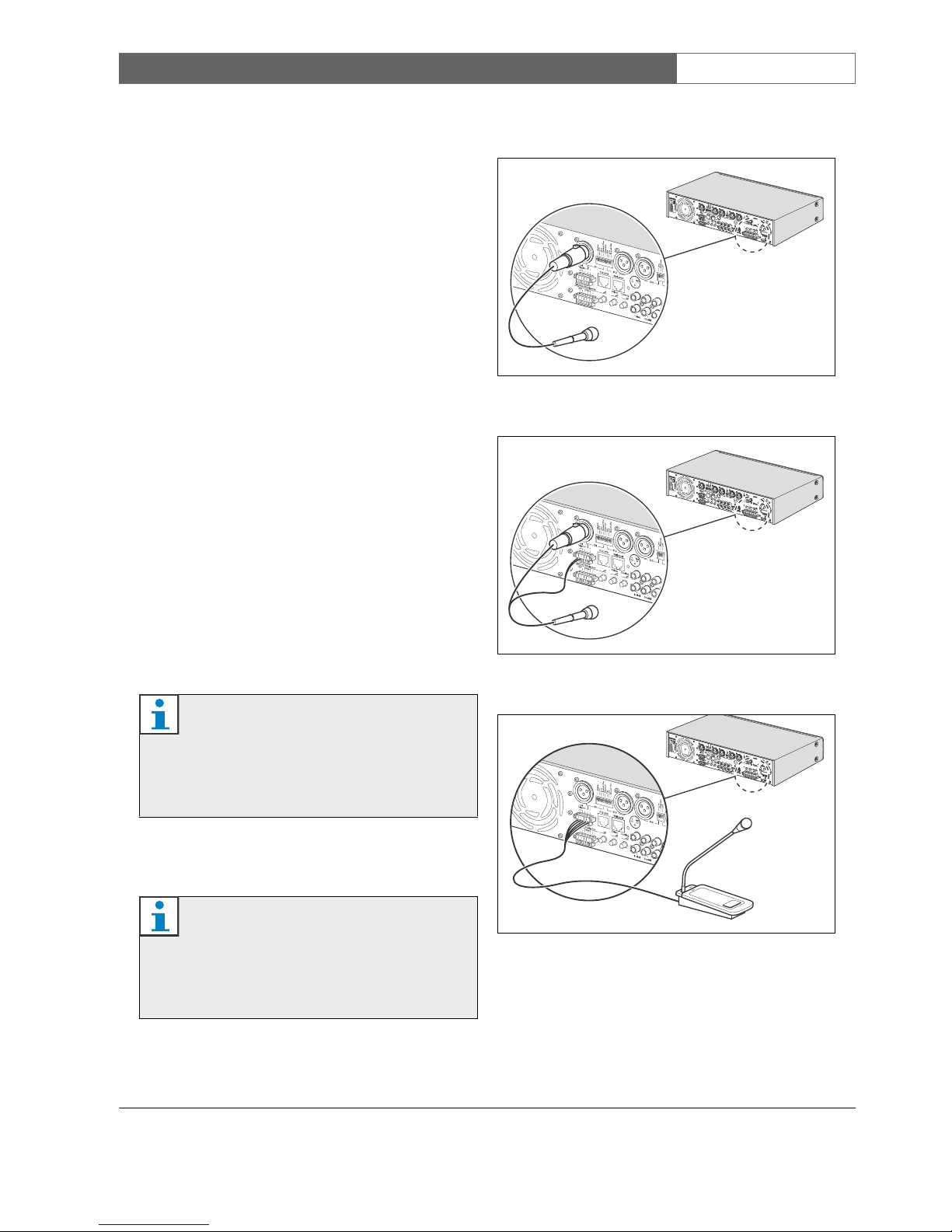

figure 4.2: XLR connector only

figure 4.3: XLR connector with trigger

figure 4.4: Euro connector with trigger

Installation/configuration notes

S2S3

1 2 3 4 5

Circuit diagram

Parts included

Quantit

Component

1PLE-1CS PLENA All Call Call Station

Technical specifications

Electrical

Phantom power supply

Voltage range 12 to 48 V

Current consumption <8 mA

Performance

Sensitivity 0.7 mV @ 85 dB SPL (2 mV/Pa)

Maximum input sound level 110 dB SPL

Distortion <0.6% (maximum input)

Input noise level (equiv.) 28 dB SPLA (S/N 66 dBA ref. 1 Pa)

Frequency response 100 Hz to 16 kHz

Output impedance 200 ohm

Mechanical

Base dimensions (H x W x D) 40 x 100 x 235 mm

(1.57 x 3.97 x 9.25 in)

Weight Approx. 1 kg (2.2 lb)

Color Charcoal with silver

Stem length with mic. 390 mm (15.35 in)

Cable length 2 m (6.56 ft)

Environmental

Operating temperature -10 ºC to +45 ºC (14 ºF to +113 ºF)

Storage temperature -40 ºC to +70 ºC (-40 ºF to

+158 ºF)

Relative humidity <95%

Ordering information

PLE‑1CS Plena All‑Call Call Station

All-zone call station with 2 m cable and lockable Euro

style connector.

Order number PLE-1CS

2 | PLE‑1CS Plena All‑Call Call Station
