The Bowflex Xtreme®2 SE

Home Gym

Assembly Manual

0 01-7 0 3 3 - 0 4 0111.D

Important Safety Instructions .........................1

Before Assembly ...................................2

Parts Reference Guide ...............................3

Hardware Guide ....................................5

Assembly Guide .....................................6

Cable & Pulley Routing............................15

Contacts ..........................................24

Table of Contents

Congratulations on your commitment to ﬁtness and your purchase of the Bowﬂex Xtreme® 2 SE home

gym. Before assembling your Bowﬂex Xtreme® 2 SE home gym please read the Assembly Manual and

follow the Important Safety Precautions. For information on how to use your Bowﬂex Xtreme® 2 SE home

gym, refer to the Bowﬂex Xtreme® 2 SE Owner’s Manual.

Bowﬂex Xtreme®2 SE Assembly Manual 1

Important Safety Instructions

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Read and understand all warnings on this machine.

Carefully read and understand the Assembly Manual.

Before using this equipment, obey the following warnings:

• Keep bystanders and children away from the product you are assembling at all times.

• Do not assemble this machine outdoors or in a wet or moist location.

• Make sure assembly is done in an appropriate work space away from foot traffic and exposure to bystanders.

• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly

steps involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.

• Set up this machine on a solid, level, horizontal surface.

• Do not try to change the design or functionality of this machine. This could compromise the safety of this

machine and will void the warranty.

• If replacement parts are necessary use only genuine Nautilus® replacement parts and hardware. Failure to

use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void

the warranty.

• Do not use until the machine has been fully assembled and inspected for correct performance in accordance

with the Owner’s Manual.

• Read and understand the complete Owner’s Manual supplied with this machine before first use. Keep the

Owner’s and Assembly Manuals for future reference.

• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury.

2Bowﬂex Xtreme®2 SE Assembly Manual

Before Assembly

Please take the time to read all assembly instructions

before attempting to assemble your Bowflex Xtreme®

2 SE home gym. Select where you are going to locate

your machine carefully. The best place for your

Bowflex Xtreme®2 SE home gym is on a hard, level

surface.

Select a workout area that provides a minimum

clearance behind the rod box of 0.5 ft (15 cm) and a

total width of 6.5 ft (2.0 m). Allow a minimum of 3.0 ft

(0.9 m) free space in front of the machine.

Every effort has been made to provide you with a clear

and accurate assembly manual. Should you find any

inconsistencies, have questions about your Bowflex

Xtreme®2 SE or have suggestions for improving our

manuals, please call 800-628-8458 for assistance.

Basic Assembly Principles

Here are a few basic tips that will make your assembly of

the Bowflex Xtreme® 2 SE home gym quick and easy. By

using these principles, you can simplify each process and

save yourself extra time and effort.

1. To make the assembly process go faster, gather the

pieces you need for each step and thoroughly read the

assembly instructions for that step prior to starting

assembly for the step.

2. When tightening a locknut on a bolt, use a combination

wrench to grip the locknut and ensure that it is

fastened securely.

3. When attaching two pieces, gently lift and look

through the bolt holes to help guide the bolt through

the holes.

4. As a general rule, and for all bolts and nuts on your

Bowflex Xtreme®2 SE home gym, turn bolts or nuts

toward the right (clockwise) to tighten and left

(counterclockwise) to loosen.

IMPORTANT: LEAVE ALL CABLES COILED AND WRAPPED UNTIL YOUR

BOWFLEX XTREME®2 SE HOME GYM IS FULLY ASSEMBLED.

Bowﬂex Xtreme®2 SE Assembly Manual 3

Parts Reference Guide

NOTE:

CABLES ARE NOT SHOWN FOR CLARITY

13 25

33 10

12 49

34 44

32 39

30 29

4Bowﬂex Xtreme®2 SE Assembly Manual

Parts Reference Guide

ITEM QTY DESCRIPTION

11CONNECTOR, SQUAT FRAME LEFT

21CONNECTOR, SQUAT FRAME RIGHT

31SQUAT FRAME LEFT

41SQUAT FRAME RIGHT

51BASE FRAME, LEFT

61BASE FRAME, RIGHT

71BASE REAR CROSSMEMBER

81SQUAT PLATFORM

91AB CRUNCH BRACKET

10 1REAR LAT CROSSMEMBER

11 1LAT CROSS BAR ASSEMBLY

12 1UPPER LAT TOWER TUBE

13 1PULLEY ARM ASSEMBLY, RIGHT

14 1PULLEY ARM ASSEMBLY, LEFT

15 1BFX ROD PACK 210#

16 1LOWER LAT TOWER

17 1SEAT BACK PAD

18 1LOCK KNOB

19 1SEAT BACKBONE ASSEMBLY

20 1SEAT BOTTOM

21 1SEAT SUPPORT RAIL

22 4PULLEY SLIDER, 4” w/o DECAL

23 2PULLEY, PAIR FLOATING

24 1LAT DBL PULLEY / HOUSING

25 2PULLEY SLIDER, 4” w/ DECAL

26 1LEG EXTENSION BACKBONE

27 1LEG EXTENSION PIN

28 2TUBE, FOAM ROLLER

29 4PAD, FOAM ROLLER

30 4END CAP 3/4”

ITEM QTY DESCRIPTION

31 3FLAT WASHER 0250 REGULAR BLKZ

32 35 FLAT WASHER 0375 REGULAR BLKZ

33 4FLAT WASHER 0500 WIDE BLKZ

34 4FLAT WASHER 0500 REGULAR BLKZ

35 6FLAT WASHER 0313 REGULAR BLKZ

36 3PHILLIPS SCREW #10-24x1

37 2BUTTON HEAD SCREW 0.375-16x3

38 1BUTTON HEAD SCREW 0.375-16x5

39 25 BUTTON HEAD SCREW 0.375-16x0.75

40 2BUTTON HEAD SCREW 0.500-13x5.25

41 2BUTTON HEAD SCREW 0.3125-18x2.5

42 4BUTTON HEAD SCREW 0.3125-18x0.75

43 2THREADED STUD 0.500-13x9.5

44 6NYLOCK NUT 0.500-13

45 5NYLOCK NUT 0.375-16

46 1ROD CABLES ASSEMBLY, PR

47 1SQUAT CABLES ASSEMBLY, PR

48 1SEAT LOCKING PIN

49 2BUTTON HEAD SCREW 0.375-16x2.75

50 1AB CRUNCH CROSSBAR

Bowﬂex Xtreme®2 SE Assembly Manual 5

Hardware Guide

Tools you will need:

You will need the tools listed below to complete the assembly of your Bowflex Xtreme®2 SE home gym. If

you don’t have these tools, you can find them at any hardware or department store.

• 7/16"Combination Wrench

• 9/16"Combination Wrench

• Adjustable Wrench

• Socket Wrench Set

• Phillips Screw Driver

• Flat Blade Screw Driver

• Rubber Mallet

• Utility Knife

• Scissors

• Hex wrenches (included)

Hardware card layout (NOTE: Drawings not to scale.)

39 36 31 32

35 42 45

Cable End Stop Ball

Snap Hook

5/16” Hex Wrench

7/32” Hex Wrench

3/16” Hex Wrench

6Bowﬂex Xtreme®2 SE Assembly Manual

Assembly Guide

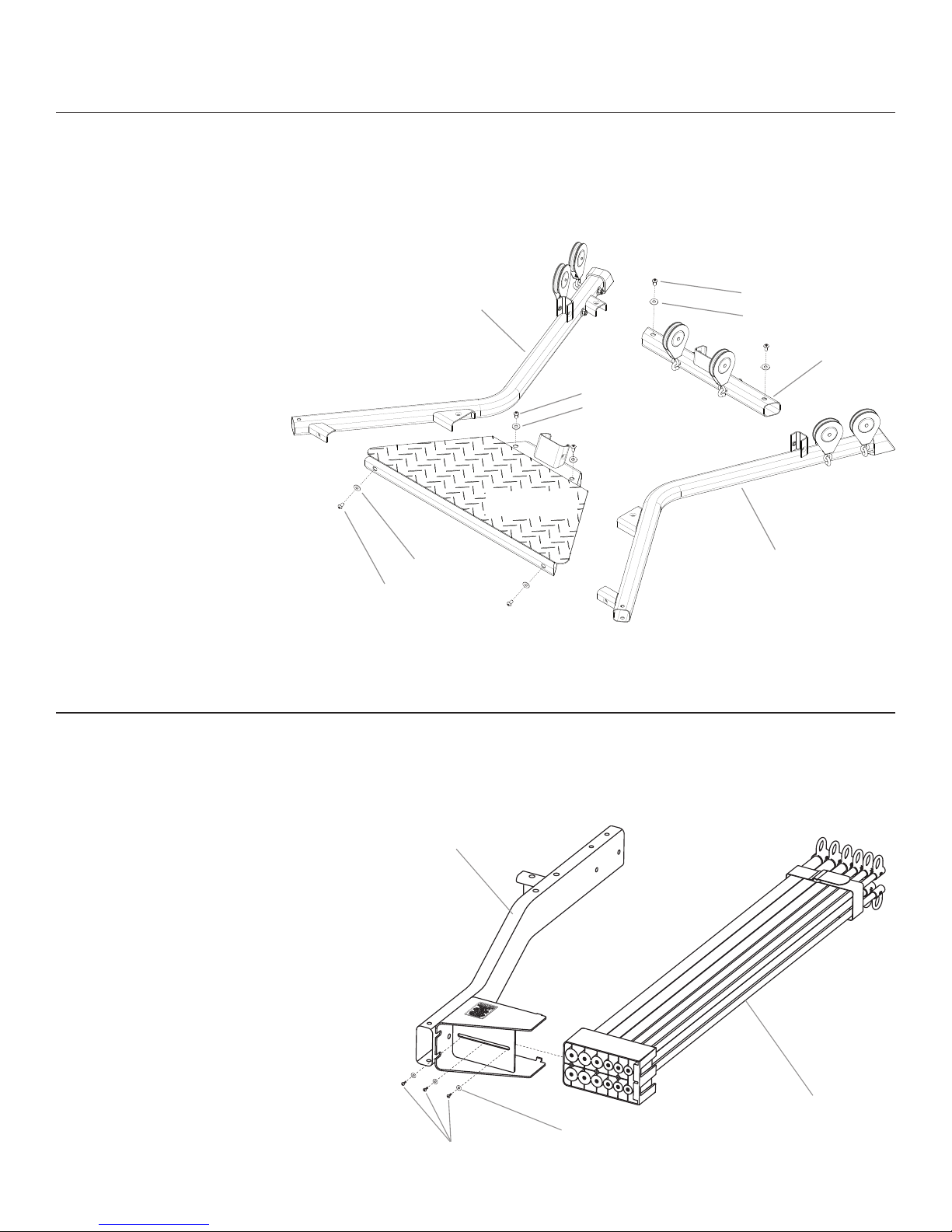

Step 1 Base Frame Assembly

Parts:

• Base Frame • Right Frame Rail

• Left Frame Rail • Rear Cross Member

Hardware:

• 6 Button Head Screws ( 3/8" X 3/4")

• 6 Flat Washers (3/8")

Too l : 7/32" Hex Wrench

1-1 Lay all parts on floor as

shown.

1-2 Insert Frame Rail

connectors into the

Base Frame and

Rear Cross Member.

Secure with screws

and washers as shown.

Finger tighten screws

at this time.

Step 2 Lower Lat Tower Assembly

Parts:

• Lower Lat Tower Frame

• Rod Box with Power Rod® Pack

Hardware:

• 3 Phillips Screws (#10 X 1")

• 3 Flat Washers (1/4")

Tool: Phillips Screw Driver

2-1 Lay parts on floor as shown. Firmly

slide Rod Box into Lower Lat Tower

Frame.

2-2 Fasten the Rod Box to the

Lower Lat Tower Frame with

screws and washers as shown.

Tighten screws until snug. Self Threading

Screws

Flat Washers

Rod Box w/ Rods

Lower Lat Tower Frame

Rear Cross

Member

Right Frame Rail

Button Head Screw

Flat Washer

Base Frame

Button Head Screw

Left Frame Rail Button Head Screw

Flat Washer
