Mikrofon USB

Buku Manual

BY-PM700

1

Pengenalan

Isi dalam Paket

• BY-PM700 Microphone

• USB Cable

• User Manual

Terima kasih telah memilih BOYA!

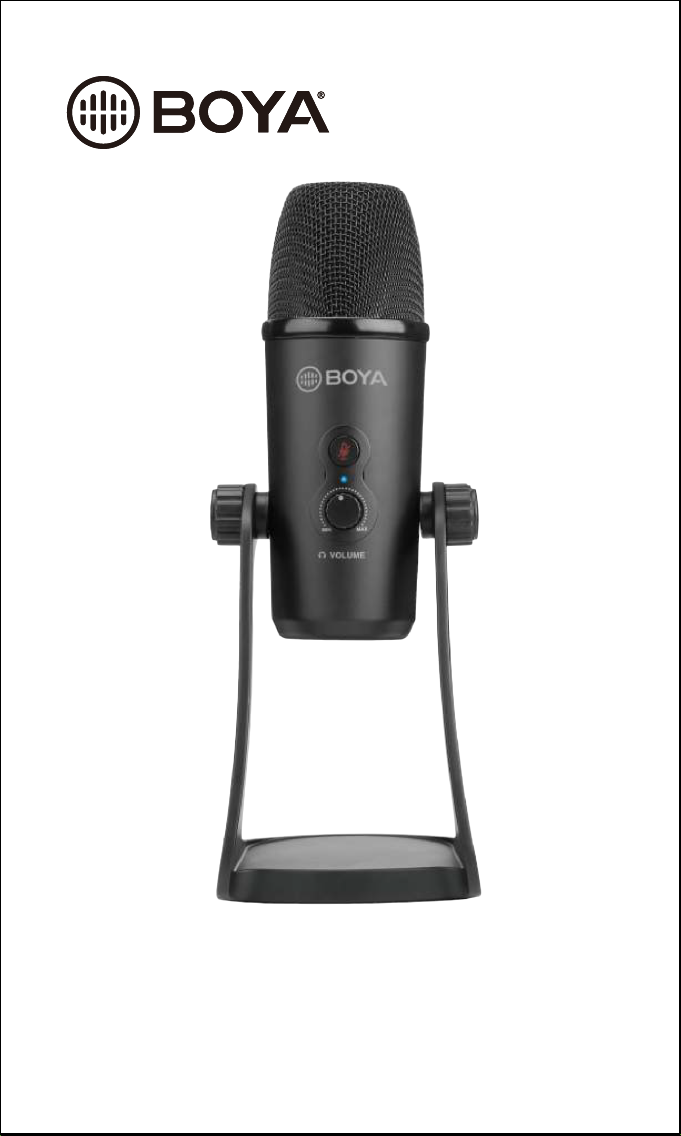

BOYA BY-PM700 merupakan mikrofon condenser USB yang cocok

digunakan dengan komputer berbasis Windows maupun iOS. Pola

rekamnya dapat diubah menjadi omni-directional, cardioid, stereo,

maupun bi-directiona, cocok digunakan dalam berbagai kegiatan seperti

perekaman interview, conference call, perekaman musik, podcast, dll.

BY-PM700 dapat menangkap suara dalam resolusi 16bit/48kHz, juga

disertai dengan kontrol volume, tombol mute, dan output headphone

tanpa latancy.

BY-PM700 berbahan metal yang kokoh, termasuk desk stand yang dapat

digunakan untuk mengatur arah mikrofon, juga untuk menyimpan

mikrofon ketika akan disimpan maupun dipindahkan.

2

Bagian

Rear

Bottom

Front

1

2

3

5

4

6

7

8

9

10

11

14

12 13

3

Bagian

1. Tri-Capsule Array

2. Power Indicator

3. Mute Button

Press mute button, when LED indicator is red, muting function on.

4. Headphone Volume Control

5. Screws

6. Desk Stand

7. Microphone Gain

8. Stereo Pattern

Pick up the sound from left and right side, it is ideal for capturing a

realistic, general sound.

9. Cardioid Pattern

Maximizes the rejection of sound coming from the sides and rear of the

mic and can be used as a directional microphone to capture full, rich,

natural-sounding audio for podcast, speech, dialog, instrument etc.

10. Omnidirectional Pattern

Pick up sound equally from all directions, capturing a natural blend of

voice and ambiance with low sensitivity to wind and handling noise, as

well as to vocal plosives.

11. Bi-directional Pattern

Pick up sound at the front and rear of the microphone, while sounds to

an interview between two people.

12. Mini USB Connection

13. Headphone Output

14. 5/8” screw

4

Fitur:

Spesikasi:

• Compatible with Windows and Mac Computers

• Triple-capsule design

• Stereo, cardioid, omnidirectional, and bi-directional polar patterns

• 16 Bit/48 kHz Resolution

• Muting function

• 1/8" Headphone Monitoring Jack

• Latency-Free Monitoring

• Desktop Stand

• Durable all metal construction

• Intergrated USB cable

14 mm(0.55")

20-20,000Hz

-45dB±3dB@1KHz

5V/150mA

48 kHz

16 Bit

Impedance: 16ohms

Power output(RMS): 130mW

Frequency Response：15-20,000Hz

Micro USB

112 x 108 x 200mm(4.4 x 3.8 x 7.9”)(Min.)

112 x 108 x 295mm(4.4 x 3.8 x 11.6”) (Max.)

1042g(36.8oz)

Diaphragm:

Frequency Response：

Sensitivity：

Power Consumption:

Sample Rate:

Bit Depth:

Plug:

Size:

Weight:

5

Cara Penggunaan

1. Connect microphone with a USB port on your computer using the

supplied USB cable.

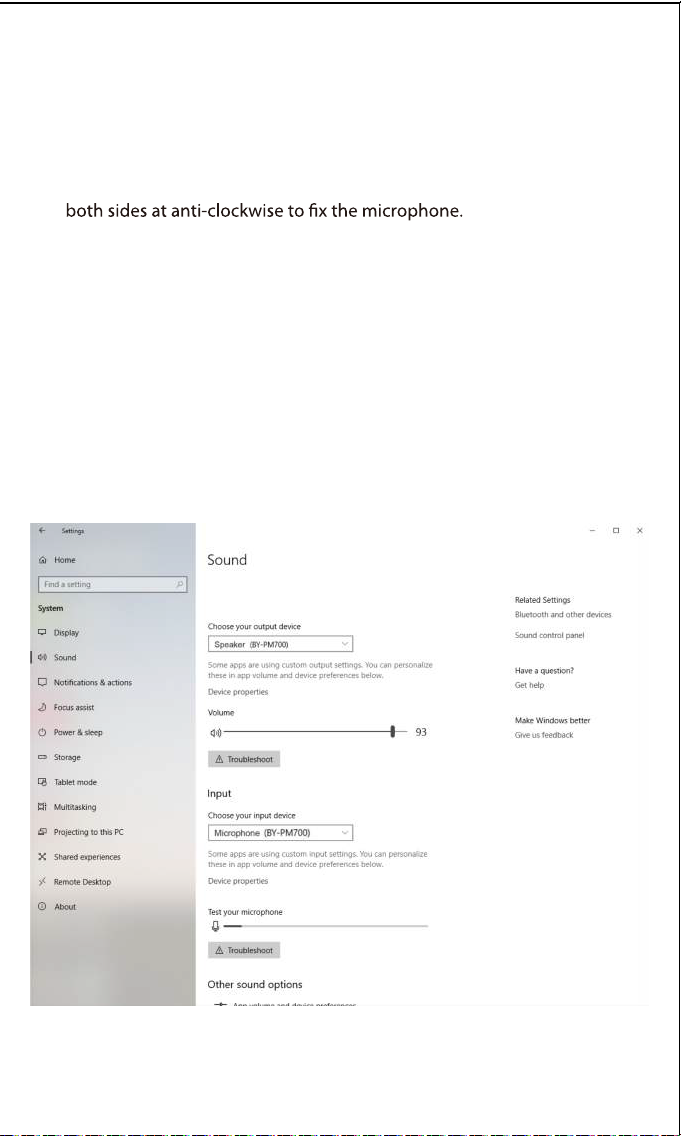

2. Go to “Setting”, choose “Sound” as shown below.

3. Select “Speaker BY-PM700” as Output device.

4. Select “Microphone BY-PM700” as Input device.

1. Unscrew the knobs of both sides at anti-clockwise.

2. Adjust the microphone at your desired angle, then screw the knobs of

3. Plug the mini USB of supplied cable into the USB port of microphone,

and conect the other plug into the available USB prot of your computor.

4. Connect your headphone to 3.5mm headphone output if needed.

Pemasangan ke Windows 10

6

Pemasangan ke Windows 8

1. Connect microphone with a USB port on your computer using

the supplied USB cable.

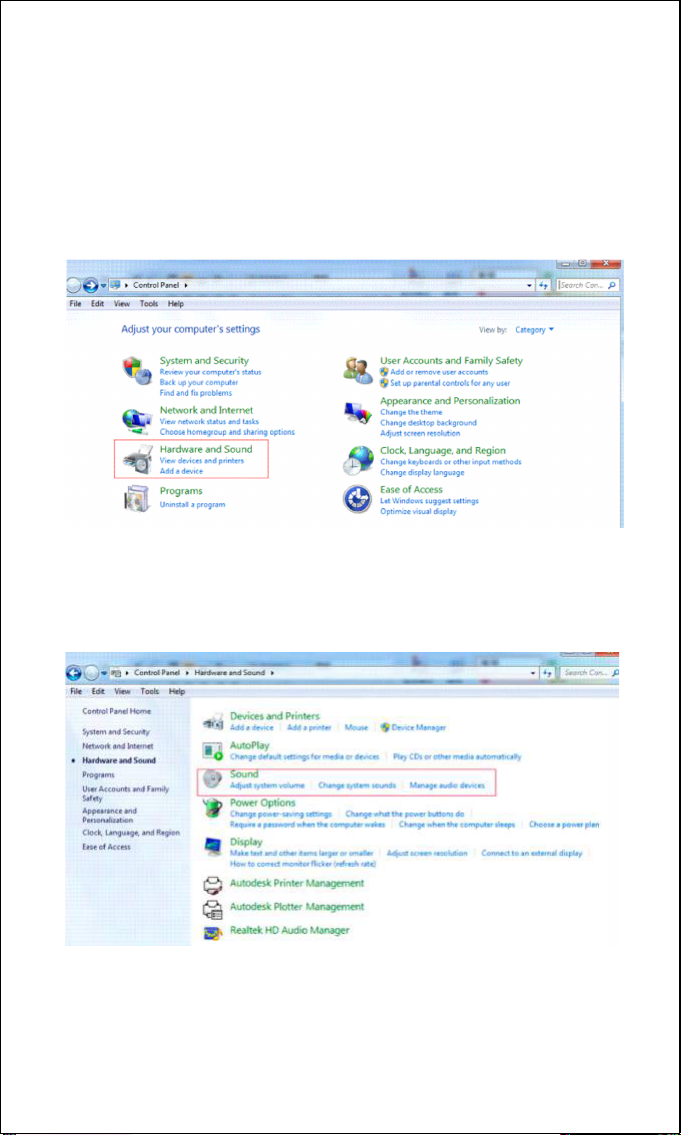

2. From the “Setting Menu”, select the “Control Panel”.

3. Go to “Control Panel” , select “Hardware and Sound”

4. Select “Sound”

7

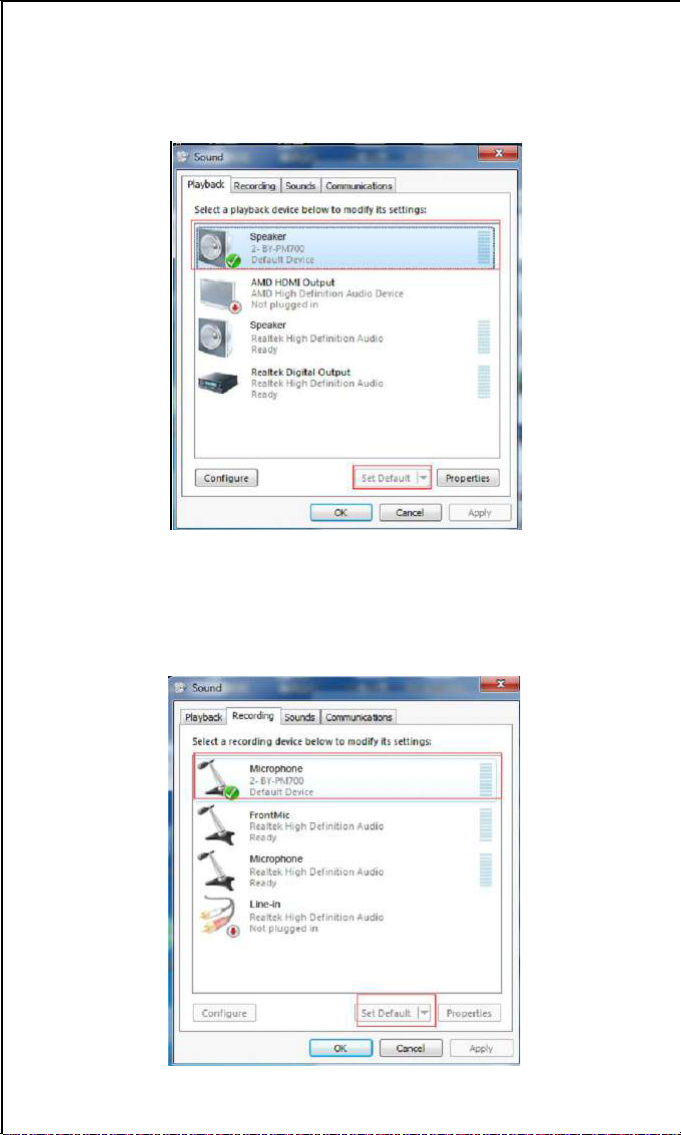

5. Select “Speaker BY-PM700” as the default device in the “Sound”,

under “Playback” manu.

6. Select “Microphone BY-PM700” as the default device in the “Sound”,

under “Recording” manu.

8

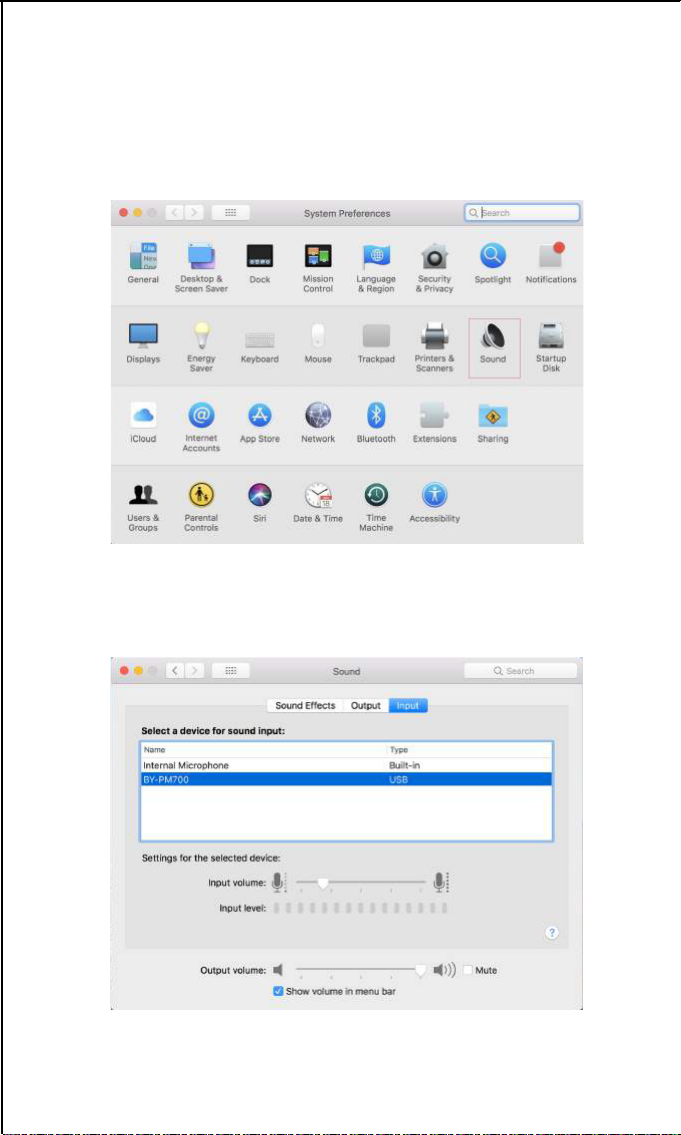

Pemasangan ke iOS Apple

1. Connect the BOYA BY-PM700 to an un-used USB port on your computer.

2. Go to Apple Icon-->System Preferences-->Sound Icon.

3. Select “BY-PM700” under “Input” tab.

9

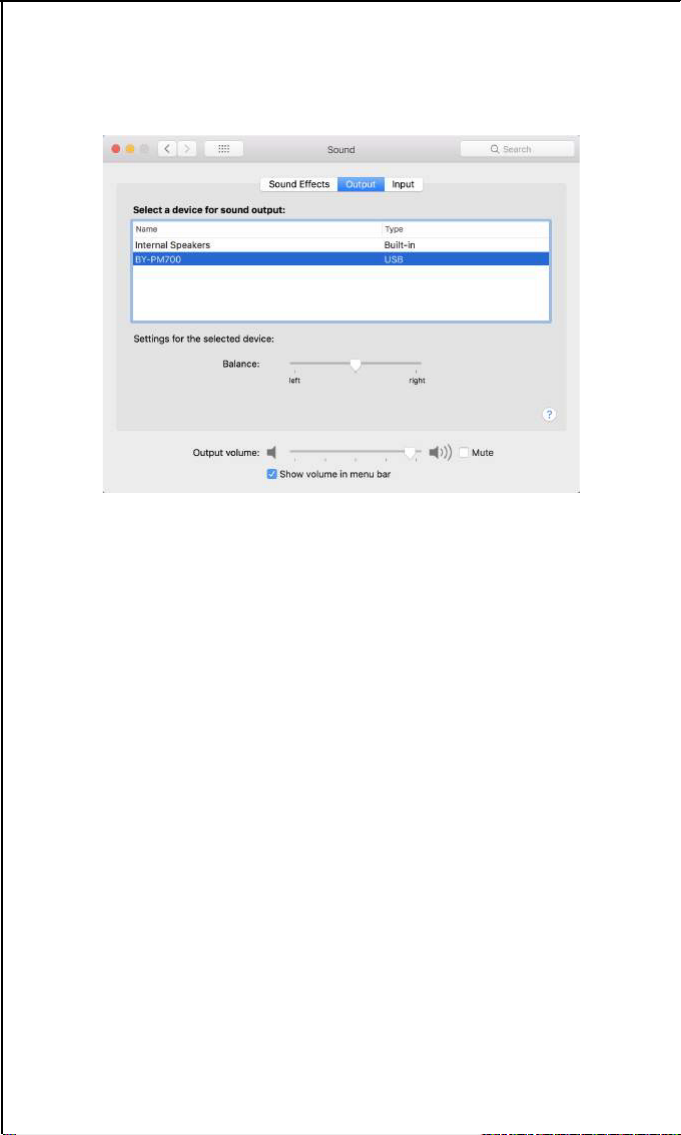

4. Select “BY-PM700” under “Output” tab.
