Boya BY-WM3D Manuale utente

BY-WM3D

BY-WM3U

INSTRUCTION MANUAL

2.4 GHz

Wireless

Microphone

2.4GHz无线麦克风套装

使用说明

Packling Lists

Thank you for purchasing BOYA!

BY-WM3 is a 2.4GHz wireless microphone system, all-inclusive

solution for making it ideal for capturing audio clear, intelligible

audio delity to your smartphones, tablets, DSLR cameras,

consumer camcorders, PCs etc.

What's special about it is that instead of charging the device via

a cable, like devices normally do, miniature itself can neatly be

placed into the inside of the charging case with a quick recharging

for a longer working time. The case provides 1000mAh of charging

power, and it's rechargeable via a USB-C port when it's out of power.

Easy-to-carry feature is designed for videographers, content

creator, video hobbyists, avid vlogger. When you are plugged

in and powered on, it's set and ready so your focus can stay on

your content.

- Charging Case

- Clip-on Minature Transmitter

- Professional Compact Receiver

- MFi Certied Lightning Adapter

- 3.5mm TRS Adapter

- 3.5mm TRRS Adapter

- Foam Windshield

- Fur windscreen

- 30cm (11.8') Type-C to USB-A Charging Cable

BY-WM3D：

- Charging Case

- Clip-on Minature Transmitter

- Professional Compact Receiver

- Type-C Adapter

- 3.5mm TRS Adapter

- 3.5mm TRRS Adapter

- Foam Windshield

- Fur windscreen

- 30cm (11.8'') Type-C to USB-A Charging Cable

BY-WM3U：

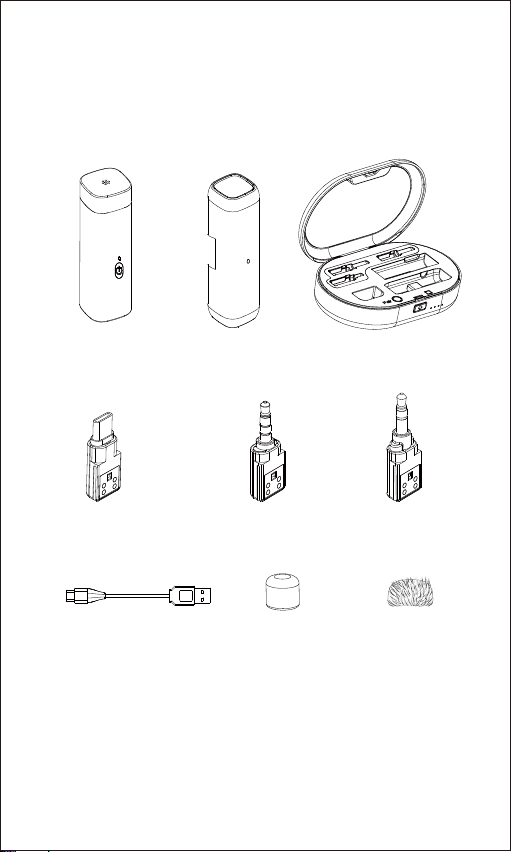

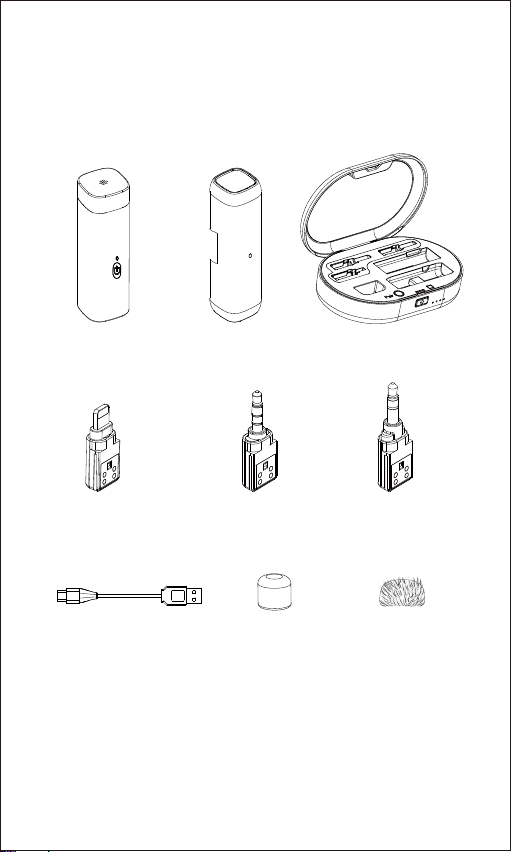

BY-WM3D consists of one clip-on transmitter,

a portable receiver, charging case and their

accessories as following:

Transmitter

MFi Certicated

Lightning Adapters

Foam Windshield Fur windscreenType-C to USB-A

Charging Cable

TRS Audio

Adapters

TRRS Audio

Adapters

Receiver Charging Case

BY-WM3U consists of one clip-on transmitter,

a portable receiver, charging case and their

accessories as following:

TRS Audio

Adapters

TRRS Audio

Adapters

Type-C

Adapters

Transmitter Receiver Charging Case

Foam Windshield Fur windscreenType-C to USB-A

Charging Cable

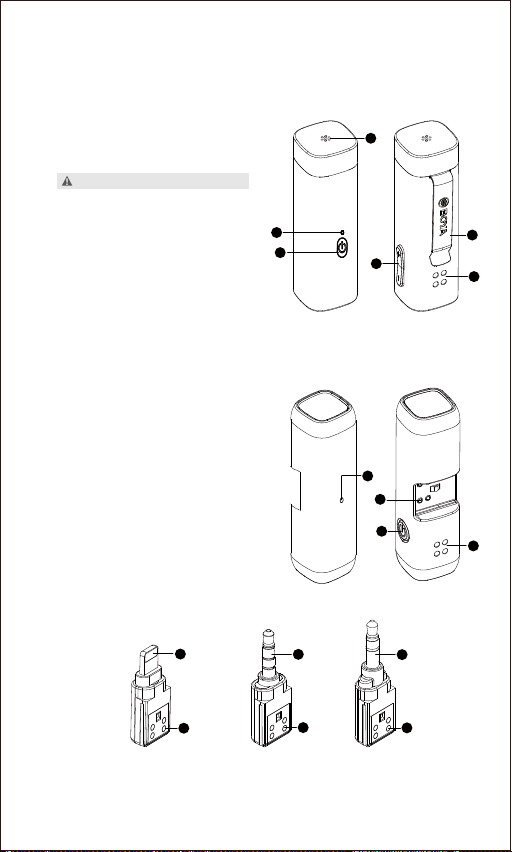

Product Structure:

1. Built-in Microphone

2. Power&Pairing Indicator

3. Power Button

4. +/- Button

5. Mic Clip

6. Charging Contacts

NOTE:

For optimal sound detection,

do not hold your hand against

the microphone head.

7. Power&Pairing Indicator

8. Contacts

9. Power Button

10. Charging Contacts

11. M Certicated

Lightning Adapters

- For iPhone, iPad, iPod

12. TRRS Audio Adapters

- For smartphone, laptop,

tablet and others

13. TRS Audio Adapters

- For DSLR, camcorder, recorder

14. Contacts

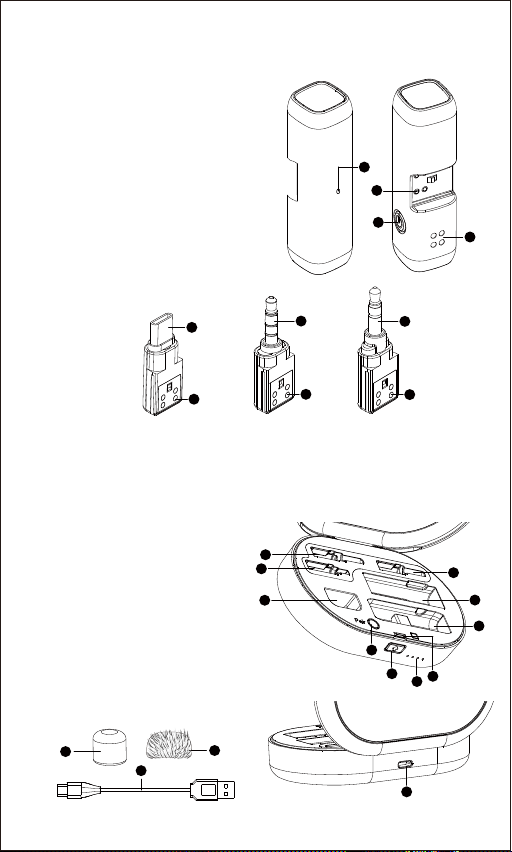

BY-WM3D：

Transmitter

Receiver

1. Built-in Microphone

2. Power&Pairing Indicator

3. Power Button

4. +/- Button

5. Mic Clip

6. Charging Contacts

NOTE:

For optimal sound detection,

do not hold your hand against

the microphone head.

15. Groove for TRS Audio Adapters

16. Groove for M Certicated Lightning Adapters

17. Groove for TRRS Audio Adapters

18. Groove for Foam Windfoam

19. Groove for Transmmitter

20. Groove for Receiver

21. Pair Button

22. Open Button

23. Battery Capacity Indicator

24. Catch

25. Charging Port (DC 5V)

26. Foam Windshield

27. Fur windscreen

28. (11.8'') 30cm Type-C to

USB-A Charging Cable

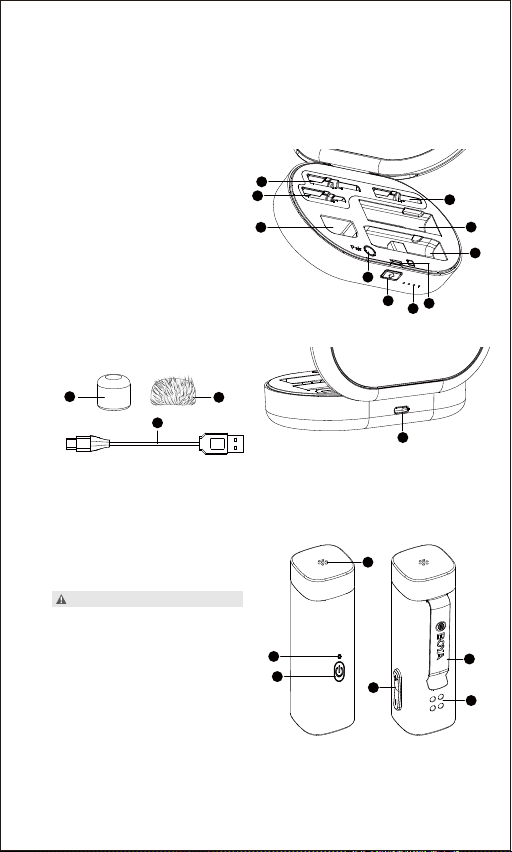

BY-WM3U：

Transmitter

Charging Case

23 24

7. Power&Pairing Indicator

8. Contacts

9. Power Button

10. Charging Contacts

11. Type-C Adapters

12. Contacts

13. TRRS Audio Adapters

- For smartphone, laptop,

tablet and others

14. TRS Audio Adapters

- For DSLR, camcorder, recorder

Receiver

15. Groove for TRS Audio Adapters

16. Groove for Type-C Adapters

17. Groove for TRRS Audio Adapters

18. Groove for Foam Windfoam

19. Groove for Transmmitter

20. Groove for Receiver

21. Pair Button

22. Open Button

23. Battery Capacity Indicator

24. Catch

25. Charging Port (DC 5V)

26. Foam Windshield

27. Fur windscreen

28. (11.8'') 30cm Type-C to

USB-A Charging Cable

Charging Case

23 24

Status

Power On

Power O

Entering

Pairing Mode

Paired

Successfully

Disconnected/

Outof

Connection

Mode

Low-battery

Warning

Mute On

(TX Only)

Charging

Open/Closed

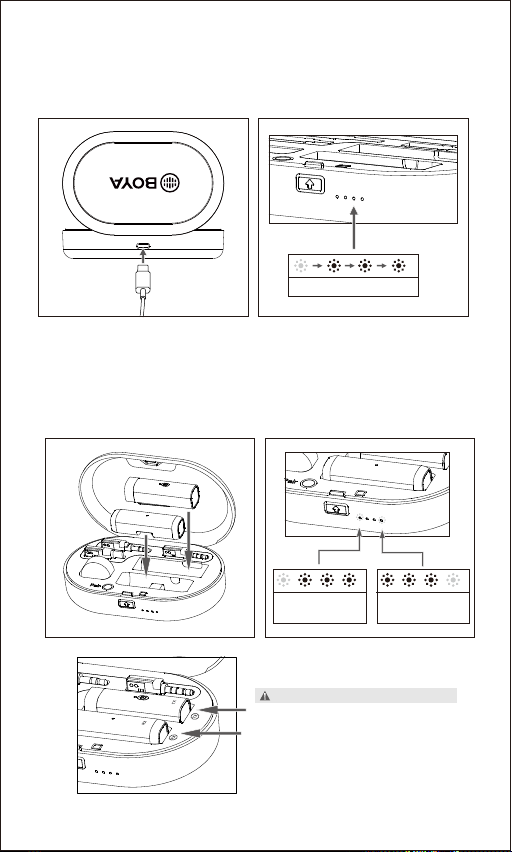

* Please neatly placed the device in the charging case, to ensure that

they can be charged.

Low-battery Warning

Charging

Fully Charged

Current Battery’s Capacity

Flashes White Light

Flashes White Light in Cycle

Lights O

Fully Charged

Lights On

Lights O

Quick Flashing in

Blue Light

Solid Blue Light

Slow Flashing in

Blue Light

Flashes Red Light

Slow Flashing

Red Light

Solid Red Light

Red Lights O

1) Open the cover of case.

2) Long press the power

button of transmitter and

receiver until they turn on.

1) Replace the device to the

case, and close the cover.

2) Long press the power

button of transmitter and

receiver until they turn o.

Quick short press the power

button of transmitter and

receiver twice.

Short press the power button

of transmitter

Operation Indicator

Status Indicator

Transmitter & Receivers’ LED Status

Charging Case’s LED Status Lights

NOTE:

Make sure that transmitter and receiver place

on the right position and direction for charging

successfully as shown above

Charging Indicator (Charging Case)

Flashes White Light in Cycle

Transmitter

Flashes White Light

Receiver

Flashes White Light

Charging Indicator

(Transmitter & Receiver Charging)

Transmitter

Receiver

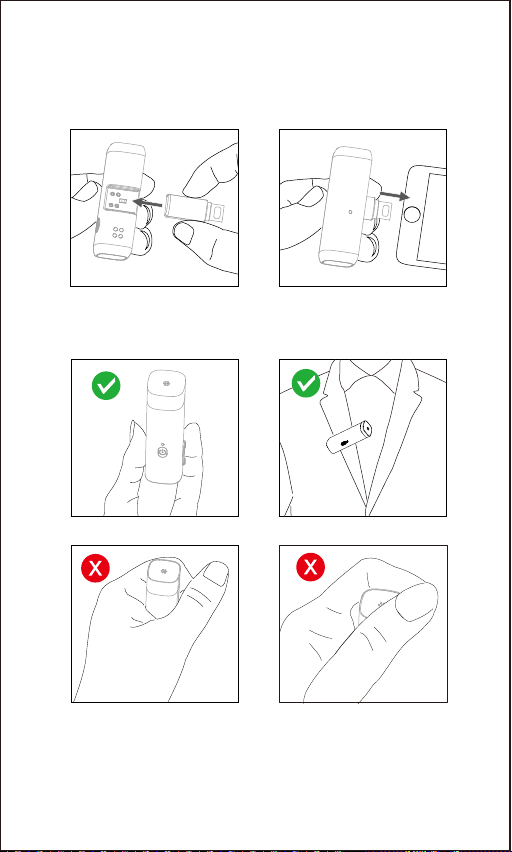

How to use?
