BPC Move
Agitation System
www.bpcinstruments.com
Mobilvägen 10, 223 62 Lund, Sweden
Contact Us :
+46 (0)46 163950
OPERATION AND
MAINTENANCE MANUAL
2
Version 1.0 November 2022
The latest version of this manual can always be downloaded from:
https://bpcinstruments.com/bpc_products/
Any questions related to this document should be directed to:
BPC Instruments AB
Mobilvägen 10
SE-223 62 Lund
Sweden
Telephone: +46 (0)46 163950
Email: info@bpcinstruments.com
Web: https://www.bpcinstruments.com
This document contains proprietary information protected by copyright. No part of this
publication may be redistributed in any form whatsoever or translated into any language
without prior, written permission of BPC Instruments AB.
© 2022 BPC Instruments AB. All rights reserved.
Produced in Sweden.
3
LIST OF CONTENTS
General Information…..………………………………………………………………………………………………
4
Quick Guide………………………………………………………………………………………………………………..
7
Important Notes…………………………………………………………………………………………………………
8
Chapter 01: Overview…………………………………………………………………………………………………
10
Chapter 02: Description and Operation…………………………………………………………………….
11
2.1 BPC Move – Functionalities……………………………………………………………………
11
2.1.1 Operation………………………………………………………………………………..
12
2.1.2 Torque…………………………………………………………………………………….
13
2.1.3 Acceleration…………………………………………………………………………….
13
2.1.4 Advanced…………………………………………………………………………………
13
2.2 BPC Move – Features and Applications…………………………………………………….
14
Chapter 03: Maintenance……………………………………………………………………………………………
15
4
GENERAL INFORMATION
Before operating the BPC® Move (hereafter referred to as “the instrument”, “the system”, “the equipment” or
“BPC® Move” interchangeably) from BPC Instruments AB (hereafter referred to as “BPC Instruments”, “BPC”,
“Bioprocess Control” or “BPC Instruments AB” interchangeably), carefully read this operator manual for the
instrument, any separate instructions for other equipment used together or in conjunction with the instrument
as well as the safety instructions for any and all chemicals used in the process of utilizing the instrument.
Safety Information
When performing experiments with the instrument, always use protective eyewear, gloves, and lab coat. Always
make sure there is adequate ventilation and take proper precautions when handling electrical devices near
water or explosive gases. Make sure to tie back any hanging objects, such as hair and clothing, when working
near rotating or otherwise moving parts.
Do not modify the instrument without the prior consent of the manufacturer. BPC Instruments AB do not assume
responsibility for any errors due to equipment modification.
Do not clean or service the instrument while it is running.
Do not expose the instrument to mechanical vibrations or high frequency radio transmissions.
Never operate the instrument in a way it was not intended.
Never operate the instrument, nor let anyone else operate it, without proper training.
Never use the instrument outside or in environments with parameters outside of the instruments recommended
range.
Never connect additional electrical equipment not supplied by BPC Instruments AB for the express purpose of
using with the instrument. This is true even if the connections can mate.
Always keep the instrument level and on a flat and stable surface. Failing to do so can, among other things,
generate an erroneous gas reading.
Always make sure all safety guards are in place and working before operating the instrument.
Always make sure that all parts are functioning properly immediately after start-up.
Always keep the instrument clean.
Always make sure to have access to relevant chemicals before starting an experiment.
Always dispose of parts and chemicals according to applicable rules in the country of usage.
Periodic maintenance of the instrument and its various accessories is essential. Always make sure they are in
working condition. If service or spare parts are required, please visit https://webshop.bpcinstruments.com or
contact BPC Instruments AB directly or one of its representatives.
Always make sure to connect the power supply so that it is easy to remove from the mains power outlet and so
it doesn’t risk becoming damaged.
5
Limited Warranty
The product warranty provided with the instrument corresponds to the stipulations in Orgaline 2012, unless
otherwise agreed upon with BPC Instruments AB (“BPC”). BPC Instruments AB (“BPC”) reserves the right to
correct any possible errors, mistakes, changes, updates, technical data or otherwise relevant information in this
manual or any other documents, where applicable by law.
Electrical Safety
Compliance is required with respect to voltage, frequency and current requirements indicated on relevant parts.
Improper operation, damage to the equipment, fire or otherwise undesired effects might be caused by
connecting to a different power source. There are no user-serviceable parts in the equipment, unless otherwise
agreed upon with BPC Instruments AB (“BPC”).
Technical Specification
Dimensions: 4.6 x 4.5 x 17.5 cm
Weight: 0.48 kg
Operating Environment*: Indoor 20 - 60 °C
Operating Humidity: 10 – 90 % RH non-condensing
Power Input: 24 V DC / 0.7 A
Maximum Altitude: 2000 m
Power Supply (Switching): External AC / DC Adapter
Manufacturer and Manufacturer Product Name: CUI Inc - SDM65-24-UD
Power Input: AC 100-240 V ~ AC 50-60 Hz (1.6 A – 0.7 A)
Power Output: 24 V DC / 2.71 A
*The temperature range which the motor operates independently of the temperature of the mixing/process in
the bioreactors.
Delivery Checks
As soon as taking delivery of the instrument and before putting it into service, inspect the package and make
sure there is no damage. If there is any reason to believe that the instrument has not arrived in a suitable
condition, inform the transport company and request that they document the issue appropriately, self-
document using photographs and contact your seller for further information.
Read the operations manual in its complete form. This will assure that the instrument is used appropriately and
will serve as a guide to identify any damage to the instrument or parts thereof.
The following parts should be included in your purchase. If this is not the case, please contact your seller in order
to receive the missing parts.
1 BPC® Move (Art No. 20-0001-01)
1 Quick-Guide
1 BPC Move Main Unit (Art No 20-0101-01)
1 BPC Move Power Adapter (Art No 20-0102-02)
1 BPC® Move Kit (Art No. 20-0002-01)
1 Quick-Guide
1 BPC Move Main Unit (Art No 20-0101-01)
1 BPC Move Power Adapter (Art No 20-0102-02)
3 Stirrers (0.5, 1, and 2 L) (Art No 01-0105-02 (0.5 L) / 12-0103-01 (1 L) / 02-0102-02 (2 L))
3 Axis Couplings (Art No 01-0112-01)
1 Hex Key (Art No 01-0113-01)
1 Attachment Band (Art No 20-0103-01)
6
Optional Equipment
The following equipment can be bought from BPC Instruments AB and its distributors. They are not required to
perform experiments with the instrument, but they are fully compatible and, depending on the use case, can
increase the effectiveness, abilities, or functions of the instrument.
Lid GL 45 with Twin Connectors (Art No 01-0203-01)
Tubing Clamp 6 mm (Art No 01-0108-02)
Tygon® Tubing 3.2 x 1.6 mm (Art No 01-0405-02)
Glass Bottles (0.5, 1, and 2 L) (Art No 01-0101-01 (0.5 L) / 12-0101-02 (1 L) / 02-0101-02 (2 L))
For a complete listing of available systems and parts from BPC Instruments AB, for this instrument and others,
please visit our online store at https://webshop.bpcinstruments.com or contact our sales team via email at
[email protected] and via phone at +46 (0)46 163950.
For assistance with usage of the system, or parts of it, please contact our support team via email at
[email protected] and via phone at +46 (0)46 163950.
Please have the serial number of your instrument easily accessible as this will allow us to assist you in a quicker
and more accurate fashion.
Before Getting Started
Read this manual before installing and using the instrument. In addition, keep this instruction manual for future
reference and make sure it is easily available for people who regularly use the agitation system.
Contact Information
BPC Instruments
Mobilvägen 10
223 62 Lund
Sweden
E-mail: [email protected]
Phone: +46 (0)46 163950
Website: https://www.bpcinstruments.com
Webshop: https://webshop.bpcinstruments.com
Swedish organisation number: 556687-2460
7

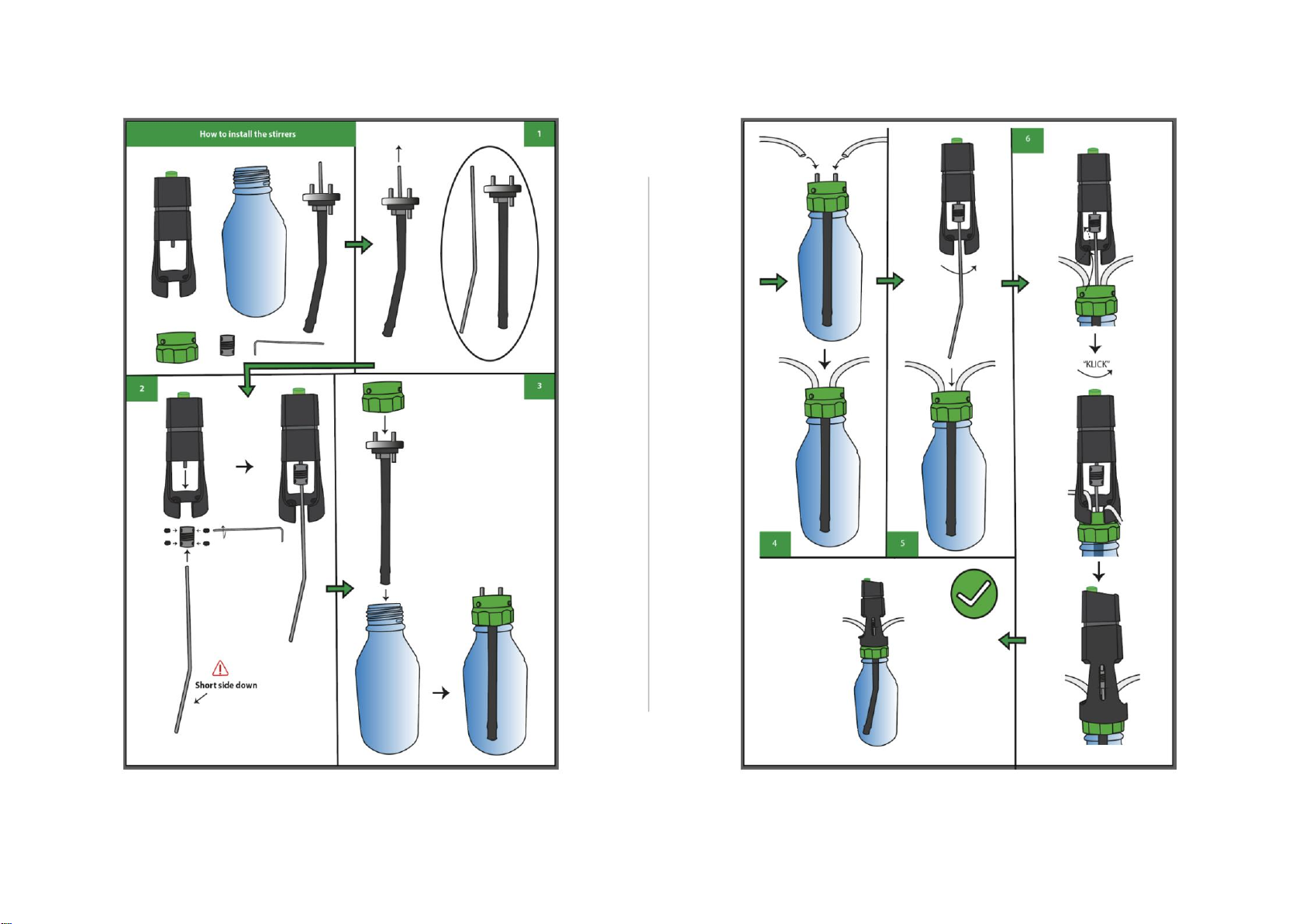

Quick Guide
8
9
IMPORTANT NOTES
BPC Move can be applied to mix a diverse range of contents in bottles with different volumes,
the only difference between them is the size of the stirrer, while all other components remain
the same.

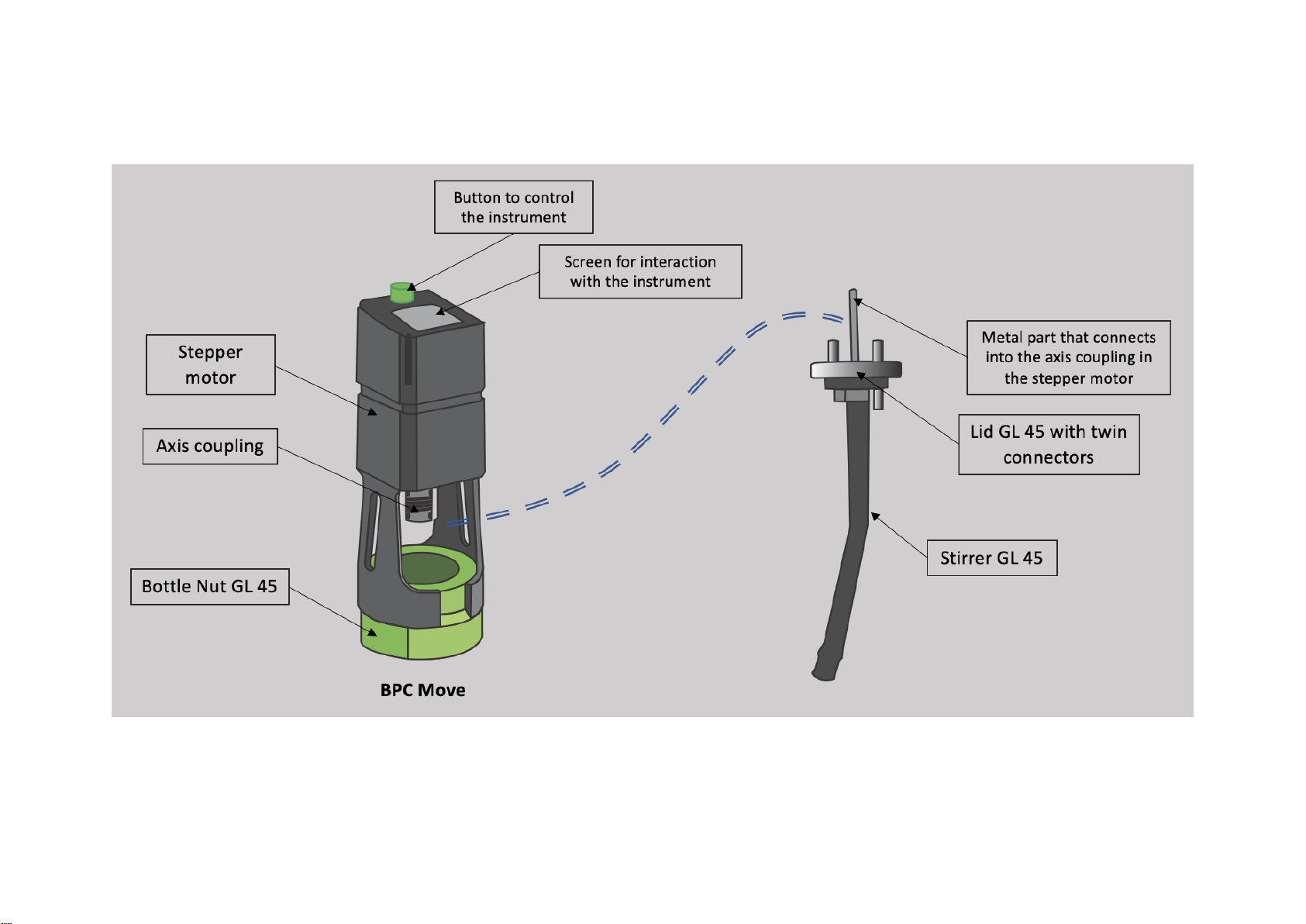

When inserting the motor together with the metallic rod into the stirrer tube, make sure that
the lid is properly sealed to ensure that the equipment does not risk being damaged.
How to connect the stirrer to the motor?
First, make sure that the agitation system is off before connecting or disconnecting the stirrer.
Failing to do so might damage the equipment.
Note: It is very important that the motor axis and the stirrer axis meet in the middle of the
axis coupling (WITHOUT TOUCHING). If the stirrer axis puts downward tension on the stirrer
tubing, it might, over time, drill a hole through the bottom of the stirrer and compromise the
air seal of the setup. Approximately 5 – 7 mm between the two metal shafts within the axis
coupling is ideal (see figure above).
10
CHAPTER 01: OVERVIEW
BPC Move is a standalone agitation system designed for chemical, biological and
biotechnological applications. The intended use is mainly in laboratory environments to
provide well mixed contents through strong and reliable agitation of different types of
substrates.
This instrument offers a superior performance and agitation control compared to magnetic
stir bar. It can be applied for various mixing procedures, without any other instrument for
short-term operations, such as dissolving a solid in a liquid, or as part of our main systems
(AMPTS, Gas Endeavour, and Bioreactor Simulator) for the agitation of long-term biological
processes (several months).
BPC Move is simple to use, compared to our standard/smart agitation system, since it only
needs a power supply to function (no need for external motor controller, motor controller
signal cable, and brushless DC motor cables). The different functionalities of the instrument
are controlled with a rotating button and a display at the top of the motor. It has a
straightforward and user-friendly interface that makes it easy to set up the optimal condition
for a specific application.
BPC Move offers everything you need to have an excellent and unique agitation control. This
component allows the user to set different operation modes (simple, continuous, alternating
and intermittent), speed control on a range up to 600 rpm (3 times more speed compared to
our previous agitation system), different agitation movement (clockwise [CW],
counterclockwise [CCW] and interchanging), and on and off time.

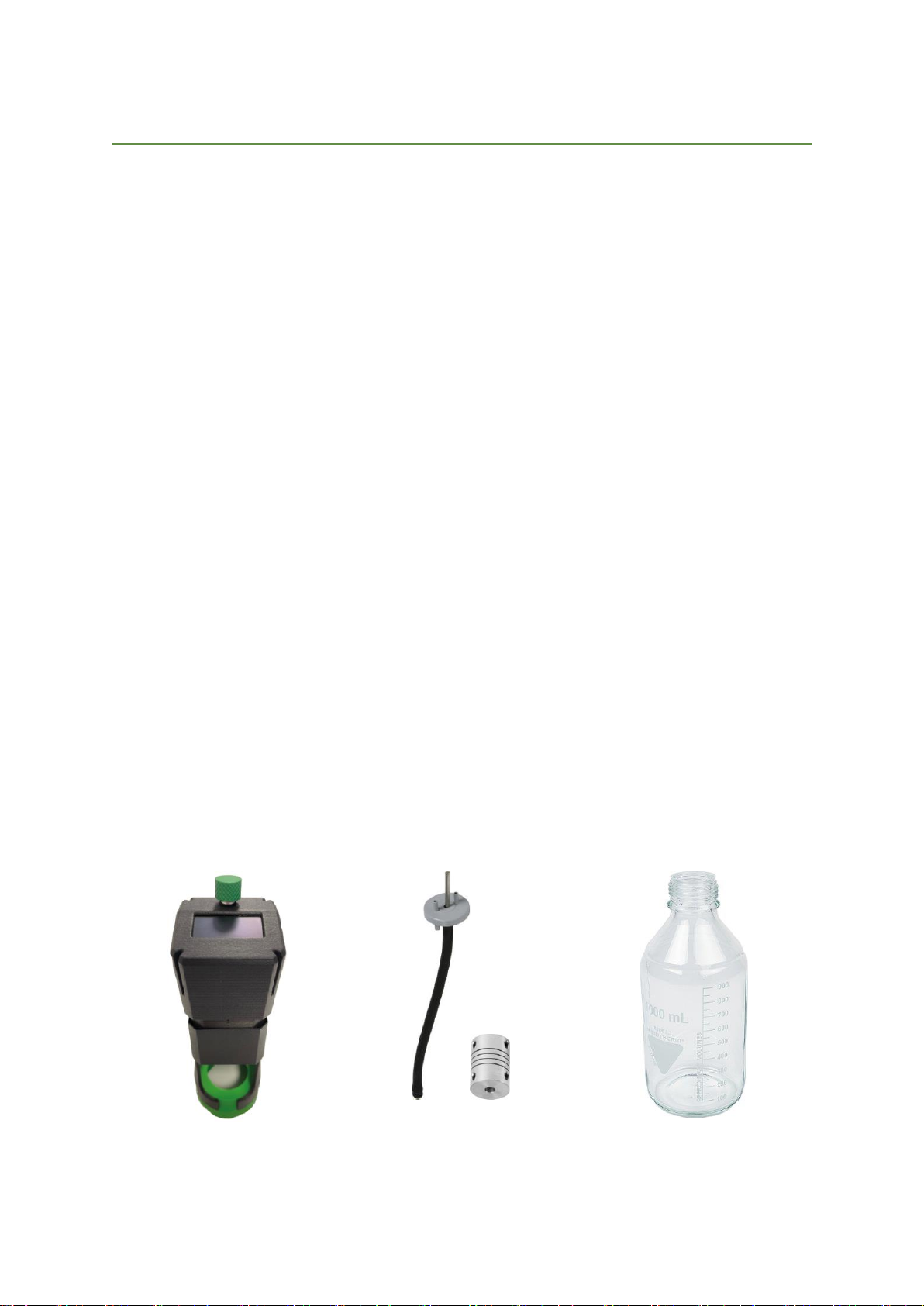

In order to function, BPC Move (A) needs to be connected to a stirrer (B) and a vessel (C) that
contains the medium that will be mixed:
A. BPC Move
B. Stirrer and axis coupling
C. Vessel
