WARNING! • Hot surfaces! Do not touch the heat nozzle and the construction

platform in operation!

• Danger! Moving parts in printer may cause injury. Do not wear

gloves or other sources of entanglement in operation!

Quickstart Guide

3D printer

Art. No. 2010500

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 1Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 1 28.08.2020 17:16:1628.08.2020 17:16:16

More informationen, updates or software

Visit our website using the following QR code or weblink to nd additional information, available

updates or software for this product or realted accessories:

www.bresser.de/P2010500

After Sales Support / Service

We oer an individual service for this product beyond the purchase. If you have any problems with

the product, our support team will be happy to assist you.

For a smooth process, please keep the following information handy for possible inquiries:

• Warranty/Service card

• Article number and Product description

• Date of purchase and dealer

Contact details:

e-Mail: service.3d@bresser.de (preferred communication)

Internet: www.bresser.de/c/de/service

Phone*: 00 800 – 63 43 7000

Service hours:

Monday to Friday (except national public holidays) 9:00 a.m. to 3:00 p.m. CET

* free hotline throughout Europe

Warranty

Please refer to the separate warranty & service card for any warranty information.

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 2Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 2 28.08.2020 17:16:1728.08.2020 17:16:17

- 3 -

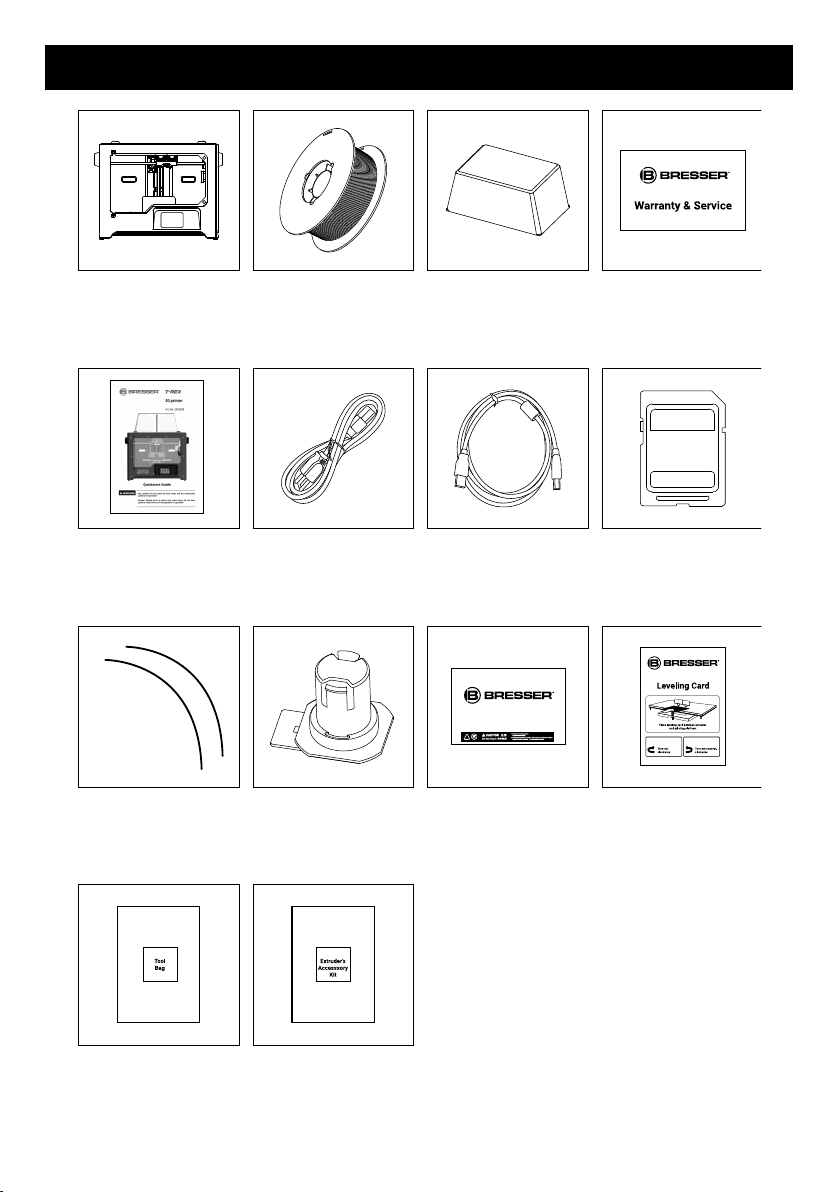

3D printer Filament spool (2x) Top cover Service card

Quickstart guide Power cable USB cable SD card

Guide tube (2x) Spool holder (2x) Build tape Leveling card

Tool bag Extruder

accessory kit

Set contents

Tool bag including:

Allen wrench (2x), knob, M3x8 bolt (2x), PTFE

tube (2x), grease, pin tool, wrench

Extruder's accessory kit including:

M3x8 bolt (2x), M3x6 bolt, turbofan baﬄ e

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 3Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 3 28.08.2020 17:16:2328.08.2020 17:16:23

- 4 -

Unpacking

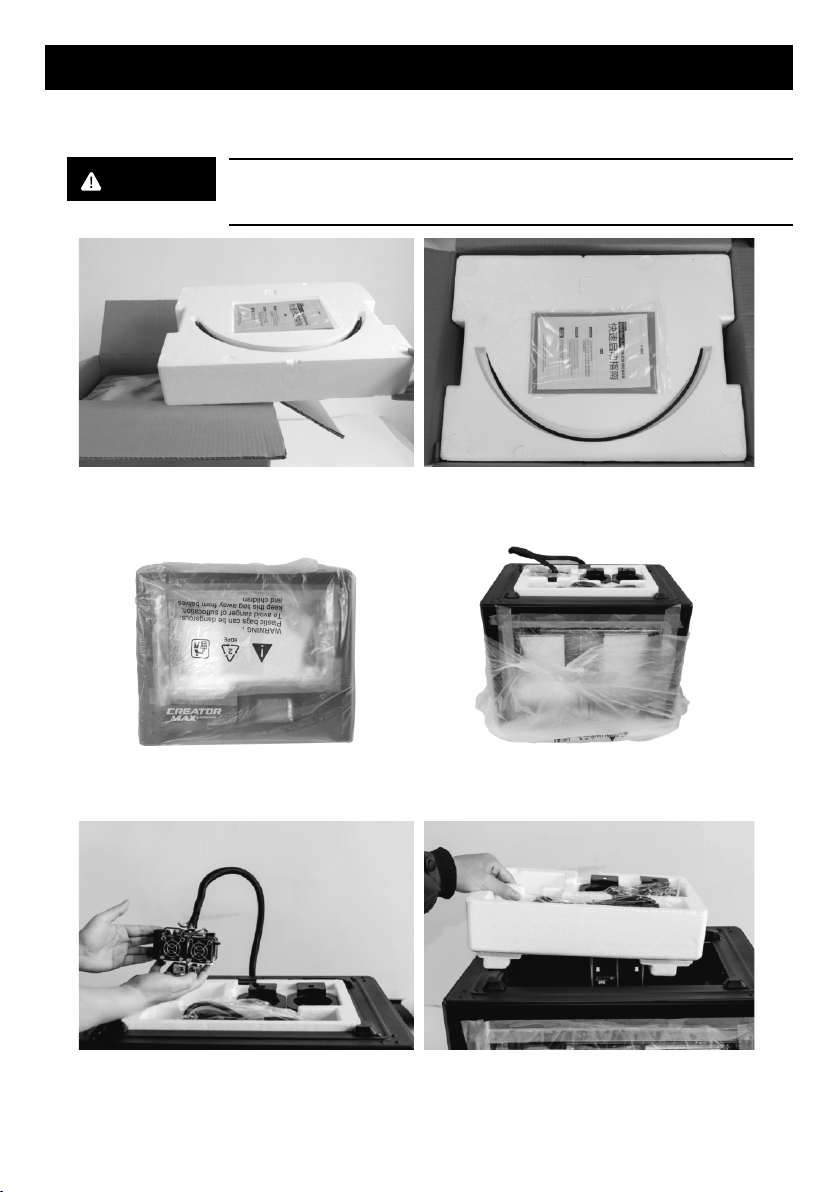

This 3D printer set was packed with care. Please follow the unpacking steps laid

out below.

1. Open the box and remove the top

foam shape.

2. The foam contains: guide tubes (2x),

SD card, build tape (2x), leveling card,

service card, quickstart guide

3. Firmly grasp the two sides handles of

the 3D printer. Lift it out of the carton

and place it on a stable surface.

4. Remove the plastic bag. Then remove

the protecting tape and plastic wrap

from the front door.

5. Take the dual extruder out of the

foam shape. Carefully place it near

the printer. Take care of the extruder

cable bunch which is short.

6. Remove the foam shape from the

printer.

CAUTION! • Remove the package and take out accessories carefully! Do not use force!

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 4Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 4 28.08.2020 17:16:2428.08.2020 17:16:24

- 5 -

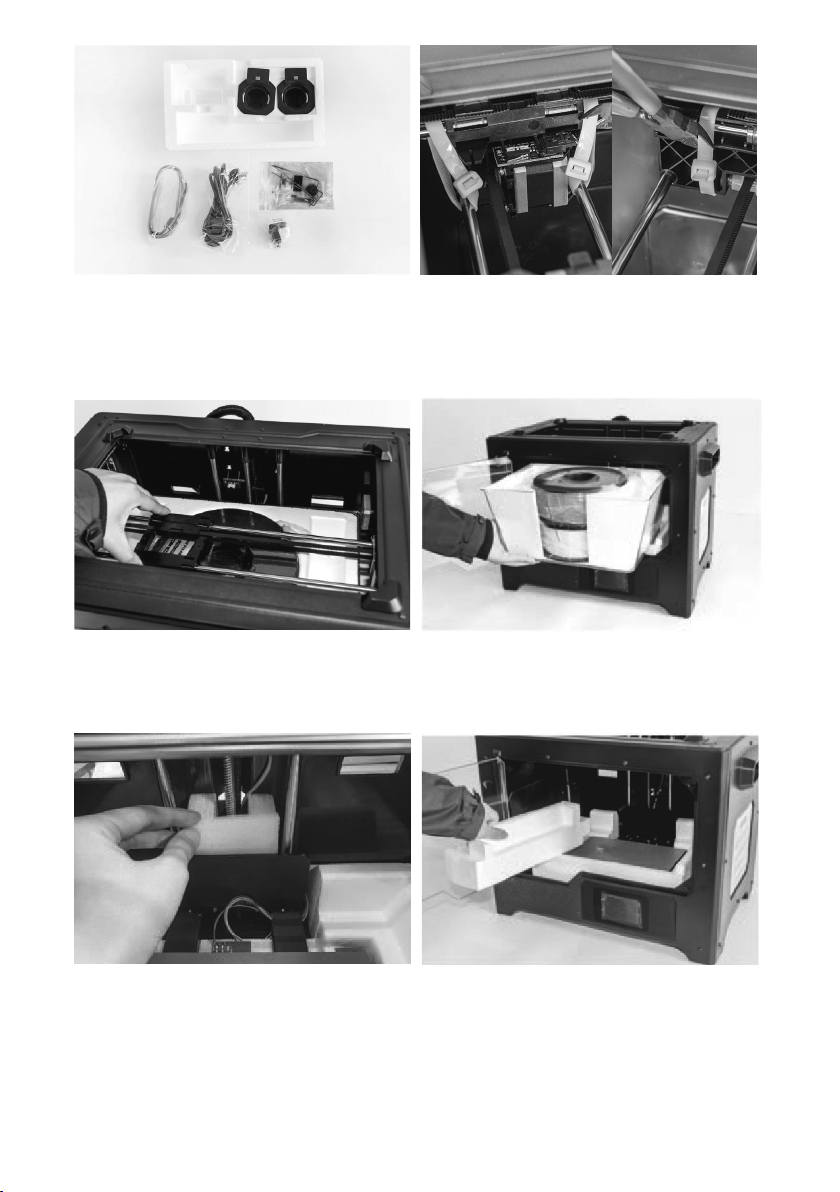

7. Take the remaining accessories out

of the foam: power cable, USB cable,

spool holder (2x), tool bag and

extruder’s accessory kit.

8. Use a scissors to cut off the three

ties on both sides of X-axis guide rail

and remove them.

9. Slide the X-axis guide rail to the very

back by hand.

10. Open the door, remove the

reversed top cover and take the

 lament out of it.

11. Find the vertical plastic board at

the back of the build plate. Take

out the foam blocks behind the

board.

12. Remove the side foam piece.

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 5Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 5 28.08.2020 17:16:2628.08.2020 17:16:26

- 6 -

Unpacking

13. Carefully lift up the build plate to

its limit by hand.

14. Remove the foam block under the

build plate.

15. Unpacking is completed.

It is recommended to keep the

packaging material for further

transportation or storage.

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 6Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 6 28.08.2020 17:16:2728.08.2020 17:16:27

13 14

- 7 -

Parts overview

1. Z-axis guide rail

2. Extruder cable bunch

3. Slot

4. Y-axis guide rail

5. Build plate

6. Build platform

7. Leveling knob

8. Touchscreen

9. SD card slot

10. Cooling fan

11. Spring presser

12. Turbofan

13. Turbofan bae

14. Left nozzle

15. Right nozzle

16. X-axis guide rail

17. Guide tube buckle

18. Spool holder

19. Power input

20. Power switch

21. Spool holder slot

22. Reset button

23. USB input

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 7Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 7 28.08.2020 17:16:2928.08.2020 17:16:29

- 8 -

Installation

1. Place the dual extruder on the

extruder bracket.

2. Take the M2.5 Allen Wrench from

the tool bag and two M3x8 bolts

from the accessory kit.

3. Adjust the extruder above the

extruder bracket to align the holes

for the bolts.

4. Fix the extruder onto the extruder

bracket by screwing in the M3x8

bolts as shown.

Assembling the extruder

Extruder

Extruder bracket

M3x8 bolts

X-axis guide rail

Bolt hole Bolt hole

Bolt hole

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 8Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 8 28.08.2020 17:16:3028.08.2020 17:16:30

- 9 -

1. Use the M2.5 Allen wrench to remove the turbofan bolts.

2. Take the turbofan bae from the extruder's accessory kit.

3. Insert the bae into the slot at the turbofan as shown.

Assembling the turbofan bae

Remove turbofan bolts

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 9Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 9 28.08.2020 17:16:3028.08.2020 17:16:30

- 10 -

Mounting plate

1. Align the hole in the bae and the nose at the

extruder's mounting plate.

2. Place the turbofan with the attached bae besides

the mounting plate to align the nose and the hole.

3. Attach the turbofan with the bae to the mounting

plate.

3. Reinsert the the two turbofan bolts and fasten them.

4. Take a M3x6 bolt from the accessory kit and complete

installatation as shown on the illustration below.

Align nose and hole

Turbofan bolt

M3x6 bolt

Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 10Quickstart_2010500_T-REX-3D-printer_en_BRESSER_082020a.indd 10 28.08.2020 17:16:3128.08.2020 17:16:31
