Brickcom MD-100A series Manuale utente

Outdoor Megapixel Mini Dome

Network Camera

MD-100A Series

Quick Installation Guide

Quality Service Group

Read Before You Use

1. Power off the camera device

immediately if it starts smoking or

smells unusual.

2. Power off the camera device

immediately if the camera is exposed to

rain or liquid.

3. Do not set the camera device near any

heat sources. (Ex: television and oven)

4. Keep the camera device away from

direct sunlight.

5. Do not set the camera device over the

specific operating temperature.

6. Do not set the camera device in any wet

and humid environments.

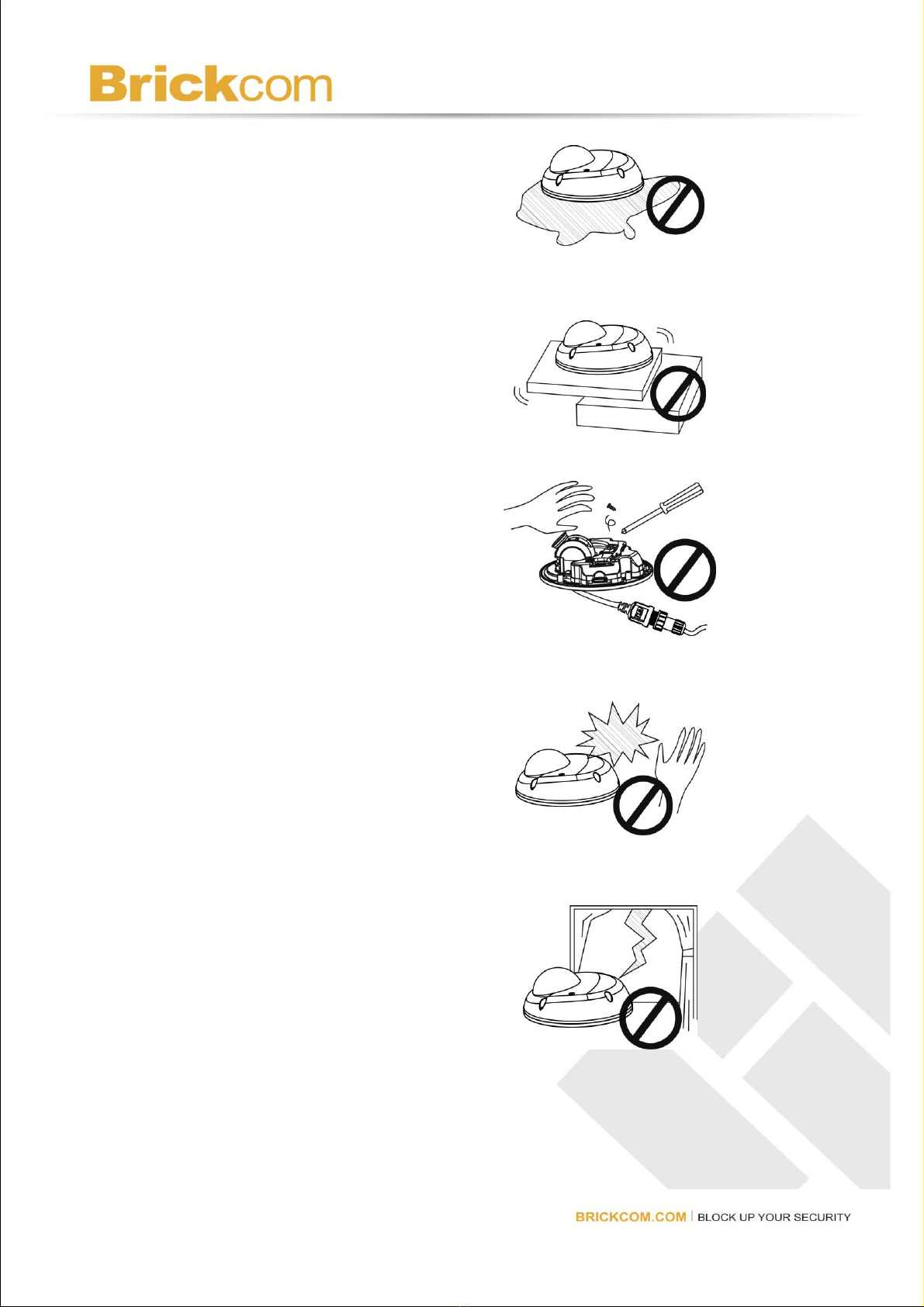

7. Do not set the camera device on

unsteady surfaces.

8. Do not attempt to dismantle the camera

device.

9. Do not drop or hit the camera device.

10. Do not use the camera device when

there is lightning.

1. Check Package Contents

a. MD-100A

b. Product CD

c. Water-Proof Connector

d. Allen Key

e. Warranty Card

f. Screw Bags

g. Dry Bag / Double-Sided Tape

h. Alignment Sticker

i. Easy Installation Guide

j. Mounting Adapter

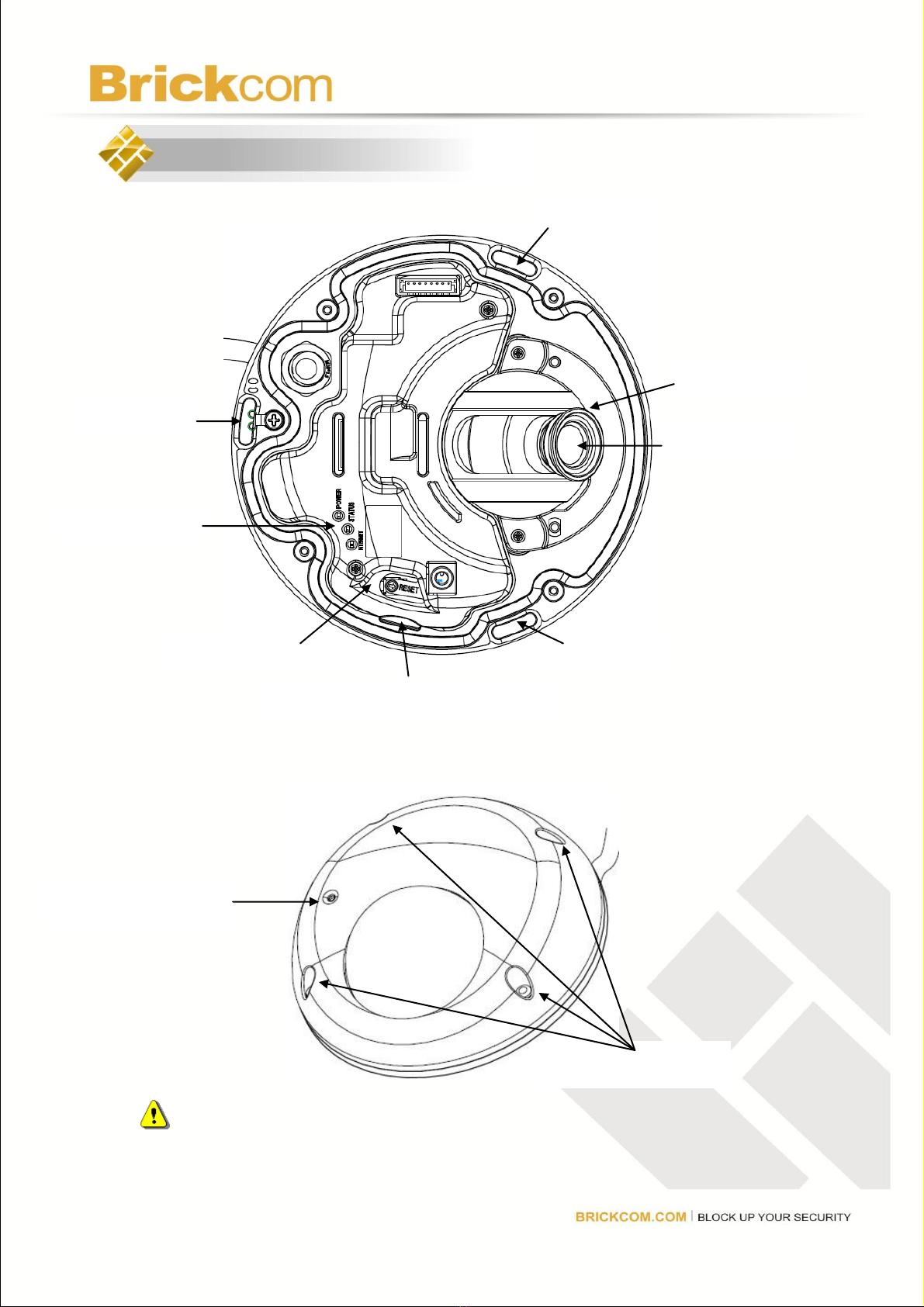

2. Device Description

(*) These are optional features. Please refer to the Product List for

the full list of optional features that are available for this product.

Screw Hole

LED Indicators

Screw Hole

Reset Button

Micro SD/SDHC Card Slot (*)

Lens

Lens Hood

Microphone Hole (*)

Security Screws

3. Hardware Installation

WARNING: Do not mount the camera on a soft material. The camera may

fall and be damaged.

1. Use the enclosed Allen key to detach the dome cover from the camera

device.

2. Remove the dry bag from its package. Use the double-sided tape to

stick the dry bag onto the designate position inside of the dome cover.

3. Choose the location on the wall or ceiling to place the camera. Attach the

location sticker to the desired spot. For ceiling installation, the best place

to mount the camera is into a ceiling stud.

4. Drill three holes through the center of the three location holes on the

sticker.

5. Hammer the three plastic anchors provided in the product package into

the three location holes.

6. The user needs the three screws which are included in the product

package and a screwdriver. Mount the camera on the wall or ceiling

and position the three screw slots over the plastic anchors. Insert the

three screws provided in the product package into the holes and use a

screwdriver to tighten the screws clockwise until they are secure.

For the hard surface mounting, user can use enclosed adapter to

router the camera’s cable through side of the adapter.

NOTE: For assembling the waterproof connector, please refer to the

instructions included in the connector package.

4. Camera Connection

1. Connect the camera to a PoE-enabled hub via a single Ethernet.

2. Connect the camera to a non-PoE hub using a PoE Injector.

5. Lens Adjustment

1. Adjust the lens to the desired position.

2. Focus

a. Loosen the lens lock screw.

b. Remove the lens hood.

c. Rotate the lens until the image in the Live View page is focused.

d. Retighten the lens screw lock.

e. Reattach the lens hood.

WARNING: Do not over rotate the lens.

6. Complete the installation

Place the dome cover back on the camera device using the supplied Allen

Key.

Lens Lock Screw

7. Setup the Network Camera

1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool

directly from the CD-ROM to start the installation. When installing the

Brickcom software kit for the first time, select a desired language for the

interface. The available languages are listed in the scroll box. Click

<Install> and follow the steps to install the EasyConfig wizard on the

desired computer.

Please follow the InstallShield Wizard instructionsto finish the Brickcom

Software Kit installation.
