Briggs & Stratton 030244-02 Guida all'installazione

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline

Llame: Línea Directa del Generador

1-800-743-4115 M-F 8-5 CT

web: www.briggsandstratton.com

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A. Manual No. 199825A

Revision - (06/20/2007)

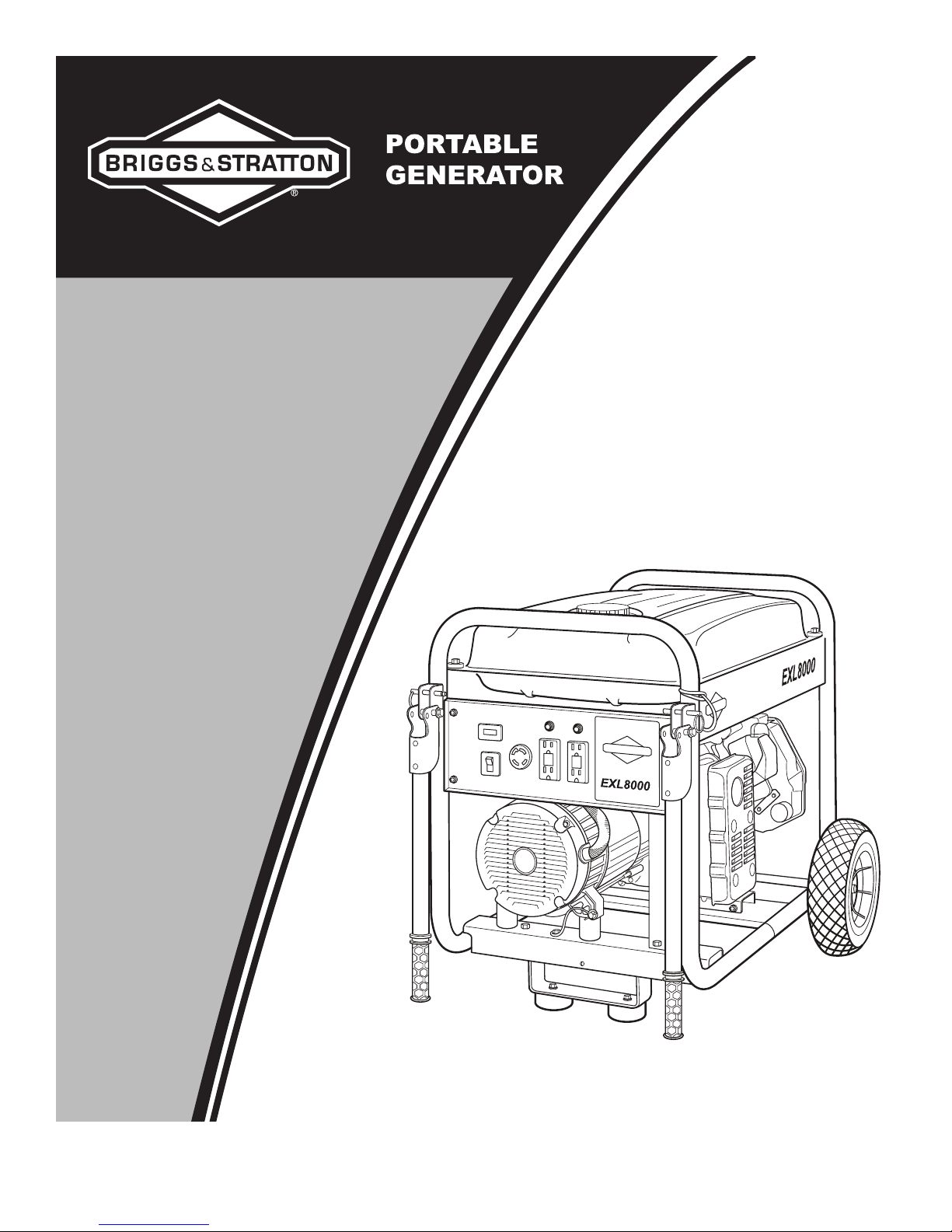

EXL8000

13500 STARTING WATTS

Illustrated

Parts List

Models / Modelos

030244-02

EXPLODED VIEWS AND PARTS LISTS

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

EXPLODED VIEWS AND PARTS LISTS

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 B194898GS KIT, Cradle (Includes Items 20 & 31)

2 194155GS KIT, Vibration Mount

3 B92531GS BRACKET, Support Engine

4 190220GS ADAPTER, Engine

5 NSP ASSY., Alternator (see page 5)

6 * NUT, Hex M8 - 1.25

7 B92731GS BRACKET, Support Eng/Muffler

8 96796GS WASHER, 8.4 x 22.2 x 3

9 * WASHER, Lock M8

10 190274BGS SBHC, 3/8-16 x 1"

11 47481GS HHCS, 5/16 - 24 x 10.62

12 189302LGS ASM WIRE, #16, Red

13 * HHCS, M8 1.25 x 45

14 92532GS BRACKET, Muffler

15 90239GS GASKET, Exhaust

16 * NUT, Hex M6 1.0

17 A7433GS MUFFLER

18 * SHCS, M8 - 1.25 x 20

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 198222GS KIT, Vibration Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

23 86292GS SCREW, 10 - 16 x 3/4, Self Drill

24 194390GS ASSY., Heat Shield

25 191190GS CAP

26 74908GS TAPTITE, M5 - 0.8 x 10

27 67989GS NUT, M8 Flange Serrated

30 * HHCS, M8 - 1.25 x 25

31 196830GS DECAL, Exhaust Warning

32 * NUT, 1/4 - 20

33 * WASHER, 1/4 Lock

34 195422GS COVER, RBC Plastic with Cap

35 791745 KIT, Fuel Hose (cut to fit)

36 * HHCS, M6 1.0 x 12

37 56893GS CRIMPTITE, 10-24 x 1/2

38 B2153GS SCREW, Self Driller, 12-14 x 7/8

39 B196810GS BRACKET, Starter

40 198221GS KIT, Fuel Tank Hardware (Includes

Qty 4)

41 189133GS VALVE, Fuel

42 * HHCS, 5/16 - 18 x 3/4

43 691656 SOLENOID

44 198224GS ASSY., Tank Fuel (Includes Items 41,

50, 51, 52, 55 & 62)

45 189135GS CAP, Tank Fuel

46 B4135GS PIN, Handle Release

47 77395GS NUT, M6 Flange Lock

Item Part # Description

48 195373GS WIRE, Ground

49 192376GS SCREW, 12-24 x 1/2, Thread

Forming

50 188333GS DECAL, Instruction Fuel Level

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

53 194034GS KIT, Folddown Handle Hardware

54 194448GS KIT, Insulation w/ Clip

55 197797GS DECAL, Fuel Shutoff

56 192724GS GAUGE, Fuel

57 * HHCS, M6 - 1.0 x 12

58 201463GS ASSY. Control Panel

59 198611GS PPHS, 1/4 - 20 x 0.5

60 195537GS HEATSHEILD

61 B4300GS HHS, 1/4 - 20 x 1/2, Trilobular

62 201079GS DECAL, Warning CO

68 195680GS TRAY, Battery

69 193463GS BATTERY

70 87799GS SWITCH, Rocker On/Off

71 196626GS ASSY, Jack, Coax, DC

73 192351GS LUG, 1/4, #22/18

74 193347GS KIT, Hardware Battery

75 196627AGS WIRE-A, #13, Red

76 185939KGS ASM WIRE, #55 Black

77 196627BGS WIRE-A, #13B, Red

78 189302MGS ASM WIRE, #13 Red

81 196627EGS WIRE-A, #0, Black

85 B193200GS ASSY, Fold Down Handle

86 198669GS GRIP, Handle

99 189759GS KIT, Fuel Valve Repair

900 § ENGINE

Parts Not Illustrated

199825GS MANUAL, Operator’s

BB3061GS BOTTLE, Oil

B4177GS CHARGER, Battery

195236GS FUSE (5 Pack)

195237GS CAP, Fuse (4 Pack)

191895DGS SET, Cord

202179GS DECAL, Family, CA EVP

198220GS KIT, Decal Srv.

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

EXPLODED VIEWS AND PARTS LISTS

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 198237GS PANEL, Control

2 198239GS BOX, Control Panel

3 191479GGS BREAKER, Circuit, 30A

4 198245GS METER, Hour

5 75207DGS BREAKER, Circuit, 15A

6 * WASHER, Shakeproof, Int. #8

7 94373GS OUTLET, 120V, 15A Duplex

8 43437GS OUTLET, 120/240V, 30A

9 * WASHER, Flat, M4

10 * WASHER, Lock, M4

11 * NUT, M4 - 0.7

12 198495GS SCREW, 4 x 18, Tapping

13 193095GS JUMPER, Terminal Block

Item Part # Description

14 193427GS STRIP, Terminal, 3 Pole

15 * WASHER, Flat, M5

16 * WASHER, Lock, M5

17 * NUT, M5 - 0.8

18 38057GS GROMMET

19 199532GS STRIP, Dual Row, TPA, 6 Circuit

20 199528GS PLUG, Dual Row, Housing, 6 Circuit

Parts Not Illustrated

194273GS TUBING, Fabric, Heat Shrinkable

* - Items without part numbers are common fasteners and

are available at your local hardware store.

EXPLODED VIEWS AND PARTS LISTS

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 194773GS ASSY, Rotor (Includes Item 10)

3 200434AGS STATOR

4 193336GS RBC, (with O-Ring p/n 189197)

5 86308KGS HHCS, M6 - 1.0 x 175 SEMS

6 66386GS ASSY, Holder, Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 189769GS BOARD, Circuit, System Control

9 81917GS PIN, Roll, 4mm x 10

10 65791GS BEARING

11 74908GS SCREW, M5 .8 x 10, Taptite

12 23762GS WASHER, Shakeproof, Ext #10

EXPLODED VIEWS AND PARTS LISTS

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 196517GS WHEEL

2 * WASHER, 5/8"

3 191267RGS AXLE, 5/8"

4 191265GS E-RING

5 * HHCS, M8 1.25 x 20

6 67989GS NUT, M8, Flange Serrated

7 77395GS NUT, M6 Flange Lock

8 198629GS ASSY, Support (Includes Item 9)

9 87841GS MOUNT, Vibration

10 * HHCS, M6 - 1.0 x 16

* - Items without part numbers are common fasteners and are

available at your local hardware store.
