Briggs & Stratton PowerBoss 30221 Guida all'installazione

Model 030221 Manual No. 196232A Revision 0 (01/27/2005)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

PowerBOSS™ is a trademark of Briggs & Stratton Power Products.

PowerBOSS™ es una marca registrada de Briggs & Stratton Power Products.

Illustrated Parts List

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline / Llamada: Generador Helpline

1-800-743-4115 M-F 8-5 CT

5500W Portable Generator

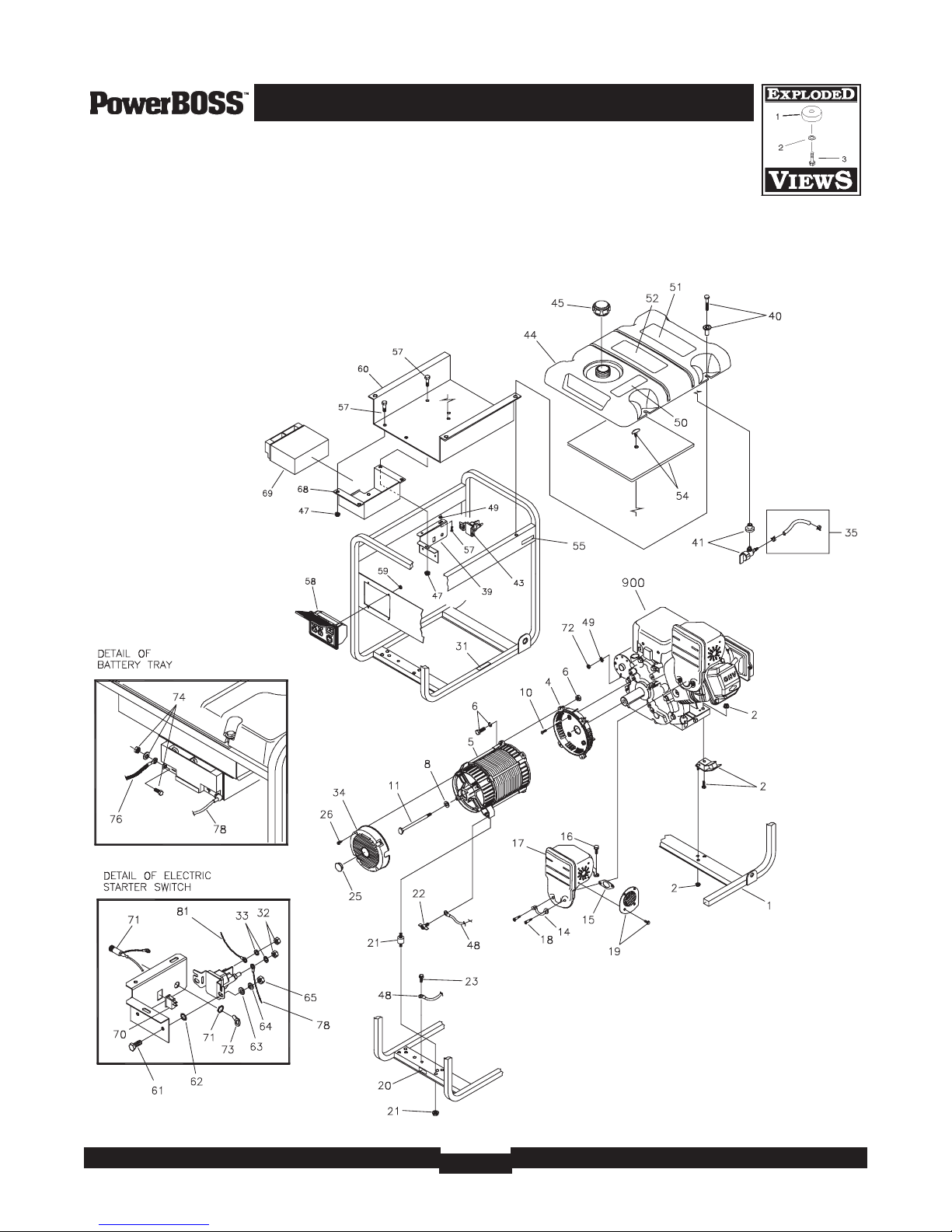

EXPLODED VIEW - MAIN UNIT

5500W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 B195451GS CRADLE

2 194150GS KIT,Vibration Mount 45°

4 190220GS HOUSING, Engine Adapter

5 NSP ASSY,Alternator (see page 4)

6 194151GS KIT, Hardware Mounting Adapter

8 96796GS WASHER, M8 Flat

10 190274BGS SBHCS, 3/8-16 x 1.0 Lg.

11 187365FGS HHCS, 5/16-24 x 7-7/16

14 695400 TAB, Locking

15 695398 GASKET, Exhaust

16 695312 SCREW

17 697252 MUFFLER

18 695399 SCREW, Shoulder

19 392390 SPARK ARRESTER, with Screw

20 B4986GS DECAL, Ground, Green

21 194153GS KIT,Vibration Mount

22 86494GS SCREW,Wing, M6 - 1.0 x 16

23 86292GS SCREW, 10-16 x 3/4, Self Drill

25 191190GS CAP

26 74908GS SCREW, M5-0.8 x 10,Taptite

31 191436GS DECAL, Hot Muffler

32 * NUT

33 * WASHER, M8 Lock

34 195422GS COVER, Bearing Carrier

35 194265GS KIT, Fuel Hose w/Clamps

39 B196126GS BRACKET, Switch, Black

40 194398GS KIT, Fuel Tank Hardware

41 192980GS KIT,Valve,Tank

43 691656 SOLENOID

44 194217GS ASSY,Tank, Fuel (Includes items 41,

50, 51 & 52)

45 90878GS CAP, Fuel

47 77395GS NUT, M6, Flange Lock

48 195373GS WIRE, Ground

49 * WASHER, Shakeproof, Ext M6

50 188333GS DECAL, Gas Fill

Item Part # Description

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

54 194448GS KIT, Insulation w/Clip

55 191435GS DECAL, Fuel Shut-off

57 * HHCS, M6 - 1.0 x 12

58 196356GS ASSY, Control Panel (see page 5)

59 * NUT, Palnut, 3/16"

60 194389GS SHIELD, Heat

61 * HHCS, M6 - 1.0 x 16

62 * WASHER, Shakeproof, Int. 1/4 M6

63 * WASHER, Flat 1/4 - M6

64 * WASHER, Lock 1/4

65 * NUT, M6 - 1.0

68 192985GS TRAY, Battery

69 B4489GS BATTERY

70 87799GS SWITCH, Rocker On - Off

71 196626GS ASSY, Jack Coaxial, DC

72 * NUT, 1/4 - 20

73 192351GS LUG, 1/4, 22/18

74 193347GS KIT, Battery Hardware

75 196627AGS ASSY,Wire, 18AWG, Red, #13

76 185939KGS ASSY,Wire, Black

77 196627BGS ASSY,Wire, 18AWG, Red, #13B

78 189302HGS ASSY,Wire, Red #13

81 189302JGS ASSY,Wire, Red #16

900 § ENGINE

Parts Not Illustrated

BB3061GS BOTTLE, Oil

196232GS MANUAL, Owners

MS5242 MANUAL, Engine

196696GS KIT, Decals, Service

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

5500W Portable Generator

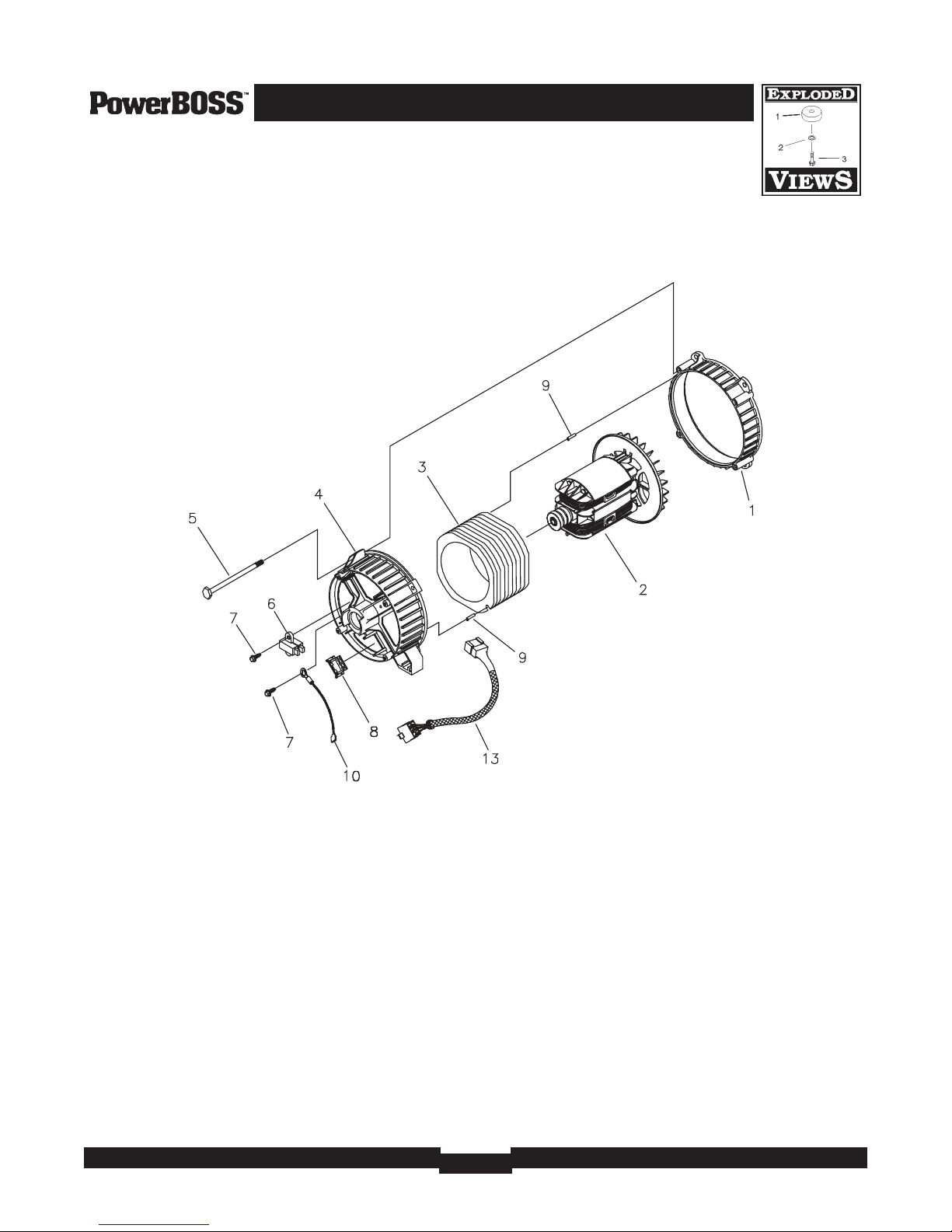

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator

2 190032GS ROTOR

3 190079AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 86308HGS HHCS, M6 - 1.0 x 140 SEMS

6 91825GS ASSY, Holder, Rectifier/Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS ASSY,Wire, Ground

13 194274GS HARNESS,Wire, Power

5500W Portable Generator

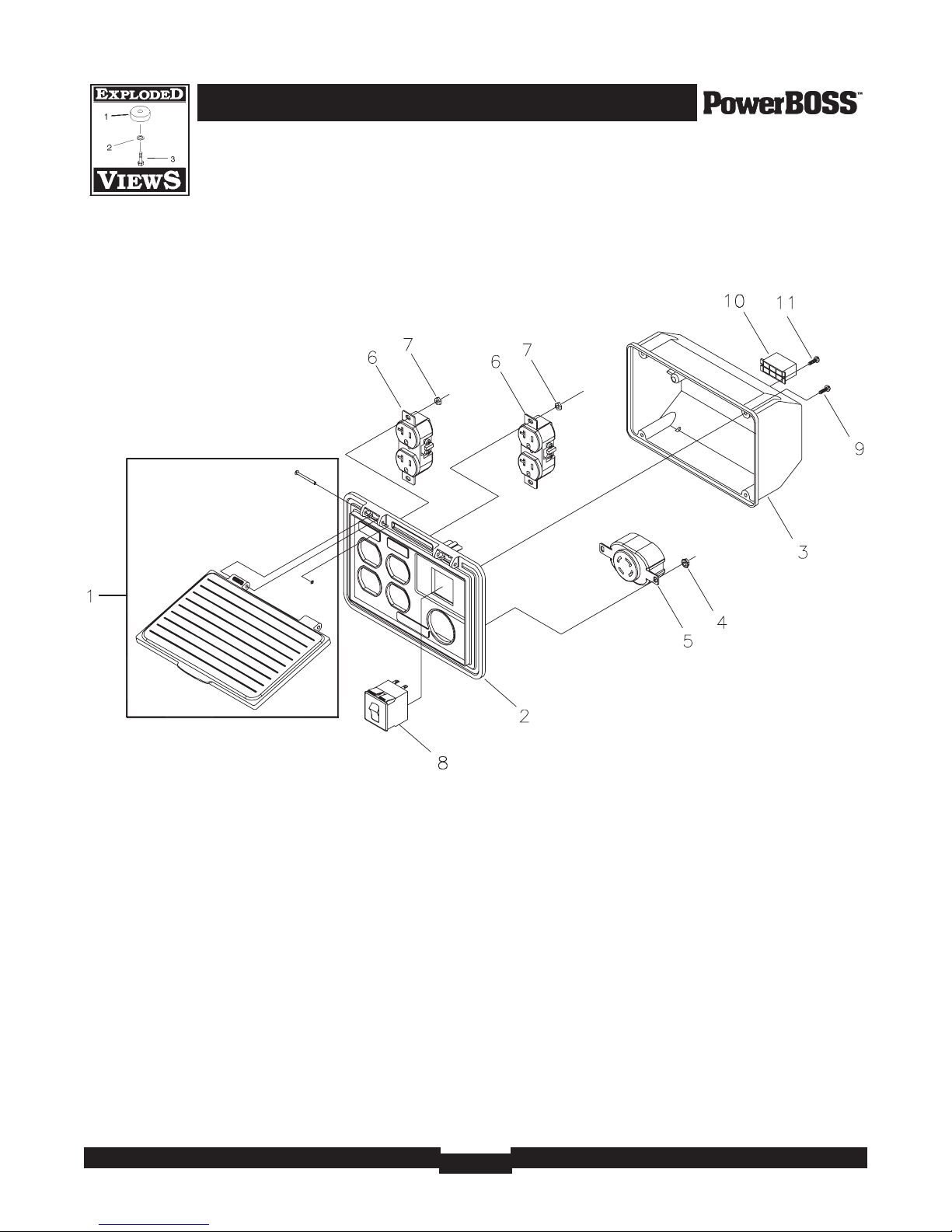

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS ASSY, Control Lid Panel

2 196506AGS CONTROL PANEL, Compact

3 192274GS BOX, Rear Cover

4 * NUT, Palnut, Pushnut, 3/16

5 43437GS OUTLET, 120/240V Locking, 30A

6 68759GS OUTLET, 120V, 20A, Duplex

7 * NUT, Palnut, Pushnut, 5/32

8 191479AGS BREAKER, 20A, 2P

9 192241GS SCREW,Tapping, 3.5 x 14

10 22694GS HOUSING, Receptacle

11 82308GS SCREW,Tapping, STC 3 x 18

* - Items without part numbers are common fasteners and

are available at your local hardware store.

5500W Portable Generator

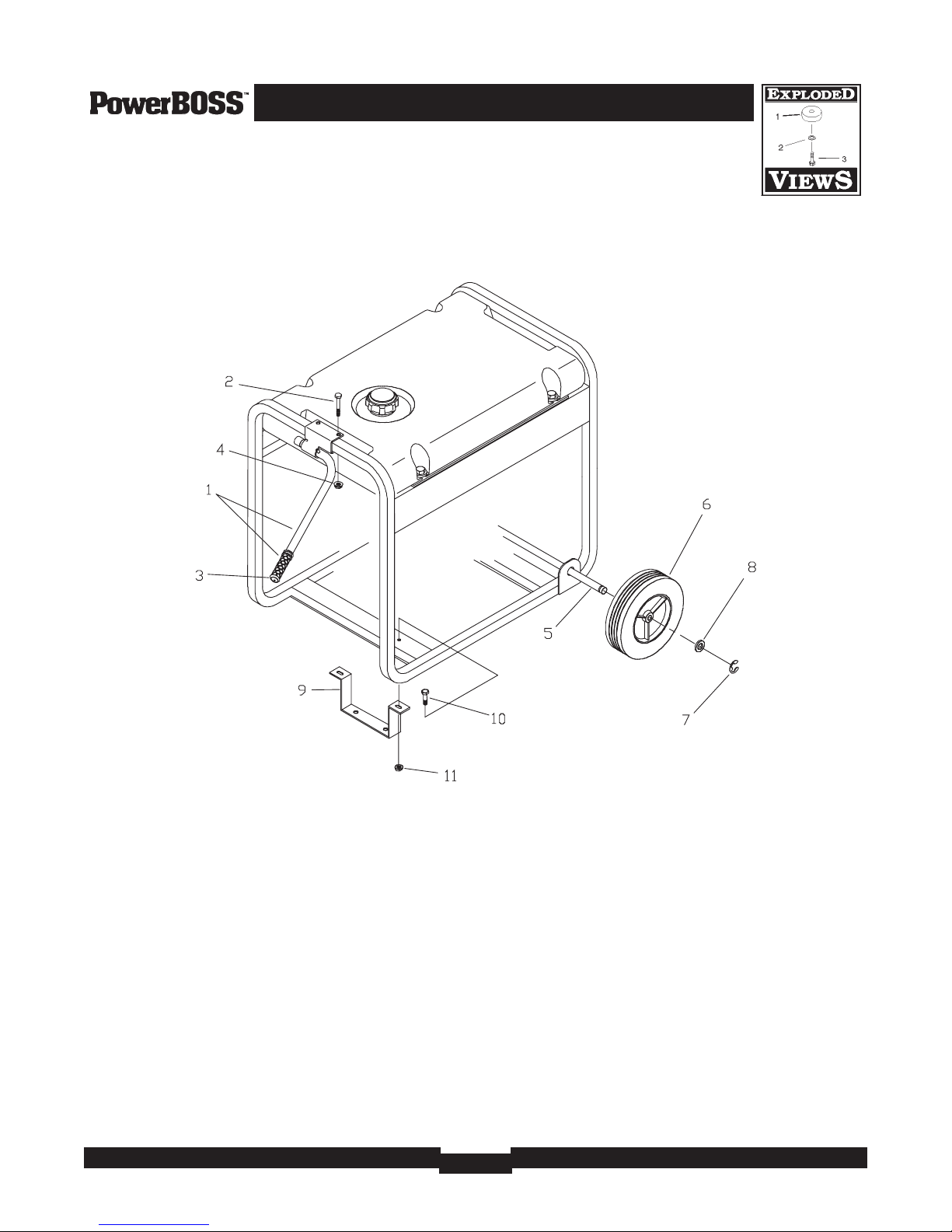

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 189715GS ASSY, Handle (Includes Item 3)

2 * HHCS, M8 - 1.25 x 45

3 189718GS GRIP

4 52858GS NUT, Locking Hex M8 - 1.25

5 192006AGS AXLE, 1/2" x 22.20"

6 87280GS WHEEL

7 192050GS E-RING, 1/2"

8 * WASHER, Flat, 1/2"

9 B187101GS SUPPORT,Wheel Kit

10 * HHCS, M8, 1.25 x 25

11 67989GS NUT, M8 Flange Serrated

* - Items without part numbers are common fasteners and

are available at your local hardware store.
