Briggs & Stratton PRO10000 030383 Guida all'installazione
PRO10000 Portable Generator
Illustrated Parts List
Model 030383 Manual No. 204730A Revision - (12/19/2007)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Exploded Views and Parts Lists

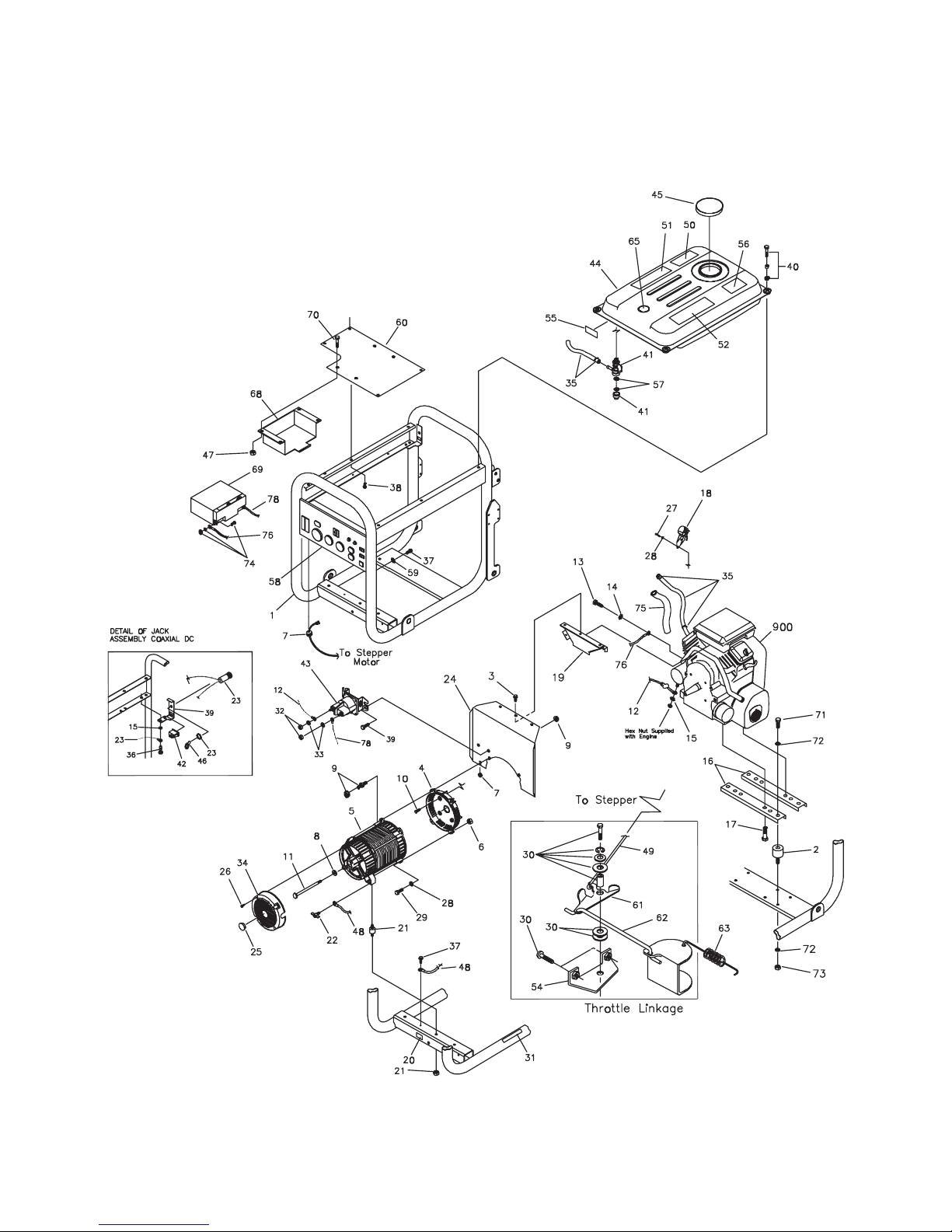

EXPLODED VIEW - MAIN UNIT
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
2BRIGGSandSTRATTON.COM
Exploded Views and Parts Lists
Item Part # Description
1 B204637GS CRADLE (Includes Items 20 & 31)
2 38353GS MOUNT, Vibration
3 56893GS CRIMPTITE, 10-24 x 1/2
4 190220GS ADAPTER, Engine
5 NSP ASSY., Alternator (see page 5)
6 * NUT, Hex, M8 - 1.25
7 62265GS GROMMET
8 96796GS WASHER, 8.4 x 22.2 x 3
9 194208GS KIT, Alt to Heat Shield Hardware
10 190274BGS SBHCS, 3/8-16 x 1"
11 187365DGS HHCS 5/16-24 x 10.28
12 189302SGS WIRE, #16, Red
13 * HHCS, M8 - 1.25 x 16
14 * WASHER, Shakeproof, Ext. 5/16
15 * WASHER, Shakeproof, Ext. M6
16 B77304GS SUPPORT, Engine
17 75246GS TAPTITE, 3/8 - 16 x 1-1/4
18 195404GS ASSY, Stepper Motor
19 J93074GS SUPPORT, Heatshield
20 B4986GS DECAL, Ground
21 194155GS KIT, Vibration Mount
22 86494GS SCREW, Wing M6 - 1.0 x 16
23 201348GS ASSY., Jack Coax, DC
24 194950GS ASSY., Heat Shield
25 191190GS CAP
26 74908GS TAPTITE, M5 - 0.8 x 10
27 * HHCS, M8 - 1.25 x 20
28 * WASHER, 5/16 M8 Lock
29 * HHCS, M8-1.25 x 25
30 194543GS KIT, Throttle Linkage Hardware
31 200310GS DECAL, Exhaust Warning
32 * NUT, 1/4 - 20
33 * WASHER, 1/4 Lock
34 195422GS COVER, RBC Plastic w/Cap
35 791745 KIT, Hose, Fuel
36 90388GS SCREW, M6 - 1 x 12, Taptite
37 B2153GS SCREW, Self-Driller, 12-14 x 7/8
38 192376GS SCREW, 12 - 24 x 1/2 Thread Forming
39 B4300GS HHS, Trilobular, 1/4 - 20 x 1/2
40 198221GS KIT, Fuel Tank Hardware (Includes Qty
4)
41 193272GS VALVE, Fuel
42 87799GS SWITCH, Rocker
43 691656 SOLENOID
44 196035GS ASSY., Tank Fuel (Includes Items 41,
50, 51, 52, 55, 56 & 65)
45 189135GS CAP, Tank Fuel
46 192351GS LUG
47 77395GS LOCKNUT, M6
48 195373GS WIRE, Ground
Item Part # Description
49 95920GS LINKAGE, Stepper Motor to Bell Crank
50 188333GS DECAL, Instruction, Fuel
51 194984GS DECAL, Warning
52 94480GS DECAL, Operating Instructions
53 200816GS BRACKET, Switch/Jack
54 95349GS PLATE, Adjust
55 197797GS DECAL, Fuel Shutoff
56 202997GS DECAL, Warning, CO
57 189759GS KIT, Fuel Valve Repair
58 204578GS ASSY. Control Panel
59 * WASHER, Ext #10, Shakeproof
60 J193512GS SUPPORT, Tray Battery
61 95348GS BRACKET, Bell Crank
62 95921GS LINKAGE, Bell Crank to Throttle
63 96717GS SPRING
65 192724GS GAUGE, Gas
68 192985GS TRAY, Battery
69 193043GS BATTERY
70 * HHCS, M6 -1.0 x 12
71 * HHCS, 3/8 - 16 x 3/4
72 * WASHER, 3/8, Lock
73 * NUT, 3/8 - 16
74 193347GS KIT, Hardware Battery
75 280623 TUBING, Fuel line
76 185939TGS WIRE, #55 Black
78 189302RGS WIRE, #13 Red
900 § ENGINE
Parts Not Illustrated
204730GS MANUAL, Operator’s
BB3061GS BOTTLE, Oil
BB3061BGS BOTTLE, Oil
B4177GS CHARGER, Battery
202179GS DECAL, Family, CA EVP
205617GS KIT, Decal Service
43438GS PLUG, 120/240V, 30A 4P
100523GS PLUG, 125V, 30A 3P
65787GS CABLE, Battery Charge
690661 SCREW, Tapping Hex
392390 ARRESTER, Spark
692099 ASSY., Muffler
691513 BRACKET, Muffler
692056 SCREW
690898 CLAMP, Muffler
692539 SCREW
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer
PARTS LIST - MAIN UNIT
3
Exploded Views and Parts Lists
CONTROL PANEL EXPLODED VIEW & PARTS LIST
Item Part # Description
1 B204581GS PANEL, Control
2 201864GS BOX, Control Panel
3 * WASHER, Flat, #10 - M5
4 * LOCKWASHER, M5
5 * PPHMS, M5 - 0.8 x 12
6 * WASHER, M6 - 1/4, Int. Shakeproof
7 78653GS SWITCH, Eng, Run-Stop
8 192855GS SWITCH, Rocker
9 202602GS HOUR METER
10 * LOCKWASHER, M3
11 B4262GS RECEPTACLE
12 * PHMS, M3 - 0.5 x 10
13 77314GS THERMAL, Relay
14 87962GS BREAKER, Circuit, 10A, 12V
15 84028GS TRANSFORMER, Idle Control
16 64525GS STANDOFF, Hex, 3/4"
17 195406GS PCB, Idle Control, 10KW
18 * PHTS, 6 - 32 x 3/8"
19 92953GS TERMINAL, Block
20 * LOCKWASHER, M4
21 * PPHMS, M4 - 0.7 x 20
Item Part # Description
22 * NUT, M4 - 0.7
23 * WASHER, Flat, M4
24 192931GS BRACKET, GFCI Breaker
25 * WASHER, Shakeproof, Int. #8
26 192828FGS BREAKER, Circuit, GFCI, 50A
27 68868GS OUTLET, 120V, 30A
28 43437GS OUTLET, 120/240V, 30A
29 68759GS OUTLET, 120V, 20A, Duplex
30 199532GS STRIP, Dual-Row
31 193597GS JUMPER, Terminal Block
32 202394GS BREAKER, Circuit, 20A with hardware
33 90418GS OUTLET, 12VDC, Snap
34 199528GS PLUG, Dual-Row, Housing
35 202033GS BREAKER, Circuit, 30A, 2P
36 188632GS BOOT, Rubber Wire Outlet
37 201171GS TUBING, Fabric
38 62265GS GROMMET
* - Items without part numbers are common fasteners and
are available at your local hardware store.
4BRIGGSandSTRATTON.COM
Exploded Views and Parts Lists
Item Part # Description
1 186059GS ADAPTER, Mounting, Alternator
2 191952GS ASSY., Rotor (Includes #12)
3 205062GS STATOR
4 186060GS RBC, with O-Ring (p/n 189197GS)
5 66449KGS BOLT, Stator, M6 - 1.0 x 200
6 66386GS ASSY., Holder, Rectifier/Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 * LOCKWASHER, 1/4 - M6
9 81917GS PIN, Roll, 4mm x 10
10 65795GS RECTIFIER, Battery Charge
11 66849CGS TAPTITE, M5 - 0.8 x 30
12 65791GS BEARING
13 189769GS REGULATOR, Voltage-AVR
* - Items without part numbers are common fasteners and
are available at your local hardware store.
ALTERNATOR EXPLODED VIEW & PARTS LIST
5
Exploded Views and Parts Lists
WHEEL KIT EXPLODED VIEW & PARTS LIST
Item Part # Description
1 203273GS WHEEL
2 * WASHER, 5/8"
3 191267TGS AXLE
4 191265GS E-RING
5 205135GS ASSY, Brake
6 * SCREW, 1/4-20 x 3/8
7 B193200GS ASSY, Handle w/Grip
198669GS GRIP
8 * WASHER, Flat, 5/16 - M8
9 * NUT, M8 - 1.25, Nylok
10 * HHCS, M8 - 1.25 x 45
11 * WASHER, 1.2 x 0.346 x 0.03, Nylon
12 B4135GS PIN, Handle
Items Not Illustrated
205183GS SUBKIT, Hardware
* - Items without part numbers are common fasteners and are
available at your local hardware store.
6BRIGGSandSTRATTON.COM
