Briggs & Stratton 20306 Guida all'installazione

Model No. 020306 (2550 PSI (175.8 BARS) Pressure Washer) Manual No. 203787A Revision - (04/11/2007)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2BRIGGSandSTRATTON.COM

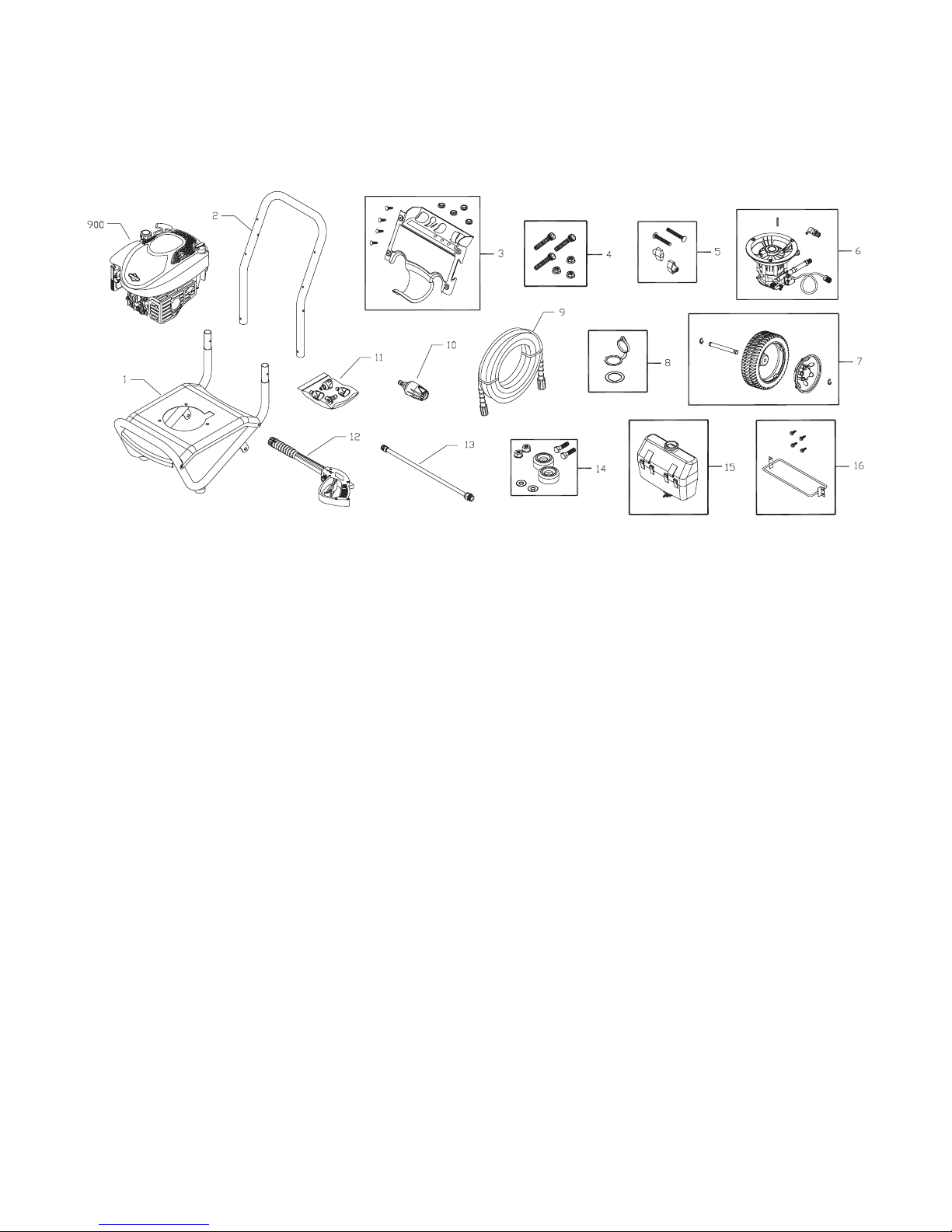

Exploded View and Parts List — Main Unit

tem Part # Description

1 202481GS ASSY, Base

2 J199110GS HANDLE

3 202762GS KIT, Bllbrd Assy, w/Decals & Clips

195964GS Clip

30809GS Grommet

4 192529GS KIT, Pump Mounting Hardware

5 B2203GS KIT, Handle Connector

6 202605GS ASSY, Pump

23139GS Key

194298GS Valve, Thermal Relief

7 202483GS KIT, Wheel

201313GS Axle

200520GS Hubcap

192050GS E-Ring

8 202763GS KIT, Cap, Chem Container

9 202017GS HOSE

10 198730GS ASSY, Turbo Max

11 202181GS KIT, Nozzle

201580RGS Nozzle, Project Pro, Yellow

201580XGS Nozzle, Project Pro, Orange

201580AEGS Nozzle, Project Pro, Red

198841GS Nozzle, Plastic, Soap

12 193482GS GUN

13 200595GS EXTENSION

Item Part # Description

14 192310GS KIT, Vibration Mount

15 199229GS ASSY, Tank, Chem

192980GS Kit, Valve

16 195856GS KIT, Wireform

900 NSP ENGINE

Items Not Illustrated:

203787GS MANUAL, Operator’s

BB3061BGS OIL BOTTLE

87815GS GOGGLES

A1040NGS HOSE, Chemical

275034 LABLE, Warning

793943 COVER, Static/Label Assy

200672GS DECAL, Caution, Hearing

202215GS DECAL, Eng, Shroud

195015GS KIT, Tag Warning, Eng/Frnch

Optional Accessories

6039 PUMP SAVER

6048 KIT, O-Ring Maintenance

§ - Contact Engine Manufacturer

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

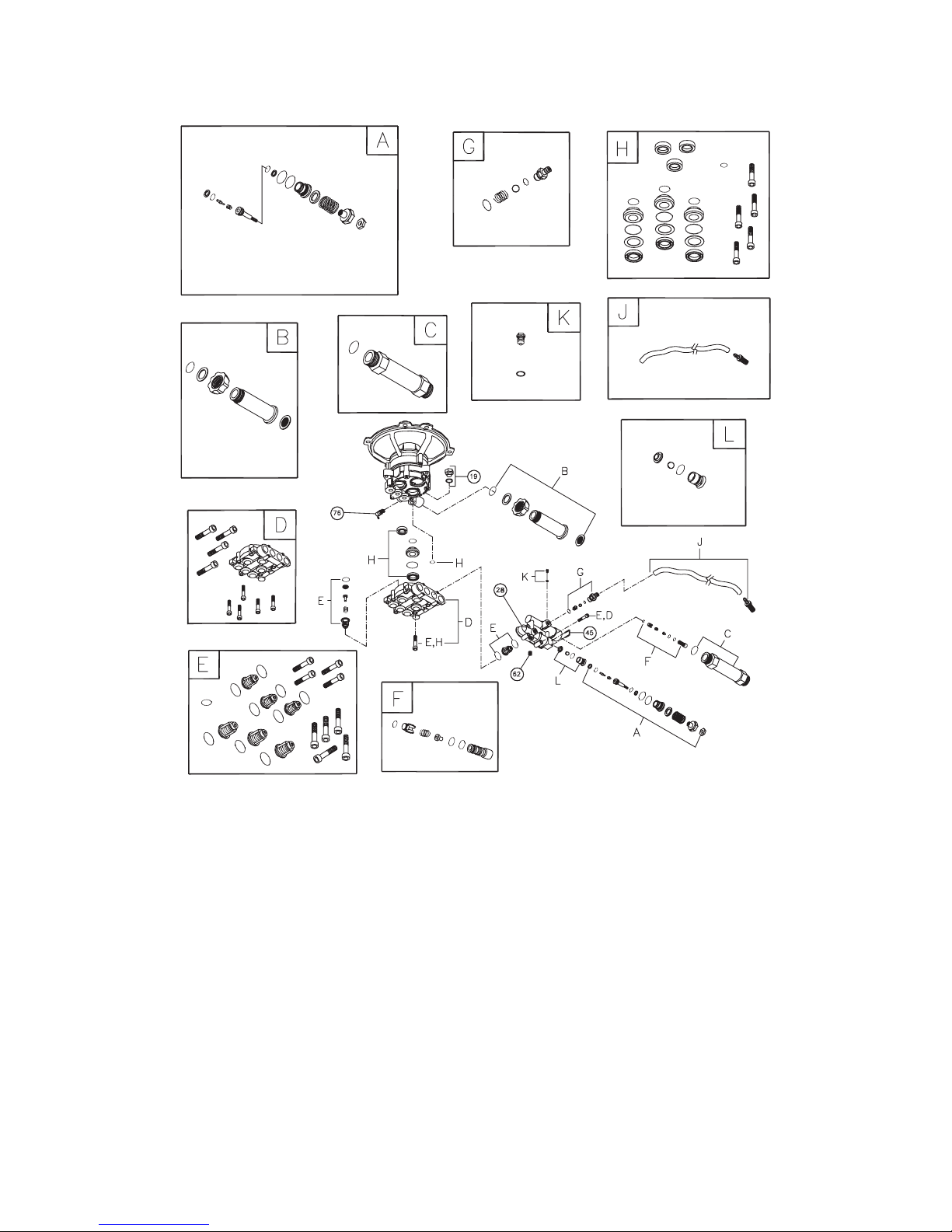

Exploded View and Parts List — Pump

IItem Part # Description

19 190571GS CAP, Oil

28 190627GS MANIFOLD

45 190578GS PIN

62 190581GS CAP, 1/8

76 194298GS THERMAL RELIEF

A 203641GS KIT, UNLOADER STEM

B 190632GS KIT, WATER INLET, ALUM

C 190634GS KIT, OUTLET, ALUMINIUM

D 203631GS KIT, HEAD ALUMINIUM

E 193806GS KIT, CHECK VALVES

F 190592GS KIT, INLET CHECK

G 203640GS KIT, CHEMICAL INJECTION

H 193807GS KIT, SEAL SET

J 189971GS KIT, CHEMICAL HOSE

K 193971GS KIT, PIPE FITTING

L 193972GS KIT, UNLOADER SEAT

Parts Not Illustrated

B2384GS FILTER, Inlet

Optional Accessories

186452GS FILTER, Inlet, Bag of 10

NOTE: Item letters A - L are service kits and include all parts

shown within the box.
