Bushnell IMAGE VIEW 111024 Manuale utente
Instruction Manual
Model#: 111024
LIT. #: 98-1647/07-10
3

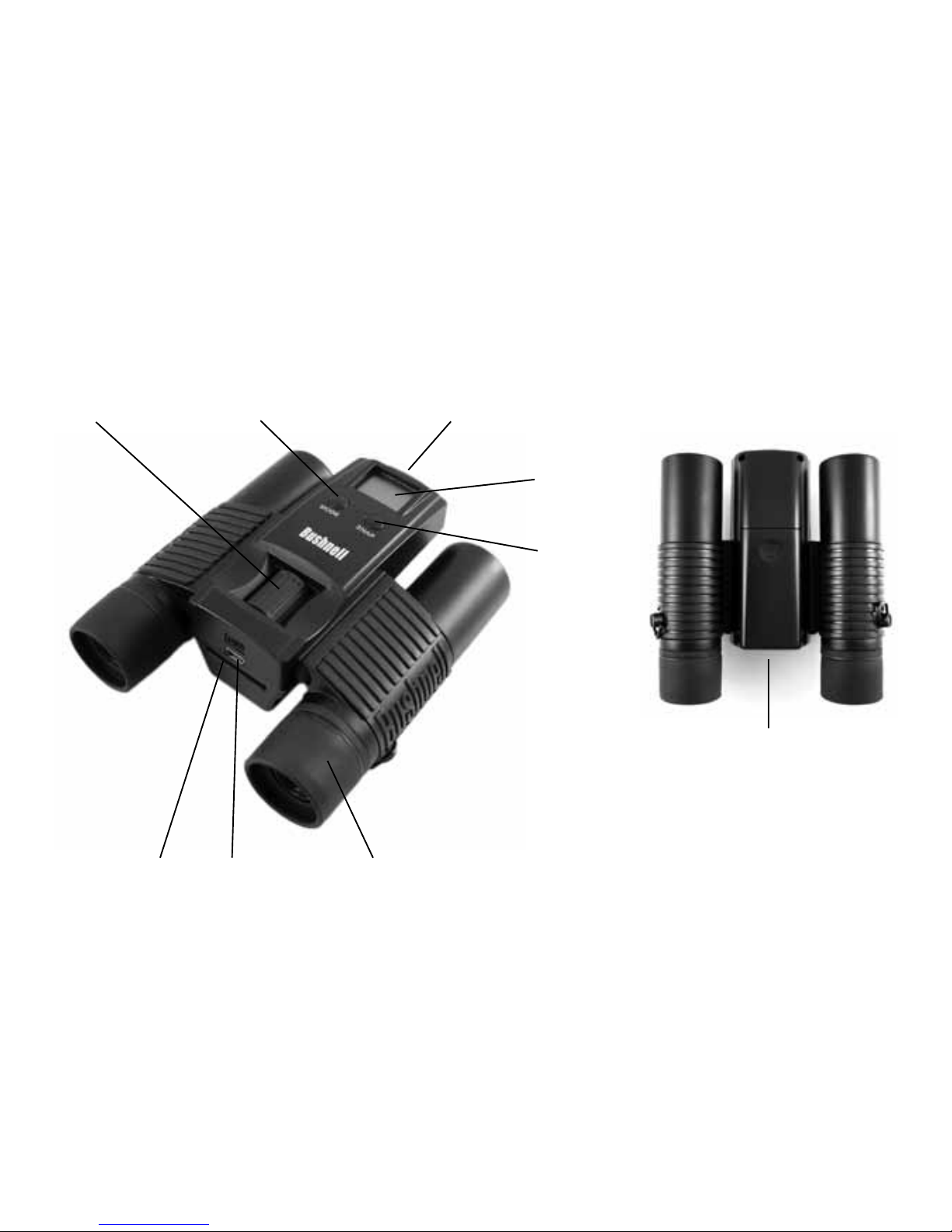

Camera and Binocular Parts Guide
USB PortSD Card Slot
MODE/Power Button Camera
Lens
Binocular Focus
SNAP
Button
Diopter Adjustment
LCD
Display
Battery
Cover
4
1) The camera is powered by two AAA batteries (not included). Remove the battery cover and insert the batteries, noting the polarity
marks. A power meter on the top right of the display indicates battery condition.
2) Insert an SD card (“upside down” with metal contacts facing up) in the slot if greater storage is desired. An SD card
icon will appear at the top right corner of the LCD display. You may use SD cards (not MMC cards) up to 2 GB capacity.

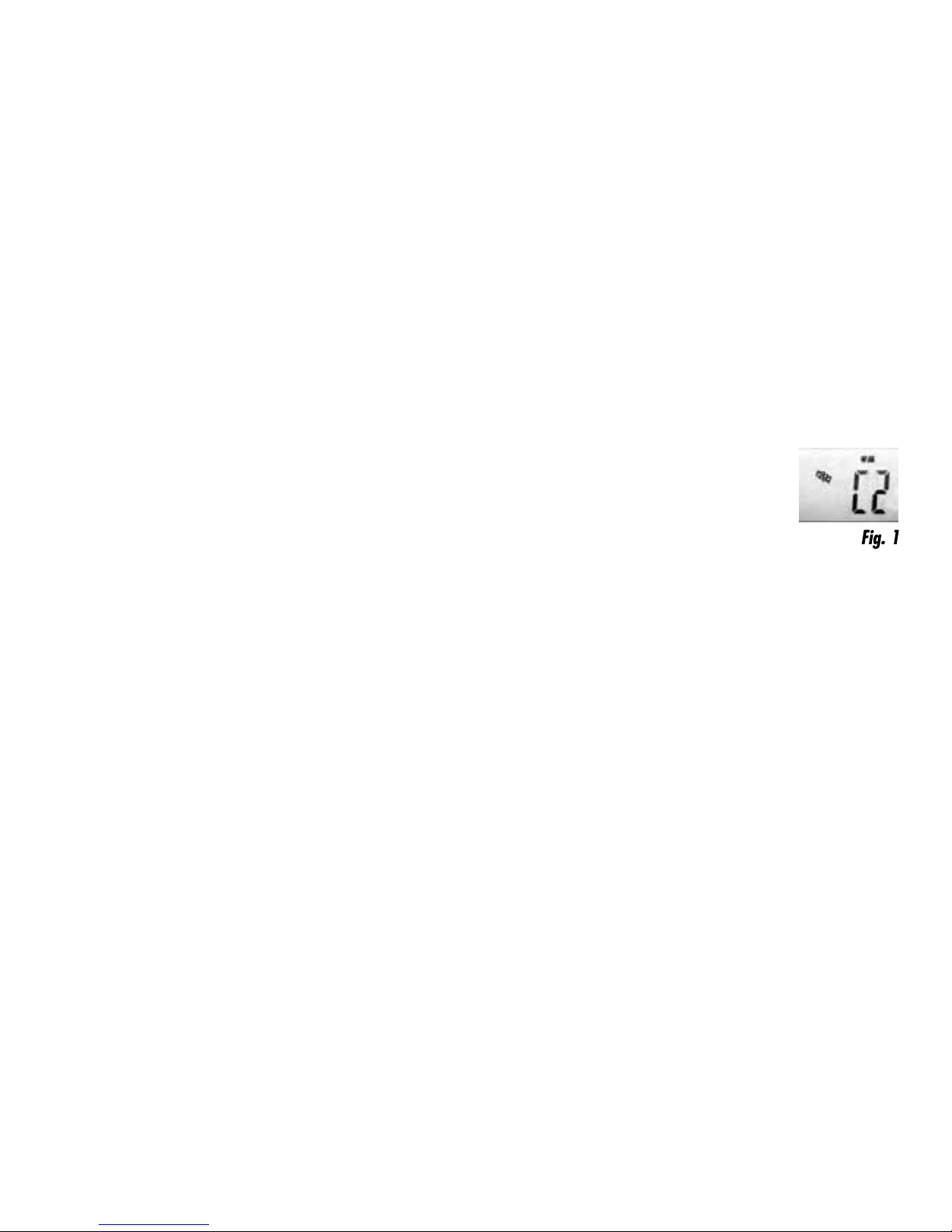

If an SD card that has not been formatted for the “FAT” file system is inserted, the display will indicate “C2” (Fig.
1) (most new cards are pre-formatted and ready to use). To format the card, press SNAP once. The display will show
a blinking “Delete All Photos” icon (see “Special Functions”). Press the SNAP button once more to format the card.
Note that this will erase all files-be sure to backup your photos before re-using an old card. If no card
is inserted, the camera will store photos in its 6MB internal memory. When the internal or card memory is full, and
can hold no more photos, the display will indicate “FUL.”
3) Press and release the MODE (Power) button to turn on the camera. The camera will turn off automatically after about two minutes
if no buttons are pressed. To turn the camera off manually, press and hold the MODE button until the display goes out. Note: when the
camera is connected to a computer via the supplied USB cable, the camera will power on automatically, and draw its power from the computer
with no battery drain.
4) Hold the ImageView steady and press SNAP to take a picture. The camera focus is preset to take sharp photos of subjects 50 feet or
farther away. The center focus knob affects only the view through the binoculars.
Special Functions/Features
There are five special functions or features that can be accessed by:
1) Pressing the MODE button one or more times after the camera has been turned on to select the function, then:
Basic Setup
5
Special Functions/Features (continued)
2) Pressing SNAP to confirm and execute the function. If you do not press the SNAP button to confirm/execute the selected function
(while the icon for that function is displayed) within 5 seconds, the function is cancelled and the camera and display will return to the
normal operating mode. The functions and their display icons are:
Press MODE x times Function Name
(Description) Display Icon
1 Delay Timer (a photo is taken following a 10-second delay after pressing SNAP)
2 Movie Mode (camera shoots a short video clip when SNAP is pressed)
3 Consecutive Shot (camera shoots a rapid series of 3 photos)
4 Delete All Photos (erases all photos in internal or card memory)
5 Delete Last Photo (erases only the last photo taken from internal or card memory)
6
When cycling through the functions, pressing the MODE button a sixth time (once more after “Delete Last Photo”) will return the camera
and display to normal operating mode (a single still photo will be taken when the SNAP button is pressed).
System Requirements
Operating System: Windows® 2000/ME/XP/Vista/Windows 7 (Windows 98 is not supported) or Mac OS 9 / OS X
Internal USB Port
Downloading Your Photos
1) Connect the supplied cable to the ImageView’s USB port, then directly to a main USB port on your
computer-do not use front panel/keyboard USB ports or unpowered “hubs.” The camera’s LCD will
indicate “Sto,” and the ImageView will be recognized as a standard “USB Mass Storage” device-no
driver is needed.
2) With Windows XP or later, you can simply use the options in the pop-up window to copy, view, or print
your photos (Fig. 1). On all Windows OS, the ImageView will appear as a “Removable Disk” under the
“My Computer” list (on Macs, an icon will appear on your desktop). The ImageView’s photo files are
named “IMG_0001.JPG” etc, and are located in the “DCIM” folder on this “Removable Disk.” You may
copy them to your hard drive as you would any file-just copy/paste or drag the file names or icons to
your drive or desktop.
Special Functions/Features (continued)
Fig. 1
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.
7
3) After the photos are copied to your hard drive, you can disconnect the camera. (On Mac computers, drag the “disk” that appeared
on your desktop when the camera was connected into your Trash to “eject” it before disconnecting.)
4) The jpg standard files from the ImageView may be edited with any photo software you choose to use. Photos may also be downloaded
by removing the card and using any USB card reader with an SD slot.
Adjusting the Binocular IPD
The distance between the eyes, called “interpupillary distance,” varies from person
to person. To set the hinge for your personal IPD:
Hold the binocular in the normal viewing position, with a firm grip on each side.

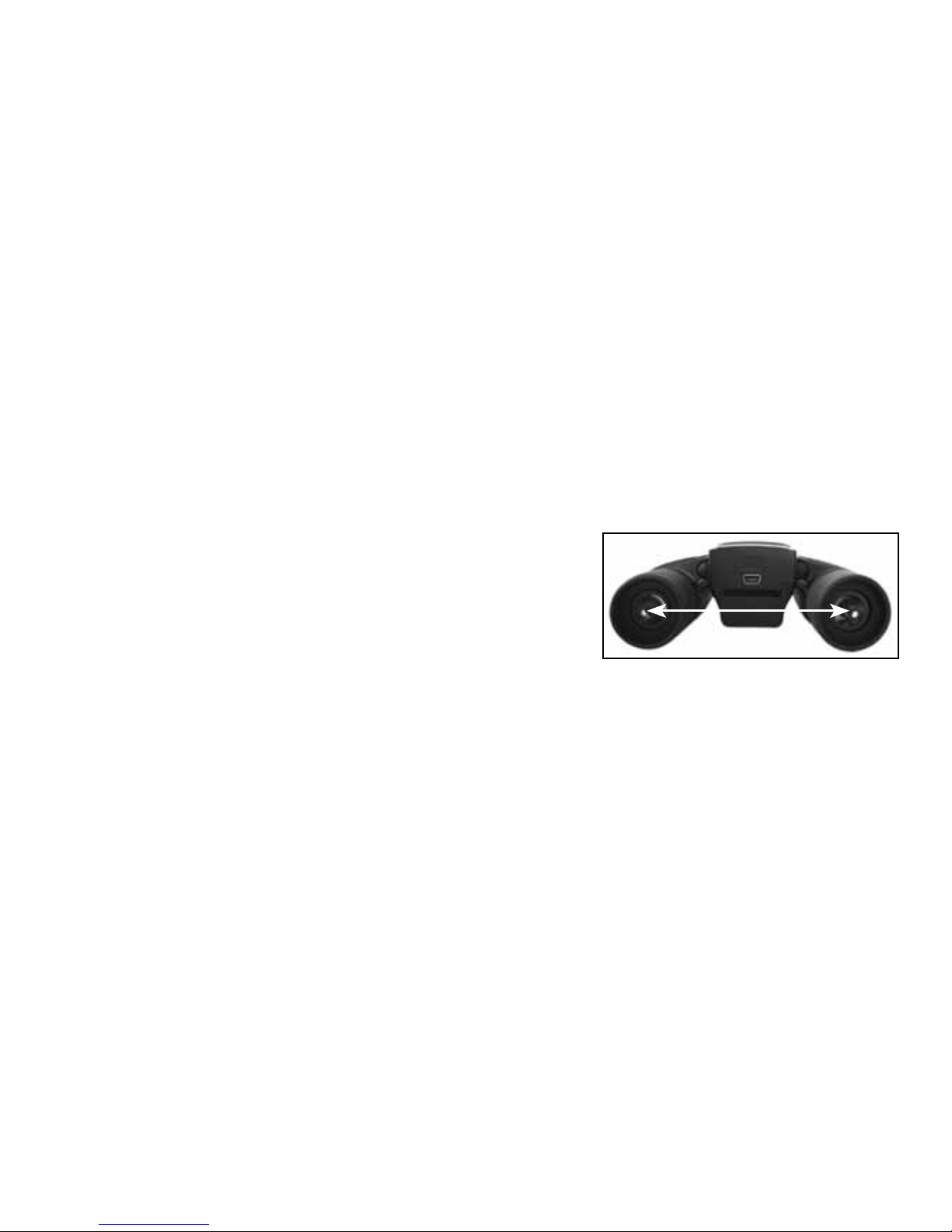

Move the barrels closer together or further apart (Fig. 2) until you see a single
circular field. Always re-set your binocular to this position before using.
Eyecups
The ImageView binocular is fitted with rubber roll-down eyecups designed for your comfort and to exclude extraneous light. If you
wear glasses, roll down the eyecups. This will bring your eyes closer to the binocular lens so you can view the entire image without
any cutoff.
Fig. 2
Downloading Your Photos (continued)
8
Focusing/Diopter Adjustment
As individual eyesight varies from one person to another, your binocular has an adjustable diopter
feature which allows you to fine-tune the binocular to your vision. To set the diopter and focus the
binocular:
1) Adjust the hinge for your interpupillary distance as described in “Adjusting the Binocular IPD.”
2) Set the “diopter adjustment” to zero (by rotating the right eyecup) (Fig. 3).
3) Keep both eyes open at all times.
4) Using a lens cover or your hand, cover the objective (front) lens of the right side of the binocular.
5) Using the center focus wheel, focus on a distant object with fine detail (e.g., brick wall, tree
branches, etc.) until it appears as sharp as possible through the left side of the binocular.
6) Uncover the objective lens on the right side, cover the left objective lens, then view the
same object.
7) Turn the “diopter setting” adjustment ring, until the object is sharp for your right eye. Caution
should be used as over turning or forcing the diopter eyepiece may damage the binocular.
8) Your binocular should now be adjusted for your eyesight. Focus at any far or near distances
can now be attained simply by turning the center focus wheel. Make a note of your diopter
setting for reference.
Fig. 3
9
TWO-YEAR LIMITED WARRANTY
Your Bushnell® product is warranted to be free of defects in materials and workmanship for two years after the date of purchase. In the event of a defect
under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover
damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.
Any return made under this warranty must be accompanied by the items listed below:
1) A check/money order in the amount of $10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Date Purchased
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage
in transit, with return postage prepaid to the address listed below:
IN U.S.A. Send To: IN CANADA Send To:
Bushnell Outdoor Products Bushnell Outdoor Products
Attn.: Repairs Attn.: Repairs
9200 Cody 25A East Pearce Street, Unit 1
Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9
This warranty gives you specific legal rights.
You may have other rights which vary from country to country.
©2010 Bushnell Outdoor Products
10
FCC Compliance Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
The device does not contain any user-serviceable parts. Repairs should only be made by an Authorized Bushnell repair center. Unauthorized repairs or
modifications could result in permanent damage to the equipment, and will void your warranty and your authority to operate this device under Part 15
regulations.
The shielded interface cable which is provided must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B
of Part 15 of FCC Rules.
