CALEFFI ThermoSetter 116 Series Manuale utente

Function

The ThermoSetter™adjustable thermal balancing valve is used

for automatic balancing of recirculation loops in domestic hot

water systems, to speed hot water delivery, reduce water waste

and save energy. The internal thermostatic balancing cartridge

automatically modulates flow to ensure a constant temperature

in the recirculation piping system. The 116 Series has an

adjustment knob with 95°F to 140°F (35°C to 60°C) temperature

scale indication. An integral dry-well holds a slide-in temperature

gauge for local indication, or a sensor for remote temperature

sensing. The optional check valve protects against circuit thermo-

syphoning.

ThermoSetter™ Recirculation Thermal balancing valve

H0001890.04

116 Series

Installation, commissioning and servicing instructions

Product range

1161 series

ThermoSetter w/o disinfection function, models w/ and w/o temperature

gauge, w/ and w/o check valve.........................connections ½” & ¾” NPT female

1162 series

ThermoSetter w/ disinfection function by-pass cartridge

(

160°F (70°C)), models w/

and w/o temperature gauge, w/ and w/o check valve...connections ½” & ¾” NPT female

1163 series

ThermoSetter w/ actuator disinfection function, models w/ and w/o

temperature gauge, w/ and w/o check valve......connections ½” & ¾” NPT female

1166 series

ThermoSetter w/ disinfection function by-pass cartridge

(

140°F (60°)), models w/

and w/o temperature gauge, w/ and w/o check valve...connections ½” & ¾” NPT female

www.caleffi.com

The 1162xx and 1166xx Series is available with a “disinfection” by-pass cartridge, for use in

systems which are designed to perform thermal disinfection for prevention of Legionella. When the

disinfection cartridge senses 160°F (70°C) -1162xx, or 140°F (60°C)-1166xx, water (2 available

temperature options), indicating disinfection control mode, it automatically opens a by-pass flow

path to allow sufficient flow for disinfection to occur. When the temperature drops back to normal

range, the disinfection by-pass cartridge closes to return flow control to the balancing cartridge.

The 1163xx Series is also available with a “disinfection” valve that is controlled by a 24V spring

return normally-closed thermo-electric actuator, rather than thermostatically, thus allowing

thermal disinfection mode to be controlled remotely by an automation system.

The valve is ICC-ES certified to NSF/ANSI 61 (180°F/82°C Commercial Hot) and NSF/ANSI 372, low

lead laws. It meets codes IPC, IRC, UPC and NPC for use in accordance with the US and Canadian

plumbing codes.

NSF 61

SAFETY INSTRUCTION

This safety alert symbol will be used in this manual to draw attention to safety related instructions.

When used, the safety alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS

INVOLVED! FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A SAFETY

HAZARD.

LEAVE THIS MANUAL FOR THE USER.

Caleffi shall not be liable for damages resulting from stress corrosion, misapplication or misuse of it products.

CAUTION: All work must be performed by qualified personnel trained in the

proper application, installation, and maintenance of systems in accordance

with all applicable codes and ordinances.

CAUTION: Over-tightening and breakage can occur with the use of Teflon®

pipe joint compounds. Teflon®provides lubricity so that care must be

exercised not to over-tighten joints. Failure to follow these instructions

could result in property damage and /or personal injury.

WARNING: System fluids are under pressure or temperature can be

hazardous. Be sure the pressure has been reduced to zero and the

system temperature is below 100°F (38°C). Failure to follow these

instructions could result in property damage and/or personal injury.

WARNING: This product can expose you to chemicals including lead, which is known

to the State of California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

CAUTION: Make sure that all the connecting pipework is water tight.

CAUTION: If the series ThermoSetter balancing valve is not installed,

commissioned and maintained properly, according to the instructions contained

in this manual, it may not operate correctly and may endanger the user.

CONSIGNE DE SÉCURITÉ

Ce symbole d'avertissement servira dans ce manuel à attirer l'attention sur la sécurité concernant

instructions. Lorsqu'il est utilisé, ce symbole signifie. ATTENTION! DEVENEZ ALERTE ! VOTRE

SÉCURITÉ EST EN JEU ! NE PAS SUIVRE CES INSTRUCTIONS PEUT PROVOQUER UN

ATTENTION: Tous les travaux doivent être effectués par du personnel

qualifié formé à la bonne application, installation et maintenance des systèmes

conformément aux codes et règlements locaux.

ATTENTION: Un serrage excessif et la rupture peut se produire avec

l’utilisation de composés à joint de tuyau en Téflon®. Pouvoir lubrifiant Teflon®

permet de sorte qu’il faut prendre soin de ne pas trop serrer les articulations.

Le non-respect de ces instructions peut entraîner des dommages matériels

et/ou des blessures.

AVERTISSEMENT: Les liquides du système sont sous pression ou de la

température peuvent être dangereux. Être sûr que la pression a été réduite

à zéro et la température du système est inférieure à 100°F (38°C). Le non-

respect de ces instructions peut entraîner des dommages matériels et/ou des

blessures.Le non-respect de ces instructions peut entraîner des dommages

matériels et/ou des blessures.

ATTENTION: Si le vanne d’équilibrage, Série ThermoSetter, n'est pas installé,

mis en service et entretenu correctement, selon les instructions contenues dans ce

manuel, il peut ne pas fonctionner correctement et peut mettre en danger l'utilisateur.

ATTENTION: S'assurer que tous les raccordements sont étanches.

Calefﬁ ne pourra être tenue responsable des dommages résultant de la corrosion, d’une mauvaise

utilisation ou une mauvaise utilisation des produits.

AVERTISSEMENT:

Ce produit peut vous exposer à des produits chimiques comme

le plomb, qui est connu dans l’État de Californie pour causer le cancer, dommages à la

naissance ou autre. Pour plus d’informations rendez-vous www.P65Warnings.ca.gov.

LAISSEZ CE MANUEL AVEC L’UTILISATEUR

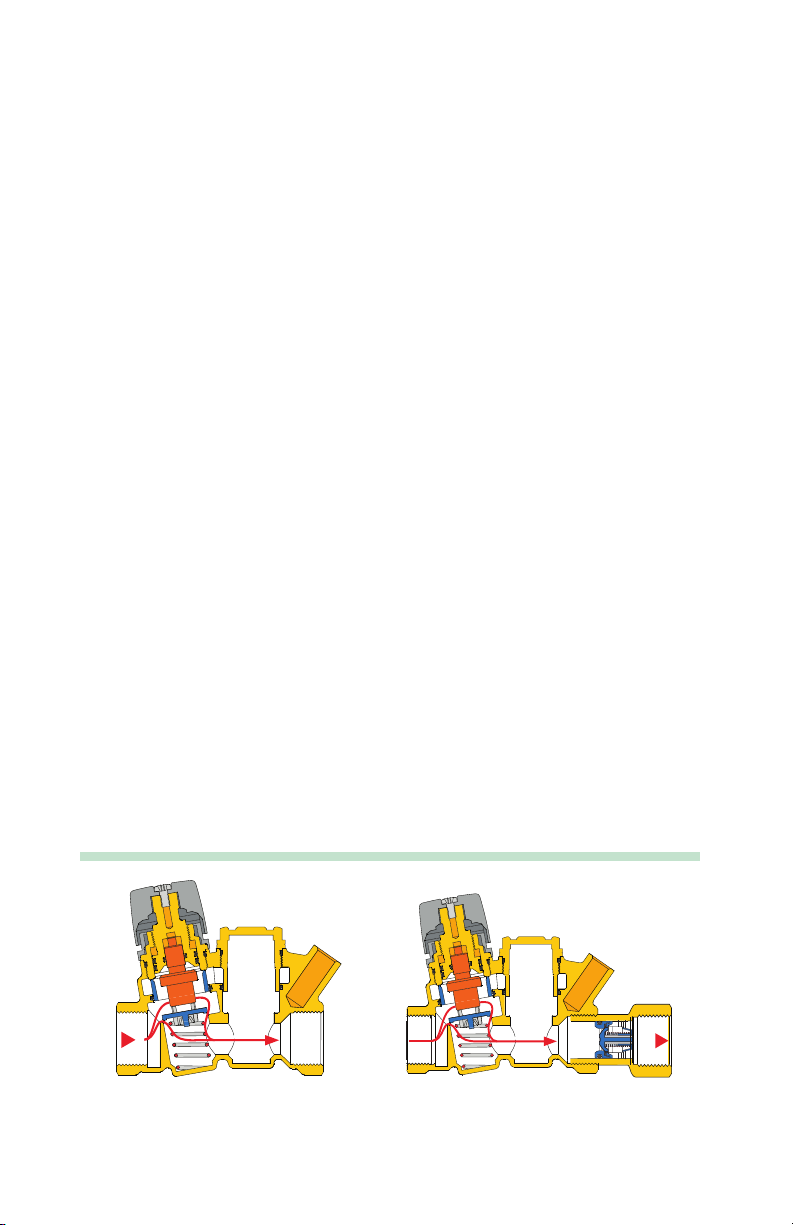

Thermostatic control,

1161xxA series

Thermostatic control with check valve,

1161xxAC series

Technical specifications

Materials

Body: DZR low-lead brass EN 12165 CW724R

Adjustable cartridge: Stainless steel & copper

Springs: Stainless steel EN 10270-3 (AISI 302)

Hydraulic seals: peroxide-cured EPDM

Adjustment knob: ABS

Performance

Suitable fluid: water

Max. working pressure: 230 psi (16 bar)

Max. differential pressure: 15 psi (1 bar)

Adjustable temperature range: 95–140°F (35 – 60°C)

Factory setting: 130°F (55°C)

Disinfection temperature: 1162xx series-160°F (70°C)

1166xx series-140°F (60°C)

Closing temperature: 1162xx series-170°F (75°C)

1166xx series-150°F (65°C)

Max. inlet temperature: 195°F (90°C)

Cv (Kv) max: 2.1 (1.8)

Cv (Kv) dis: 1.2 (1.0)

Cv (Kv) min: 0.23 (0.2)

Cv (Kv) design: 0.52 (0.45)

Certifications

1. Complies with codes IPC, IRC, UPC and NPC.

2. ICC-ES certified to NSF/ANSI 61 (180°F/82°C Commercial Hot), file PMG-1512.

3. NSF/ANSI 372, low lead certified by ICC-ES, file PMG-1360.

Connections

Main connnections: ½” NPT female

¾” NPT female

Temperature gauge/probe pocket: Ø 10 mm metric

Temperature gauge code 116010

Scale: 30 - 180°F (0–80°C)

Diameter: 1½” (40 mm)

Stem diameter: 0.35” (9 mm)

Function A - Temperature control

At the set temperature, the valve plug (1), controlled by the thermostatic balancing cartridge

(2), gradually closes the outlet (3) to the minimum. The outlet never fully closes to always allow

a minimum flow for temperature sensing and to prevent recirculation pump dead-heading.

If the temperature decreases, the outlet increases, causing flow and thus temperature to

increase back to the set temperature as shown in curve 1. If temperature exceeds the set-

point, the plug stays in the minimum closed position as shown in curve 2. The balancing

cartridge has a throttling range of 60°F, from full open to minimum position.

Cvmax

T (°F)

G (gpm)

Cvdis

Cvmin

Automatic disinfection

Thermal disinfection

Temperature control

100

140

150

160

190

170

180

185

Tset

(2.1)

(1.2)

(0.23)

Cvdesign

(0.52)

Thermostatic control Minimum flow rate

For 1162xx series with 160°F by-pass temperature

and 170°F closing temperature.

Function B - Automatic thermostatic disinfection

The 1162xx and 1166xx series operating characteristic curves for operating mode B are

curves 1, 2, 3 and 4. When a temperature higher than about 155°F (68°C) is reached, a

by-pass passage begins to open to activate the second thermostatic cartridge (4) which

controls the thermal disinfection process, allowing flow independent of the operation of the

thermostatic balancing cartridge. This allows water flow through a special by-pass port,

opening the flow path up until the by-pass temperature is attained shown in curve 3. If the

temperature continues rising beyond this point, the flow is reduced through the by-pass port

to allow thermal balancing even during the disinfection process. When temperature reaches

closing temperature, the disinfection by-pass port (5) closes to protect the system fixtures

from the effects of excessive temperatures, as shown in curve 4.

Thermostatic disinfection Thermal shut-off

Cvmax

T (°F)

G (gpm)

Cvdis

Cvmin

Automatic disinfection

Thermal disinfection

Temperature control

100

120

130

140

180

150

160

170

Tset

(2.1)

(1.2)

(0.23)

Cvdesign

(0.52)

For 1166xx series with 140°F by-pass temperature

and 150°F closing temperature.

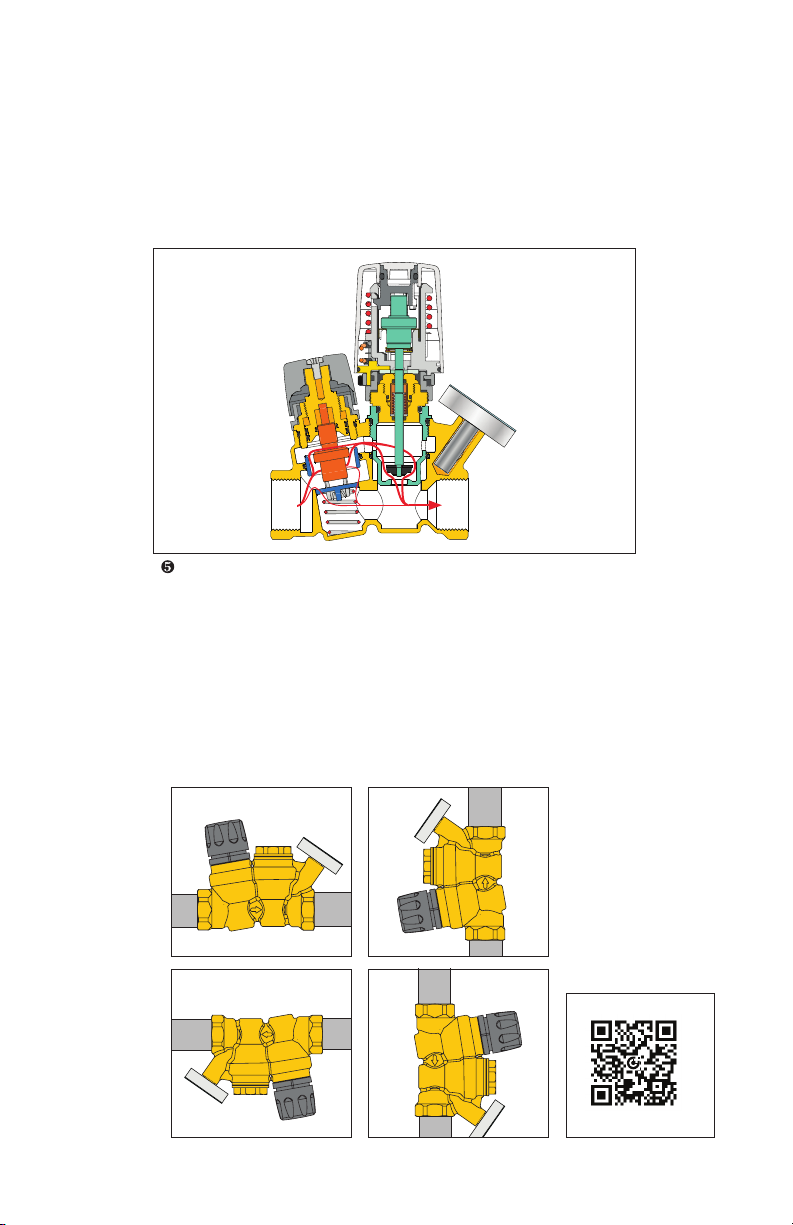

Function C - Actuator-controlled disinfection

The 1163xx series operating characteristic curves for operating mode C are curves 1, 2 and

5. When the disinfection operating temperature setting of the electronic disinfection system is

reached, the thermo-electric actuator 656 series (which is controlled by a dedicated electronic

control system), is energized to operate the by-pass valve to control the disinfection process,

allowing flow independent of the operation of the thermostatic balancing cartridge shown

in curve 5. In this case, the minimum head loss is produced during this thermal disinfection

process.

Installation

Before installing the ThermoSetter, flush the pipes to make sure that impurities in system

will not interfere with valve performance. Strainers of sufficient capacity at the inlet from the

water main are highly recommended. The ThermoSetter can be installed in any position,

vertical or horizontal, following the flow direction indicated by the arrow on the valve body.

The ThermoSetter must be installed according to the diagrams given in this manual. It must

be installed to allow free access to for checking on operation and maintenance procedures.

Electrically controlled disinfection

Installation Tip

Scan to view

116 ThermoSetter

Dimensions

Code B C DMass (kg)

Code B C D

1/2" 100

Mass (kg)

3/4 100

18,5

74,5

116140

116150

0,650

0,600

1/2" 100

3/4 100

18,5

74,5

116240

116250

0,750

0,700

Code B C DMass (kg)

1/2" 100

3/4 100

18,5

74,5

116240

116250

0,750

0,700

B’

Code A B B'* C D Wt (lb/kg)

116140A(C) ½" NPT F 4"5 7/16" ¾" 3" 1.7 / 0.75

116141A(C)** ½" NPT F 4"5 7/16" ¾" 3" 1.7 / 0.75

116150A(C) ¾" NPT F 4"5 5/8" ¾" 3" 1.5 / 0.70

116151A(C)** ¾" NPT F 4"5 5/8" ¾" 3" 1.5 / 0.70

*Models with check valve tail-piece (C) end-to-end dimension is B'.

**with integral outlet temperature gauge.

B’

116(2/6)xx

1163xx

Code A B B* C D Wt (lb/kg)

116D40A(C)** ½" NPT F 4" 5 7/16" ¾" 3" 1.7 / 0.75

116D50A(C)** ¾" NPT F 4" 5 5/8" ¾" 3" 1.5 / 0.70

116340A(C) ½" NPT F 4"5 7/16" ¾" 3" 1.7 / 0.75

116350A(C) ¾" NPT F 4"5 5/8" ¾" 3" 1.5 / 0.70

*Models with check valve tail-piece (C) end-to-end dimension is B'.

**D=2 for models with 160°F (70°C) disinfection temperature;

D=6 for models with 140°F (60°C) disinfection temperature.

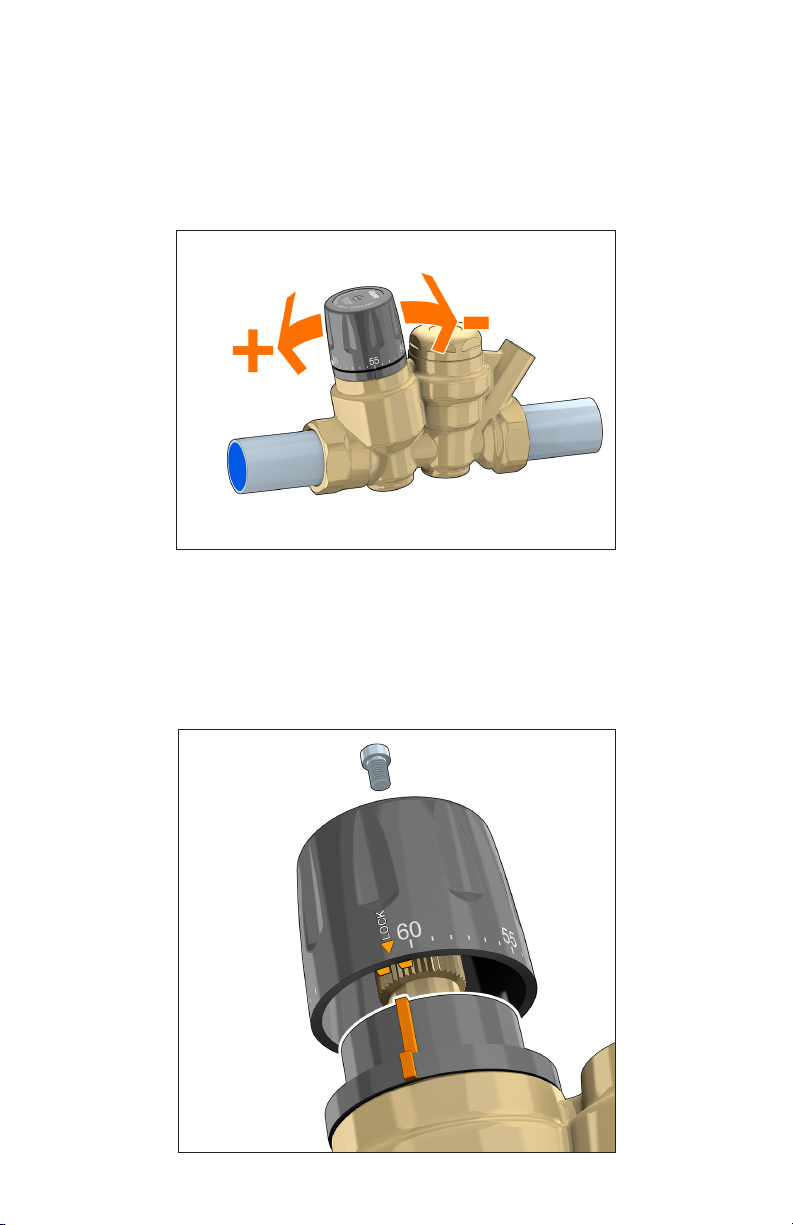

The ThermoSetter thermostatic balancing valve is designed to balance

individual branches of domestic hot water recirculation systems, based

on the temperature at the valve. It automatically modulates flow to

maintain hot water availability to all fixtures in the branch circuit.

The valve is at minimum flow (Cv = .23) when the incoming water

temperature is equal to the set-point position of the adjustment

dial. The valve opens as incoming water temperature drops.

For pressure loss calculations in the recirculation system, follow

traditional pipe sizing and head loss practices. For pressure loss

calculations across the ThermoSetter valve, use the design curve

shown in the graph below. This line represents a typical valve position

under normal working conditions (∆T= 10°F). Determine the pressure

drop across the valve by selecting the branch design GPM on the

graph X-axis, draw a vertical line up to the “design” curve, then

go across to the Y-axis to find the design pressure drop. Include

that pressure drop in your head loss calculations for the circuit.

2. 5 3

4.5 6 7 8.810 1213.2

0.01

0.02

0.03

0.05

0.07

0.10

0.15

0.20

0.30

0.50

0.70

1.00

1.50

2.00

3.00

7.25

14.5

0.70

2.00

Flow rate

(/m) (gpm)

0.40

0.30

0.12

0.10

0.08

1.40

1.80

0.90

0.60

0.30

1.20

0.16

0.20

0.50

0.60

0.90

1.00

1.80

0.36

0.48

2.40

3.00

3.60

4.20

4.80

5.40

6.00

7.80

∆p (psi) ∆p (kPa)

0.1

0.2

0.3

0.5

0.7

1.0

1.4

2.0

3.5

7.0

10˚F ∆T

inlet to setpoint

Operation in

by-pass mode

0.23 Cv

minimum

1.2 Cv

by-pass

2.1 Cv

full open

0.52 Cv

design

The “by-pass mode” curve in the chart above shows the head loss of

the valve when it is in by-pass thermal disinfection mode for Legionella

control.

Flow characteristics

Temperature adjustment

Set the desired recirculation system temperature by turning the adjustment knob. The graduated

scale shows the temperatures at which the indicator can be set. A valve temperature setting at about

10°F (5°C) higher than the water temperature at the valve inlet is recommended, accounting for heat

losses along the line, to limit the head required at the recirculation pump. Be sure this is the minimum

flow rate at the mixing valves in the central heating system.

Adjustment locking

After adjusting the temperature, the setting can be locked at the desired value using the adjustment

knob. Unscrew the locking screw at the top of the adjustment knob, remove the knob and then

put it back on so that the internal groove couples with the protrusion on the knob holder nut. When

this block is used, the reference of the indication of the temperature values on the knob is lost. To

restore it, completely unscrew the lcoking screw. Reposition the knob on MAX value. Tighten the

locking screw.

Altri manuali per ThermoSetter 116 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali CALEFFI Unità di controllo

CALEFFI

CALEFFI MixCal 521 Series Guida

CALEFFI

CALEFFI 5335 Series Guida utente

CALEFFI

CALEFFI FlowCal 121 Series Manuale utente

CALEFFI

CALEFFI 311 Series Manuale utente

CALEFFI

CALEFFI 642 Series Manuale utente

CALEFFI

CALEFFI LEGIOMIX 6000 series Guida

CALEFFI

CALEFFI ThermoSetter 1164 Series Guida utente

CALEFFI

CALEFFI 200 Series Manuale utente

CALEFFI

CALEFFI ThermoBloc 281 Series Manuale utente

CALEFFI

CALEFFI Z-one ZSR10 Series Manuale utente

CALEFFI

CALEFFI MixCal 521400A Guida

CALEFFI

CALEFFI 455 Series Manuale utente

CALEFFI

CALEFFI QuickSetter+ 132 Series Manuale utente

CALEFFI

CALEFFI AIR190001 Manuale utente

CALEFFI

CALEFFI LEGIOMIX 6000 series Manuale del proprietario

CALEFFI

CALEFFI PLUMBVENT NA502640A Manuale utente

CALEFFI

CALEFFI 630 Series Manuale utente

CALEFFI

CALEFFI SinkMixer 521201A Guida

CALEFFI

CALEFFI 5350 Series Manuale utente

CALEFFI

CALEFFI MixCal 521410A Guida

CALEFFI

CALEFFI 5231 Series Guida

CALEFFI

CALEFFI 2527 Series Manuale utente

CALEFFI

CALEFFI FlowCal 127 Series Manuale utente

CALEFFI

CALEFFI 510 Series Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
