R.M. Young Wind Sentry

1. Introduction

The 03002 Wind Sentry Set measures both wind speed and direction. It

consists of a 3-cup anemometer and a wind vane mounted on a small crossarm.

The anemometer (pn 03101) and vane (pn 03301) may be purchased

separately.

Before installing the 03002, please study

•Section 2, Cautionary Statements

•Section 3, Initial Inspection

•Section 4, Quickstart

2. Cautionary Statements

•The 03002 is a precision instrument. Please handle it with care.

•If the 03002 is to be installed at heights over 6 feet, be familiar with tower

safety and follow safe tower climbing procedures.

•Danger — Use extreme care when working near overhead electrical wires.

Check for overhead wires before mounting the 03002 or before raising a

tower.

•The black outer jacket of the cable is Santoprene® rubber. This

compound was chosen for its resistance to temperature extremes, moisture,

and UV degradation. However, this jacket will support combustion in air.

It is rated as slow burning when tested according to U.L. 94 H.B. and will

pass FMVSS302. Local fire codes may preclude its use inside buildings.

3. Initial Inspection

•Upon receipt of the 03002, inspect the packaging and contents for damage.

File damage claims with the shipping company. Immediately check

package contents against the shipping documentation (see Section 3.1,

Ships With List). Contact Campbell Scientific about any discrepancies.

•The model number and cable length are printed on a label at the

connection end of the cable. Check this information against the shipping

documents to ensure the expected product and cable length are received.

R.M. Young Wind Sentry

3.1 Ships With List

The 03002 Wind Sentry ships with:

(1) 03002 Wind Sentry including

03102 anemometer

03302 vane

crossarm

band clamp (pn 4919)

(1) 12" x 1.0" unthreaded aluminium pipe (pn 3659)

(1) Allen wrench (pn 5201)

The 03101 anemometer ships with:

(1) 03101 anemometer

(1) 10" x 3/4" threaded galvanized pipe (pn 12243)

(1) Allen wrench (pn 5201)

The 03301 Vane ships with:

(1) 03301 vane

(1) 10” x 3/4” threaded galvanized pipe (pn 12243)

(1) Allen wrench (pn 5201)

4. Quickstart

4.1 Step 1 — Mount the Sensor

This quick start is for the 03002 wind set. Refer to Section 7, Installation, if

installing just the 03101 anemometer or 03301 vane. Section 7, Installation,

also provides siting information.

Tools required:

•5/64” Allen wrench

•Allen wrench provided with sensor

•1/2” open end wrench

•compass and declination angle for the site (see Appendix A)

•small screw driver provided with datalogger

•UV resistant cable ties

•small pair of diagonal-cutting pliers

•6 – 10” torpedo level

Install the 03002 using:

•Standard 1.0-in. IPS schedule 40 pipe (pn 3659)

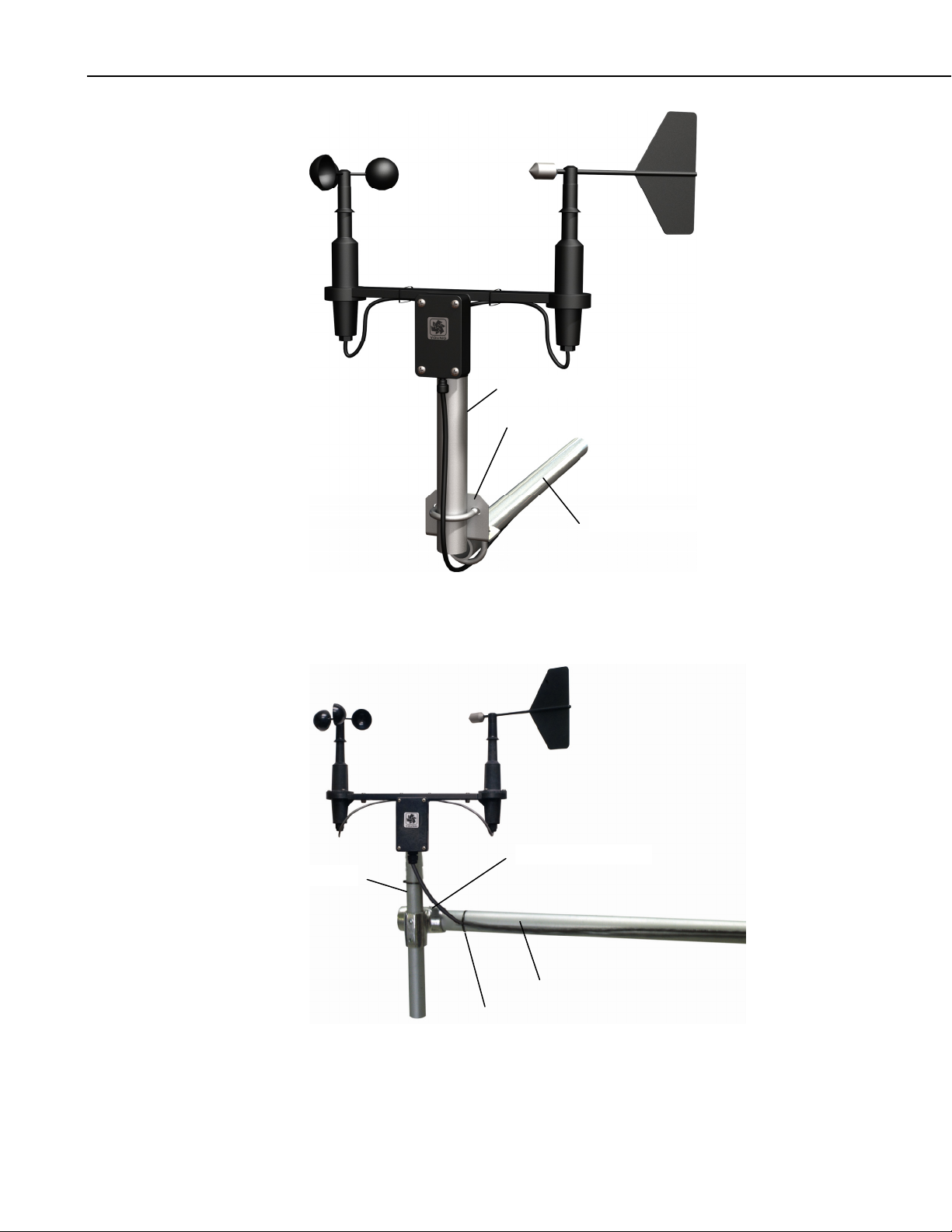

•CM220 Right-Angle Mounting Kit (FIGURE 4-1 and FIGURE 4-2),

•17953 1 x 1 inch NU-RAIL Crossover Fitting (FIGURE 4-3)

R.M. Young Wind Sentry

1. Install the cup wheel to the anemometer shaft using the Allen wrench

provided with the sensor.

2. Mount a CM202, CM204, or CM206 crossarm to the tripod or tower.

3. Orient the crossarm North-South, with the CM220 mount or 17953 NU-

RAIL on the north end. Appendix A contains detailed information on

determining True North using a compass and the magnetic declination for

the site.

4. Secure the 12 in. aluminum pipe to the CM220 mount or 17953 NU-RAIL.

The 3659 aluminum pipe is shipped with the 03002.

5. Place the 03002 on the pipe, and orient the sensor crossarm North-South

with the vane to the North.

6. Tighten the mounting post band clamp. Final sensor orientation is done

after the datalogger has been programmed to measure wind direction as

described in Appendix A.

7. Route the sensor cable along the underside of the crossarm to the tripod or

tower, and to the instrument enclosure.

8. Secure the cable to the crossarm and tripod or tower using cable ties.

FIGURE 4-1. CM200-Series Crossarm with CM220 Right Angle

Mounting Bracket

CM220

CM200-Series Crossarm

R.M. Young Wind Sentry

FIGURE 4-2. 03002 mounted to CM200-Series Crossarm with CM220

FIGURE 4-3. 03002 mounted to CM200-Series Crossarm with

pn 17953

CM220

Alumimum Pipe

CM200-Series Crossarm

pn 17953 NU-RAIL

Aluminum Pipe

CM200-Series Crossarm

Cable Tie

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Campbell Strumento di misura

Campbell

Campbell CR850 Manuale utente

Campbell

Campbell cs215 Manuale utente

Campbell

Campbell CS616 Manuale utente

Campbell

Campbell Weatherpak M Manuale utente

Campbell

Campbell EC155 Manuale utente

Campbell

Campbell RainVUE Series Manuale utente

Campbell

Campbell OBS-3A Manuale utente

Campbell

Campbell CRS451 Manuale utente

Campbell

Campbell CS300 Manuale utente

Campbell

Campbell HC2S3 Manuale utente

Campbell

Campbell 110PV Manuale utente

Campbell

Campbell KH20 Manuale utente

Campbell

Campbell OBS-3 Manuale utente

Campbell

Campbell CSAT3BH Manuale utente

Campbell

Campbell TE525 Manuale utente

Campbell

Campbell TEMPERATURE PROBE 109SS Manuale utente

Campbell

Campbell CS526 Manuale utente

Campbell

Campbell HMP45C212 Manuale utente

Campbell

Campbell SR20-D2 Manuale utente

Campbell

Campbell CSAT3BH Manuale utente

Campbell

Campbell TGA200 Manuale utente

Campbell

Campbell Oxyguard CS510 Manuale utente

Campbell

Campbell CS135 Manuale utente

Campbell

Campbell 05103 Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
