MODEL CS205 10-HOUR FUEL TEMPERATURE STICK

INSTRUCTION MANUAL

7/98

WARRANTY AND ASSISTANCE

The CS205 10-HOUR FUEL TEMPERATURE STICK is warranted by CAMPBELL SCIENTIFIC

(CANADA) CORP. (“CSC”) to be free from defects in materials and workmanship under normal

use and service for twelve (12) months from date of shipment unless specified otherwise. CSC's

obligation under this warranty is limited to repairing or replacing (at CSC's option) defective

products. The customer shall assume all costs of removing, reinstalling, and shipping defective

products to CSC. CSC will return such products by surface carrier prepaid. This warranty shall

not apply to any CSC products which have been subjected to modification, misuse, neglect,

accidents of nature, or shipping damage. This warranty is in lieu of all other warranties,

expressed or implied, including warranties of merchantability or fitness for a particular purpose.

CSC is not liable for special, indirect, incidental, or consequential damages.

Products may not be returned without prior authorization. To obtain a Return Merchandise

Authorization (RMA), contact CAMPBELL SCIENTIFIC (CANADA) CORP., at (780) 454-2505.

An RMA number will be issued in order to facilitate Repair Personnel in identifying an instrument

upon arrival. Please write this number clearly on the outside of the shipping container. Include

description of symptoms and all pertinent details.

CAMPBELL SCIENTIFIC (CANADA) CORP. does not accept collect calls.

Non-warranty products returned for repair should be accompanied by a purchase order to cover

repair costs.

FDPSEHOO#VFLHQWLILF#+FDQDGD,#FRUS1

44897#47<#VW#z#HGPRQWRQ#z#DOEHUWD#z#780#4::#z#+:;3,#787#5838#z#ID[#+:;3,#787#5988

HMP35C TEMPERATURE AND RH PROBE

MODEL CS205

10-HOUR FUEL TEMPERATURE STICK

1. GENERAL DESCRIPTION

The CS205 Temperature Stick is a Ponderosa

pine dowel 4.5 inches long and 0.5 inches in

diameter. The dowel is fabricated to USFS

specifications, to be used as a fuel moisture

sensor. Campbell Scientific, Inc. has bored a

hole and cut a split into one end of the dowel. A

model 107 Temperature Probe is inserted into

the CS205 to measure fuel temperature.

The CS205 Fuel Temperature Stick mounts on

the 10974 Fuel Moisture/Temperature

Mounting Stake. The CS205 is most commonly

installed along with a CS505 Fuel Moisture

Sensor but can be used alone.

2. SPECIFICATIONS

Fuel Temperature Stick

diameter 0.5 inches

length 4.5 inches

wood type Ponderosa Pine

bore hole about 1/4 inch

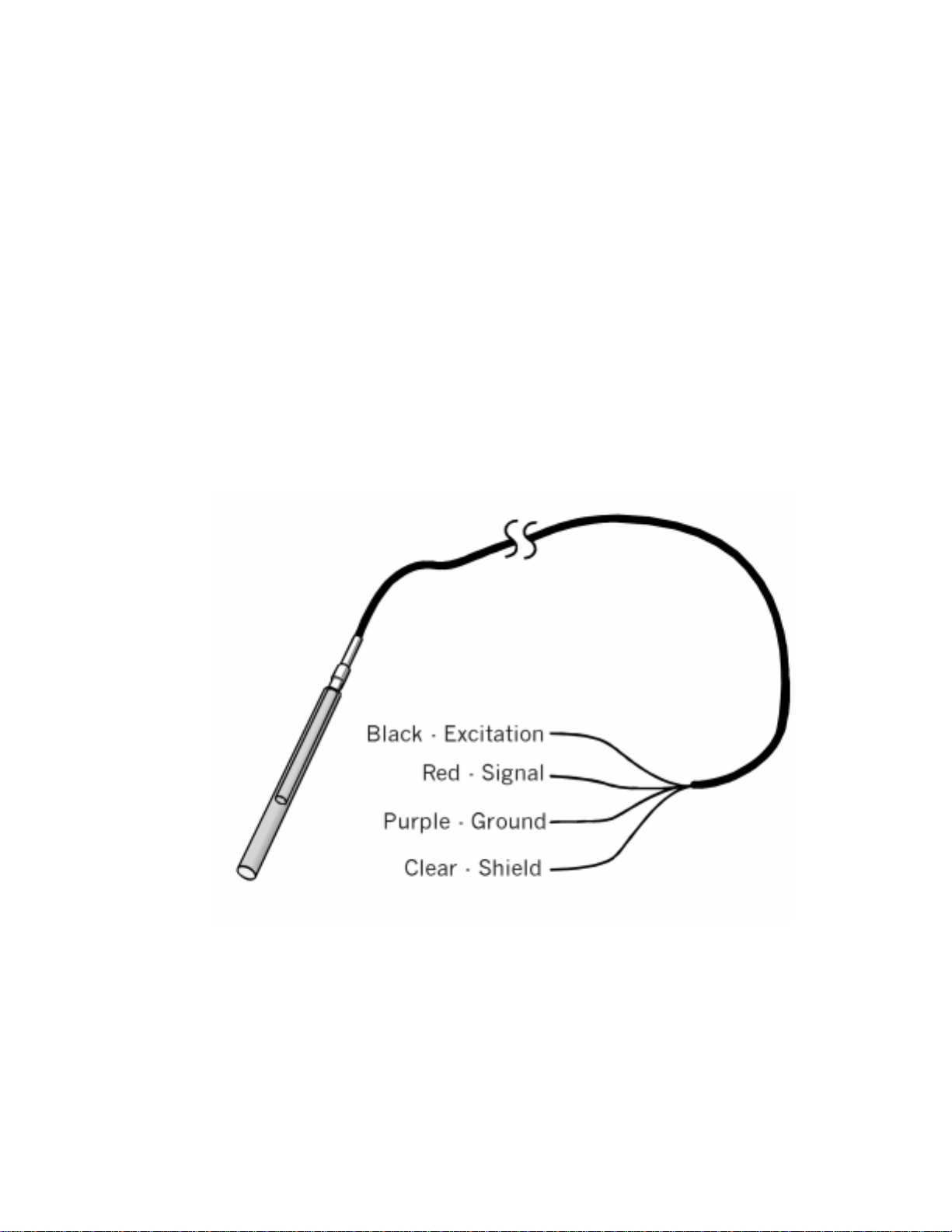

FIGURE 1-1. The 107 probe inserts into the CS205 Fuel Moisture Stick

MODEL CS205 10-HOUR FUEL TEMPERATURE STICK

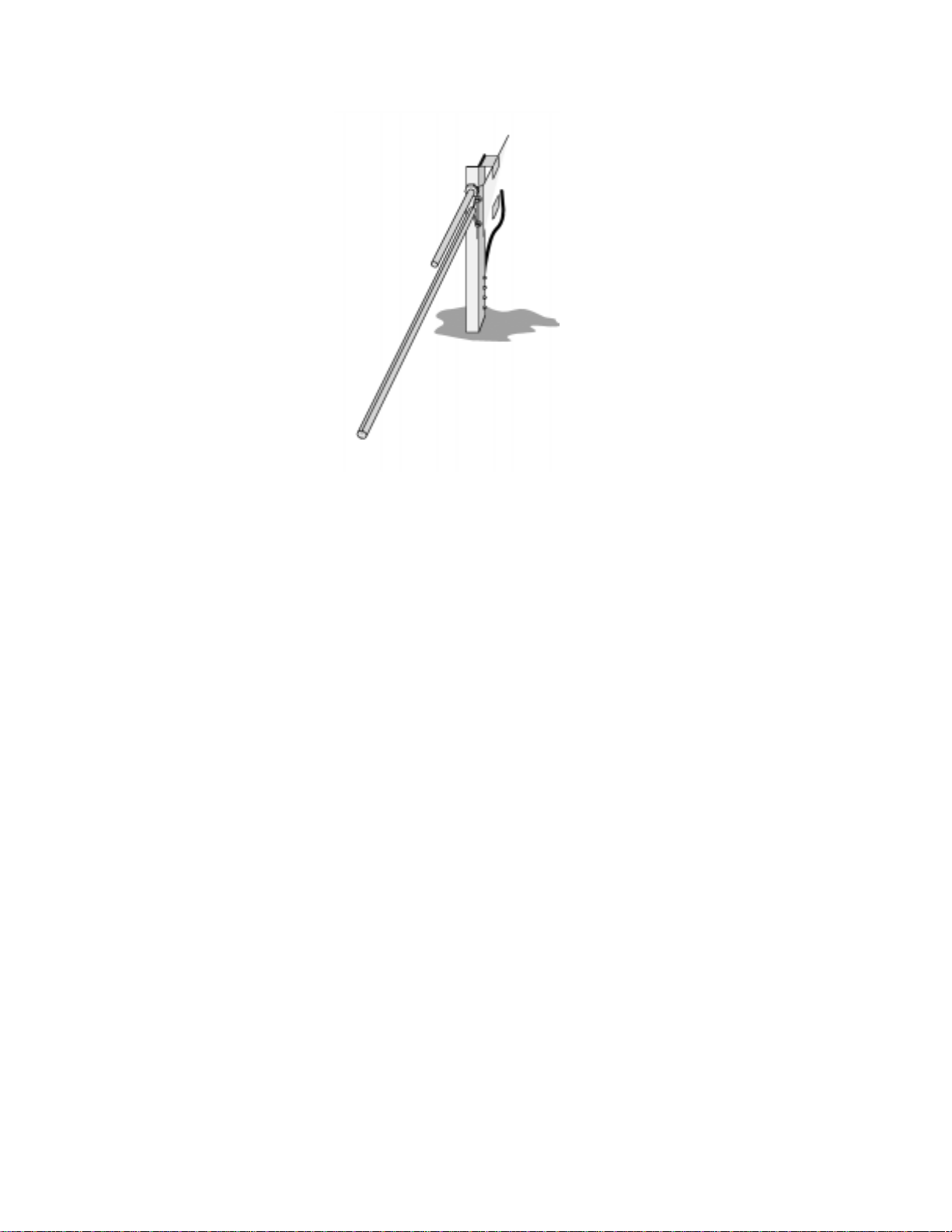

FIGURE 3-1. The CS205 mounts on the mounting stake with the CS505

3. INSTALLATION AND WIRING

Insert a 107 temperature probe into the CS205

Fuel Moisture Stick. The CS205 installs in the

white compression fitting on the 10974 Fuel

Moisture/Temperature Mounting Stake.

Loosen the compression fitting so that the

CS205 can be inserted. The CS205 inserts

into the compression fitting so that compression

is applied to the split end of the stick gripping

the 107 probe.

Connections to the datalogger for the 107 are

shown in Figure 1-1. The probe is measured by

a single-ended analog input channel. The red

lead is connected to either a HI or LO input.

The black lead connects to any excitation

channel.

Please refer to the 107 probe manual for a

complete discussion of the 107 probe.

4. PROGRAMMING

Instruction 11 is used to measure temperature.

Instruction 11 provides AC excitation, makes a

single ended voltage measurement, and calcu-

lates temperature with a fifth order polynomial.

A multiplier of 1.0 and an offset of 0.0 yields

temperature in Celsius. For Fahrenheit, use a

multiplier of 1.8 and an offset of 32.

EXAMPLE 1. Sample CR500/CR10(X)/21X

Instructions

01: P11 Temp 107 Probe

01: 1 Rep

02: 9* IN Chan

03: 3*✝Excite all reps w/EXchan 3

04: 11* Loc [:Air_Temp]

05: 1 Mult

06: 0 Offset

* Proper entries will vary with program,

datalogger channel, and input location

assignments.

✝Excitation/Integration Codes:

Code Result

0x excite all rep with channel x

1x increment chan x with each rep

2x excite all reps with channel x, 60 Hz

rejection, 10 ms delay

3x excite all reps with channel x, 50 Hz

rejection, 10 ms delay

4x increment chan x with each rep, 60 Hz

rejection, 10 ms delay

5x increment chan x with each rep, 50 Hz

rejection, 10 ms delay

MODEL CS205 10-HOUR FUEL TEMPERATURE STICK

5. MAINTENANCE AND CALIBRATION

The 107 Probe requires minimal maintenance.

The CS205 Fuel Moisture Stick should be

changed annually or more frequently as

required. The wood should visually appear

fresh and new not gray or discolored.

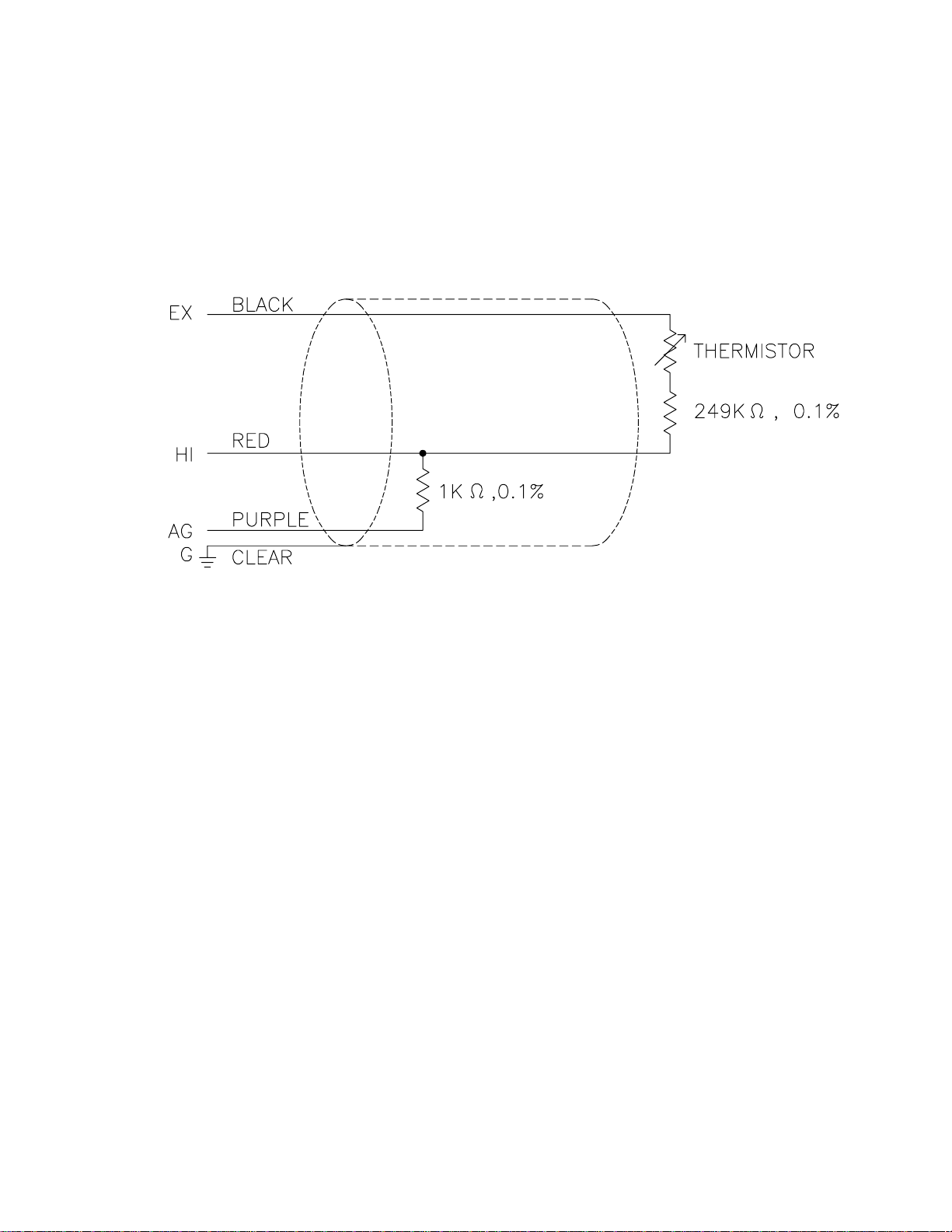

FIGURE 5-1. 107 Thermistor Probe Schematic
