How to Use this Guide

This guide explains how to use the Canon Plug-in Module CS-U 3.3 (herein referred to as

Plug-in Module CS-U) with application programs supporting CanoScan FB630U/FB636U, such

as Adobe PhotoDeluxe.

A plug-in is used within a compatible application program like Adobe PhotoDeluxe 2.0 to

expand its functionality and cannot be used as a stand-alone application. By only installing

the Plug-in Module CS-U from the CanoScan Setup Utility CD-ROM, Plug-in Module CS-U can

be simply plugged into the parent program and add the ability to scan.

Before using Plug-in Module CS-U, we strongly recommend reading this guide and keeping

this CD-ROM in a safe place for later reference.

Where to Look

Quick Start Instructions p. 9

The Quick Start Instructions is a brief summary of commands and procedures that will

assist in using Plug-in Module CS-U immediately.

Installing Plug-in Module CS-U (Required Reading) p. 12

All users should read this section to learn the procedures for installing Plug-in Module

CS-U software.

Scanning Preparations (Required Reading) p. 18

All users should read this section to learn the procedures for adjusting magnification

and scan mode settings in preparation for scanning.

Scanning (Required Reading) p. 33

All users should read this section to learn the procedures for scanning and saving images.

Adjusting and Editing Scanned Images p. 39

Read this section for details about how to use Adobe PhotoDeluxe 2.0 to adjust

image brightness, color tone, and other attributes. You can read this section

according to your needs.

About the Conventions Used in this Guide

The following conventions are used in this guide to draw your attention to important

information.

CAUTION:

This symbol is used to highlight procedural precautions and limitations.

Always read these topics to avoid errors.

HINT:

This symbol is used to present helpful hints and supplemental information.

Reading these topics is recommended to enhance your enjoyment of

Plug-in Module CS-U.

Table of Contents

How to Use this Guide ........................................................................................... 3

Control Panel Features ........................................................................................... 6

Scanning Procedures .............................................................................................. 7

Plug-in Module CS-U Special Features .................................................................... 8

Quick Start Instructions .......................................................................................... 9

Installing Plug-in Module CS-U ................................................................ 12

Installing Plug-in Module CS-U ............................................................................. 13

Scanning Preparations ............................................................................. 18

Display Plug-in Module CS-U Control Panel .......................................................... 19

Previewing ........................................................................................................... 21

Set Preferences..................................................................................................... 22

Set Magnification ................................................................................................. 26

Set Scan Mode ..................................................................................................... 28

Verify Image Before Scanning ............................................................................... 31

Scanning .................................................................................................... 33

Scan Area Settings ............................................................................................... 34

Zooming .............................................................................................................. 35

Scanning .............................................................................................................. 37

Saving Scanned Images ........................................................................................ 38

Adjusting and Editing Scanned Images .................................................. 39

Using the Histogram Feature to Adjust Image Contrast......................................... 40

Adjusting the Image with Gamma Settings ........................................................... 42

Brightness and Contrast Settings .......................................................................... 44

Adjusting Gamma with the Menu ........................................................................ 46

Gamma Value Settings ......................................................................................... 48

Tone Curve Settings ............................................................................................. 50

Auto Tone Correction (ColorSync™) ..................................................................... 52

Descreen .............................................................................................................. 53

Brightness Settings for Black & White Images (Threshold Value) ............................ 54

Saving / Recalling Settings .................................................................................... 55

Editing Scanned Images ....................................................................................... 57

Scanning Techniques ............................................................................................ 58

Appendices................................................................................................ 59

Troubleshooting ................................................................................................... 60

Error Messages ..................................................................................................... 62

Glossary ............................................................................................................... 63

Index .................................................................................................................... 65

Canon Customer Support Help Desk .................................................................... 67

Scan Button ➜p. 37

Preview Button ➜p. 21

Browser Button ➜p. 31

HINT

In this guide, menu items are marked in the following manner:

Select [Load] from the [File] menu.

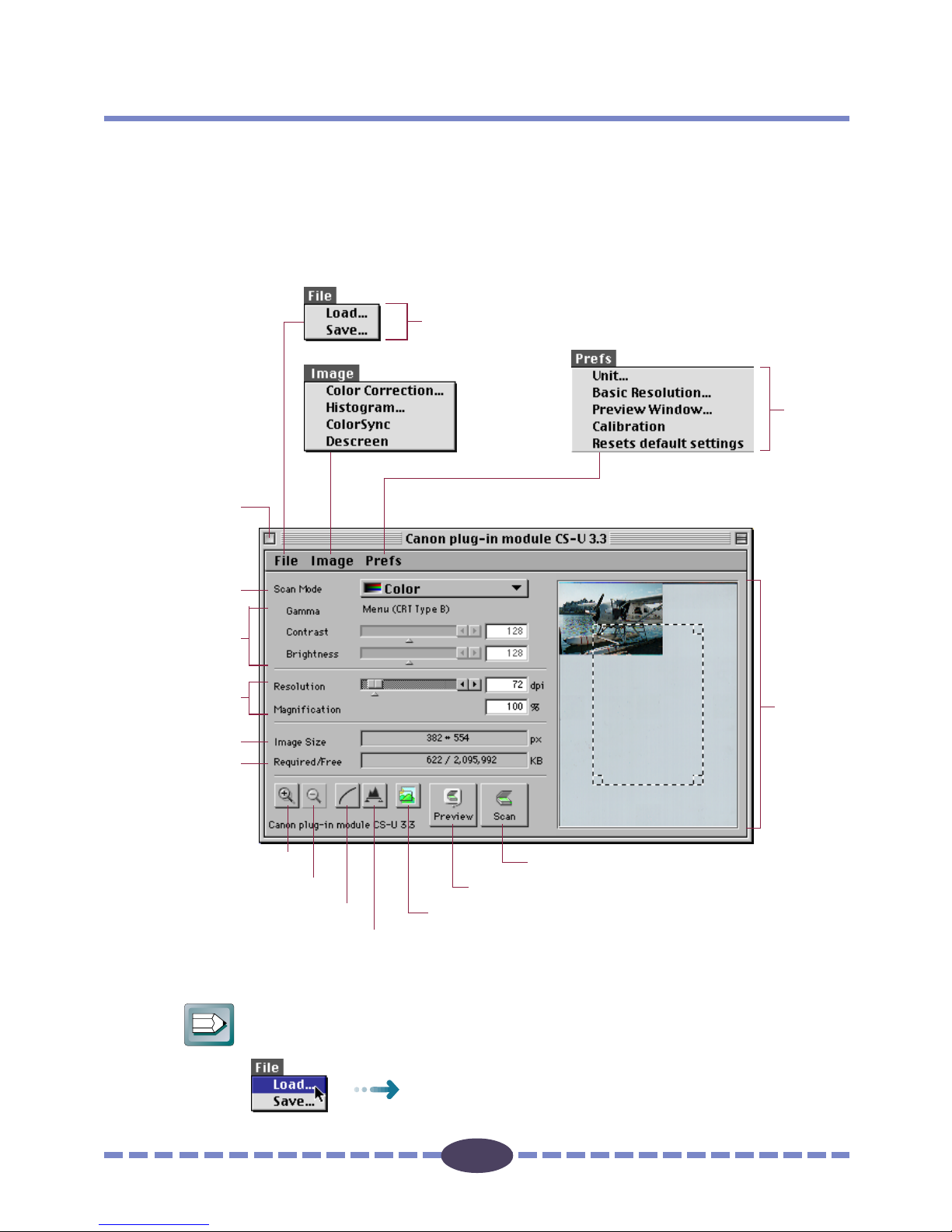

Control Panel Features

When you need more information about an operation panel button or menu, refer to

the illustration below and go to the referenced page number for more details.

• There may be some differences in the screen below, depending on the version of

Plug-in Module CS-U provided in your package.

Histogram Button ➜p. 40

Gamma Curve button ➜p. 42

➜p. 22

Close Box

➜p. 19

Preview

Window

➜ p. 21

➜pp. 42-51

➜p. 40

➜p. 52

➜p. 53

➜p. 55

Scan Mode

➜p. 28

Gamma Curve

➜pp. 42-51

Magnification

➜p. 26

Image Size

➜p. 24

Required/Free

memory ➜p. 30

Zoom In Button ➜p. 35

Zoom Out Button ➜p. 36

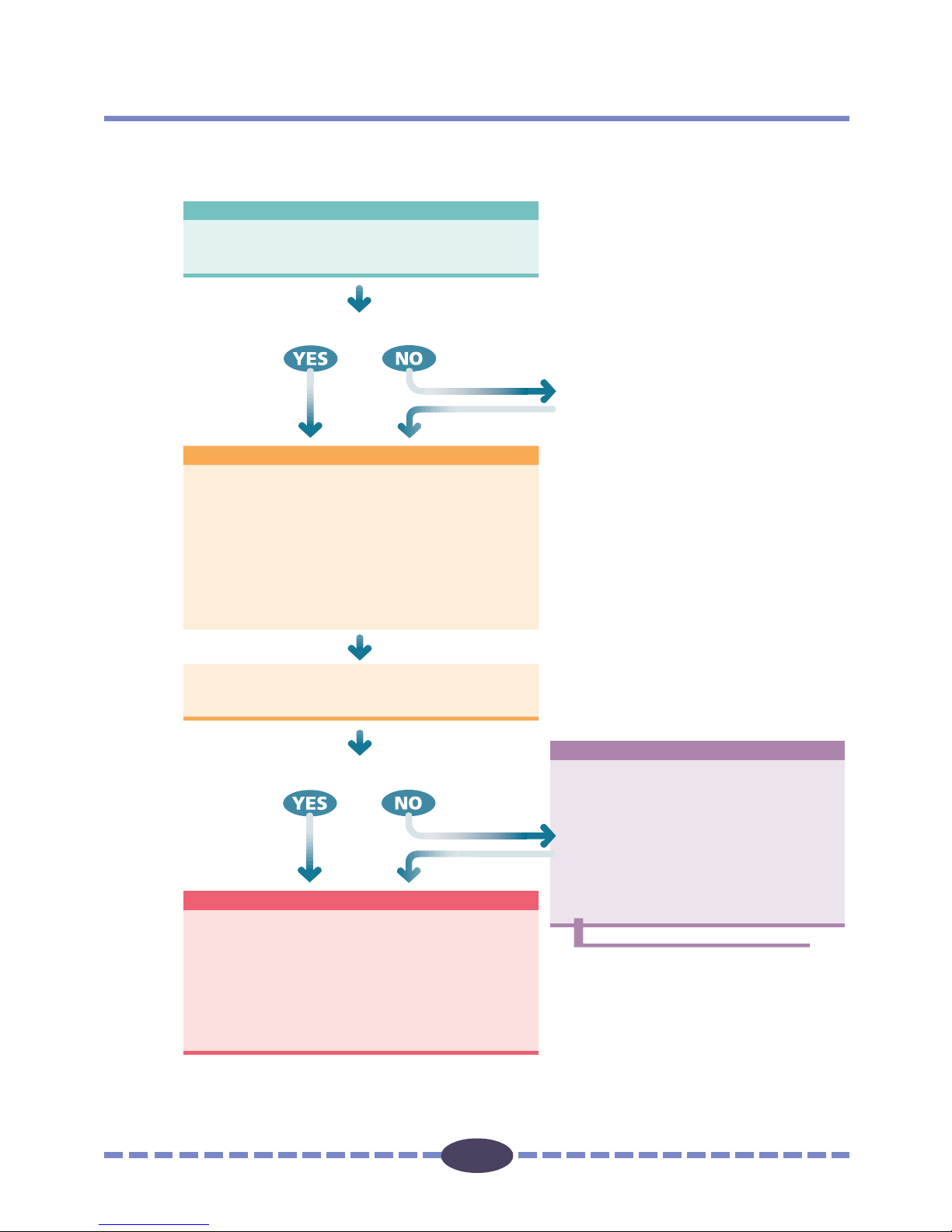

Scanning Procedures

Follow these procedures to use Plug-in Module CS-U.

STEP 3

STEP 2

STEP 1

Is the scanner connected?

Scanning Preparations ➜ p. 18

•

Display Control Panel

•

Previewing

•

Set Preferences

•

Set Magnification

•

Set Scan Mode

p. 19

p. 21

p. 22

p. 26

p. 28

•

Scan Area Settings

•

Zooming

•

Scanning

•

Saving Scanned Images

If the current brightness

and color pose no problem,

there is no need to adjust

these settings.

Scanning ➜ p. 33

Adjusting and Editing Scanned Images

➜ p. 39

Verify Image Before Scanning

(Browser Window) ➜ p. 31

Are the Brightness and Color Satisfactory?

p. 34

p. 35

p. 37

p. 38

•

Histogram Adjustments

•

Color Correction

•

Auto Tone Correction

•

Threshold Value

p. 40

p. 42

p. 52

p. 54

Install the Plug-in Module CS-U Software ➜ p. 12

STEP 4

Refer to the Getting Started

Guide that accompanied

your scanner for connecting

the scanner instructions.

Plug-in Module CS-U Special Features

•See the Results of Adjustments Immediately (Dynamic Preview)

Once in preview mode, the results of adjustments to scan mode settings and colors are

promptly reflected in the preview image.

Highly detailed adjustments can be performed easily because you can see the results of

your changes as they are executed.

▼ ▼ ▼

•Supports ColorSync™ 2.0 or higher Auto Tone Correction

Supports ColorSync for the Macintosh operating system. Achieves superior color quality

by automatically compensating for and aligning the tones of various devices, such as

scanners, color displays and color printers.

▼ ▼ ▼

•Browser Function Permits Confirmation of the Real Image

Before Scanning

The Browser function lets you check the image to be scanned in detail before

commencing the scan. This function presents a much higher quality image than the

preview function.

▼ ▼ ▼

• Histogram Function Realizes Beautiful Contrast

Simple operation allows you to achieve beautiful contrast with half-tone gradations.

▼ ▼ ▼

• Gamma Curve Adjusts Image Brightness

The Gamma Curve feature provides four methods you can use to refine in detail the

level of image brightness until you are satisfied with the results.

▼ ▼ ▼

•Works within Image Processing Software for Easy Image

Editing

Plug-in Module CS-U can be used to extend the functions of plug-in compatible image

processing application programs.

Quick Start Instructions

Those who wish to start scanning immediately should follow the procedures below. If

you require further information at any stage, read the pages referenced at each step.

Installing Plug-in Module CS-U p. 13

1. Place the Macintosh version of the CanoScan Setup CD-ROM

that came with the scanner into the computer’s CD-ROM drive.

The CanoScan Setup Utility will automatically start. (If the

CanoScan Setup Utility does not automatically start, double-

click the [CanoScan FB630U/636U] icon, followed by the

[Setup] icon.)

2. Click [Install the Software] and install Plug-in Module CS-U.

(Install Adobe PhotoDeluxe 2.0 first.)

If Adobe PhotoDeluxe 2.0 has not yet been installed, install it

before Plug-in Module CS-U.

Start Plug-in Module CS-U p. 19

1. Connect the scanner to the computer, then start Adobe

PhotoDeluxe 2.0.

2. Select [CanonPI CS-U 3.3.0...] as the image source (this step is

only required the first time the scanner is used with the

program)

3. Click the scanner icon.

• Plug-in Module CS-U will start and display its control panel.

Start the Preview Scan p. 21

1. Place the materials to be scanned on the scanner.

2. Click the preview scan button ( ).

• The entire document glass area will be scanned and displayed in the

preview scan window.

Preview Window

Plug-in Module CS-U automatically calibrates itself the first time the preview or

scan button is clicked. The scanner will run by itself for a few moments without

displaying an image in the window. This does not constitute a breakdown. The

calibration results are stored until the computer power is shut off.

➟

Set the preferences, magnification and scan mode settings.

pp. 22-30

• The preference settings provide settings for how the system operates.

(p. 22)

• The magnification setting determines how you want the image

enlarged or reduced. (p. 26)

• The scan mode setting determines the kind of image you want to scan:

black and white, gray, or color. (p. 28)

Verify Image Quality with the Browser Function Before Scanning p. 31

1. Click on the [Browser] button.

• The Selection Frame will appear.

2. Move the Selection Frame to specify the area of the image you

want verified and click the mouse button.

• Plug-in Module CS-U will read the image and display the browser image.

3. After you have examined the browser image, click the mouse

anywhere.

Specify the Area of the Image to be Scanned p. 34

1. Select the area to be scanned by clicking and dragging the

mouse pointer over the image.

• You may find it convenient to use the zoom feature to select small areas

or to select specific scan areas with precision. (p. 35)

➟

Altri manuali per CanoScan FB 630U

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Canon Software

Canon

Canon CanoScan D646U Manuale utente

Canon

Canon PowerShot A420 Guida di sicurezza

Canon

Canon Selphy CP510 Istruzioni per il montaggio

Canon

Canon Mk2500 Manuale utente

Canon

Canon 08011-41-UD2-003 Manuale dell'operatore

Canon

Canon imagePROGRAF W6400 Manuale utente

Canon

Canon Powershot S2 IS - Powershot S2 IS 5MP Digital... Manuale utente

Canon

Canon CAPTUREPERFECT 3.1 Manuale utente

Canon

Canon 40D - EOS 40D DSLR Manuale utente

Canon

Canon Pixma Pro9500 Series Manuale utente

Canon

Canon EOS-1Ds Mark III Manuale utente

Canon

Canon PowerShot A410 Istruzioni per il montaggio

Canon

Canon REALIS WUX10 MARK II D Manuale utente

Canon

Canon PowerShot A520 Manuale utente

Canon

Canon DR-5060F Manuale utente

Canon

Canon DC22 - 2.2MP DVD Camcorder Manuale utente

Canon

Canon VB-M40 Manuale utente

Canon

Canon N1240U - CanoScan Flatbed Scanner Manuale utente

Canon

Canon CanoScan D1230UF Manuale utente

Canon

Canon PowerShot A40 Istruzioni per il montaggio

Canon

Canon Powershot A3100 IS Guida rapida

Canon

Canon VBCollector Manuale utente

Canon

Canon EOS 20Da Manuale utente

Canon

Canon 1000D - EOS Rebel XS Transcend 8GB Memory... Manuale utente

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

HP ProLiant BL420c Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente

Novell

Novell SP2 - S Manuale di istruzioni

Lexmark

Lexmark Apps Manuale di servizio
