2

3

CONTENTS

PRECAUTIONS............................................................ 4

PREFACE....................................................................... 6

OVERALL VIEW........................................................... 6

DISPLAY & KEYBOARD........................................... 7

OPERATIONS............................................................... 9

Chapter 1. Basic Operation........................................ 10

Chapter 2. PLU Saving & Calling - up....................... 12

Chapter 3. User's Set-up Mode..................................14

Chapter4. Formatting Printing Receipt...................17

Chapter 5. Sales Transaction.....................................21

Chapter6. EURO Setting Method(Option)..............26

ERROR MESSAGES.................................................29

ASCII Code................................................................... 30

SPECIFICATION..........................................................31

`

4

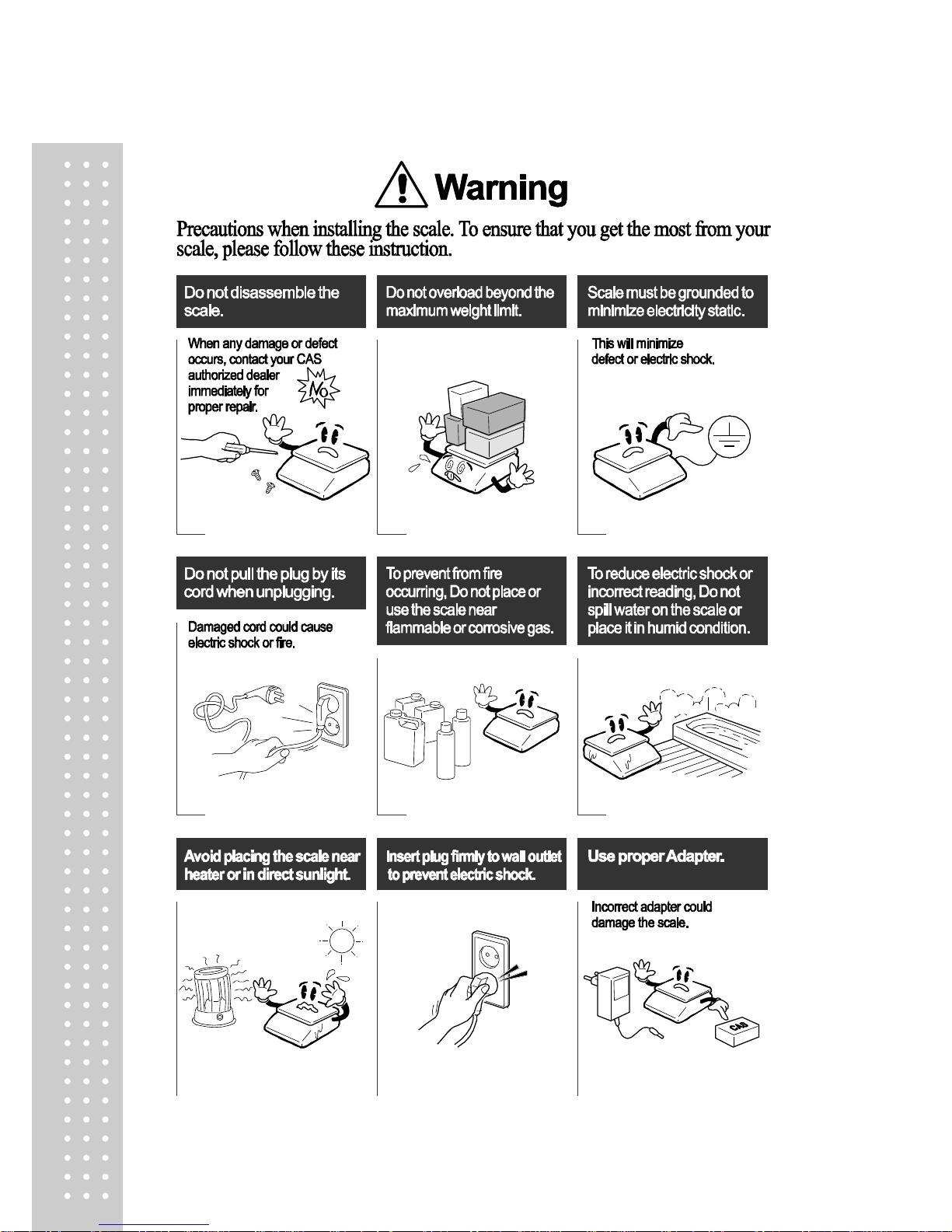

PRECAUTIONS

5

`

6

PREFACE

Thank you for purchasing your CAS ER JR scale.

CAS scales are designed and produced under rigid quality control to deliver

outstanding performance, reliability and long life.

This manual will help you with the proper operation and care of yournewCAS ER JR.

Please review the ER JR scale manual before you use the scale and keep it handy

for future reference.

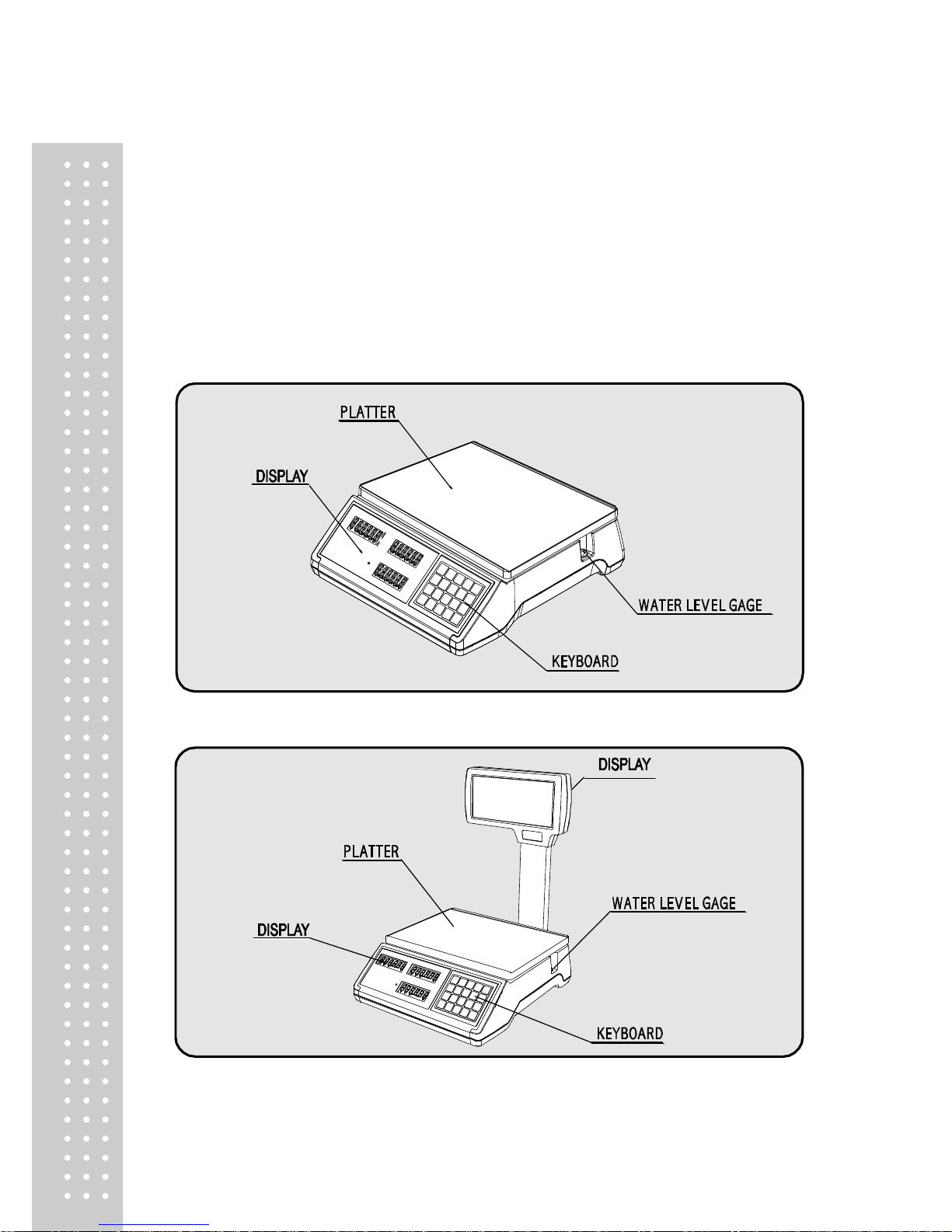

OVERALLVIEW

STANDARDTYPE

POLETYPE

7

DISPLAY&KEYBOARD

Front Display

Rear Display

KEYBOARD

`

8

■ Table : Key Functions

KEYS

FUNCTIONS

0 ~ 9

Numbersimport

M1 ~ M4

DirectPLU keys

Function key, PLU restore, Push more than 2 second when using

PLU Restoremodeorfinalizesalestransaction

Tomakeseveralsalestransactionbyadding up

Tocleardata

Toset zero

Toset uporcleartare value

Toturn on/off thescale orbacklight

■ Table : Symbols on Display

SYMBOL

DESCRIPTION

Weightsteady

Toadjust zero

Tareon

Backlight on

Lowpowerwarning

Used tocall atotalpriceof addup transactions

Chargestatus

9

OPERATIONS

Programming Mode

Chapter 1. Basic Operation

a.To turn on/offscale

b.To turn on/off backlight

c.Zero function

d.Tare function

- One time tare

- Successive tare

Chapter 2. PLU Saving & Calling-up

a.Saving unit priceon PLU

b.Saving PLU name (option)

c.Calling up PLU

Chapter 3. User' s Set-up Mode

a.Auto power - off

b.Backlight ON/OFF function

c.Brightness function

d.Low battery backlight auto off function

e. Selecting the printer

Chapter4.FormattingPrintingReceipt

a. Using Printer

b. Receipt headersetting

c. Receipt currency(unit)setting

d. Receipt datesetting

Sales mode

Chapter 5. Sales transaction

a.Input the unitprice through the numberkey

b.Input the unitprice through calling up the PLU

c.Add up the total amount

d.Inspect or clearthetotal amount

Chapter 6. EURO Setting Method (Option)

a.Saving EURO rate

b.Switching currency

`

10

Chapter 1. Basic Operation

a. To turn on/off the scale

①PresstheON/OFF keytoturn on.

②PresstheON/OFFkeyfor afew

seconds toturn off.

b. To turn on/off the backlight

①PressON/OFFkeyfor afewseconds

underthepoweron.

②PressON/OFF keyagainunderthe

backlighton.

c. Zero function

①PressZEROkeytoset Zero

11

d. Tare function

Tare means the weight ofcontainer.Youmay use tare function when you weigh

anitem with container and measureonlythe weight ofitem.

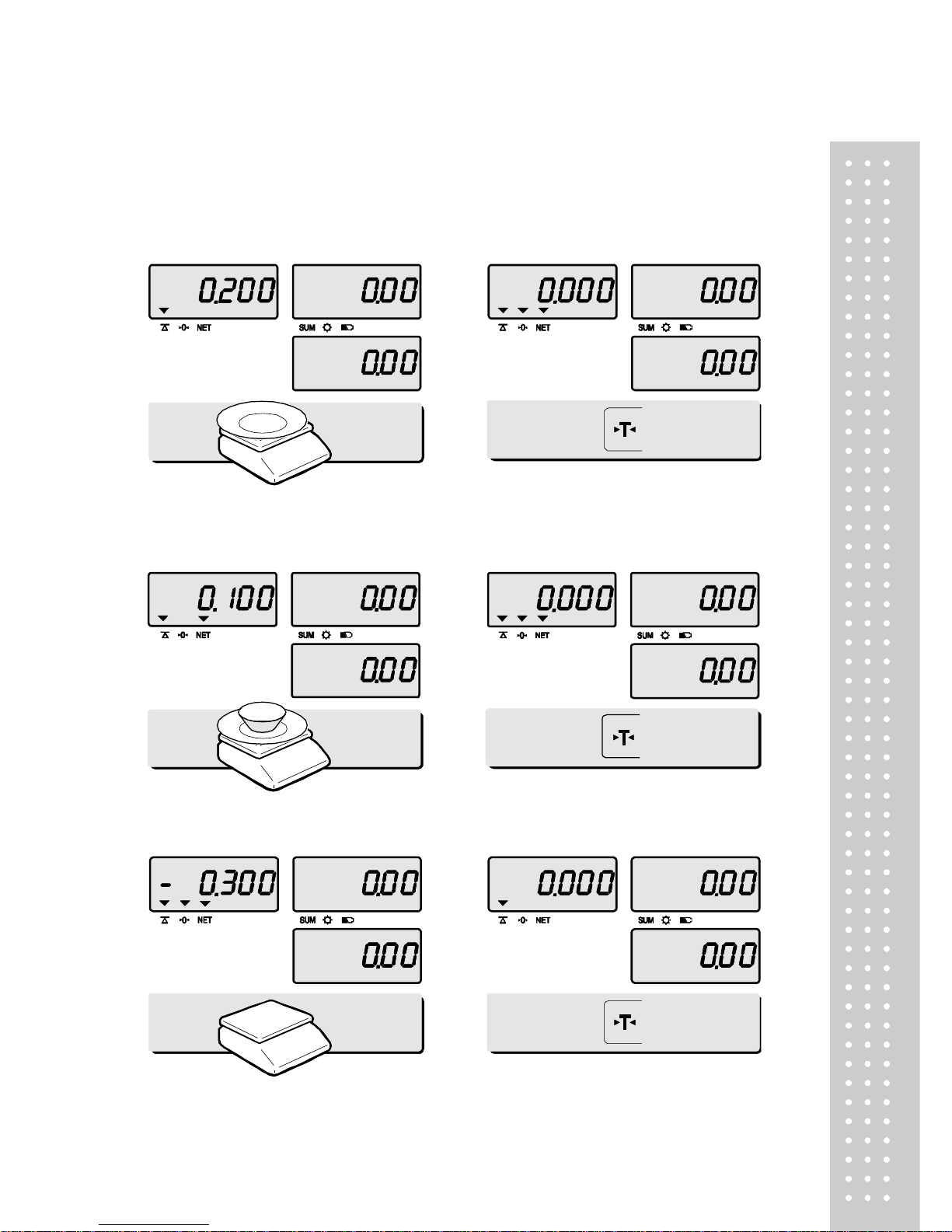

■One time tare

①Placeacontainerontheplatter.

EX)200gof tare.

②Press TAREkey toset zero point.

EX)200gof tare.

■Successive tare

③Placeanothercontaineronthe

platter. EX) 100g of tare.

④Press TAREkey toset zero point.

⑤Afterweighingitem remove allof the

containerfrom the platter.

⑥Press TAREkey againtoset zero.
