CDA Hc9620 Manuale di riferimento

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : [email protected] W : www.cda.eu

hc9620 Ceramic Hob

Manual for Installation, Use and Maintenance

The CDA Group Ltd cannot be held responsible for injuries or losses

caused by incorrect use or installation of this product. Please note

that CDA reserve the right to invalidate the guarantee supplied with

this product following incorrect installation or misuse of the appliance

or use in a commercial environment.

This appliance is not designed to be used by people (including

children) with reduced physical, sensorial or mental capacity, or

who lack experience or knowledge about it, unless they have had

supervision or instructions on how to use the appliance by someone

who is responsible for their safety.

Under no circumstances should any external covers be removed for

servicing or maintenance except by suitably qualiﬁed personnel.

Appliance information:

Please enter the details on the appliance rating plate below for

reference, to assist CDA Customer Care in the event of a fault with

your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

CE Declarations of Conformity:

This appliance has been manufactured to the strictest standards and

complies with all applicable legislation, including Electrical safety (LVD)

2006/95/EC and Electromagnetic interference compatibility (EMC)

2004/108/EC. Parts intended to come into contact with food conform

to 89/109/EC.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must be taken to a special

local authority waste collection centre or to a dealer providing

appliance recycling services.

Disposing of a household appliance separately avoids possible

negative consequences for the environment and health. It also

enables the constituent materials to be recovered, saving both energy

and resources. As a reminder of the need to dispose of household

appliances separately, the product is marked with a crossed-out

wheeled dustbin.

User Information

Please note:

• Ceramic hobs become hot and remain hot during and immediately

after use. Do not touch the hob until it has been allowed to cool.

• Keep children away from the appliance when in use.

• Never put cooking foil or plastic materials on the ceramic surface

when the hob is hot. These materials could melt and cause damage

to the hob.

• Never use the hob top for storage.

• Pan handles should never stand out beyond the edge of the

worktop. This will help ensure children cannot reach them.

• Do not use pans with rough bases (e.g. cast iron) as these may

scratch the hob surface.

• Do not switch on the zones without cookware in place.

• Do not lean over the hob when it is in use.

• Follow the cleaning instructions carefully.

• Ensure the base of the saucepan is clean and dry before placing it

on the hob to prevent damage to the surface of the hob.

• After use, please ensure that the control knobs are in the ‘O”

position.

• This hob (Class 3) has been designed for use only as a cooking

appliance. Any other use (e.g. heating rooms) should be

considered incorrect and therefore dangerous.

• The appliance is not intended to be operated by any means of an

external timer or separate remote-control system.

Important

• Do not use the hob if the glass surface is cracked or damaged, to

prevent risk of electric shock. Disconnect it from the power supply.

Using Your Hob

Zones:

1. Front left: 1.8kW - 200mm

2. Rear left: 1.2kW - 165mm

3. Rear right: 1.0/2.2kW - 140/220mm dual

4. Front right: 1.2kW - 165mm

5. Centre: 1.1/2.0kW - 165-270mm dual

Fig. 1

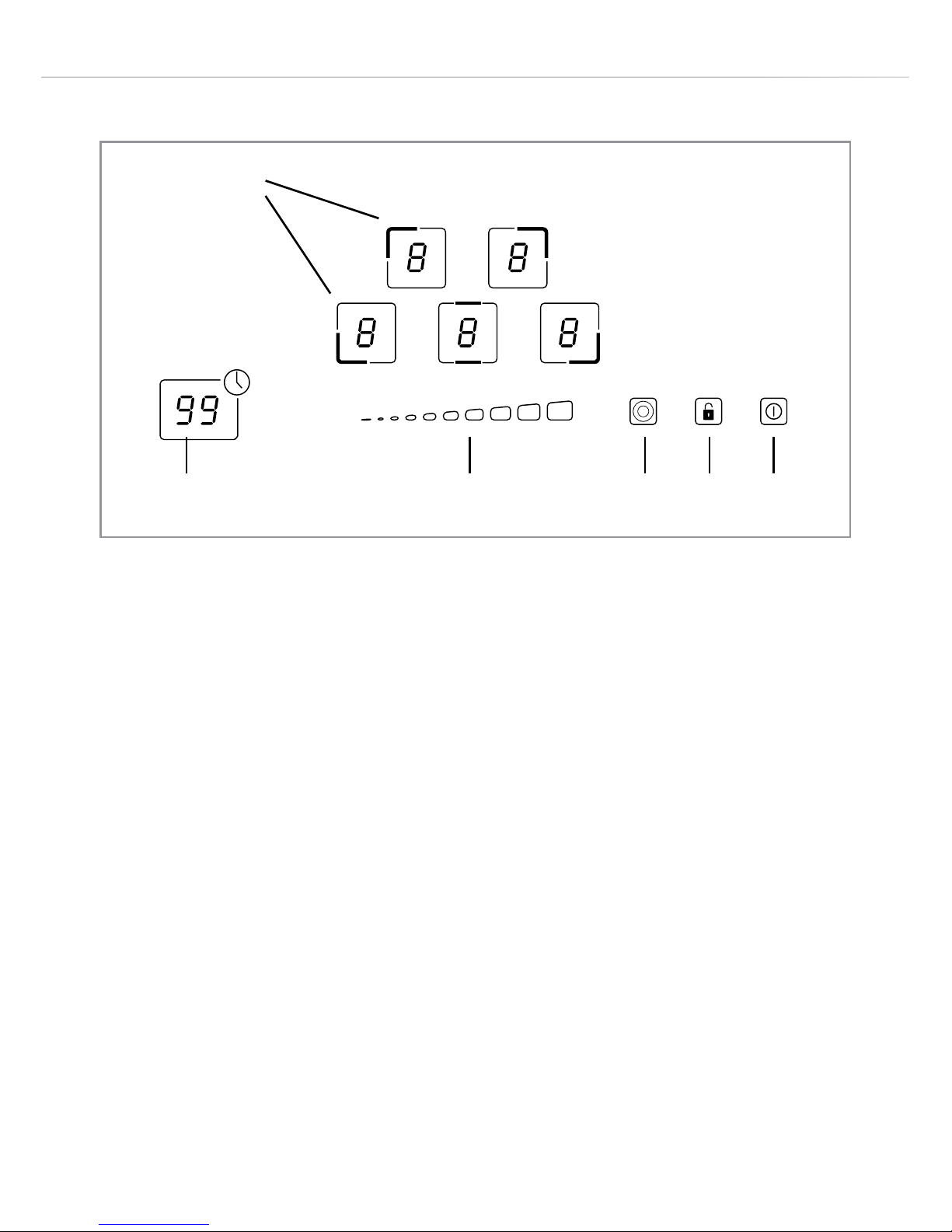

Control panel

Touch control

1. Heating zone controls (including displays)

2. Timer control and display

3. Slider control

4. Booster key

5. Key lock

6. On/O key

Fig. 2

2 3 4 5 6

Using the touch controls

The controls respond to touch, so you

don’t need to apply any pressure.

Use the ball of your ﬁnger, not its tip.

You will hear a beep each time a touch is registered.

Make sure the controls are always clean, dry, and that there is nothing

(e.g. a utensil or a cloth) covering them. Even a thin ﬁlm of water may

make the controls dicult to operate.

How to Use the Hob

The ceramic surface of the hob allows fast transmission of heat

vertically from the heating elements under the glass to the pans on

the hob top.

The heat does not spread horizontally, so the hob top remains

relatively cool only a few centimetres from the zone in use.

To switch heating zones on

When the mains power supply is switched on, the buzzer beeps once

and all the indicators light up for 1 second, then go out. This indicates

that the ceramic hob has entered standby mode.

Touch the “On/O” control ; all the indicators show “-“.

(If you don’t switch a heating zone or the minute minder on within

approx. 1 minute, the ceramic hob will automatically switch o.)

Place a suitable pan on the cooking zone that you wish to use (see

“Ecient Use of Your Hob” section for selection of suitable pans).

Ensure the bottom of the pan and the surface of the cooking zone are

clean and dry.

Touch the “Heating zone control” for the zone required, to activate it.

Note: The digital display showing power level is also the “Heating

zone control”.

While the “Heating zone control” is still ﬂashing, use the single “Slider

control” to control the power level, by touching anywhere along its

length.

You can change the heat setting at any time during cooking.

To use more than one heating zone, just repeat a similar procedure for

each zone you wish to use (as above).

To switch heating zones o

Activate the “Heating zone control” for the zone you want to turn o

by touching the relevant “Heating zone control” key. Use the “Slider

control” to scroll down to “0“.

To switch all heating zones o at once it is only necessary to touch the

“On/O” control .

Using the dual zone function

This function is only applicable to the back right and centre cooking

zones.

You can use either just the central area, or the enlarged areas of

either of these zones.

Touch the “Heating zone control“ corresponding to either the back

right or centre zone to activate it.

Select a heat setting by using the “Slider control” as above. You may

select any power level from “1” to “9”. The centre area will heat up

and the zone indicator will show the heat level selected.

While the “Heating zone control” is still ﬂashing, touch the “Dual zone”

key once and this will switch to both areas heating up. While in

this setting the zone indicator will ﬂash between the power setting

and .

Touch the “Dual zone” key again, while the “Heating zone control”

is still ﬂashing, and this will switch back to just the central area heating

up.

Hot hob warning indicators

When a heating zone is hot, the indicator corresponding to that zone

will show “H”

The hot hob warning indicators remain lit (even when the hob is

switched o to standby mode) until the cooking zones cool suciently

to touch.

Do not touch the glass plate until the indicator goes out.

Locking the controls

You can lock the controls to prevent unintended use (for example

children accidentally turning the cooking zones on).

When the controls are locked, all the controls except the “On/O”

control are disabled.
