Chamberlain STAR450 Series Manuale utente

STARTM 450-315 WIRELESS

ACCESS CONTROL

RECEIVER

This device complies with FCC Rules Part 15 and IC Canada Rules

and Regulations. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference

and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Removable memory modules and RF module are included in this

product. Jumper J2 must remain in the default position unless

otherwise noted. THERE ARE NO OTHER SERVICEABLE PARTS.

DESCRIPTION PAGE

Mounting Instructions for STAR450 . . . . . . . . . . . . . . . . . . . . . .1

Programming For STAR450 . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Electrical Connections for STAR450 . . . . . . . . . . . . . . . . . . . . . .4

STAR450 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

SPECIFICATIONS

SUPPLY VOLTAGE: 12-24 VOLTS AC OR DC

OPERATING CURRENT: 250 mA MAXIMUM

OPERATING TEMP RANGE: -40 TO +149F

(-40 TO +65C)

FREQUENCY: 315 MHz

RELAY CONTACT RATING: 1 AMP @ 24 VOLTS AC OR DC

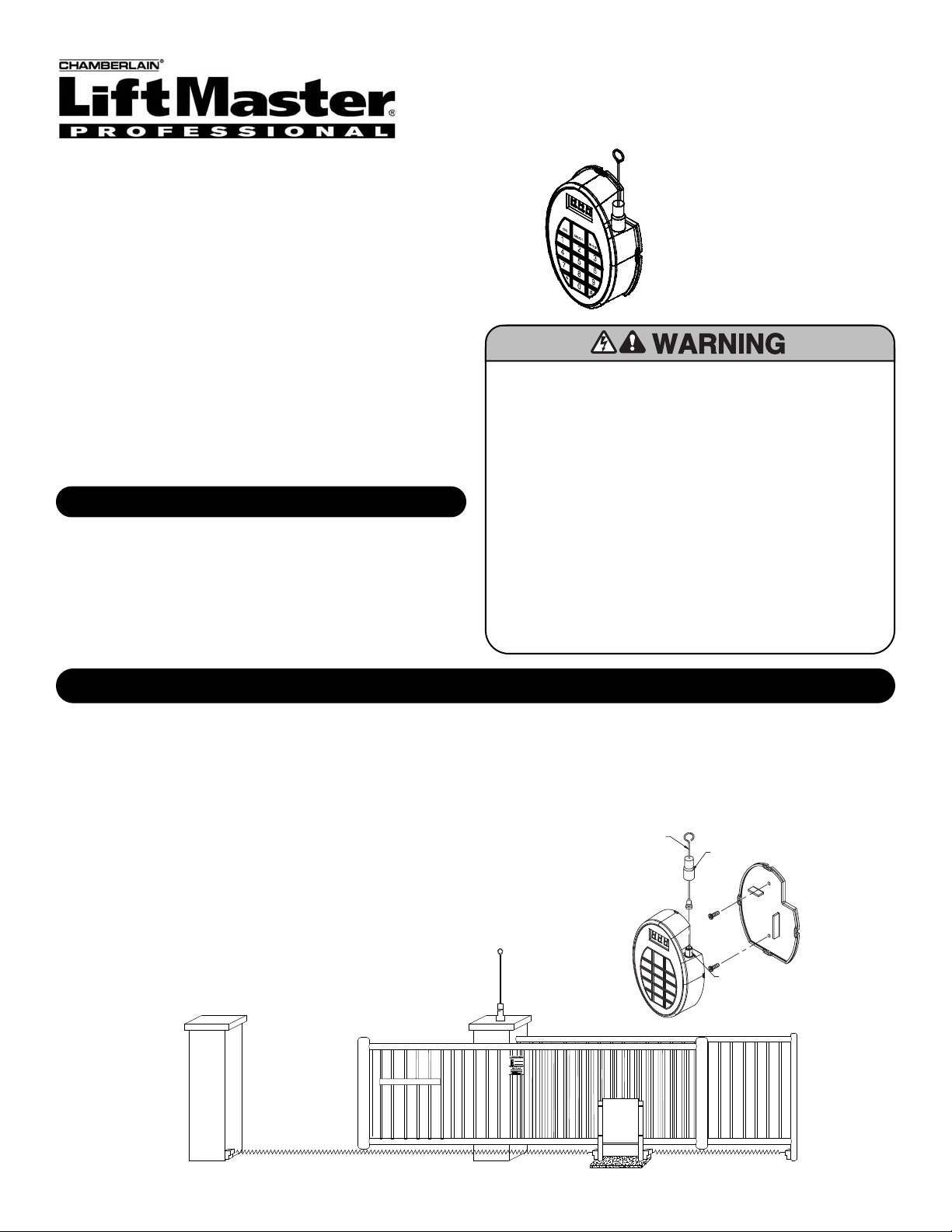

Location: Select a convenient location near your device to be

controlled by the STAR450. For best performance, the STAR450

should be mounted in “Line-Of-Sight” with your intended

transmitting location. Avoid mounting the STAR450 in or on

metallic enclosures. If this is unavoidable, we recommend

installing the antenna extension kit (86LM) for best results. See

Remote Antenna Mounting for proper installation.

Receiver Mounting: Mount back plate to desired surface using #6

hardware (not provided). Hardware used will depend on mounting

application (refer to Figure 1 for receiver mounting hole

locations). Wire electrical connections to unit. Snap unit to back

plate.

Direct Antenna Mounting: Install the provided antenna onto the

STAR450 antenna connector by screwing the connector

clockwise. Slide the seal boot down to meet the O-ring, covering

the antenna hardware.

Antenna

Connector

Seal Boot

Figure 1

Figure 2

Remote Antenna Mounting: Use the optional 86LM antenna

extension kit to mount the remote antenna as high and far from

metal as possible for best radio range (Figure 2). Contact

LiftMaster customer service at: 1-800-528-2806 to order the

model 86LM.

To prevent possible SERIOUS INJURY or DEATH from

electrocution:

• Be sure power is not connected BEFORE installing the

receiver.

To prevent possible SERIOUS INJURY or DEATH from a

moving gate or garage door:

• ALWAYS keep remote controls out of reach of children.

NEVER permit children to operate, or play with remote

controls.

• Activate gate or door ONLY when it can be seen clearly, is

properly adjusted, and there are no obstructions to door

travel.

• ALWAYS keep gate or garage door in sight until completely

closed. NEVER permit anyone to cross path of moving gate

or door.

TABLE OF CONTENTS

MOUNTING INSTRUCTIONS FOR STAR450

PROGRAMMING THE STAR450

PRESS

TO EXIT

PRESS

Add

AUTO

001

PRESS ENTER LOCATION (1-450) PRESS PRESS

TO EXIT

AUTO

Add

001 002

234

023 234

PRESS ENTER LOCATION (1-450) PRESS

CONFIRM

END

Delete Delete

Del Del

234

002 023 234

Rapid LearnTM:Add remote control to next available location.

Adding Remote Control: Add remote control to a specific location.

Deleting a Remote Control: To delete a user.

DELETE KEY

USED TO DELETE A REMOTE CONTROL

FROM THE SELECTED MEMORY LOCATION

DIGITAL DISPLAY

DISPLAYS REMOTE CONTROL LOCATION

NUMBERS WHEN PROGRAMMING OR

ACCESS IS GRANTED. ALSO DISPLAYS

USER PROMPTS AND MESSAGES.

POWER INDICATOR

SCROLLING DASHES ON

DIGITAL DISPLAY WHEN

AC OR DC POWER IS

APPLIED TO THE UNIT.

BLOCK KEY

USED TO BLOCK THE

RECEIVER FROM

GRANTING ACCESS TO

THE SELECTED REMOTE

CONTROL. REMOTE CONTROL

REMAINS IN MEMORY, AND

MAY BE UNBLOCKED IN

THE FUTURE.

Block

DeleteAdd

NUMERIC KEYPAD

USED FOR PROGRAMMING

AND QUERYING REMOTE CONTROL

LOCATIONS. ALSO USED TO ENTER

ADVANCED FUNCTIONS.

ANTENNA CONNECTION

FOR CONNECTION TO THE

DIRECT ANTENNA OR THE

ANTENNA EXTENSION KIT.

ADD KEY

USED TO ENTER REMOTE CONTROLS

AND ENTER RAPID LEARN MODE.

POUND KEY

USED AS AN ESC OR EXIT KEY FOR ALL

FUNCTIONS OR MODES.

STAR KEY

USED TO ENTER ADVANCED FUNCTIONS:

✱, 1- LAST REMOTE CONTROL RECEIVED

✱, 2- NO. OF UNUSED MEMORY LOCATIONS

✱, 3- NO. OF OCCUPIED MEMORY LOCATIONS

✱, 4- NO. OF BLOCKED REMOTE CONTROL LOCATIONS

✱, 5- FIRST BLOCKED REMOTE CONTROL LOCATION

✱, 7- SOFTWARE VER. #

✱, 0- AUDIBLE DIAGNOSTICS OFF/ON

STAR450 FEATURES

PROGRAMMING THE STAR450 (CONT’D)

ADVANCED FUNCTIONS

For advanced functions, press and hold the ✱key and a

number key at the same time to select the corresponding

advanced function. (See table at right for available functions.)

Press the #key to exit the function.

REMOTE CONTROL LOCATION QUERY

Enter a remote control location number (001-450) to view location

status (see table to the right for possible status displays).

ENTER LOCATION (1-450) (UNBLOCK)

END

PRESS

CONFIRM

PRESS

Block

Un- bLc

bLc

234

002 023 234

Memory location of last remote control received.

# of open remote control locations.

# of locations occupied.

# of blocked remote control locations.

First blocked remote location.

Next blocked location (Repeat to scroll).

Duplicate memory- See Duplicating memory.

Version #

Press to exit functions.

Audible diagnostics OFF/ON

(LED will be displayed when OFF)

If no remote controls are programmed into the star450,

then (---) will be displayed.

PRESS SIMULTANEOUSLY

END

dup

~6 SECONDS

Remote control location is empty

Remote control location is occupied

no beep

OPn

Out

Display Description Beeper

Occ

bLc

no beep

long beep

Remote control location is blocked

Remote control location is out of

range(not between 1 & 450)

Triple Beep: Confirmation of delete.

Long Beep: Blocked Tx, error, or out of range

Double Beep: Remote control is valid and programmed into STAR450

accompanied by remote control location display.

Slow Beep: Security+®Remote control (Not programmed in STAR450).

Long Beep: Blocked remote control.

No Beep: Remote control not working.

Single Beep: Key pressed.

Double Beep: Confirmation of an accepted Tx or

valid add/block input.

KEYPAD SOUND ALERTS

Blocking (Unblocking) a Remote Control: To block or unblock a user.

Duplicating Memory: Allows user to backup programmed remote

control memory into the provided backup memory module.

Note: If two memory modules are installed, press

✱

,6 to duplicate

the memory and remove the backup module.

Note: To duplicate memory, plug backup memory module into

backup slot and press

✱

,6. Once duplication is complete, remove

the backup memory module and store in a separate location.

Restoring Memory: To restore memory, simply place the duplicate

memory module in the main memory position.

Backup Memory Module

Main Memory Module

AUDIBLE DIAGNOSTICS

Step 1. Activate remote control.

Step 2. Listen for beep.

(LED will be displayed when OFF)

Receiver (Bottom)

Wall

Button

To wall outlet

Model 85

Transformer

Trans Primary

Receiver (Bottom)

Wall

Button

Opener

To wall

outlet

Model 95

Transformer

Trans Primary

STAR450 COMPATIBLE REMOTE CONTROLS STAR

™

450 OPTIONAL ACCESSORIES

Problem Probable Cause(s) Solution(s)

No display 1. Faulty/intermittent power connections

to unit Or

2. No power to unit

1. Memory may be full Or

2. Transmitter may not be a recognized

Chamberlain transmitter Or

3. Transmitter battery is dead

1. Transmitter not learned into system Or

2. Transmitter is blocked Or

3. Transmitter battery is dead

1. Add transmitter to memory

2. Replace transmitter battery

1. Check power connections

to unit

2. Supply power to unit

Press 4and 0 keys at

the same time

Replace backup memory module

No beep when

transmitting

Unit does not function,

[E 1] displayed

Duplication function

does not work,

[E 2] displayed

Keypad does not

respond,

[E 3] displayed

Main memory module missing or

damaged

Audible diagnostics may have been

turned OFF (right-most decimal point

will be lit on the display)

Transmitter does

not activate operator

Transmitter will not

learn into memory

1. Delete unused transmitters from memory

2. Verify transmitter is listed in compatible

transmitters section Or

3. Replace transmitter battery

Backup memory module missing or

damaged, if included

Keypad has a stuck key Cycle power.

If unit exhibits this condition again after 2

minutes, contact Technical Service.

Replace main memory module

TROUBLESHOOTING GUIDE

ELECTRICAL CONNECTIONS FOR STAR450

Security+®Remote Controls Security+® Keypads

373P 377LM

371LM 379LM

372LM

370LM

373LM

374LM

Passport™ Remote Control Digital Remote Controls

CPT43 361LM

CPT13 362LM

CPT23 363LM

CPT33 333LM

Passport™ Mini Remote Control

CPTK13

CPTK13PH

CPTK33

CPTK33PH

For highest level of security, we recommend the Security+®and Passport™

transmitter families.

CGI Part Number Description

71-65WTBOX Watertight Box Field Install Kit

86LM Antenna Extension Kit

85LM 24VAC Transformer with Barrel Connector

95LM 24VAC Transformer with ScrewTerminals

SERVICE INFORMATION TOLL FREE NUMBER

1-800-528-2806

www.liftmaster.com

Altri manuali per STAR450 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Chamberlain Ricevitore

Chamberlain

Chamberlain 050DCTB Manuale per l'uso e la cura

Chamberlain

Chamberlain 41A6128 Manuale utente

Chamberlain

Chamberlain LiftMaster CPT1 Manuale utente

Chamberlain

Chamberlain STAR1000 Manuale utente

Chamberlain

Chamberlain TRICODE Manuale utente

Chamberlain

Chamberlain 050DCTWF Manuale utente

Chamberlain

Chamberlain merlin CSTAR250 Manuale utente

Chamberlain

Chamberlain TriCode TCG1 Manuale utente

Chamberlain

Chamberlain CHAMBERLAIN 635LM Manuale utente

Chamberlain

Chamberlain 8003EV Manuale utente

Chamberlain

Chamberlain 1025 Manuale utente

Chamberlain

Chamberlain TriCode TCR1 Manuale utente

Chamberlain

Chamberlain LiftMaster 423LM Manuale utente

Chamberlain

Chamberlain LiftMaster PROFESSIONAL 635-315LM Manuale utente

Chamberlain

Chamberlain 050DCTWFLK Manuale utente

Chamberlain

Chamberlain TriCode TCR2 Manuale utente

Chamberlain

Chamberlain LiftMaster 422LM Manuale utente

Chamberlain

Chamberlain Star1000EV Manuale utente

Chamberlain

Chamberlain 8002E Manuale utente

Chamberlain

Chamberlain 050ACTWFMC Manuale per l'uso e la cura

Chamberlain

Chamberlain LiftMaster 850LM Manuale utente

Chamberlain

Chamberlain LiftMaster PROFESSIONAL 423LM Manuale utente

Chamberlain

Chamberlain 365LM Manuale utente

Chamberlain

Chamberlain 5002EX Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
