Chamberlain TriCode TCR1 Manuale utente
TriCodeTM
TCR1 Single Channel Receiver
The TriCodeTM digital receivers are designed for use
with automatic garage/gate operators and access
control systems. All TriCodeTM products may be
matched with Linear/Delta-3TM, Multi-CodeTM, and
StanleyTM radio products which may already be
installed.
The TriCodeTM radio format provides a potential of
1024 different digital codes. For Linear/Delta-3TM
compatible products, 256 different digital codes are
available. The codes are set using 10-position DIP
switch system.
U.S. Patent Pending
SPECIFICATIONS
Output Rating: 5 Amps 28VAC or DC Max.
Power: 12VDC or 18 to 34VAC/DC, @ 30ma
RF Frequency: 300 or 310MHz
Accessory Transmitters:
TC1, TC2 and TC4
Children operating or playing with a garage door
/gate opener can injure themselves and others.
The door/gate could close and cause serious
injury or death.
Do not allow children to operate
the door control push button or the remote
control transmitters.
Install the receiver (and all door control push
buttons) out of the reach of children and away
from all moving parts of the door and door
hardware, but
where the door/gate is visible.
Disconnect power to opener before installing
receiver or removing/replacing receiver cover.
This device complies with FCC Rules Part 15 and IC
Canada Rules and Regulations. Operation is subject
to the following two conditions: (1) This device may
not cause harmful interference and (2) this device
must accept any interference received, including
interference that may cause undesired operation.
F.C.C. rules prohibit adjustments to or modification of
receiver and/or remote control transmitter circuitry
except for changing the code setting and replacing
remote control transmitter battery. THERE ARE NO
OTHER SERVICEABLE PARTS.
INSTALLATION AND SERVICE INFORMATION ARE AVAILABLE
6 DAYS A WEEK CALL OUR TOLL FREE NUMBER
1-800-528-3536
HOURS 7:00 TO 3:30 p.m. (Mountain Std. Time)
MONDAY Through SATURDAY
OR CONTACT US THROUGH THE WEB AT
WWW. CHAMBERLAINGROUP.COM
TABLE OF CONTENTS
DESCRIPTION PAGE
Setting Power Supply Selection..........................2
Setting Output Relay Mode.................................3
Setting the Configuration Switch.........................3
Setting DIP Switch...............................................3
Power Supply Connections.................................4
Step 1 Power Supply Selection Setting
The Tri-codeTM receiver is factory set for 24 volt power
input if 12 volt is required.
Remove back cover of receiver by removing screws.
Set jumper to the 12 volt setting (Refer to figure 1).
CAUTION:
To avoid possibility of duplicating
codes in adjacent systems, all transmitters and
receivers should be re-coded prior to operation.
Unless using maximum number of codes the
following four codes should not be used:
· All DIP Switches ON
· All DIP Switches OFF
· DIP Switches alternating ON/OFF
· DIP Switches alternating OFF/ON.
Receivers should be installed at least 5 feet apart to
avoid cross-talk. After completing installation,
operate transmitter outside of building to make
certain the chosen DIP switch setting does not
operate with nearby garage door operators and/or
security systems. If so, select another DIP switch
setting and check the coded signal again. Repeat as
necessary.
RECEIVER MOUNTING
Mount receiver to wall using #6 hardware (Not
Supplied). Hardware used will depend on mounting
application. (Refer to figure 1 for receiver mounting
hole locations).
POWER SWITCH SETTINGS

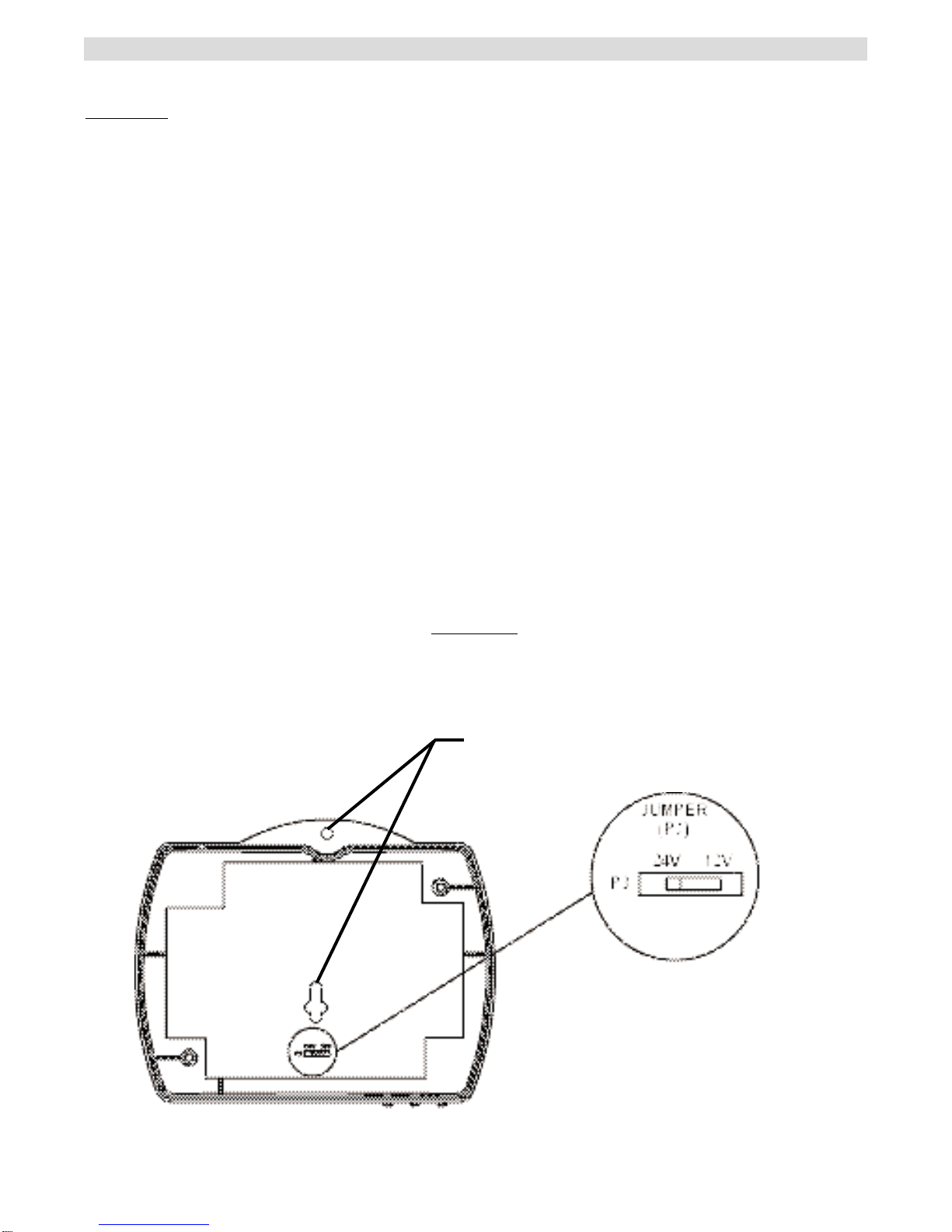

FIGURE 1
BACK VIEW
2
MOUNTING HOLES
Step 2 Setting Output Relay Mode
The TriCodeTM receiver is factory set for momentary
relay output “MNT”.
(a) Momentary mode: The output relay will be on for
.5 seconds before turning off.
(b) Constant pressure mode: Output relay is
continuously on while receiving matching/valid ID code
from transmitter. The output relay will turn off
immediately once receiver does not receive a
matching/valid ID code from the transmitter (Refer to
figure 4).
NOTE: If constant pressure mode is desired, open
front cover and move mode jumper from “MNT” to
“CST” (Refer to figure 2).
Step 3 Setting the Configuration Switch
The TriCodeTM receiver is factory set for Linear/Delta-
3TM.
Locate the configuration switch and set it to the desired
RF mode of operation
(Refer to figures 2 and 4)
. Modes
are as follows:
Linear/Delta-3
TM
:
works with all “Linear/Delta-3TM”
transmitters transmitted at 310 MHz using 8-bits ID
system.
Multi
TM
:
works with all “Multi-CodeTM” transmitters
transmitted at 300 MHz using 10-bits ID system.
Stanley
TM
:
works with all “StanleyTMradio” transmitters
transmitted at 310 MHz using 10-bits ID system.
FRONT VIEW
FIGURE 4
OUTPUT RELAYS, CONFIGURATION & DIP SWITCH SETTINGS
Step 4 Setting DIP Switch
The TriCodeTM receiver DIP switch is factory set OFF (1-
10).
Locate the 10 position DIP switch. If this is a new
installation using TriCodeTM transmitters, randomly set
switches matching those of the transmitter. Never use
factory settings. If receiver is used with Linear/Delta 3TM,
Multi-codeTM or StanleyTM transmitters, match the
receiver DIP switch to the above transmitters. Some
transmitters may use toggle switches and it may be
difficult to determine on & off. If so, try reversing the
setting on the TriCodeTM DIP switch (Refer to figures 3
and 4).
Note: In 'LINEAR/DELTA-3TM' mode (8-bits system)
the last 2 bits (DIP #9 & 10) settings are ignored.
They can be left in either ‘ON’ or ‘OFF’ settings.
3
FIGURE 3
FIGURE 2
© 2000, The Chamberlain Group, Inc.
01-16700C All Right Re erved
Step 5 Power Supply Connections
The receiver is connected to the opener via external
screw terminals labeled 1, 2 and 3 (Refer to figure 5).
TERMINAL 1 = COMMON
TERMINAL 2 = OUTPUT RELAY
TERMINAL 3 = POWER INPUT
If the three terminals allign with three matching
terminals on the operator, use the piggyback clips for
screw to screw attachment. If spacing is different or
not marked, use the wiring diagram in Figure 5.
FIGURE 5
POWER CONNECTIONS
