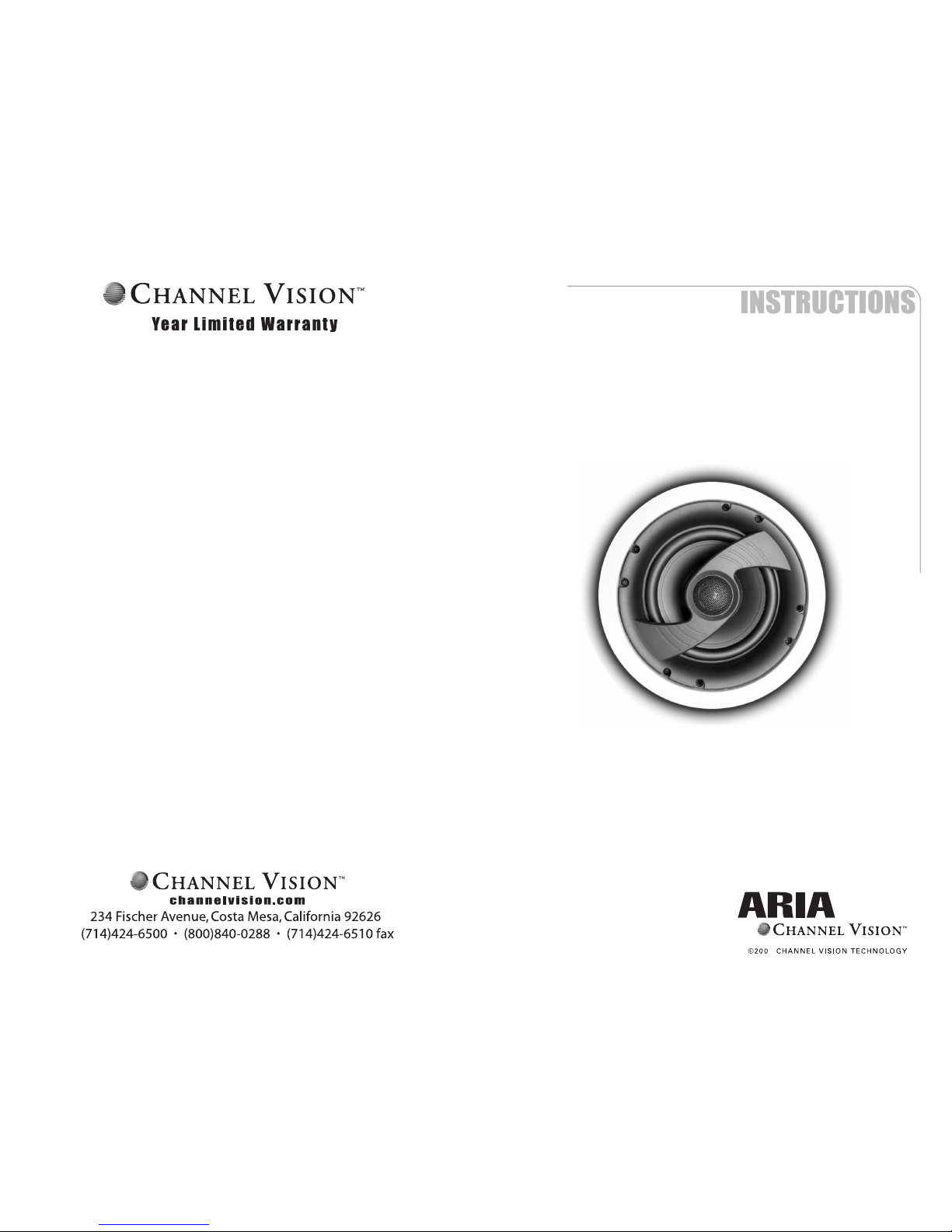

Channel Vision IC612 Manuale utente

Channel Vision Technology will repair or replace any defect in

material or workmanship which occurs during normal use of this

roduct with new or rebuilt parts, free of charge in the USA, for ten

years from the date of original purchase. This is a no hassle warranty

with no mail in warranty card needed. This warranty does not cover

damages in shipment, failures caused by other products not supplied

by Channel Vision Technology, or failures due to accident, misuse,

abuse, or alteration of the equipment. This warranty is extended only

to the original purchaser, and a purchase receipt, invoice, or other

roof of original purchase date will be required before warranty

repairs are provided.

Mail in service can be obtained during the warranty period by calling

(800) 840-0288 toll free. A Return Authorization number must be

obtained in advance and can be marked on the outside of the shipping

carton.

This warranty gives you specific legal rights and you may have other

rights (which vary from state to state). If a problem with this product

develops during or after the warranty period, please contact Channel

Vision Technology, your dealer or any factory-authorized service

center.

500-18

rev A2

IC612

6.5” IN-CEILING SPEAKER

Features:

6.5” High performance in-ceiling loudspeaker

High power handling capacity

Recommended power: 20W to 160W (peak)

Gold speaker terminals

Proprietary pivoting “Pole Piece” technology with 1” voice

coil.

Polypropylene woofer with butyl rubber surround and an

18 ounce magnet

Small perforated designer grill

Channel Vision’s ARIA™ in-ceiling custom

installation speakers feature high power handling capability

providing true stereo quality sound and not simply

background music. The pivoting tweeters can be aimed to

any position to custom fit any room, making them perfect for

whole-house audio or home theater applications. High

quality materials ensure long life and great performance.

Gold speaker wire terminals not only provide better contact

surface but also offer less resistance to signal transfer for a

clearer sound.

IC612 6.5”

Mounting screws (4)

Model IC612

Installation:

O OT VER IGHTEN

Use the provided template to mark and cut a 7- ¾” hole in

drywall away from ceiling joists.

We recommend wiring with AWG 16 or larger, stranded

wire.

For proper phasing, both speakers must be wired alike.

Connect red wires to red terminals on the speakers and

to red or plus terminals on the amplifier.

Install IC612 in the hole. Tighten the mounting screws.

The mounting “dogs ears” will rotate outward and grip the

drywall. the screws

Aim tweeter

To control the volume of the speaker locally, use an

impedance matching volume control, such as the

Channel Vision VC300.

DN O T . A battery

operated drill on a “low clutch” setting is recommended.

Specifications:

Frequency range:

Crossover:

Sensitivity:

Power Handling:

Drivers:

Magnet:

Impedance:

Finish:

Dimensions:

45Hz - 20kHz ± 6dB

12dB/octave (low pass)

12dB/octave (high pass)

90dB (1W/1m)

160 Watts peak

1- 1” Soft dome tweeter

1- 8” polypropylene woofer

18-ounce ferrite magnet

8 ohms

ABS plastic

9” OD. 4 height

(from surface of wall board)

hole size: 7-¾” diameter

”

Specifications subject to change without notice.
