Chauvin Arnoux C.A 757 Manuale utente

FR - Notice de fonctionnement

GB- User’s manual

DE - Bedienungsanleitung

IT - Manuale d’uso

ES - Manual de instrucciones

Testeur numérique

Digital tester

Digitalen Prüfer

Tester digitale

Comprobador digital

C.A 757

600 V

CAT III

1000 V max

COM

DIGITAL TESTER

Select

C.A 757

600 V CAT III

北京海洋兴业科技股份有限公司

电话：010-62176775

English .............................................. 15

Deutsch ............................................. 27

Italiano ............................................... 39

Español ............................................. 51

Illustrations / illustrations / Illustrationen / illustrazioni

/ ilustraciones

COM

Select

SCAN

Position limite des mains

Position beyond which your hands must not go.

Äußerste Position der Hände.

Posizione limite delle mani.

Posición límite de las manos.

SCAN

COM

Select

SCAN



COM

Select

北京海洋兴业科技股份有限公司

电话：010-62176775

4. MAINTENANCE

Excepté les piles, l’appareil ne comporte aucune pièce

susceptible d’être remplacée par un personnel non

formé et non agréé. Toute intervention non agréée ou

tout remplacement de pièce par des équivalences

risque de compromettre gravement la sécurité.

4.1. NETTOYAGE

Déconnectez tout branchement de l’appareil.

Utilisez un chiffon doux, légèrement imbibé d’eau savon-

neuse. Rincez avec un chiffon humide et séchez rapidement

avec un chiffon sec ou de l’air pulsé. N’utilisez pas d’alcool,

de solvant ou d’hydrocarbure.

4.2. REMPLACEMENT DES PILES

Si le symbole s’afche durant une mesure, vous devez

remplacer les piles.

Déconnectez tout branchement de l’appareil.

Reportez-vous au § 1.3 pour le remplacement des piles.

Les piles et les accumulateurs usagés ne doivent pas

être traités comme des déchets ménagers. Rapportez-

les au point de collecte approprié pour le recyclage.

5. GARANTIE

Notre garantie s’exerce, sauf stipulation expresse, pendant

douze mois après la date de mise à disposition du matériel.

L’extrait de nos Conditions Générales de Vente sera com-

muniqué sur demande.

La garantie ne s’applique pas suite à :

une utilisation inappropriée de l'équipement ou à une utili-

sation avec un matériel incompatible ;

des modications apportées à l'équipement sans l'autorisa-

tion explicite du service technique du fabricant ;

des travaux effectués sur l'appareil par une personne non

agréée par le fabricant ;

une adaptation à une application particulière, non prévue

par la dénition du matériel ou non indiquée dans la notice

de fonctionnement ;

des dommages dus à des chocs, chutes ou inondations.

北京海洋兴业科技股份有限公司

电话：010-62176775

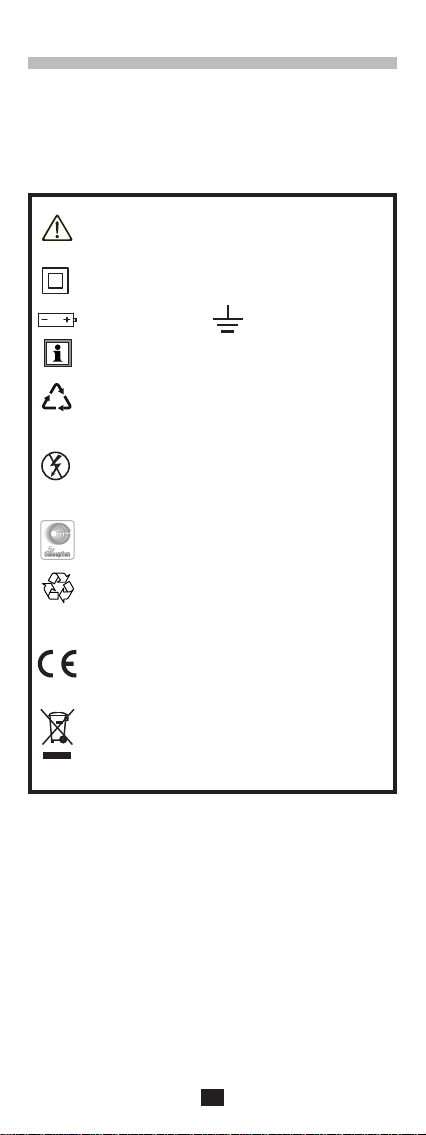

WARNING, risk of DANGER! The operator must

refer to these instructions whenever this danger

symbol appears.

Equipment protected by double insulation.

Battery. Earth.

Important information.

The product is declared recyclable following

an analysis of the life cycle in accordance with

standard ISO14040.

Application or withdrawal authorized on conduc-

tors carrying dangerous voltages. Type B current

sensor as per IEC 61010-2-032.

Chauvin Arnoux has adopted an Eco-Design

approach in order to design this appliance.

Analysis of the complete lifecycle has enabled us

to control and optimize the effects of the product

on the environment. In particular this appliance

exceeds regulation requirements with respect to

recycling and reuse.

The CE marking indicates conformity with

European directives, in particular LVD and EMC.

The rubbish bin with a line through it indicates

that, in the European Union, the product must

undergo selective disposal in compliance with

Directive WEEE 2002/96/EC. This equipment

must not be treated as household waste.

ENGLISH

Thank you for purchasing this C.A 757 digital tester.

For best results from your instrument:

read these operating instructions carefully,

comply with the precautions for use.

Denition of measurement categories

Measurement category IV corresponds to measurements

taken at the source of low-voltage installations.

Example: power feeders, counters and protection devices.

Measurement category III corresponds to measurements

on building installations.

Example: distribution panel, circuit-breakers, machines or

xed industrial devices

Measurement category II corresponds to measurements tak-

en on circuits directly connected to low-voltage installations.

Example: power supply to electro-domestic devices and

portable tools.

北京海洋兴业科技股份有限公司

电话：010-62176775

PRECAUTIONS FOR USE

This instrument is compliant with safety standard IEC 61010-

2-033, the leads are compliant with IEC 61010-031 and the

current sensor is compliant with IEC 61010-032, for voltages

up to 600V in measurement category III.

Failure to observe the safety instructions may result in electric

shock, re, explosion, and destruction of the instrument and

of the installations.

The operator and/or the responsible authority must carefully

read and clearly understand the various precautions to be

taken in use. Sound knowledge and a keen awareness of

electrical hazards are essential when using this instrument.

Do not use your instrument on networks of which the voltage

or category exceeds those stated.

Do not use the instrument if it seems to be damaged,

incomplete, or poorly closed.

Do not use the instrument in an explosive atmosphere or in

the presence of ammable gases or vapours.

Before each use, check the condition of the insulation on

the leads, housing, and accessories. Any item of which the

insulation is deteriorated (even partially) must be set aside

for repair or scrapping.

Use only the leads and accessories supplied. The use of

leads (or accessories) of a lower voltage rating or category

limits the use of the combined instrument + leads (or acces-

sories) to the lowest category and service voltage.

Use personal protection equipment systematically.

When handling the instrument and test probes, keep your

ngers behind the physical guard.

All troubleshooting and metrological checks must be done

by competent, accredited personnel.

北京海洋兴业科技股份有限公司

电话：010-62176775

CONTENTS

1. PRESENTATION.........................................................18

1.1. Delivery condition...........................................18

1.2. Accessories and spare parts ..........................18

1.3. Inserting the batteries.....................................18

1.4. View of the C.A 757........................................19

1.5. Back ...............................................................19

2. USE .............................................................................20

2.1. Instrument test................................................20

2.2. Voltage ...........................................................20

2.3. Resistance, continuity, diode and capacitance21

2.4. Current ...........................................................21

2.5. Non-contact voltage detection (NCV).............22

2.6. Automatic standby..........................................22

3. CHARACTERISTICS ..................................................23

3.1. Reference conditions......................................23

3.2. Electrical characteristics.................................23

3.3. Environmental conditions ...............................25

3.4. Power supply..................................................25

3.5. Characteristics of construction .......................25

3.6. Electrical safety ..............................................25

3.7. Electromagnetic compatibility.........................25

4. MAINTENANCE..........................................................26

4.1. Cleaning .........................................................26

4.2. Replacement of batteries ...............................26

5. WARRANTY................................................................26

北京海洋兴业科技股份有限公司

电话：010-62176775

1. PRESENTATION

1.1. DELIVERY CONDITION

C.A 757digital tester

Delivered in a cardboard box with:

one red test probe 2 mm in diameter,

one black lead terminated by a removable black probe tip

2mm in diameter,

one MiniFlex® exible current sensor,

two alkaline batteries (AAA or LR3),

one user’s manual in ve languages,

a test certicate.

1.2. ACCESSORIES AND SPARE PARTS

Test probes 2mm in diameter and 4mm long (one red and

one black) 600V CAT III (Figure 3).

Test probes 2mm in diameter and 15mm long (one red and

one black) 300V CAT II (Figure 4).

Test probes 4mm in diameter and 19mm long (one red and

one black) 300V CAT II (Figure 5).

MiniFlex® MA101-250 exible current sensor.

Carrying bag.

Set of 5 Velcro straps.

LR3 or AAA batteries.

C.A 753 2P+T adapter.

For the accessories and spares, consult our web site:

www.chauvin-arnoux.com

1.3. INSERTING THE BATTERIES

Use a screwdriver to unscrew the battery compartment

cap (Figure 1).

Insert the two batteries provided (AAA or LR3 1.5V alkaline

batteries) (Figure 2).

Screw the battery compartment cap all the way back in

and make sure that it is completely and correctly closed.

北京海洋兴业科技股份有限公司

电话：010-62176775

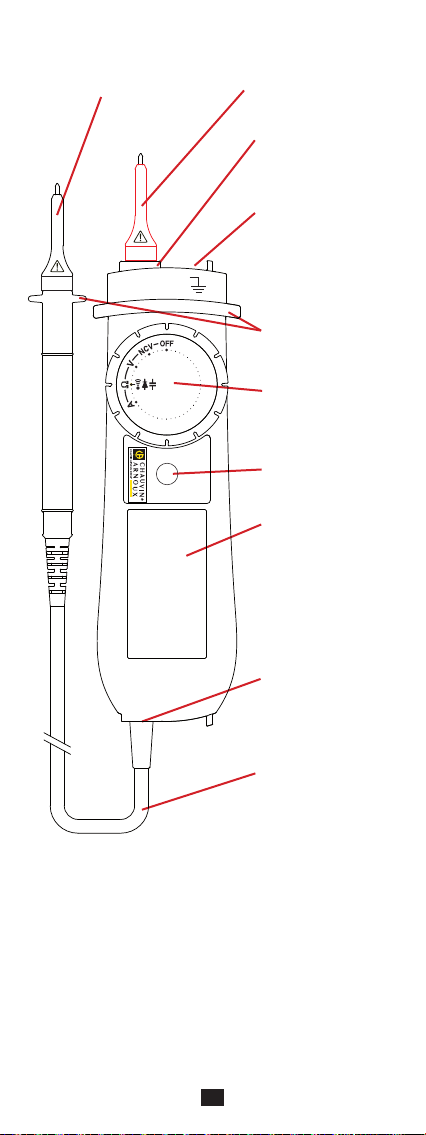

Removable black probe. Removable red probe.

Backlit LCD display

unit.

Battery compartment

cap.

Key Select.

1.4. VIEW OF THE C.A 757

+ terminal.

Guards.

Five-position rotary

switch.

COM terminal.

Lead terminated by a

probe tip holder.

600 V

CAT III

1000 V max

COM

DIGITAL TESTER

Select

C.A 757

600 V CAT III

1.5. BACK

When the instrument is not being used, the probe tips can be

stored on the back of the instrument (Figure 9).

You can also wrap the lead around the instrument (Figure 10).

北京海洋兴业科技股份有限公司

电话：010-62176775

2. USE

This instrument is a digital tester. It measures AC and DC

voltages, alternating currents, resistances, and capacitances.

It also has a continuity function and a diode function and can

be used for non contact voltage detection.

2.1. INSTRUMENT TEST

Before making any measurements, test all of the functions

of the instrument.

To switch the instrument on, turn the switch to any position.

All segments of the display unit light (Figure 6) and the

instrument emits a continuous beep.

If the battery voltage is too low for correct operation of the

instrument, the symbol is displayed.

If the battery voltage is much too low, the display unit

will not light.

In both cases, it is time to replace the batteries (see § 4.2).

With the inputs disconnected, set the switch to W. The

display unit indicates - - - -.

Connect the red probe tip to the +terminal and the black

probe tip to the COM terminal. Bring the two probe tips

together, so that they touch. The instrument indicates a

resistance near zero and emits a continuous beep.

Set the switch to Vand measure a known voltage.

If the results of these four tests are correct, your instrument

is ready for use.

2.2. VOLTAGE

Connect the red probe tip to the +terminal and the black

probe tip to the COM terminal.

Set the switch to V.

Keep your hands behind the guards of the device and of

the test probe (Figure 9).

Place the test probes on the element to be tested and

maintain a rm contact.

The voltage is displayed (Figure 7).

If the voltage is > 30V, the instrument displays , indicating

that the voltage is dangerous.

As default, the instrument is in automatic mode (

SCAN

). If the

voltage is AC, the instrument displays AC. If the voltage is

DC, it indicates DC and displays its polarity.

The Select key is used to exit from the automatic mode (the

SCAN

symbol disappears) and display the AC voltage only, or

the DC voltage only, or to return to the automatic mode.

To determine the type of voltage (AC or DC) for a measure-

ment < 1V, exit from the automatic mode.

Do not use the C.A 757 to check for the absence of a

voltage. For that, use a VAT.

北京海洋兴业科技股份有限公司

电话：010-62176775

2.3. RESISTANCE, CONTINUITY, DIODE AND

CAPACITANCE

Connect the red probe tip to the +terminal and the black

probe tip to the COM terminal.

Set the switch to W.

Keep your hands behind the guards of the device and of

the test probe.

Place the test probes on the element to be tested (Figure

12). If a voltage is present, the instrument so indicates.

Do not make a resistance, diode, continuity, or capac-

itance measurement on a live circuit.

As default, the instrument is in automatic mode (

SCAN

) and

chooses automatically among the resistance , continui-

ty , diode , and capacitance functions. To force

one of these functions, press the Select key (the

SCAN

symbol disappears).

Resistance and continuity

If the resistance is less than 300 W, the instrument is in con-

tinuity (Figure 11). Below 30 W, it emits a continuous beep.

Between 300 Wand 3 MW, the instrument is in resistance

mode. Above 3 MW, the display unit indicates OL. The 30 MW

range is not available in automatic mode; resistance mode

must be used.

Diode

In diode test, place the red probe tip on the anode of the

diode to be tested and the black probe tip on the cathode.

The instrument indicates the voltage of the diode. If it

is above 2V or if the polarity is reversed, the instrument

displays - - - -.

Capacitance

The 3mF and 30mF ranges are not available in automatic

mode; capacitance mode must be used.

If the device displays dis.C after a measurement, wait for

the end of automatic discharging of the capacitance before

making another measurement.

2.4. CURRENT

Connect the current sensor to the + terminal.

Set the switch to A.

Press on the yellow opening device to open the exible

coil (Figure 13).

Open it and place it around the conductor carrying the

current to be measured (Figure 14) (only one conductor

in the sensor).

Close the coil. To optimize measurement quality, centre

the conductor in the coil and make the coil as round as

possible.

The current is displayed.

北京海洋兴业科技股份有限公司

电话：010-62176775

Altri manuali per C.A 757

Indice

Altri manuali Chauvin Arnoux Apparecchiature di prova

Chauvin Arnoux

Chauvin Arnoux C.A 6133 Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 1510 Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 6410 Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 751 Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 6608 Manuale utente

Chauvin Arnoux

Chauvin Arnoux AEMC 6417 Manuale utente

Chauvin Arnoux

Chauvin Arnoux CA 6161 Manuale utente

Chauvin Arnoux

Chauvin Arnoux MTX 3290 Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 6470N TERCA 3 Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 6471 Manuale utente

Chauvin Arnoux

Chauvin Arnoux CA 6651 Manuale utente

Chauvin Arnoux

Chauvin Arnoux TERCA 3 Manuale utente

Chauvin Arnoux

Chauvin Arnoux Metrix DOX2025B Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 6116 Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 6422 Manuale utente

Chauvin Arnoux

Chauvin Arnoux HandScope CA 942 Manuale utente

Chauvin Arnoux

Chauvin Arnoux pel 102 Manuale utente

Chauvin Arnoux

Chauvin Arnoux E6N Manuale utente

Chauvin Arnoux

Chauvin Arnoux Metrix DOX2025B Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 751 Manuale utente

Chauvin Arnoux

Chauvin Arnoux AEMC OX 5022B Manuale utente

Chauvin Arnoux

Chauvin Arnoux 6417 Manuale utente

Chauvin Arnoux

Chauvin Arnoux C.A 6410 Manuale utente

Chauvin Arnoux

Chauvin Arnoux AEMC Instruments 6418 Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
