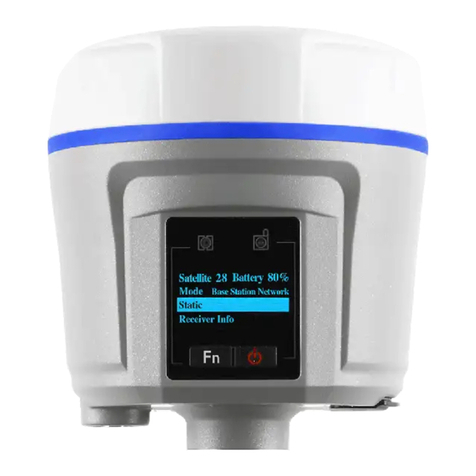

CHC® i80 GNSS Receiver

QuickTour with FieldGenius

(External Radio Base Mode)

i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)

1

1.Prerequisites

Hardware: CHC i80 Base with internal radio

Kit, Controller Kit, Extension pole, Tribrach

with optical plummet, Auxiliary H.I. Tool, H.I.

Tape, Tribrach adaptor, tripod,Data link,Data

link cable,vehicle battery,whip antenna

Software: FieldGenius8

2.Steps to set i80 working as base

in external radio mode with

FieldGenius

2.1 Base and data-link installation

1. Set up base on known point or unknown

point.

2. Set up the data link and whip antenna

nearby (around 3~5 meters).

3. Connect receiver and data link.

4. Connect the data link to vehicle battery.

Note: the red cable to positive, the black

cable to negative.

5. Check all the connection is done then

power on the data link.

2.2 Base setting in FieldGenius

1. Power on the receiver

Long press the i80 power button until the

green and blue LED lights are on.

2. Click on [start] and then FieldGenius.

3. Click [New Project] to create a project or

Click [Open] to open one exist project.

i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)

2

4. A project file should be selected then

click [Continue] for next step.

5. Click on [Select Instrument]

6. Select [GNSS Reference] option then

click [Edit] to select device and linking

method

7. Click [Tolerance] tab to set base station

satellites mask, PDOP mask and elevation

mask.

i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)

3

8. Click [Antenna Height] to set the base

antenna height

Note: if you want to measured the slant

height of i80,please refer to the follow

figure.

i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)

4

9. Click [Model and Communication]

tab→select Make as [CHC], Model as [i80],

Port as [Bluetooth] →click [Bluetooth

Device List] to add bluetooth device

10. Click [Search] to search the around

Bluetooth device.

11. Click on the device that matches your

device serial number, then click it

i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)

5

12. Type in the PIN Code of the bluetooth

then click [OK] button to finish the device

edit.

13. Then our target device can be selected in

the bluetooth device list. Click [OK] button

back to [Model and Communication]

interface.

14. The target device can be selected in the

drop-down box then click [Connect] button.

The software will build the connection to your

device

15. After successful connection, FieldGenius

will display the following hint, please click [OK]

button

i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)

6

14. Click the [Known Position] icon to switch

the method of starting base

Users can start base with known points by

clicking [Known Geodetic Position], unknow

position by clicking [Averaged Geodetic

Position] and local coordinates by clicking

[Local Transformation to point]

15. After select the starting method, please

click [Start Reference] to start the base.

Please click [Set Position] to set the averaged

result as base coordinate.

i80 GNSS Receiver Quick Tour with FieldGenius (External Radio Base)

7

16. Select the [Other Device] from the

drop-down box then click [Connect] to finish

the setting

18. Please check the green LED of i80

whether is flashing.

If so, it means the base configuration is

successfully.
