Chipsee CS-A53-BOX Manuale utente
Contents
3CS-A53-BOX
71. Product Overview
82. Ordering Options
82.1. Operating System
92.2. Optional Features
103. Hardware Features
124. Power Input
145. Connectivity
145.1. RS232/RS485/CAN
165.2. GPIO Port
185.3. USB Connectors
205.4. LAN Connectors
215.5. WiFi & BT Module
225.6. 4G/LTE Module
236. TF Card Slot
247. Audio Connectors
268. HDMI Connector
279. PROG Button
2810. Mounting Procedure
2911. Mechanical Specications
3012. Disclaimer
3013. Technical Support
Chipsee IPC Page 2 of 30
CS-A53-BOX

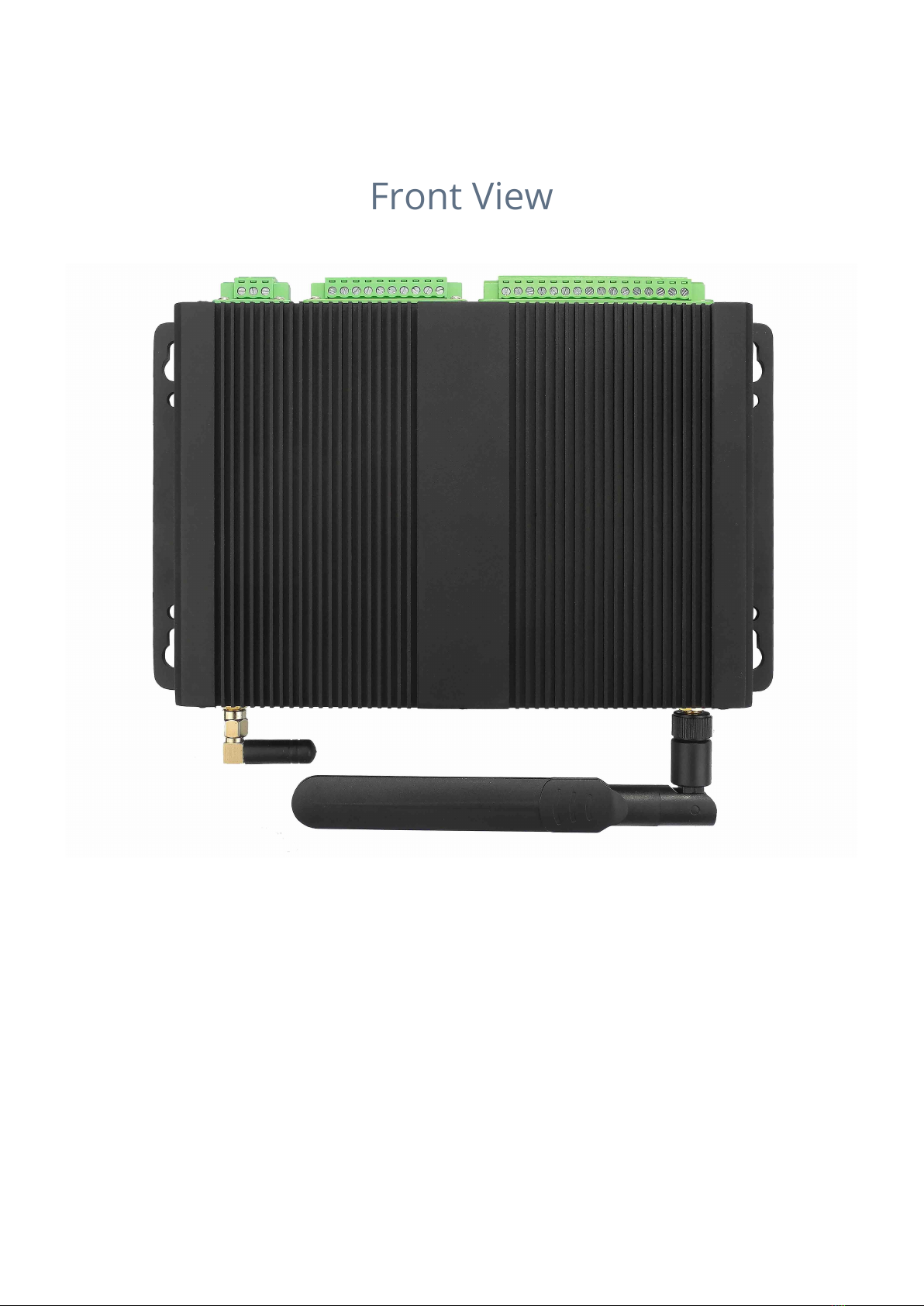

Front View
CS-A53-BOX
Chipsee IPC Page 3 of 30

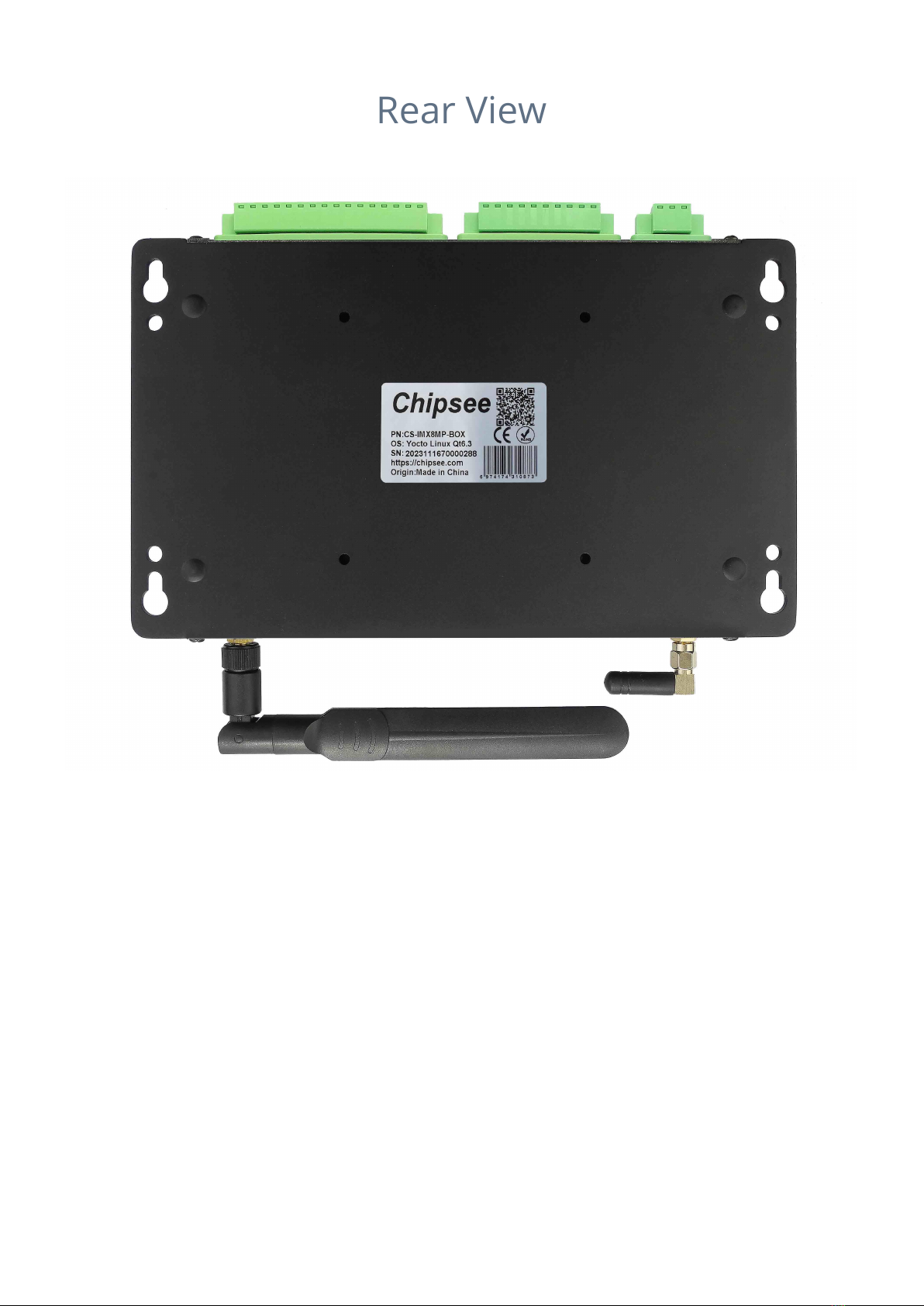

Rear View
CS-A53-BOX
Chipsee IPC Page 4 of 30

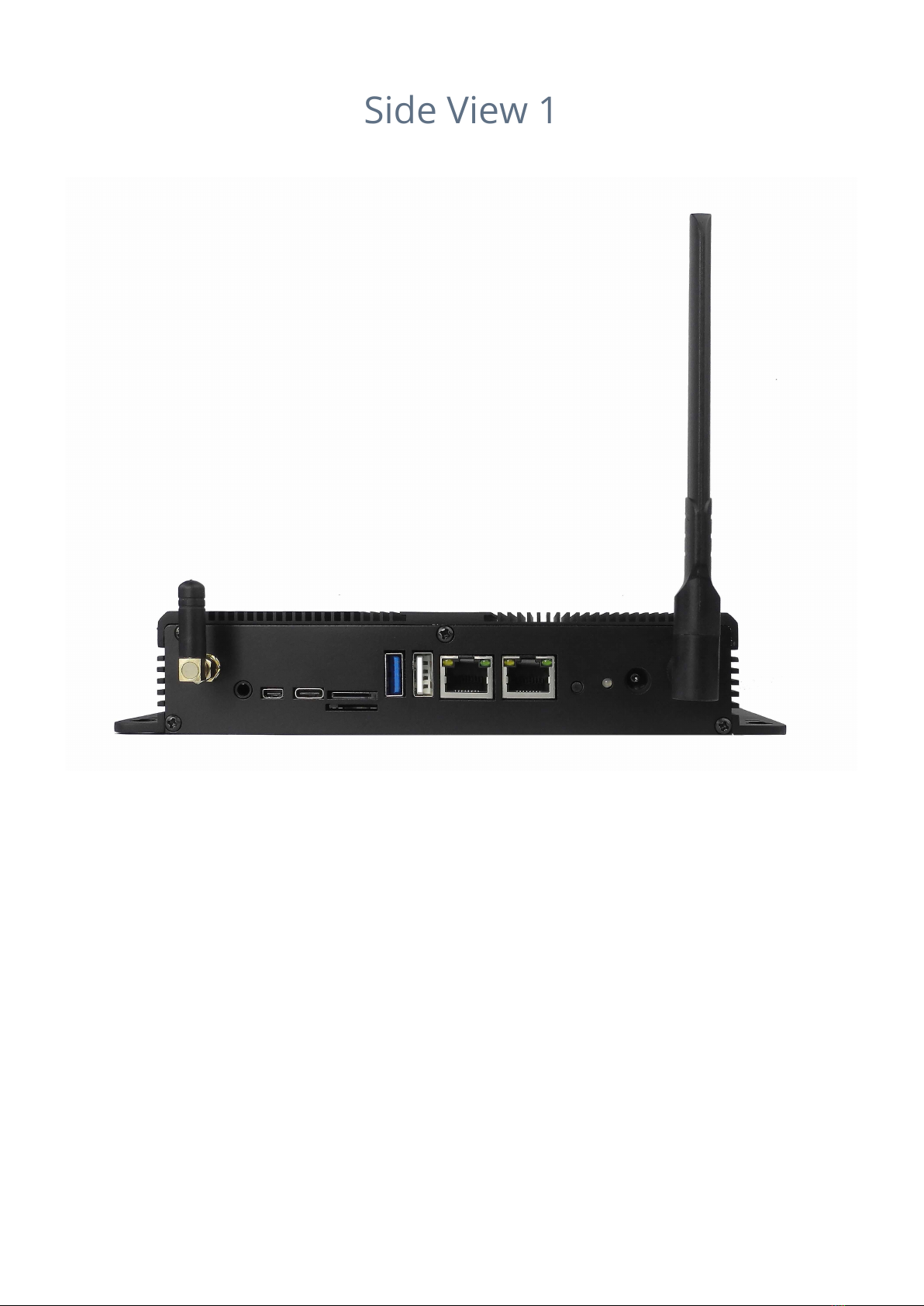

Side View 1
CS-A53-BOX
Chipsee IPC Page 5 of 30
Side View 2
CS-A53-BOX
Chipsee IPC Page 6 of 30
Product Overview
The fanless embedded PC CS-A53-BOX (PN: CS-IMX8MP-BOX) is a Cortex -A53 series high-
quality industrial PC. Thanks to the fanless design, it is stable and reliable in client terminal,
multimedia and other industry applications.
Key Applications
Industrial Automation
Process Control
Smart Grid Management
CNC Manufacturing
Environmental Monitoring
Predictive Maintenance
The oered CPU consumes very little power, around 5.25W (max). From the ground-up, the
CPU is built for low power consumption. As such, it is best suited for mobile and power-
constrained industrial or eld applications. A specially designed aluminum alloy housing
with ns for increased heat dissipation serves as a passive cooler, eliminating the need for
built-in fans. The fanless design reduces noise, as well as the maintenance costs and eorts,
leading to increased reliability at the same time.
The CS-A53-BOX Industrial PC is based around the powerful i.MX8MP System on Chip (SoC),
powered by the NXP i.MX8MP low-power processor which integrates a quad-core Cortex -
A53 1.6GHz processor.
The i.MX8MP supports multi-format video decoders and has a high-performance LPDDR4
4GB RAM capable of sustaining demanding memory bandwidths. It also provides a
complete set of peripheral interfaces.
®
•
•
•
•
•
•
®
CS-A53-BOX Product Overview
Chipsee IPC Page 7 of 30
Ordering Options
Chipsee products can be customized during the ordering process. The product will be
shipped with the pre-installed factory defaults if no extra requirements are specied. The
table in the Hardware Features section provides information about the default options
bundled with the product.
Operating System
This product comes with a pre-installed OS of your choice. Please see the list below for the
supported OSes, which can also be obtained from the Software Documentation section,
along with the detailed installation instructions.
Android 12
Yocto Linux Qt 6.3
Note
You can order the CS-A53-BOX from the ocial Chipsee Store or from your nearest distributor.
•
•
Warning
The Software Documentation section provides a detailed instruction on how to install dierent OSes on your own.
However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick”
your device, please contact Chipsee Technical Support at [email protected] for further assistance.
CS-A53-BOX Ordering Options
Chipsee IPC Page 8 of 30
Optional Features
The CS-A53-BOX Industrial PC does not include the 4G/LTE module by default. The module
is optional and can be selected at the Chipsee store during the ordering process.
Warning
Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear
any responsibility for damage caused by inadequate handling of the product.
CS-A53-BOX Optional Features
Chipsee IPC Page 9 of 30
Hardware Features
The CS-A53-BOX Industrial PC oers a broad range of performance and connectivity options
for scalable integration, providing expandability according to future needs. Some of the key
features are listed in the table below.
CS-A53-BOX
CPU NXP i.MX8MP, Quad(4)-core Cortex-A53 (1.6GHz)
RAM LPDDR4 4GB
eMMC 32GB
SSD Not supported
Storage TF Card, Supports up to 128GB SDHC
HDMI 1 x HDMI-D(Micro HDMI) OUT
Display N/A
Touch N/A
USB 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C1
LAN 2 x RJ45, GbE, including 1 x optional Power over Ethernet (PoE) port
Audio 3.5mm Audio In/Out Connector, 2W Internal Speaker
Buzzer Yes
RTC
High accuracy RTC with farad capacitor, can work 1 week after power o (default).
High accuracy RTC with lithium coin battery, can work 3 years after power o
(optional).
RS232 default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port)2
RS485 default 3 x RS485 at most2
CAN default 2 x CAN (1 x CAN can be congured to RS232 optionally)
GPIO 8 Channels Isolated IO, 4 x Input and 4 x Output
WiFi/BT Integrated WiFi/BT Module
4G/LTE Supported, Optional
Power Input From 6V to 36V
Current 350mA (max) at 15V
Power
Consumption 5.25W (max)
Working
Temperature From 0°C to +60°C
OS Android 12, Yocto Linux Qt 6.3
CS-A53-BOX Hardware Features
Chipsee IPC Page 10 of 30
