Chipsee PPC-A72-156-C Manuale utente

Industrial PC

PPC-A72-156-C

PN: CS19108R156

Content can change at anytime, check documentation website for latest information.

www.chipsee.com

Contents

31. PPC-A72-156-C

41.1. Product Overview

51.2. Ordering Options

51.2.1. Operating System

61.2.2. Optional Features

61.3. Hardware Features

71.4. Power Input

81.5. Touch Screen

81.6. Connectivity

81.6.1. DB9 Connectors

91.6.2. USB Connectors

91.6.3. LAN Connectors

101.6.4. WiFi & BT Module

101.6.5. 4G/LTE Module

111.6.6. Expansion Connector

131.7. TF Card Slot

131.8. Audio Connectors

131.9. HDMI Connector

131.10. Power Button

141.11. Measurements and Mounting Procedure

151.12. Disclaimer

151.13. Technical Support

Chipsee IPC Page 2 of 15

PPC-A72-156-C

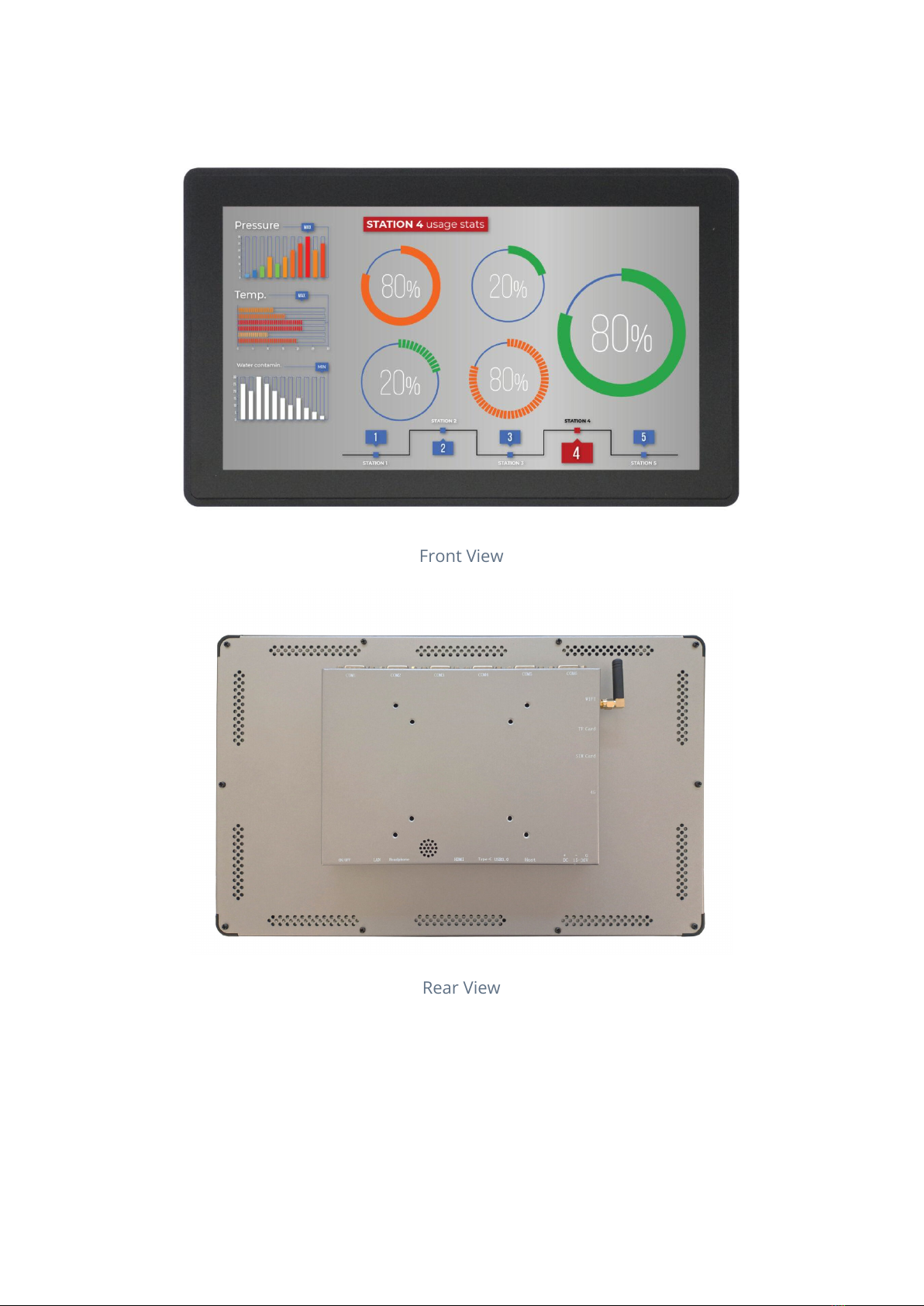

Front View

Rear View

PPC-A72-156-C

Chipsee IPC Page 3 of 15

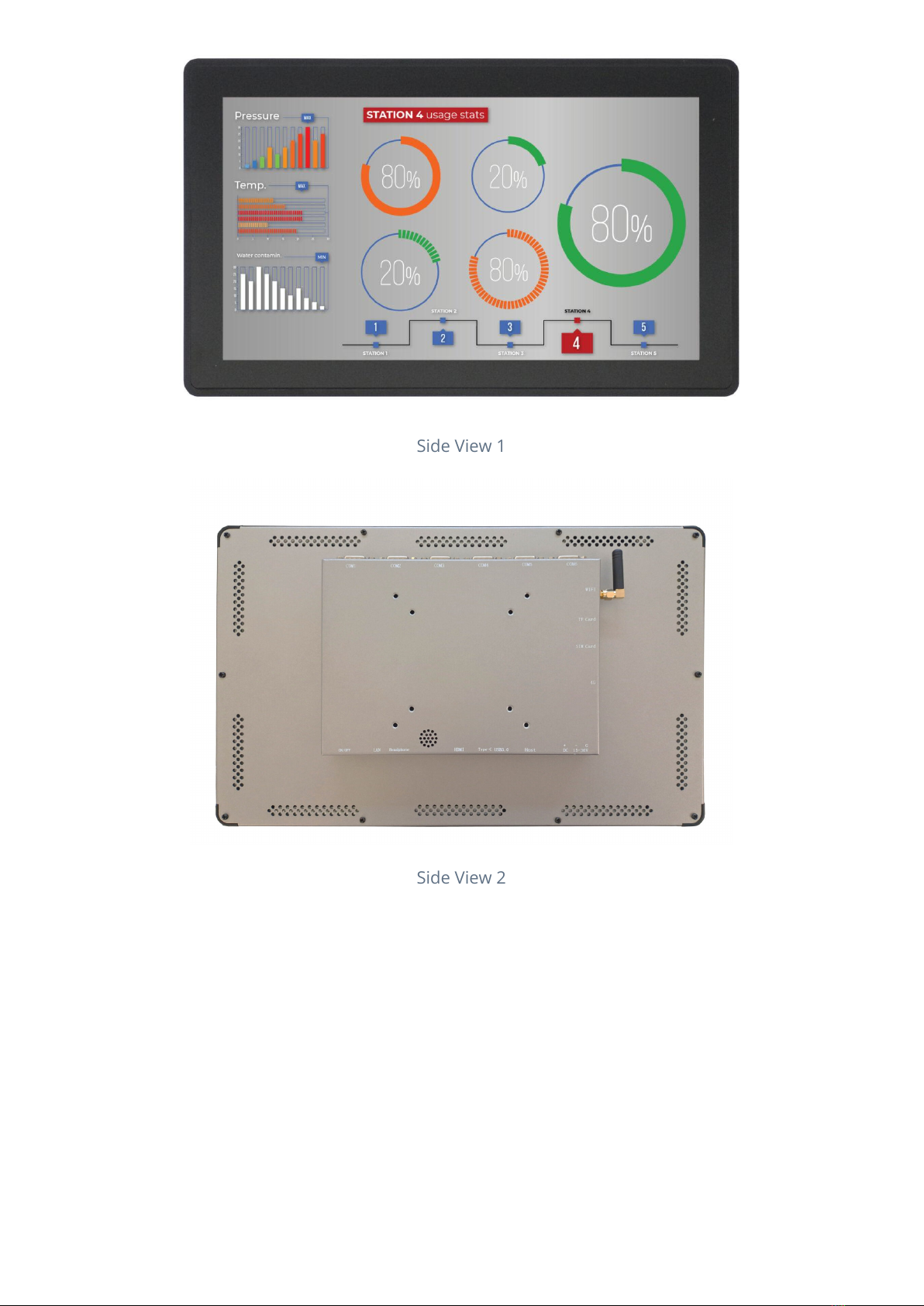

Side View 1

Side View 2

Product Overview

The Cortex -A72/53 series PPC-A72-156-C (PN: CS19108R156) is a high-quality industrial

panel PC. It features a 15.6” ten-point capacitive touch screen with a resolution of 1920 x

1080 pixels and brightness of 250 cd/m .

Key Applications

Human Machine Interface HMI

Mobile Applications

Video Processing

•

PPC-A72-156-C Product Overview

Chipsee IPC Page 4 of 15

Machine Learning

Video Gaming

Process Control

Process Monitoring

ATM…

It is available both as an embedded solution and as a device hosed in an aluminum casing

with bezels, thus facilitating dierent installation options:

Installation on an industrial cabinet

Integration with the existing equipment

The PPC-A72-156-C Industrial Panel PC is based around the powerful CS-SOM-RK3399

System on Module (SoM), powered by the Rockchip RK3399 low-power processor which

integrates a dual-core Cortex -A72 and a quad-core Cortex -A53 with a separate NEON

coprocessor.

The RK3399 supports multi-format video decoders and has a high-performance dual-

channel external memory interface (DDR3/DDR3L/LPDDR3/LPDDR4) capable of sustaining

demanding memory bandwidths. It also provides a complete set of peripheral interfaces.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be

shipped with the pre-installed factory defaults if no extra requirements are specied. The

table in the Hardware Features section provides information about the default options

bundled with the product.

Operating System

This product comes with a pre-installed OS of your choice. Please see the list below for the

supported OSes, which can be also obtained from the Software Documentation section,

along with the detailed installation instructions.

Chipsee Linux*

Android 7.1

Debian 10

•

® ®

Note

You can order The PPC-A72-156-C Industrial Panel PC from the ocial Chipsee Store or from your nearest

distributor.



•

PPC-A72-156-C Ordering Options

Chipsee IPC Page 5 of 15

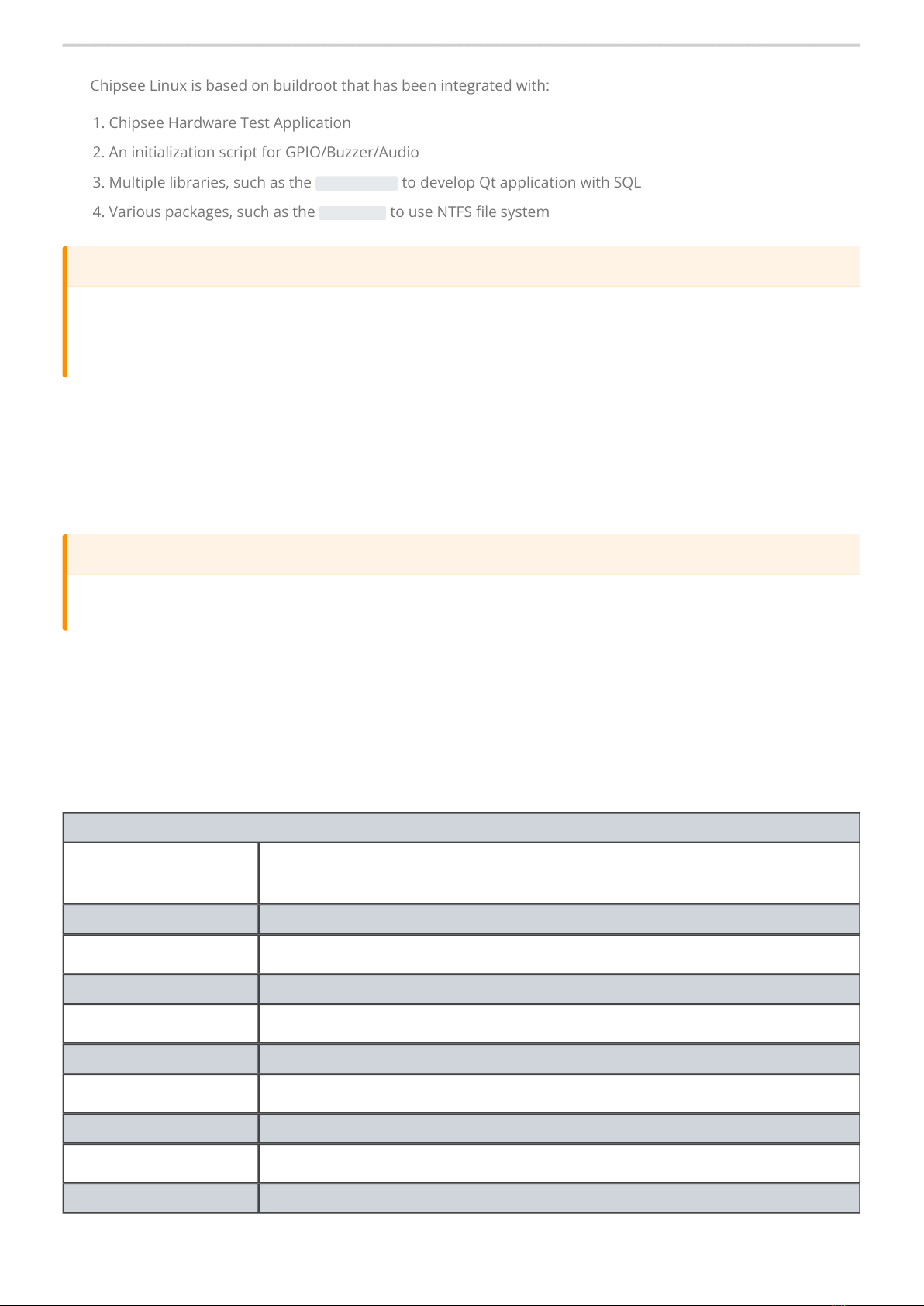

*Chipsee Linux is based on buildroot that has been integrated with:

Chipsee Hardware Test Application

An initialization script for GPIO/Buzzer/Audio

Multiple libraries, such as the libQt5Sql to develop Qt application with SQL

Various packages, such as the ntfs-3g to use NTFS le system

Optional Features

The PPC-A72-156-C Industrial Panel PC does not include 4G/LTE module by default. The

module is optional and can be selected at the Chipsee store during the ordering process.

Hardware Features

The PPC-A72-156-C Industrial Panel PC oers a broad range of performance and

connectivity options for scalable integration, providing expandability to meet future needs.

Some of the key features are listed in the table below.

Warning

The Software Documentation section provides a detailed instruction on how to install dierent OSes on your own.

However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick”

your device, please contact Chipsee Technical Support at [email protected] for further assistance



Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only.

Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.



PPC-A72-156-C

CPU Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53

(1.4GHz)

RAM 4GB DDR3

eMMC 16GB

Storage TF Card, Supports up to 32GB SDHC

Display 15.6” LCD, 1920 x 1080, High Brightness: 250 cd/m

Touch 10-point capacitive touch screen

USB 4 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C

LAN 1 x RJ45, GbE

Audio 3.5mm Audio Out Connector, 2W Internal Speaker

Buzzer Yes

PPC-A72-156-C Optional Features

Chipsee IPC Page 6 of 15

1(1,2)This product has 7 x UART channels in total. The default conguration is 5 x RS232 and 2 x RS485. UART can

be swapped between RS232 and RS485 modes easily, so if you need dierent RS232/RS485 conguration,

please get in touch with the Chipsee Technical Support at [email protected]

Power Input

The PPC-A72-156-C Industrial Panel PC can be powered by a wide range of input voltages:

From 15V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity

and the pinout is clearly marked on the housing of the product as shown on the gure

below.

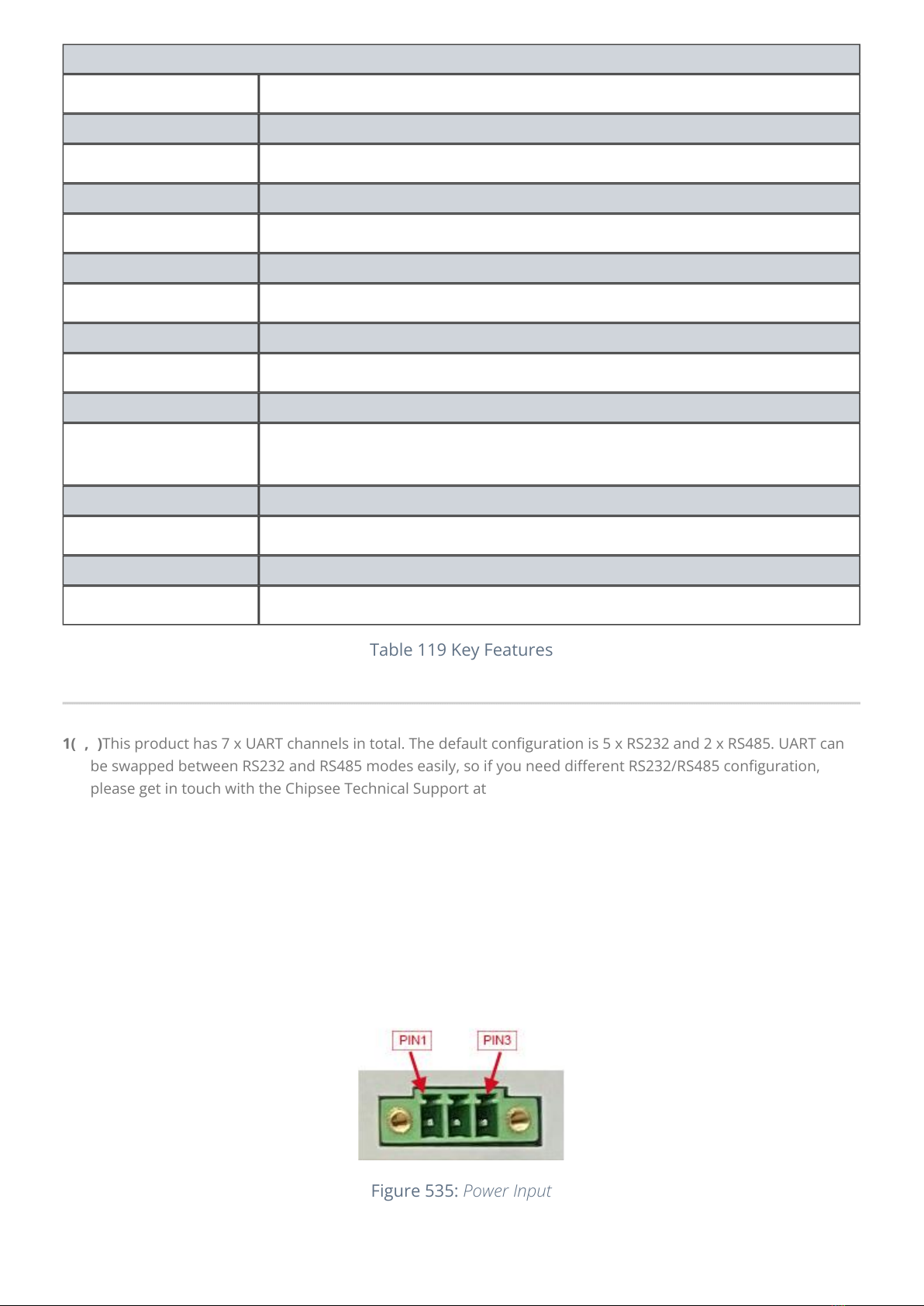

Figure 535: Power Input

PPC-A72-156-C

RTC Yes

RS232 5 x RS2321

RS485 2 x RS485 (4 at most, 1 debug port)1

GPIO 8 Channels

WiFi/BT Integrated WiFi/BT Module

HDMI 1 x HDMI

4G/LTE Supported, Optional

Power Input From 15V to 36V

Current at 15V 800mA Max

Power Consumption 12W Typical

Working

Temperature From 0°C to +70°C

OS Android 7.1

Dimensions 402 x 251 x 45mm

Weight 3200g

Mounting VESA & Panel methods

Table 119 Key Features

PPC-A72-156-C Power Input

Chipsee IPC Page 7 of 15

Note that the “+” sign represents the positive power input, and it is printed both at the

casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to

the ground.

Touch Screen

The PPC-A72-156-C Industrial Panel PC uses a 10-point capacitive touch screen.

Connectivity

There are many connectivity options available on the PPC-A72-156-C industrial PC. It has 4 x

USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x RJ45, GbE Ethernet connector, and 6 x

DB9 connectors.

DB9 Connectors

The PPC-A72-156-C Industrial Panel PC has 6 x DB9 connectors that are congured as RS232

by default as shown on the gure below. You can congure COM3/COM4/COM5/COM6 as

Power Input Denition

Pin Number Denition Description

Pin 1 Positive Input DC Power Positive Terminal

Pin 2 Negative Input DC Power Negative Terminal

Pin 3 Ground Power System Ground

Table 120 Power Connector

Note

The system ground “G” is connected to power negative “-” on board.



Attention

A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples

or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch

points oat erratically across the display. There are several solutions to this problem:

Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.

Make sure that the PPC-A72-156-C Power Input connector (pin 3) is properly connected to the Power System

Ground to provide sucient EMI shielding and eliminate the problem entirely.

Bad GND problem can also be conrmed by touching pin 3 of the Power Input connector with one hand while

operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power

System Ground.



PPC-A72-156-C Touch Screen

Chipsee IPC Page 8 of 15

RS485. If you need dierent RS232/RS485 conguration, contact the Chipsee Technical

Support at [email protected].

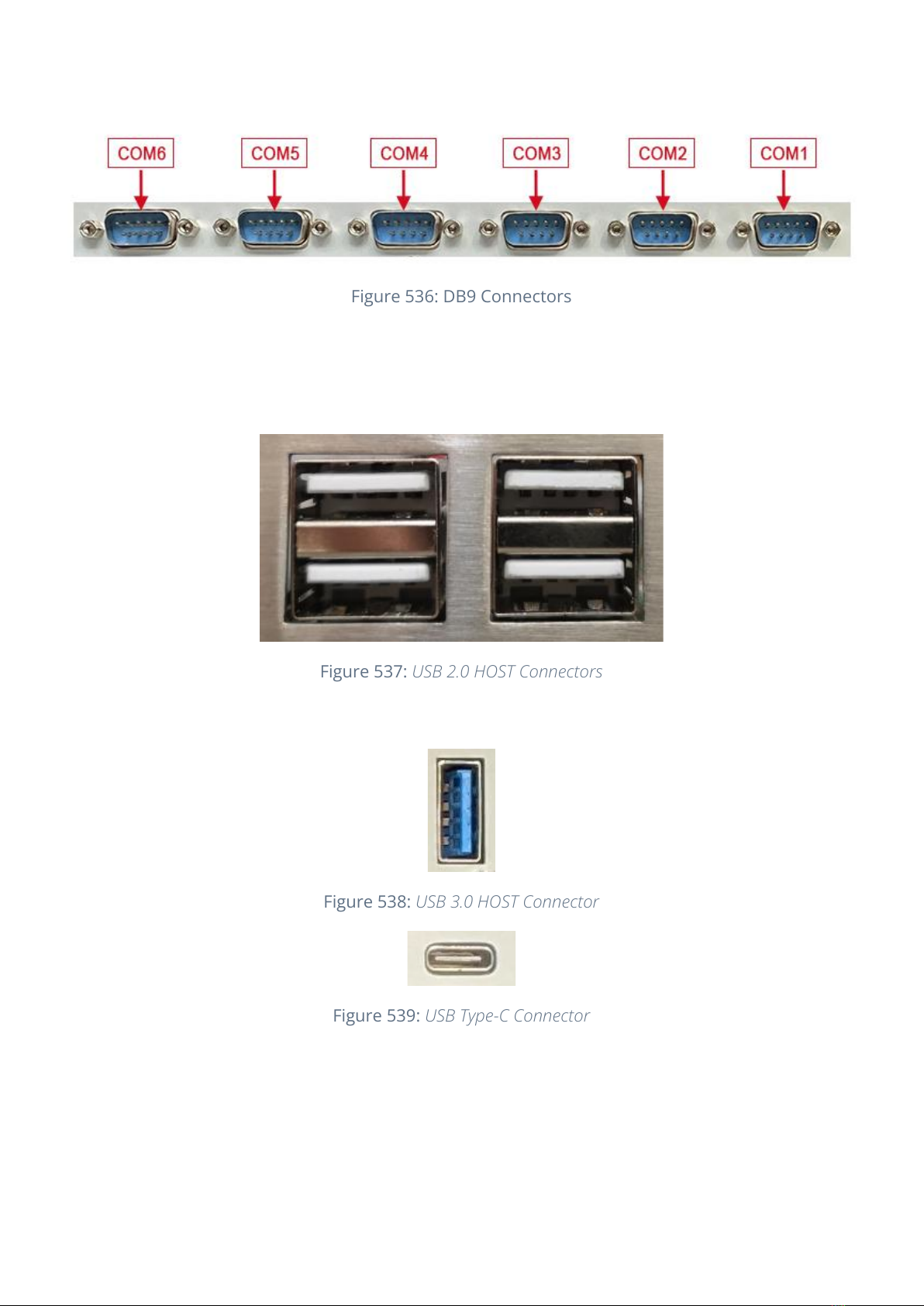

Figure 536: DB9 Connectors

USB Connectors

There are 4 x dual USB 2.0 HOST connectors onboard, as shown on the gure below.

Figure 537: USB 2.0 HOST Connectors

There is also 1 x USB 3.0 HOST connector and 1 x USB Type-C connector, as shown below.

Figure 538: USB 3.0 HOST Connector

Figure 539: USB Type-C Connector

LAN Connectors

LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as

shown the gure below. The integrated Ethernet interface supports up to 1 Gbps data

throughput.

PPC-A72-156-C USB Connectors

Chipsee IPC Page 9 of 15

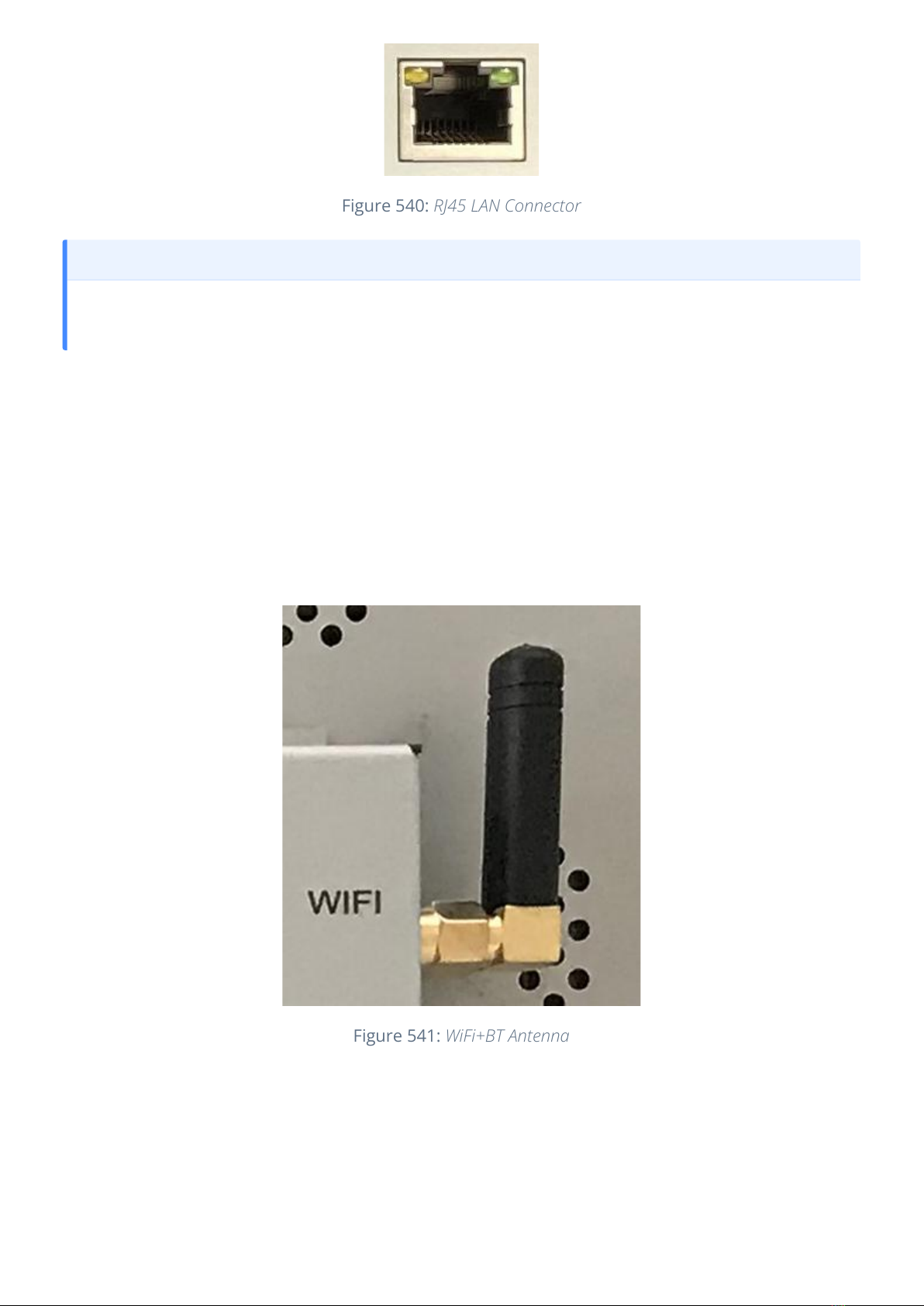

Figure 540: RJ45 LAN Connector

WiFi & BT Module

The PPC-A72-156-C Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/

BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4

GHz Wireless LAN (WLAN).

The product includes an SMA connector for an external WiFi/BT antenna, as illustrated in

the gure below.

Figure 541: WiFi+BT Antenna

4G/LTE Module

The PPC-A72-156-C Industrial Panel PC is equipped with a mini-PCIe connector that can

connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE

Antenna Connector to ensure 4G/LTE works on the PPC-A72-156-C.

Note

Use CAT5 or better cables to achieve full data throughput over maximum distance dened by the 1000BASE-T

standard (100m).



PPC-A72-156-C WiFi & BT Module

Chipsee IPC Page 10 of 15
