6.2.6 ALMLOG

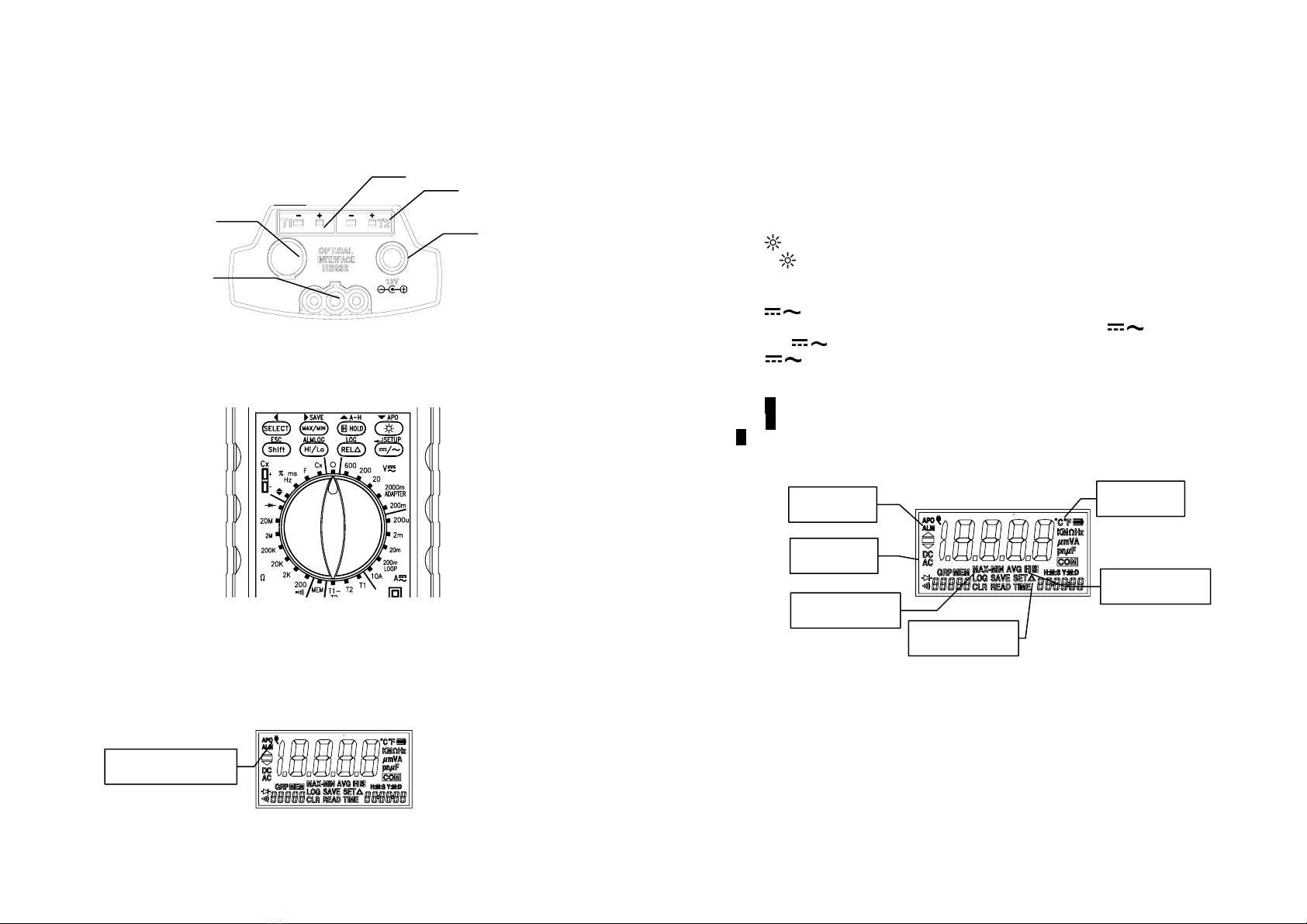

In “Shift Mode”, press this button to enter “ALMLOG function”. An indicator “GRP MEM”
and a number show at lower-left corner of LCD, telling how many data had been logged in the
memory. And the indicator “LOG” shows to the right of the number telling the meter is now in
the “ALMLOG function”.
1. Measurement values above upper limit (set by user):
Beeper sounds intermittently and mini DIN output set Higher.
2. Measurement values below lower limit (set by user):
Beeper sounds continuously and mini DIN output set Lower.
3. Refer to 6.1.6 Mini-DIN output port with Photo-coupler.
Note:
1. When the “ ” is blanking, the Data Logging function is disabled. Please replace the
battery to remain the Data Logging function (ref. 8).
2. It must connect battery when you use DC transformer as main power to run datalog
function.
6.3 Set Up Mode
Press “Sor W” or “Tor X” to page-up or page-down the menu which you want.
When you into setup mode the step as follow:
6.3.1 Log setup
1. Press SETUP button to setup the interval time of data log.
2. Press “W” or “X” to select field.
3. Press “S” or “T” to increase or decrease the setting value and press “SETUP”
utton to
confirm that the setting is completed and beeper will sound two times.
4. Press “S” or “T” to page up or page down the setup menu.
6.3.2 Hi limit
1. Press SETUP button to setup Hi limit.
2. Press “W” or “X” to select field.
3. Press “S” or “T” to increase or decrease the setting value and press “SETUP”
utton to
confirm that the setting is completed and beeper will sound two times.
4. Press “S” or “T” to page up or page down the setup menu.
Note:
The setting value means the Hi limit count.
6.3.3 Lo limit
1. Press SETUP button to setup Lo limit.
2. Press “W” or “X” to select field.
3. Press “S” or “T” to increase or decrease the setting value and press “SETUP”
utton to
confirm that the setting is completed and beeper will sound two times.
4. Press “S” or “T” to page up or page down the setup menu.
Note:
The setting value means the low limit count.
1
1. Safety Notice
The following safety information must be observed to insure maximum personal safety during
the operation at this meter:
Warning
To avoid electrical shock, do not use this instrument when
working voltages at the measurement surface over 24V AC
or DC.
Warning
To avoid damage or burns, do not make temperature
measurement in microwave ovens.
●This instrument contains no operator serviceable part. Service should be done by qualified
person only.
●Do not use the meter if the meter or test leads look damaged, or if you suspect that the meter
is not operating properly.
●This meter is not recommended for high voltage industrial use; for example, not for
measurements of 440 VAC or 600 VAC industrial power mains. The unit is intended for use
with low energy circuits to 600VDC or AC or high energy circuit to 250 VAC or DC.
Accidental misuse by connection across a high voltage, high energy power source when the
meter is set up for mA measurement may be very hazardous.
●Turn off power to the circuit under test before cutting, unsoldering, or breaking the circuit.
Small amounts of current can be dangerous.
●Use caution when working above 60V dc or 30V ac rms. Such voltages pose a shock hazard.
●When Using the probes, keep your fingers behind the finger guards on the probes.
●Measuring voltage which exceeds the limits of the multimeter may damage the meter and
expose the operator to a shock hazard. Always recognize the meter voltage limits as stated
on the front of the meter.
●If the equipment is used in a manner not specified by the manufacturer, the protection
provided the equipment may be impaired.
●Use proper Fuse. To avoid fire hazard, use only the fuse type and rating specified for this
product.
●Do not operate without covers. To avoid personal injury, do not apply any voltage or current
to the product without the covers in place.
●Electric overload. Never apply a voltage to a connector on the product that is outside the
range specified for that connector.
●Do not operate in wet/damp conditions. To avoid electric shock, do not operate this product
in wet or damp conditions.
DANGEROUS
VOLTAGE SEE EXPLANATION
IN MANUAL
AC-ALTERNATING
CURRENT
DOUBLE
INSULATION
(Protection Class II)
DC-DIRECT
CURRENT GROUND
