Corporate Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

for the Cisco uBR10012 Router

78-13602-01

January 2002

This document describes the Cisco uBR10-SRP-OC12SML DPT WAN line card used in the

Cisco uBR10012 chassis. This document provides the following information:

•Feature Overview, page 2

•Connectors and Cables, page 6

•Safety Information and Warnings, page 8

•About Removing and Replacing a Cisco uBR10-SRP-OC12SML DPT WAN Line Card, page 15

•About Troubleshooting the Cisco uBR10-SRP-OC12SML DPT WAN Line Card, page 21

•Technical Specifications, page 22

•Obtaining Documentation, page 23

•Obtaining Technical Assistance, page 24

Note Before using this product, see the translations for these warnings and other warnings that apply to

this product in the “Safety Information and Warnings” section on page 8.

Warning

Class 1 laser product.

Warning

Because invisible laser radiation may be emitted from the aperture of the port when no

cable is connected, avoid exposure to laser radiation and do not stare into open

apertures.

Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router

Feature Overview

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

78-13602-01

Feature Overview

The Cisco uBR10 Spatial Reuse Protocol (SRP) OC12 single-mode fiber, long reach (SML) dynamic

packet transport (DPT) WAN line card provides shared IP over SONET capability for the

Cisco uBR10012 router platform.

The Cisco uBR10-SRP-OC12SML DPT WAN line card:

•Accommodates large scale network topology.

The WAN card is deployed in SONET OC-12 DPT rings. The DPT rings are connected to SONET

Add Drop Multiplexers (ADMS) allowing the creation of small or very large rings. Each DPT ring

supports a maximum of 64 nodes.

•Leverages fiber optics capacity at OC-12c line rates.

The WAN card has two SC duplex ports. Each SC duplex port provides the physical connection to

an adjacent device in a DPT ring.

•Supports single mode fiber transmissions.

•Allows data to obtain fair-shared access to the OC-12c rings.

•Supports Version 1 SRP Protocol

•Implements protection mechanisms, including wrap and unwrap, in the event of fiber or node

failure.

The Cisco uBR10-SRP-OC12SML DPT WAN line card requires two card slots. For that reason, the card

is normally installed in Slot 2 and Slot 4 if you are using two cards. If you are using only one card than

install the card in Slot 2, Slot 3 or Slot 4. See Figure 1.

Attenuation

The Cisco uBR10-SRP-OC12SML DPT WAN line card is designed to be used at any distance between

15 and 40 kilometers (km). For shorter distance operations (less than 15 km), use a 10 dBm optical

attenuator on the link (see Figure 6 on page 7) between the two nodes to prevent clipping and over

saturation of the optical receiver. The attenuator should be made of a non-metallic or plastic material.

The exact attenuation value is based on the real cable length or the number of couplers and splicers on

the link. For example, 5 dBm attenuator could be used in a 7 km link.

Note The maximum distance of 40 km assumes that the 1310 nm SMF optical cable attenuation is no more

than 0.5dB per kilometer; and that there is no optical coupler or splicer in on the link (each could add

0.5dB loss).

Cisco recommends the use of a SC/PC female to SC/PC male optical attenuator.

Tip The SC/PC (Standard Connector/Physical Contact) denotes a connector with a rectangular shape.

The surfaces are parallel with respect to the port (not angled). SC/APC (Standard Connector Angled

Physical Contact) denotes an angled surface.

Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router

Feature Overview

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

78-13602-01

Caution Make sure that you obtain the correct connector type (SC/PC) when purchasing optical attenuators.

Angled SC/APC type mating surfaces can damage the Cisco uBR10-SRP-OC12SML DPT WAN line

card (RX port) interface.

See “Connectors and Cables” section on page 6.

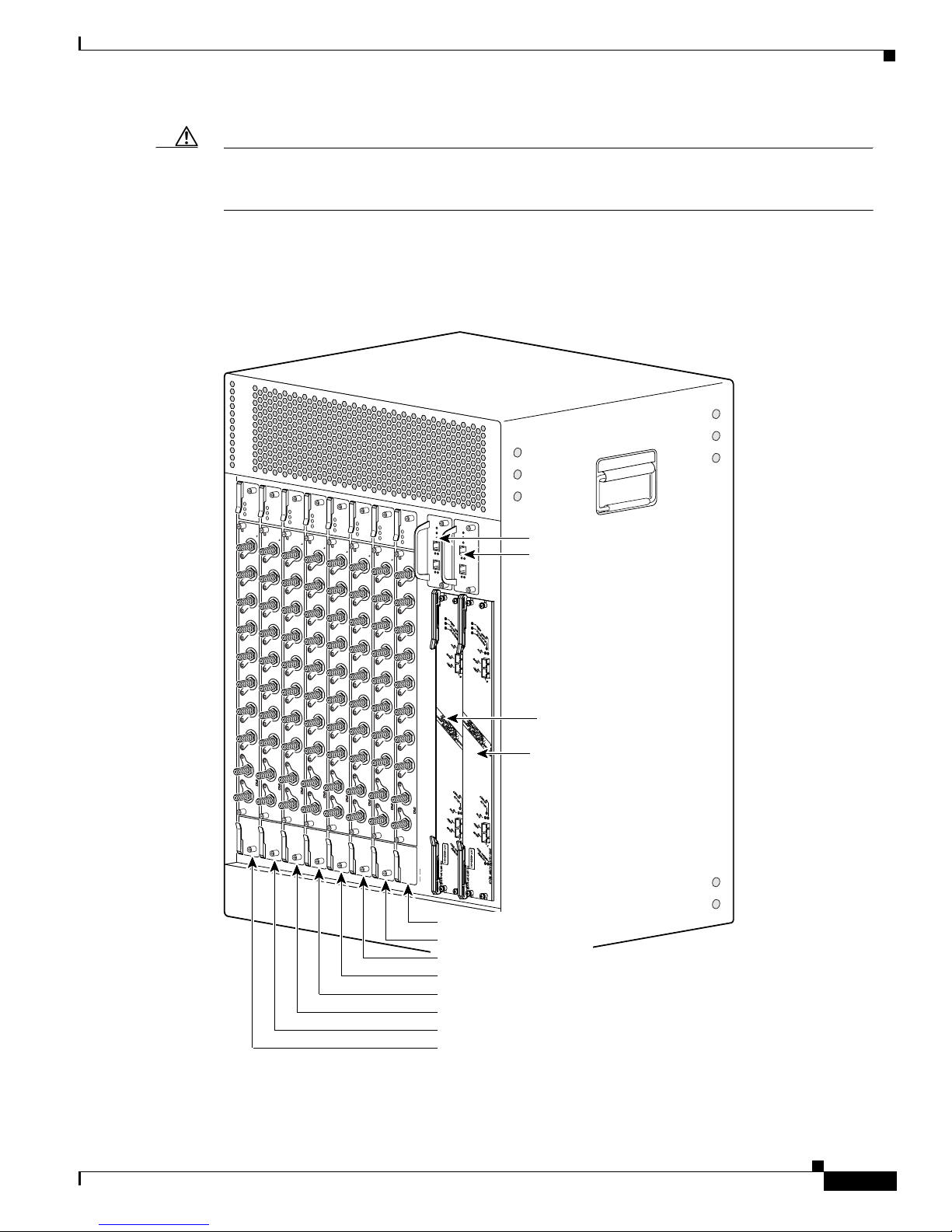

Figure 1 Cisco uBR10012 Router Chassis with Card Slots Identified

67817

US2

US0

US1

US2

US3

DS0

uBR - MC28C

ENABLED

US1

DS1

US0

US3

US2

US0

US1

US2

US3

DS0

uBR - MC28C

ENABLED

US1

DS1

US0

US3

US2

US0

US1

US2

US3

DS0

uBR - MC28C

ENABLED

US1

DS1

US0

US3

US2

US0

US1

US2

US3

DS0

uBR - MC28C

ENABLED

US1

DS1

US0

US3

US2

US0

US1

US2

US3

DS0

uBR - MC28C

ENABLED

US1

DS1

US0

US3

US2

US0

US1

US2

US3

DS0

uBR - MC28C

ENABLED

US1

DS1

US0

US3

US2

US0

US1

US2

US3

DS0

uBR - MC28C

ENABLED

US1

DS1

US0

US3

US2

US0

US1

US2

US3

DS0

uBR - MC28C

ENABLED

US1

DS1

US0

US3

CISCO

10000

CARRIER

ALARM

LOOP

FAIL

CH OC-12-DSO SM-IR

CISCO

10000

CARRIER

ALARM

LOOP

FAIL

CH OC-12-DSO SM-IR

CISCO

10000

CARRIER

ALARM

LOOP

FAIL

CH OC-12-DSO SM-IR

CISC

100

CARRIER

ALARM

FAIL

WAN line card slot 4/0

WAN line card slot 2/0

TCC+ card slot 1/1

TCC+ card slot 2/1

Cable interface slot 8/0

Cable interface slot 8/1

Cable interface slot 7/0

Cable interface slot 7/1

Cable interface slot 6/0

Cable interface slot 6/1

Cable interface slot 5/0

Cable interface slot 5/1

Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router

Feature Overview

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

78-13602-01

Physical Description

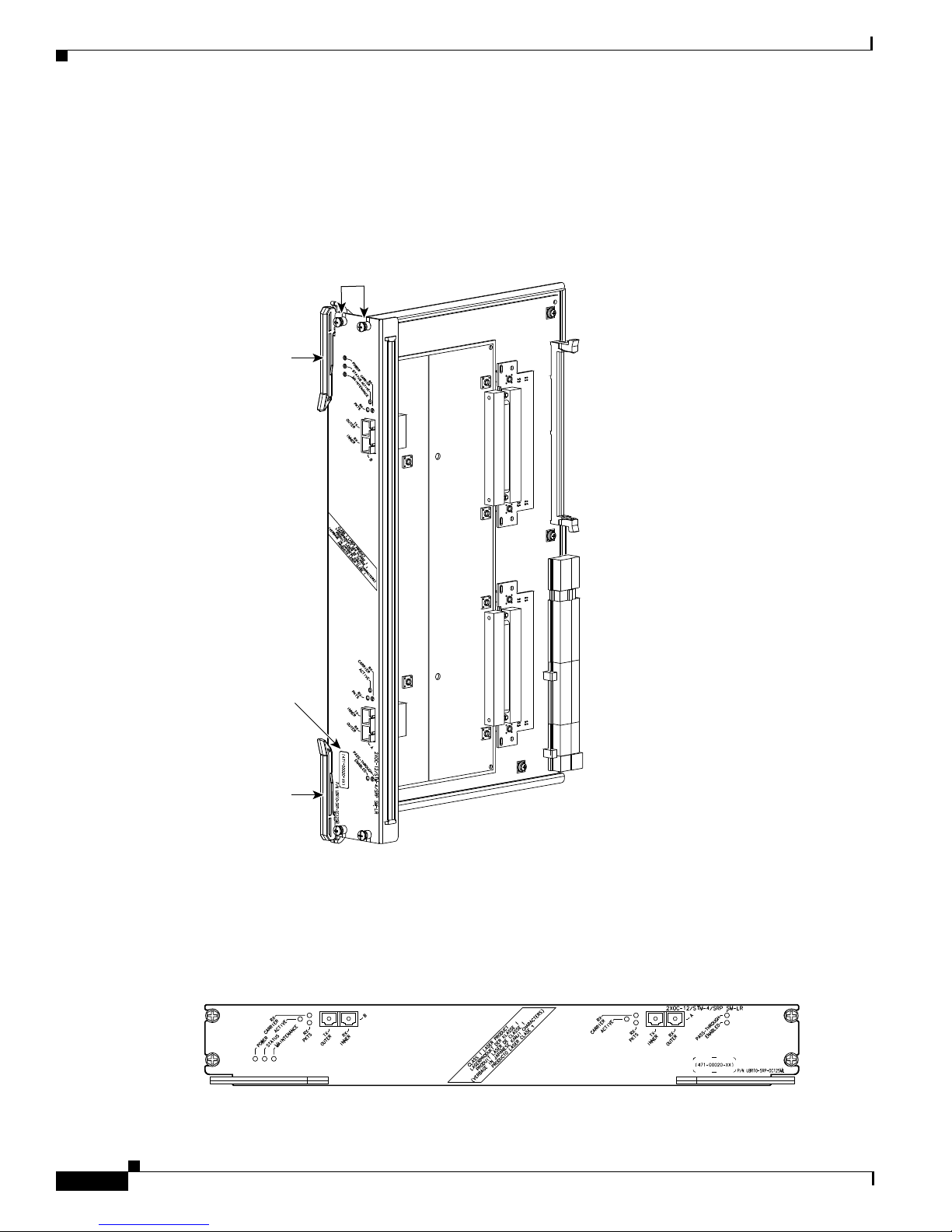

Figure 2 shows the Cisco uBR10-SRP-OC12SML DPT WAN line card.

Figure 2 Cisco uBR10-SRP-OC12SML DPT WAN Line Card

The part number of the card (UBR10-SRP-OC12SML) is next to the CLEI code label.

The label (2xOC-12/STM-4/SRP SM-LR) above the transmit and receive port connections defines the

optical carrier specifications for this card.

Figure 3 Cisco uBR10-SRP-OC12SML DPT FacePlate

68500

Ejector Lever

CLEI code

Captive

screws (4)

68499

Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router

Feature Overview

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

78-13602-01

Table 1 describes the LEDs on the uBR10-SRP-OC12SML DPT WAN line card.

Table 1 Cisco uBR10-SRP-OC12SML DPT WAN Line Card LEDs and Their Functions

LED Status Description

POWER Green

Off

Indicates that power is being supplied to the

Cisco uBR10-SRP- OC12SML DPT WAN line card.

Power off.

STATUS - bi-color Yellow

Green

Indicates that the CPU is in the bootup process, self test, or

downloading code.

Indicates that the CPU has successfully completed the boot,

self test, and code download process, and that the

Cisco uBR10-SRP- OC12SML DPT WAN line card is the

active card.

MAINTENANCE Off

Yellow

Normally off. Indicates that no maintenance action is required.

Indicates a required maintenance operation and that the

Cisco uBR10-SRP- OC12SML DPT WAN line card can be

hot-swapped.

RX CARRIER–B Green

Off

Indicates that the DPT port WAN has detected valid SONET or

SDH framing on the received carrier.

No valid SONET or SDH framing.

ACTIVE Green

Off

Indicates that side B of the DPT port line is functioning.

Not active.

RX PKTS (Packets) Blinking

Green

Off

Indicates that the DPT port line has received a packet. This

LED flickers in normal operation, indicating traffic.

No traffic.

RX CARRIER–A Green

Off

Indicates that the DPT port line has detected valid SONET or

SDH framing on the received carrier.

No valid SONET or SDH framing.

ACTIVE Green

Off

Indicates that side A of the DPT port line is functioning.

Not Active

RX PKTS (Packets) Blinking

Green

Off

Indicates that the DPT port line has received a packet. This

LED flickers in normal operation, indicating traffic.

No traffic

PASS-THROUGH Amber

Off

Indicates that the DPT port line is in a pass-through state.

Not active.

ENABLED Green

Off

Indicates that the DPT port line is enabled for operation;

however, the interface port might be in the shutdown state.

Not active.

Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router

Connectors and Cables

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

78-13602-01

Connectors and Cables

The Cisco uBR10-SRP-OC12SML DPT WAN line card uses a single-mode fiber-optic interface cable

to connect the Cisco uBR10012 router to another router or switch. See Figure 6 on page 7.

Single-mode cables are yellow.

Note Single-mode fiber-optic cables are not available from Cisco Systems.

For SONET or SDH single-mode fiber-optic connections, use one duplex SC-type connector (Figure 4)

or two simplex SC-type connectors. See Figure 5.

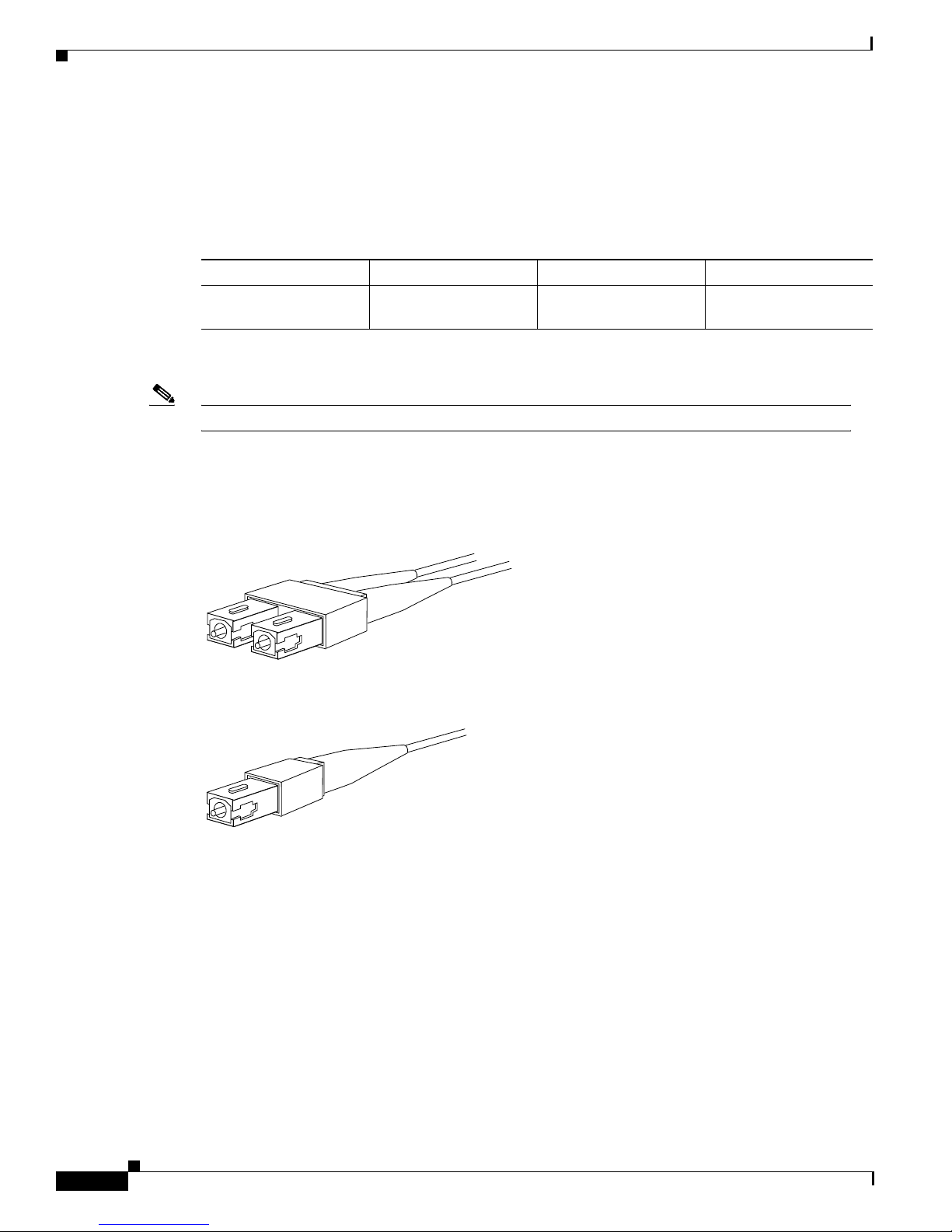

Figure 4 Duplex SC Cable Connector

Figure 5 Simplex SC Cable Connector

You can use either a duplex fiber cable or two simplex fiber cables between the DPT port line and the

device to which the DPT port line is connected. If you are using an attenuator with the cable, see Figure 6

on page 7.

Table 2 Cable Specification

Fiber Type Wavelength, nm Core Size, microns Cable Distance

Single-mode fiber 1310 8 to 10 49,213 - 131,234 ft.

(15 - 40 km)

H2214

H2399

Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router

Connectors and Cables

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

78-13602-01

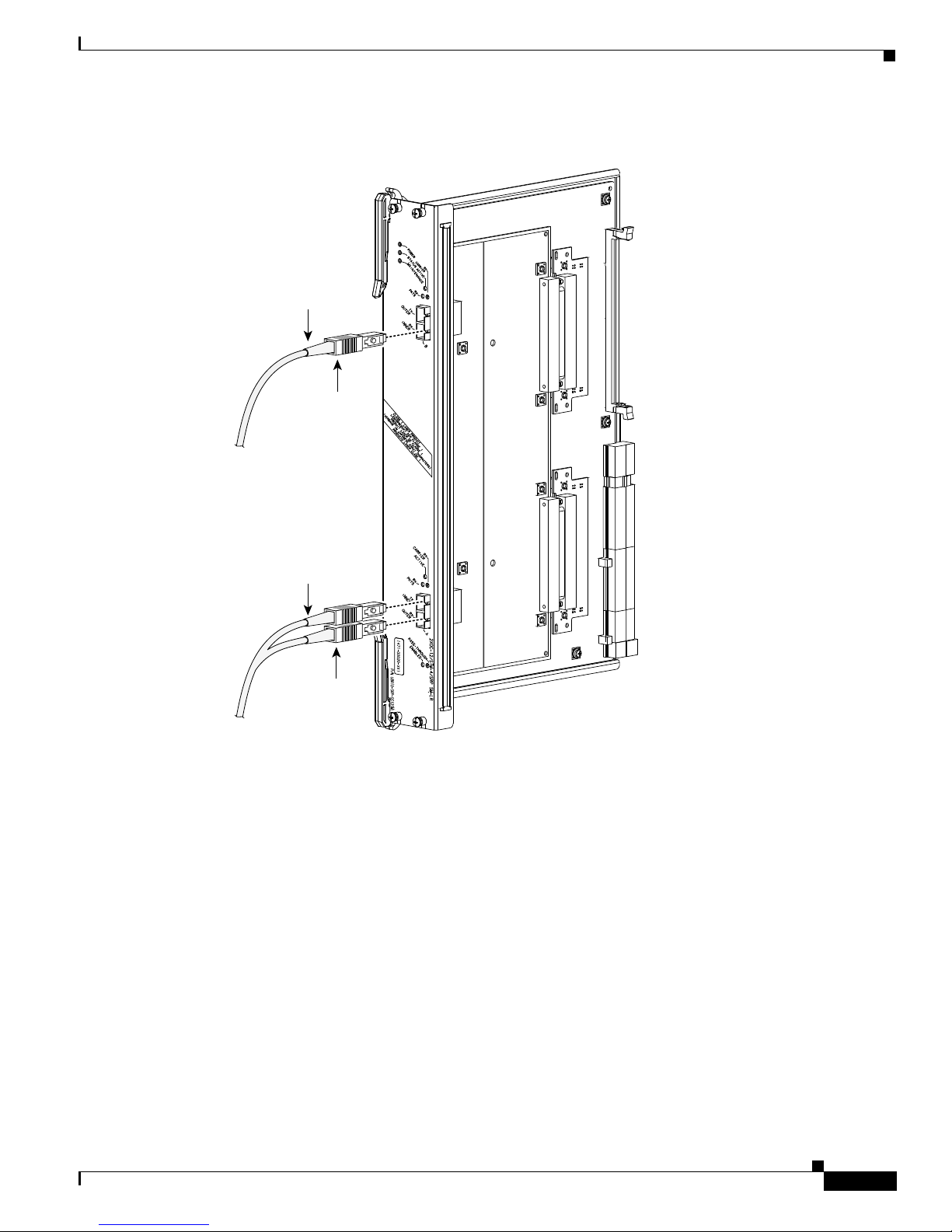

Figure 6 Attaching the Attenuator and Duplex Fiber-Optic Cables to the WAN Line Card

62703

Symplex

cable

Attenuator

Attenuators

Duplex

cable

Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router

Safety Information and Warnings

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

78-13602-01

Safety Information and Warnings

Following are safety guidelines that you should follow when working with any equipment that connects

to electrical power.

Equipment Hazard Warning

Warning

This warning symbol means danger. You are in a situation that could cause bodily

injury. Before you work on any equipment, be aware of the hazards involved with

electrical circuitry and be familiar with standard practices for preventing accidents.

To see translations of the warnings that appear in this publication, refer to the

Regulatory Compliance and Safety Information document for the appropriate Cisco

chassis.

Waarschuwing

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk

letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich

bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de

hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor

vertalingen van de waarschuwingen die in deze publicatie verschijnen, dient u het

document betreffende regulatieve naleving en veiligheidsinformatie voor het juiste

Cisco-chassis te raadplegen.

Varoitus

Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa

ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää

sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien

ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät

kyseessä olevaa Cisco-asennuspohjaa koskevasta säännösten noudattamista ja

turvallisuustietoja koskevasta asiakirjasta.

Attention

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation

pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un

équipement, soyez conscient des dangers posés par les circuits électriques et

familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents.

Pour prendre connaissance des traductions d'avertissements figurant dans cette

publication, consultez le document sur la conformité aux normes et la sécurité pour le

châssis Cisco approprié.

Warnung

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer

Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät

beginnen, sollten Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren

bewusst und mit den Standardpraktiken zur Vermeidung von Unfällen vertraut sein.

Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie

im Dokument Regulatory Compliance and Safety Information (Informationen zu

behördlichen Vorschriften und Sicherheit) für den entsprechenden

Cisco-Einbaurahmen.

Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router

Safety Information and Warnings

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

78-13602-01

Installation Warning

Avvertenza

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare

infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre

conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche

standard per la prevenzione di incidenti. Per la traduzione delle avvertenze riportate

in questa pubblicazione, fare riferimento alla guida di installazione e della risoluzione

dei problemi inviata insieme al prodotto Cisco in dotazione.

Advarsel

Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til

personskade. Før du utfører arbeid på noe utstyr, må du vare oppmerksom på de

faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig

praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene

som finnes i denne håndboken, se samsvarsforskriftene og sikkerhetsinformasjonen

som gjelder for den aktuelle Cisco-rammen.

Aviso

Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar

danos físicos. Antes de começar a trabalhar com qualquer equipamento,

familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer

práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos

avisos que constam deste manual, consulte o documento acerca dos Regulamentos e

Informação de Segurança apropriado fornecido com o produto Cisco.

¡Advertencia!

Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes

de manipular cualquier equipo, considerar los riesgos que entraña la corriente

eléctrica y familiarizarse con los procedimientos estándar de prevención de

accidentes. Para ver una traducción de las advertencias que aparecen en esta

publicación, consulte el documento Regulatory Compliance and Safety Information

(Información sobre homologaciones regulatorias y de seguridad) para el chasis

correspondiente de Cisco.

Varning!

Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till

personskada. Innan du utför arbete på någon utrustning måste du vara medveten om

farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se

förklaringar av de varningar som förekommer i denna publikation i dokumentet som rör

uppfyllelse av regler och säkerhetsinformation för lämplig Cisco-chassi.

Warning

Only trained and qualified personnel should be allowed to install, replace, or service

this equipment.

Waarschuwing

Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door

bevoegd geschoold personeel.

Varoitus

Tämän laitteen saa asentaa, vaihtaa tai huoltaa ainoastaan koulutettu ja laitteen

tunteva henkilökunta.

Cisco uBR10-SRP-OC12SML DPT WAN Line Card for the Cisco uBR10012 Router

Safety Information and Warnings

Cisco uBR10-SRP-OC12SML DPT WAN Line Card

78-13602-01

Hazardous Voltages in WAN Ports

Attention

Il est vivement recommandé de confier l'installation, le remplacement et la

maintenance de ces équipements à des personnels qualifiés et expérimentés.

Warnung

Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem,

qualifiziertem Personal gestattet werden.

Avvertenza

Questo apparato può essere installato, sostituito o mantenuto unicamente da un

personale competente.

Advarsel

Bare opplært og kvalifisert personell skal foreta installasjoner, utskiftninger eller

service på dette utstyret.

Aviso

Apenas pessoal treinado e qualificado deve ser autorizado a instalar, substituir ou

fazer a revisão deste equipamento.

¡Advertencia!

Solamente el personal calificado debe instalar, reemplazar o utilizar este equipo.

Varning!

Endast utbildad och kvalificerad personal bör få tillåtelse att installera, byta ut eller

reparera denna utrustning.

Warning

Hazardous network voltages are present in WAN ports regardless of whether power to

the router is OFF or ON. To avoid electric shock, use caution when working near WAN

ports. When detaching cables, detach the end away from the router first.

Waarschuwing

Er is gevaarlijke netwerkspanning aanwezig in WAN poorten ongeacht of de stroom

naar de router INGESCHAKELD of UITGESCHAKELD is. Om elektrische schokken te

vermijden, dient u voorzichtig te werk te gaan wanneer u in de nabijheid van WAN

poorten werkt. Wanneer u kabels losmaakt, dient u eerst het uiteinde dat zich het verst

van de router vandaan bevindt, te verwijderen.

Varoitus

WAN-porteissa on vaarallisia verkkojännitteitä riippumatta siitä, onko reitittimen

virta kytketty vai ei. Välttyäksesi sähköiskulta ole varovainen työskennellessäsi

WAN-porttien lähettyvillä. Kun irrotat kaapeleita, irrota reitittimestä kauempana

sijaitseva pää ensiksi.

Attention

Les ports de réseau longue distance (WAN) gèrent des tensions de réseau

dangereuses, que le routeur soit sous tension ou pas. Pour éviter tout risque

d’électrocution, prenez toutes les précautions nécessaires avant de travailler à

proximité des ports WAN. Pour déconnecter les câbles, commencez par débrancher

l’extrémité la plus éloignée du routeur.

Warnung

In WAN-Ports sind gefährliche Netzspannungen vorhanden, auch wenn der Strom zum

Router abgeschaltet wurde. Zur Vermeidung von Elektroschock Vorsicht bei der Arbeit

in der Nähe von WAN-Ports. Beim Abtrennen von Kabeln zuerst das vom Router

entfernte Ende lösen.

Indice

Altri manuali Cisco Scheda di rete

Cisco

Cisco uBR-E-16U Manuale utente

Cisco

Cisco 6500 - Catalyst Series 10 Gigabit EN Interface Module... Manuale di installazione e funzionamento

Cisco

Cisco Catalyst 4500 Dimensioni

Cisco

Cisco PA-POS-1OC3 Manuale dell'operatore

Cisco

Cisco Aironet 340 Series Manuale utente

Cisco

Cisco DFC3A Manuale di installazione e funzionamento

Cisco

Cisco PA-4C-E 1 Manuale dell'operatore

Cisco

Cisco LINKSYS WUSB54GR Manuale utente

Cisco

Cisco WAE-674-K9 - Wide Area Application Engine... Manuale utente

Cisco

Cisco uBR-MC28U Manuale utente

Cisco

Cisco Linksys PLS300 Manuale utente

Cisco

Cisco PA-T3 Istruzioni operative e di manutenzione

Cisco

Cisco ONS 15454 Series Manuale utente

Cisco

Cisco Linksys RangePlus WPC100 Manuale utente

Cisco

Cisco 12000 - Series Chassis Modular Expansion... Istruzioni operative e di manutenzione

Cisco

Cisco WAN Interface Cards Cable WIC-1B-U Manuale utente

Cisco

Cisco Linksys WUSB600N Manuale utente

Cisco

Cisco Linksys USB200M Manuale utente

Cisco

Cisco WAN Interface Card WIC-1DSU-56K4 Manuale utente

Cisco

Cisco Gateway Controllers Istruzioni originali

Cisco

Cisco 7304 Series Istruzioni operative e di manutenzione

Cisco

Cisco One-Port Serial WAN Interface Card Cable... Manuale utente

Cisco

Cisco 7300-6T3 Manuale dell'operatore

Cisco

Cisco Linksys WMA11B Manuale utente

Manuali Scheda di rete popolari di altre marche

FirstComm

FirstComm OBiWiFi5G Manuale utente

Sun Microsystems

Sun Microsystems Interface Adapter Manuale utente

TRENDnet

TRENDnet TU2-ETG Manuale utente

YASKAWA

YASKAWA SI-EN3 Manuale utente

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuale utente

Belkin

Belkin F5D7050 Manuale utente

3Com

3Com EtherLink 3C509B Manuale utente

TRENDnet

TRENDnet TEG-PCITX Manuale utente

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuale utente

TwinMOS

TwinMOS Booming Manuale utente

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuale utente

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuale utente

National Instruments

National Instruments NI 9234 Manuale utente

Hama

Hama 49276 Manuale utente

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuale operativo

Compaq

Compaq Wireless LAN 100 Manuale utente

Bose

Bose PowerMatch Dante Manuale utente

TRENDnet

TRENDnet TEG-PCITXR Manuale utente

Cisco uBR10-SRP-OC12SML Manuale utente

Manuali Scheda di rete popolari di altre marche
