Cisco UCS C220 Server Installation and Service Guide

OL-25760-01

Overview

This chapter provides an overview of the Cisco UCS C220 server features.

External Features Overview, page 1-1

Summary of Server Features, page 1-3

External Features Overview

The figures in this chapter show an overview of external server features.

(Internal server features are illustrated in Figure 3-5 on page 3-9.)

The server is orderable in two different versions, each with one of two different front panel/backplane

configurations:

•Cisco UCS C220 (small form-factor (SFF) drives, with 8-drive backplane.

Holds up to eight 2.5-inch hard drives or solid state drives.

•Cisco UCS C220 (large form factor (LFF) drives, with 4-drive backplane).

Holds up to four 3.5-inch hard drives.

1-2

Cisco UCS C220 Server Installation and Service Guide

OL-25760-01

Chapter 1 Overview

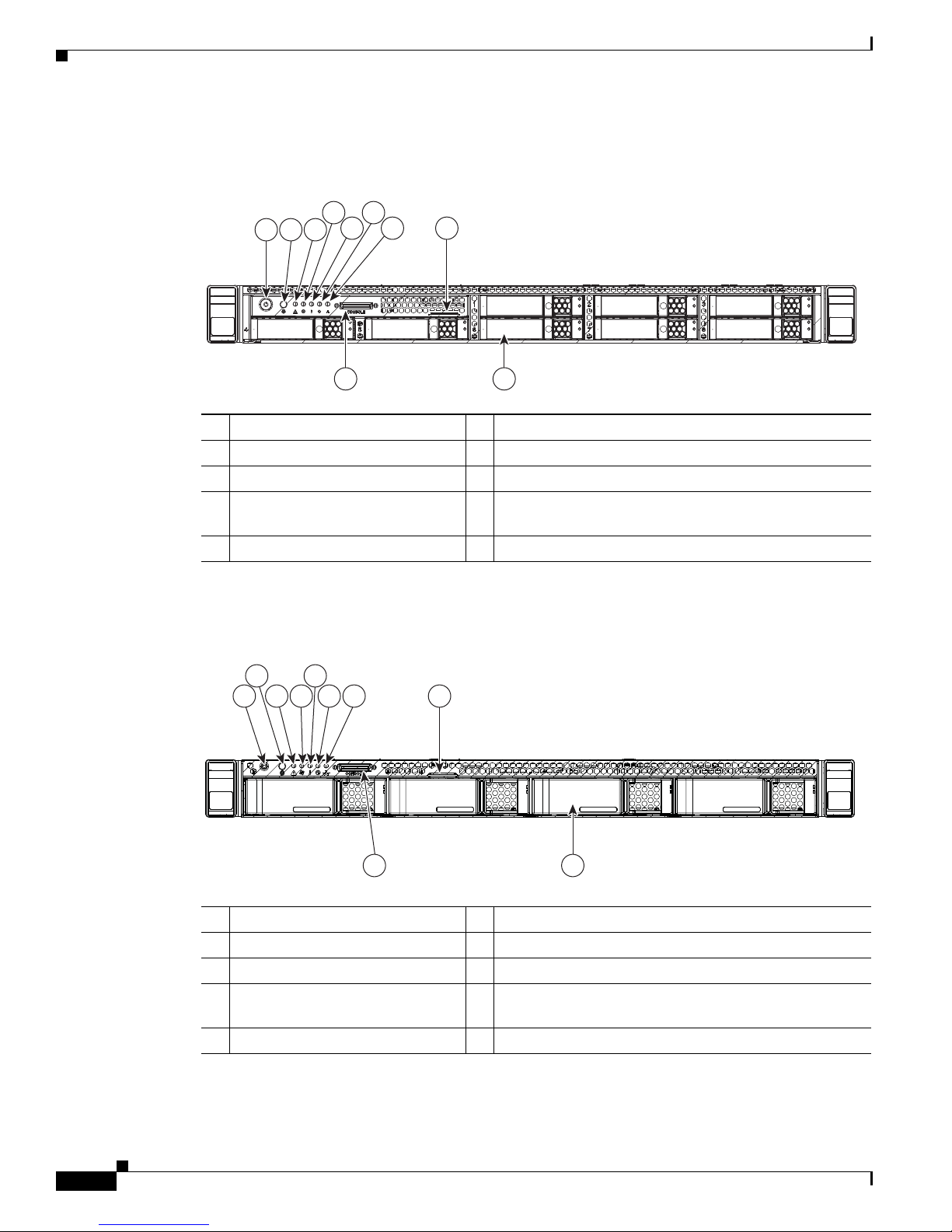

Figure 1-1 shows the front panel features of the SFF drives version of the server.

Figure 1-1 Cisco UCS C220 Server (Small Form Factor Drives) Front Panel Features

Figure 1-2 shows the front panel features of the LFF drives version of the server.

Figure 1-2 Cisco UCS C220 Server (Large Form Factor Drives) Front Panel Features

1Power button/Power status LED 6Power supply status LED

2Identification button/LED 7Network link activity LED

3System status LED 8Pull-out asset tag

4Fan status LED 9KVM connector (used with KVM cable that provides

two USB, one VGA, and one serial connector)

5Temperature status LED 10 Drives, hot-swappable (up to eight 2.5-inch drives)

HDD4 HDD5

HDD1

HDD6

HDD2

HDD7

HDD3

HDD8

9 10

1 3

5 7

331682

1Power button/Power status LED 6Power supply status LED

2Identification button/LED 7Network link activity LED

3System status LED 8Pull-out asset tag

4Fan status LED 9KVM connector (used with KVM cable that provides

two USB, one VGA, and one serial connector)

5Temperature status LED 10 Drives, hot-swappable (up to four 3.5-inch drives)

HDD1 HDD2 HDD3 HDD4

109

84 6 7

331684

1-3

Cisco UCS C220 Server Installation and Service Guide

OL-25760-01

Chapter 1 Overview

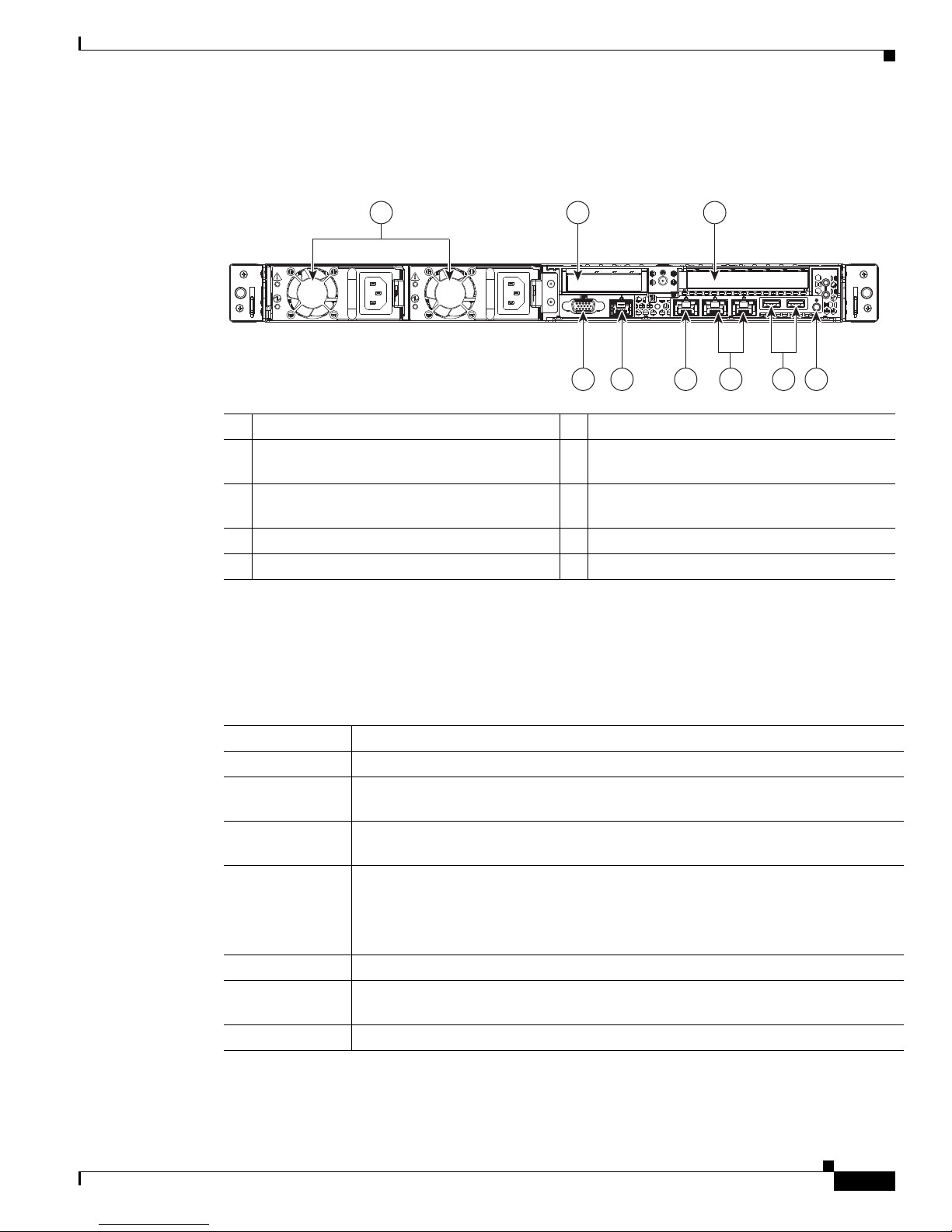

Figure 1-3 shows the rear panel features of the server (identical for both versions of the server).

Figure 1-3 Rear Panel Features

Summary of Server Features

Table 1-1 lists the features of the server.

1Power supplies (two) 61-Gb Ethernet dedicated management port

2Low-profile PCIe slot 2 on riser

(half-height, half-length, x8 lane) 7Dual 1-Gb Ethernet ports

(LAN1 and LAN2)

3Standard-profile PCIe slot on riser

(full-height, half-length, x16 lane) 8USB ports

4VGA video connector 9Rear Identification button/LED

5Serial port (RJ-45 connector) –

PSU1PSU1 PSU2PSU2PSU1 PSU2

PCIe2 PCIe1

4 5 6 98

2 31

331683

Table 1-1 Cisco UCS C220 Server Features

Chassis One rack-unit (1RU) chassis.

Processors Two Intel Xeon E5-2600 Series processors.

Memory The server provides 16 DIMM1sockets on the motherboard. This provides a

possible total of up to 512 GB of industry-standard DDR32memory.

Multi-bit error

protection This server supports multi-bit error protection.

Baseboard

management BMC, running Cisco Integrated Management Controller (CIMC) firmware.

Depending on your CIMC settings, the CIMC can be accessed through the

1-Gb Ethernet dedicated management port, the dual 1-Gb Ethernet LOM ports, or a

Cisco virtual interface card.

Cooling Five hot-swappable fan modules for front-to-rear cooling.

PCIe I/O Two horizontal PCIe3expansion slots on risers.

See Replacing a PCIe Card, page 3-36 for slot specifications.

InfiniBand The bus slots in this server support the InfiniBand architecture.

1-4

Cisco UCS C220 Server Installation and Service Guide

OL-25760-01

Chapter 1 Overview

Network and

management I/O The server provides these rear-panel connectors:

•One 1-Gb Ethernet dedicated management port

•Two 1-Gb Base-T Ethernet ports

•One RS-232 serial port (RJ-45 connector)

•One 15-pin VGA4connector

•Two USB52.0 connectors

•One front-panel KVM connector that is used with the included KVM cable,

which provides two USB, one VGA, and one serial connector.

WoL The 1-Gb Base-T Ethernet LAN ports support the wake-on-LAN (WoL) standard.

Power Up to two power supplies, both either 450W or 650W each.

Redundant as 1+1. Do not mix power supply types in the server.

See Power Specifications, page A-3 for more information on power supplies.

ACPI This server supports the advanced configuration and power interface (ACPI) 4.0

standard.

Storage Drives are installed into front-panel drive bays that provide hot-pluggable access.

There are two versions of the server front panel and backplane:

•Small Form Factor—The server can hold up to eight 2.5-inch SAS6or SATA7

hard drives or solid state drives.

•Large Form Factor—The server can hold up to four 3.5-inch SAS or SATA hard

drives.

The server also contains one internal USB 2.0 port on the motherboard that you can

use with a USB thumb drive for additional storage.

The server also contains two internal bays for SD cards.

Disk

Management

(RAID)

For a list of supported RAID controller options, see RAID Controller

Considerations, page C-1.

RAID Backup There is one mounting point inside the chassis that can be used for a RAID backup

unit when using an LSI MegaRAID card. This unit can be either of the following:

•The optional LSI BBU that can be used with LSI MegaRAID cards.

•The SuperCap Power Module that can be used with LSI MegaRAID-CV cards.

Video Resolution up to 1600x1200, 16bpp at 60 Hz. Up to 256 MB of video memory.

1. DIMM = dual inline memory module

2. DDR3 = double data rate, type 3

3. PCIe = peripheral component interconnect express

4. VGA = video graphics array

5. USB = universal serial bus

6. SAS = serial attached SCSI

7. SATA = serial advanced technology attachment

Table 1-1 Cisco UCS C220 Server Features (continued)
