OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0120 - ISS 1

20” VENTILATION FAN

MODEL NO: CAM500 (230V)

PART NO: 3230242

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Ventilator which is designed for indoor

use in an industrial environment.

Read this manual carefully, in doing so you guarantee the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

SAFETY WARNINGS

Make sure that you read, understand and comply with the following warnings.

POSITIONING

This ventilator is designed for indoor use only.

Be aware that the suction capability is considerable. Do not position the

ventilator where it will blow dust or hazardous fumes at people.

DO NOT place the ventilator close to any wet surface. DO NOT place against

any surface such as a wall, door or furniture etc.

DO NOT place the unit on a raised surface or anywhere it could topple over.

Only use the ventilator in a level position.

Take care to ensure that the intake grille cannot be blocked by curtains or

other fabrics. Do not allow loose clothing, long hair, jewellery etc. to be drawn

into the intake side of the fan.

DO NOT operate the ventilator in explosive atmospheres such as in the

presence of flammable liquids, gases or dust such as in a paint spray booth.

Electric motors create sparks which may ignite dust or fumes.

DO NOT cover the fan or obstruct the air inlet and outlet sections.

DO NOT get the ventilator wet or use in areas of high condensation.

DO NOT allow the power cable to touch hot surfaces.

ALWAYS make sure the brakes are engaged before operating.

DO NOT operate without the safety grills secured in position.

PERSONNEL SAFETY

DO NOT use the ventilator when you are tired or under the influence of

alcohol, drugs or intoxicating medication.

DO NOT stand on the ventilator.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

DO NOT use the ventilator with wet hands or when there is water on the power

cable.

Young children must be kept away unless supervised.

ELECTRICAL SAFETY

Inspect the power cable/plug for damage/looseness. Do not use the fan if the

power cable is damaged.

Make sure that the voltage on the product label is the same as the voltage of

the power supply. If in doubt, consult a qualified electrician.

DO NOT abuse the electrical cable. Do not use the cable for pulling or

unplugging the fan.

Keep the cable away from sources of heat, oil, sharp edges or moving parts.

Damaged or tangled cables increase the risk of electric shock.

DO NOT use extension cables with this ventilator.

SERVICE & REPAIRS

Check that the fan is in good working order. Take immediate action to have it

repaired or any damaged parts replaced.

DO NOT attempt to repair the ventilator yourself. Always contact the CLARKE

service department who will use recommended parts only. Unapproved parts

may be dangerous and will invalidate your warranty.

ENVIRONMENTAL RECYCLING POLICY

By purchasing this product, the customer is taking on the obligation

to deal with its safe disposal in accordance with the Waste Electrical

and Electronic Equipment regulations (WEEE).

In effect, this means that this product must not be discarded with

general household waste but according to the laws governing Waste

Electrical and Electronic Equipment (WEEE) at a recognized disposal facility.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt as proof of

purchase. This guarantee is invalid if the product is found to have been

abused, tampered with, or not used for the purpose for which it was intended.

Faulty goods must be returned to their place of purchase, no product can be

returned to us without prior permission.

This guarantee does not effect your statutory rights.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply

through an approved BS 1363 plug or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or

because of damage, it must be removed and a replacement fitted, following

the wiring instructions shown below. The old plug must be discarded safely, as

insertion into a power socket could cause an electrical hazard.

If the colours of the wires in the power cable do not agree with the markings

on the plug.

• Connect the BLUE wire

to the terminal

marked N.

• Connect the BROWN

wire to the terminal

marked L.

•ConnecttheYELLOW

AND GREEN wire to

the terminal marked E

or .

AN APPROVED RESIDUAL

CURRENT DEVICE (RCD) WHICH HAS A TRIPPING CURRENT OF LESS THAN 30 mA

MUST BE USED.

If you are not sure, consult a qualified electrician. DO NOT try to do any repairs

yourself.

BEFORE USE

Before commencing assembly, check for damage and or shortages etc, any

damage or shortage should be reported to your Clarke dealer where the fan

was purchased.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

Your ventilation fan should be

supplied with the following parts:

• 4 x castors (2 with brakes)

• 16 bolts, 16 nuts, 16 spring

washers and 32 flat washers.

Bolt the castor assemblies to the

frame as shown using the fastenings

supplied. Install the castors with

brakes at one end of the frame.

This ventilator can be used with

Clarke 20” diameter retractable

ducting available in 5 metre lengths

sold separately as follows:

Orange (3230243) or Yellow (3230286)

1. Before use, attach the ducting to

the discharge end of the

ventilator as shown, secured with

the tie cord provided.

2. Place the ventilator in a level

position on a flat surface and at a safe distance from flammable materials.

3. Set the angle of tilt as required using the hand knob shown.

4. Connect the ventilator to a suitable power outlet. The ventilator is

operated by the ON/OFF switch.

5. Always apply the brakes before operating the ventilator.

MAINTENANCE

Clean the ventilator with a soft damp cloth, Do not use solvents or abrasives.

If used in spaces with high dust content, clean the guards and fan blades by

vacuuming or wiping. Remove the end guard to gain access to the blades by

removing the four securing screws.

REPLACE GUARD BEFORE RE-CONNECTING TO POWER SUPPLY.

WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE

PERFORMING ANY CLEANING OR MAINTENANCE TASKS. REPAIRS

SHOULD BE CARRIED OUT BY THE CLARKE SERVICE DEPARTMENT.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

No other maintenance is required, should you discover any problem with the

ventilator return it to the CLARKE service department for repair.

Should the fan fail to operate, check the power supply and that the fuse in the

plug has not blown. Abnormal noise while the fan is running may occur if the

fan is not standing on a level surface.

SPECIFICATIONS

Model CAM500 (230v)

Drum diameter 580 mm

Fan diameter 495 mm

Tilt range 180o

Power supply 230V/50Hz

Duty Cycle Classification: S1 (continuous)

Electrical Insulation Class II

Ingress Protection Rating IP55

Product Weight 43 kg

Sound Power Level 75 dB

Fan rpm@optimum energy efficiency 1400 rpm

Rated flow rate 9900 m3/h (165 m3/min)

Rated air flow @Overall efficiency point 1.0546 m3/s (3796 m3/h)

Rated air flow @ optimum energy efficiency 1.37 m3/s

Rated pressure @ optimum energy efficiency 217.91 Pa

Total pressure 400 Pa

Static pressure 436.4 Pa

Input power 1100W

Overall efficiency 55.34%

Measurement catagory C

Efficiency catagory Static

Efficiency grade 40

Specific Ratio (EU no 327/2011) N/A

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

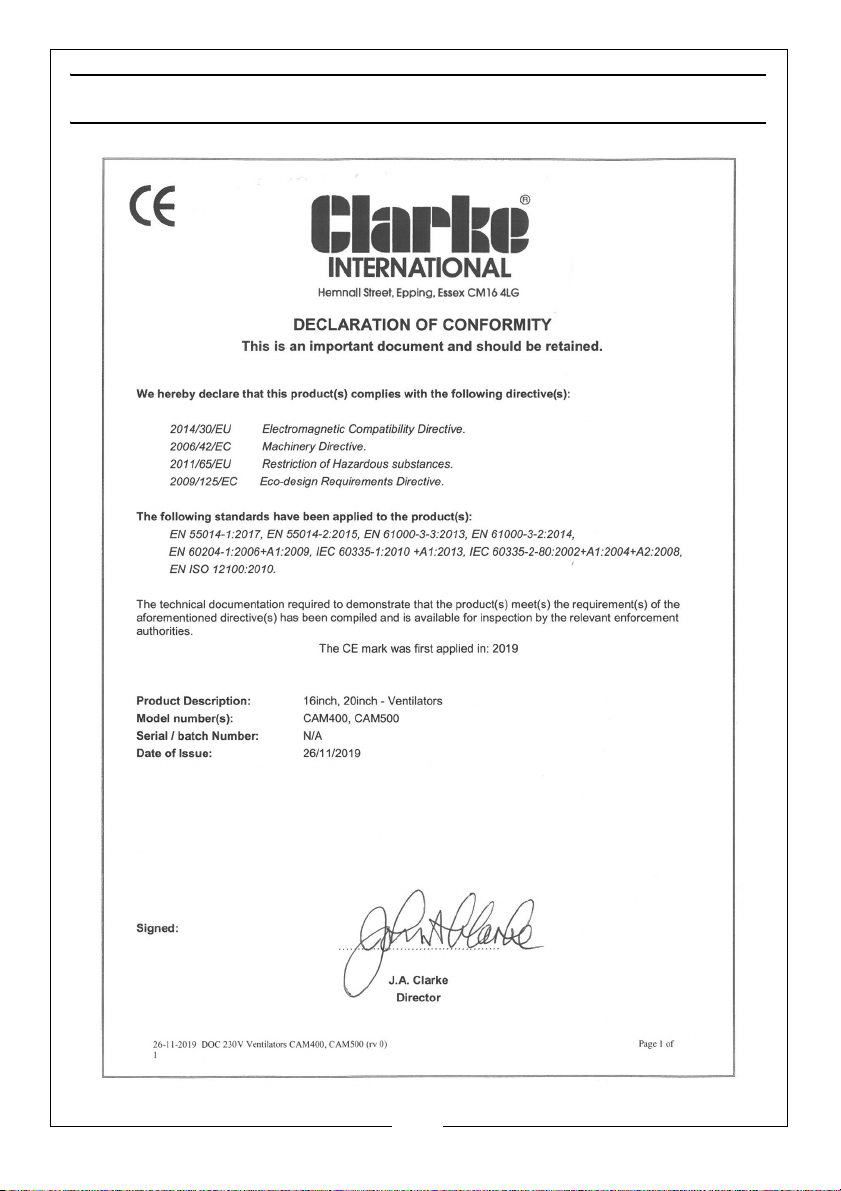

DECLARATION OF CONFORMITY
