ASSEMBLY INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0319 - ISS 1
WORKBENCH WITH BACK PANEL &
DRAWER
MODEL NO: CWBR1B & CWBG1B
PART NO: 7637706 & 7637707
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
INTRODUCTION
Thank you for purchasing this CLARKE workbench.
Before attempting to use this product, please read and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to your purchase giving you long and
satisfactory service.
Please keep these instructions in a safe place for future reference.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Do not dispose of old products or damaged parts with general
household waste. All tools, accessories and packaging no longer
required should be sorted, taken to a recycling centre and
disposed of appropriately.
UNPACKING
Open the carton and lay out the components carefully, identifying them
according to the component parts list.
All components have identifying stickers that correspond with the component
parts list.
Should any part be damaged or missing, please contact your Clarke dealer
immediately for replacement.
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
COMPONENT PARTS
Item Description Qty
AFrontLegPost 2
BLeftRearPost 1
C Right Rear Post 1
D Drawer Mounting Beam (Left) 1
E Drawer Mounting Beam (Right) 1
F Side Beam 4
GLongBeam 4
HLeftUpperPost 1
I Right Upper Post 1
JTopLongBeam 2
K Top Left Side Beam 1
LTopRightSideBeam 1
M Drawer Front Panel 1
O Drawer Rear Panel 1
P Drawer Side Panel 2
Q Drawer Bottom Panel 1
RPegboard 1
S Bottom Shelf Panel 1
TWorkbenchPanel 1
U Top Shelf Panel 1
V Pegboard Support Bracket 1
W Drawer Runner 2
Fixing Pack
Item Description Qty Item Description Qty
1 Bolt M6 x 12 8 6 Nut M6 68
2 Pegboard Hooks 30 7 Handle 2
3ScrewM4x8 6 8NutM4 16
4 Bolt M4 x 10 16 9 Washer 68
5 Plastic Feet 4 10 Bolt M6 x 8 60
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ASSEMBLY
All fixing bolts should be entered from the outside and secured on the inside
by the washers and nuts provided.
Assembly should be carried out with all nuts finger tight only - DO NOT tighten
the nuts until the structure is fully assembled as described in the instructions.
Assembly may be easier with the help of a second person.
The assembly procedure is as follows:
ASSEMBLE THE FRAMEWORK
The frame comprises left and right-hand side assemblies.
1. Fit the drawer mounting
beam (E) between a front
post (A) and rear post (C)
to create the right-hand
side assembly using nuts(6),
bolts (10) & washers (9).
• Use the lower set of bolt
holes in the posts for this.
2. Repeat for the left-hand
side assembly using the rear
post (B), front post (A) and
drawer mounting beam
(D).
3. Fit the four side beams (F)
using the higher bolt holes
to complete the two side
assemblies.
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
4. Fit the long beams (G) at
the top of the corner posts
to create the main frame
using further bolts, washers
& nuts.
5. BoIt the left/right upper
post (H & I) to the rear posts
as shown using further bolts,
washers & nuts
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

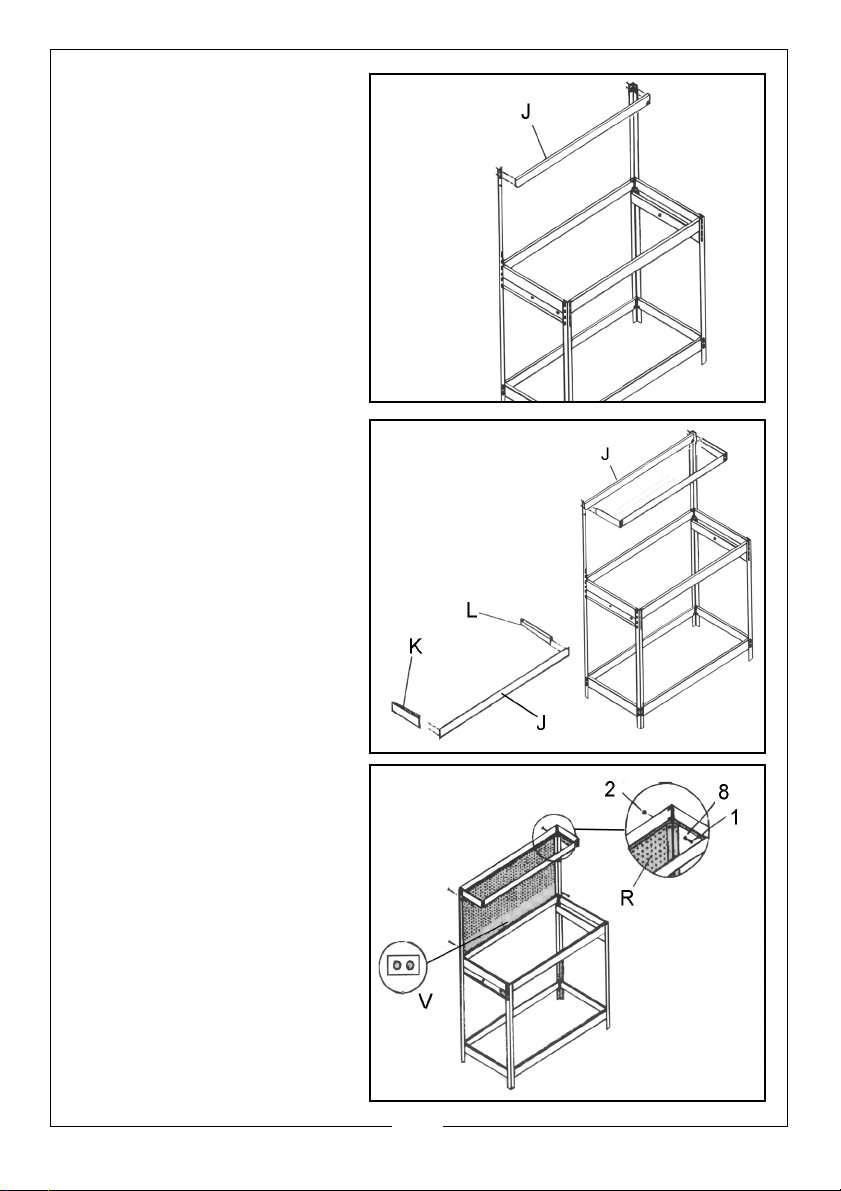

6. Attach one top long beam
(J) to the rear surface of
the post extensions using
further bolts, washers &
nuts.
7. Assemble the remaining
top long beam (J) to the
left/right top side beams (K/
L).
8. Bolt this assembly to the
side faces of the post
extensions complete the
frame.
9. Attach the pegboard
supporting bracket to the
frame with two bolts/nuts/
washers as shown.
10. Fit the pegboard (R)
against the frame and
secure using bolts (1), nuts
(6) and washers (9) at the
top corners.
11. Fix the pegboard bottom
edge to the frame with the
support bracket (V).
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ASSEMBLE & FIT THE DRAWER
1. Assemble the side panels
(P), rear panel (O) and
front panel (M) of the
drawer using bolts, washers
and nuts as shown.
2. Rest the drawer bottom (Q)
into the drawer frame.
3. Attach the handles (7) to
the sliding drawer using four
bolts (4) and nuts (8).
4. Add the draw runners (W)
to the inside faces of the
drawer mounting bars using
bolts (4) and nuts (8) as
follows.
• The runners are in three
parts. The wider part fits to
the frame and the narrow
part to the side of the
drawer.
5. Separate the narrow part
from the middle part by
means of the spring catch
(just visible where the two
parts meet).
6. Screw the wide parts to the
frame and the narrow parts
to the drawer sides.
7. Slide the drawer into
position by Iining up the
parts of the runners on the
frame with those on the
drawer and sliding the
draw into position.
• The catches will make a
slight click as they lock the
runner parts together.
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
FIT THE WORKTOP PANELS
1. Fit the worktop panel (T) by
placing it onto the frame
and tapping it into position.
2. Fit the bottom shelf (S) by
sliding it in from the side at
an angle and resting it in
position.
3. Fit the top shelf (U) into the
recess provided by the
frame parts and securing it
with small screws (3).
4. Add the feet (5) to each of
the corner posts.
5. Tighten all nuts & bolts to
secure the assembly.
The hooks can be attached to
the pegboard according to
the size & shape of the items to
be stored there.
CAUTION: DO NOT OVERLOAD THE DRAWER OR SHELF PANELS.
