Clarke CPE Series Manuale di istruzioni

OPERATION & MAINTENANCE

INSTRUCTIONS

GC0514

MODEL Nos: CPE15A1•15A3•20A1•20A3•30A1•30A3

PART Nos: 7120305• 7120310• 7120315• 7120320• 7120325• 7120330

CPE RANGE PUMPS

-1-

Contents

Specifications .................................................................................. 2

Guarantee : ..................................................................................... 3

Safety Precautions .......................................................................... 4

Water Connections ........................................................................ 5

Electrical Connection : ................................................................... 6

Maintenance : ................................................................................ 7

Trouble Shooting ............................................................................. 7

Parts (CPE15) : .........................................................................9 & 10

Parts (CPE20) : ...................................................................... 11 & 12

Parts (CPE30) : ...................................................................... 13 & 14

-2-

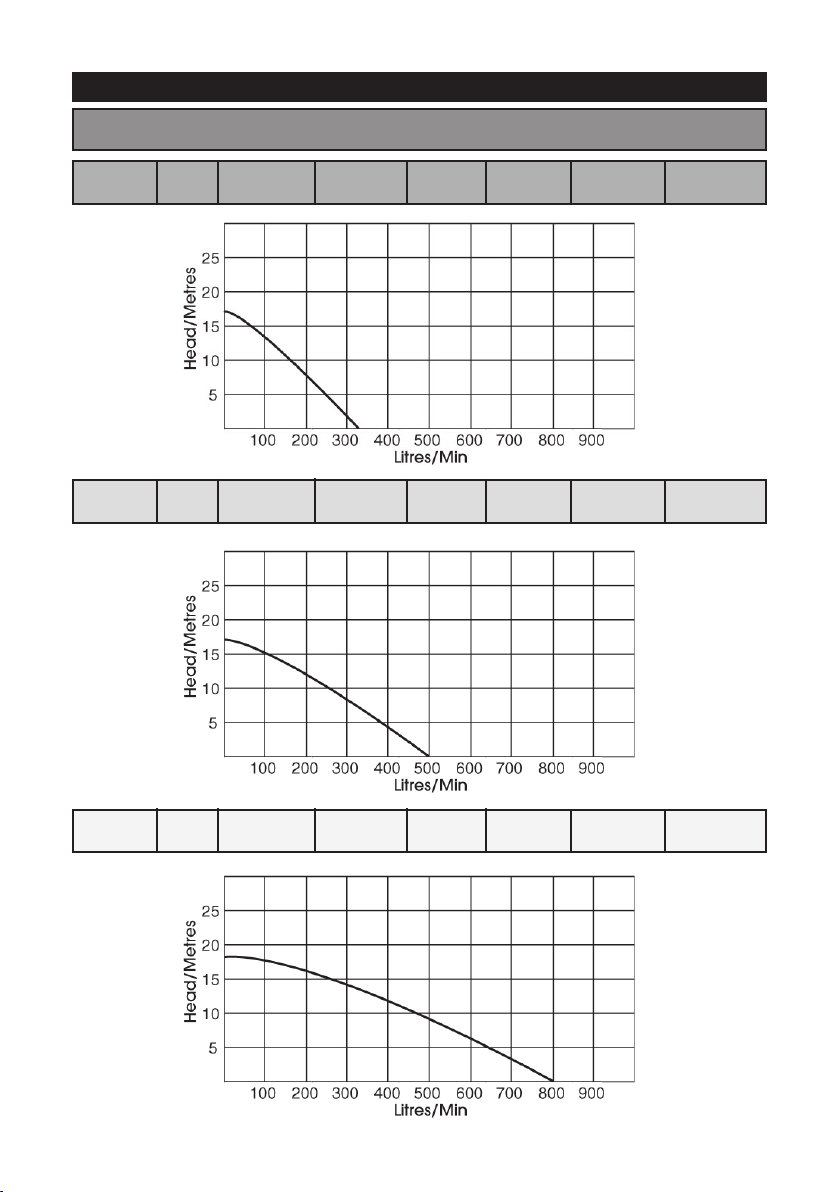

SIZE MOTOR MAX FLOW MAX WEIGHT PART

MODEL INCHES HP VOLTS/PH LPM HEAD M KG No

CPE15A1 1½” 1 230/1 325 17 14.0 7120305

CPE15A3 1½” 1 400/3 325 17 14.0 7120310

Specifications

CPE30A1 3” 3 230/1 800 18 15.5 7120325

CPE30A3 3” 3 400/3 800 18 15.5 7120330

CPE20A1 2” 2 230/1 500 17 14.5 7120315

CPE20A3 2” 2 400/3 500 17 14.5 7120320

-3-

CLARKE GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period

of 12 months from the date of purchase. Please keep your receipt as proof

of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product

can be returned to us without prior permission.

This guarantee does not affect your statutory rights.

Please read these instructions carefully before operating the Pump

Thank you for purchasing this CLARKE Pump

Before using the device, please read this manual thoroughly and carefully follow

all instructions given. This is for your own safety and that of others around you, and

is also to help you achieve long and trouble free service from your new tool.

Your CLARKE CPE PUMP is a highly efficient, robust, continuously rated, self priming pump

with a powerful electric motor, and is ideal for a wide range of domestic, commercial and

agricultural uses.

It is suitable for pumping clean tap and rain water , and will handle small solids in suspension.

Your CLARKE CPE PUMP is designed to give you trouble free service provided it is installed

and used in the correct way.

Please follow these instructions carefully.

WARNING

CPE RANGE PUMPS ARE NOT SUBMERSIBLE PUMPS.

ON NO ACCOUNT MUST THEY BE IMMERSED IN WATER.

if the pump is left in an exposed position, it should be protected from the elements. especially

frost.

All electrical connections should be inspected regularly for signs of corrosion and cleaned

where necessary. It is advisable to apply a film of silicon grease on the terminals for added

protection.

-4-

Safety Precautions

•These pumps are designed to pump Water Only. NEVER use for pumping flammable

liquids or chemicals of any kind.

•ALWAYS ensure the pump is installed in a horizontal position with the outlet facing

vertically upwards, and that it is firmly anchored via its fixing screws.

•ALWAYS ensure there is an adequate air flow around the pump. DO NOT mount it

in an enclosed atmosphere.

•ALWAYS ensure all water pipes - supply or discharge, are adequately supported

where necessary, so as not to put a strain on the pump connections.

•ALWAYS ensure the inlet to the pump is completely unrestricted.

•ALWAYS ensure the pump is protected from the elements, neither the motor nor the

electrical terminal box is intended to be waterproof.

•ALWAYS ensure that all pipes are protected against damage where necessary,

and that they are suitably lagged to avoid the possibility of freezing during cold

weather.

•ALWAYS disconnect the pump from the electrical supply before any cleaning or

maintenance of the pump.

•NEVER allow the pump to run dry, as this will cause serious damage to the pump

seals.

•NEVER switch the pump ON when a swimming pool etc, is in use, i.e., when there is

person or animal in the pool.

WARNING:

As with all machinery, there are certain hazards involved with their operation

and use. Exercising respect and caution will considerably lessen the risk of

personal injury. However, if normal safety precautions are overlooked or ignored,

personal injury to the operator even damage to the pump or property, may

result. For your own safety and that of others around you, please read these

safety instructions in conjunction with the operating instructions, and before using

the pump.

-5-

Water Connections

IMPORTANT: The pump MUST NOT be connected to the mains supply until all hose/pipe

installation is completed. DO NOT RUN THE PUMP DRY

NOTE: If any part of the system is to be connected to the mains water supply, ensure that

local water authority regulations are observed.

Because of the variety of possible installations, no plumbing accessories are supplied with

your pump, however accessories designed specifically for this range of pumps is available

from your nearest CLARKE dealer.

The pump must always be installed and

operated in an upright position i.e. with the

outlet port facing vertically upwards. The

fixing holes in the base should be used as

necessary to secure the pump firmly in its

operating position. Also ensure there is

adequate air circulation around the motor.

Avoid situations where there is a risk of water

coming into contact with the outside of the

pump. Neither the motor or the terminal box

are designed to be waterproof.

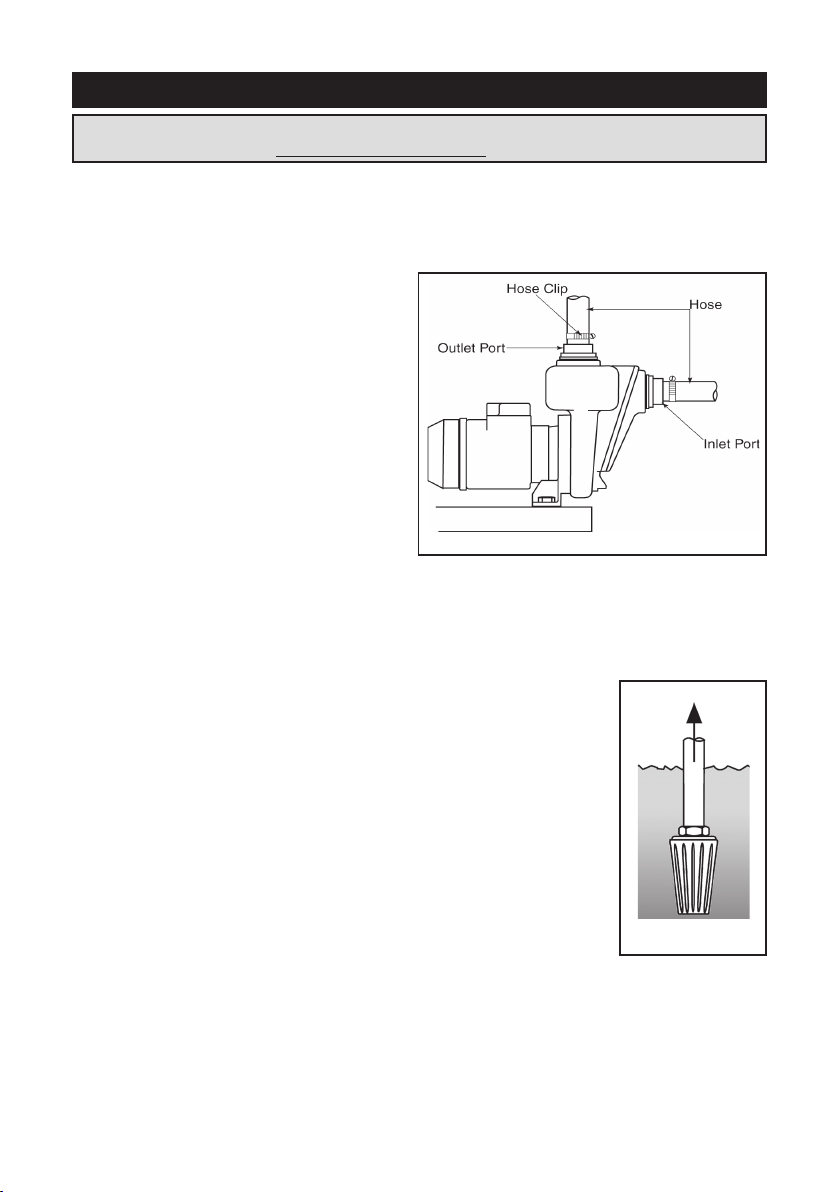

These notes are for guidance on how to achieve a proper working system. The diagram

(Fig. 1) above shows a typical installation at the pump.

A foot valve and filter should be fitted to the lower end of the suction hose, as illustrated in

Fig. 2, so as to retain water in the suction system and more importantly, to prevent the

possibility of large foreign objects entering the pump body.

The performance of your pump will be affected by the diameter of

the inlet pipe - any restriction will greatly reduce the flow. We strongly

recommend that you use a pipe diameter as large as practicable.

A gate valve may be installed in-line on the delivery side (Outlet Port)

of the pump which can be adjusted as required to regulate the flow

of water, it can also assist in priming the pump.

WARNING DO NOT place any such obstruction on the suction side

(inlet Port) of the pump unless it is an isolator valve in a gravity fed

system. It is also IMPORTANT to note, that these pumps should not be

operated with the delivery valve completely closed.

To prevent unnecessary strain or possible distortion to the pump, ensure

that adequate support is provided to the hoses and or pipes. They will

be considerably heavier when filled with water.

Filter

Foot

Valve

Fig. 1

Fig. 2

Should contaminants come into contact with the pump, flush through with cold water as

soon as possible to prevent damage to the pump.

Protect the pump and pipework from freezing. The formation of ice may cause serious

damage.

Where the pump is to be a permanent fixture, the fittings to the pump MUST be flexible, i.e.

a short piece of hose should be inserted between the rigid pipework and the pump.

-6-

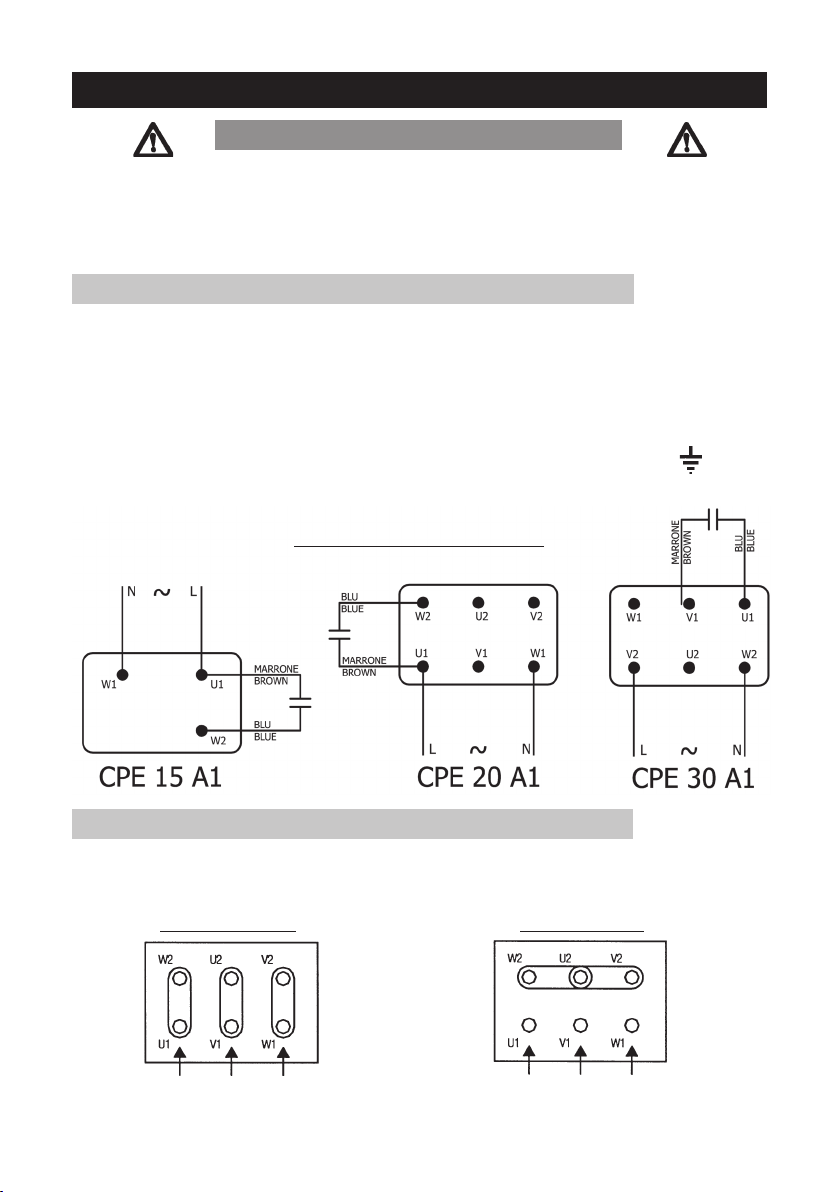

Electrical Connection

Wiring Connections For Three Phase Models

Again installation should be carried out by a qualified electrician, using I.E.E cable and

fittings, and in accordance with I.E.E Regulations. To connect the cable to the motor see

electrical connections inside the terminal cover.

Single phase pumps should be connected to a standard domestic 13 amp, 230 volt (50Hz),

electrical supply, we strongly recommend that the connection be made via a suitable

isolator switch and Residual Current Device (RCD).

IMPORTANT: Should the supply be taken from a normal 13 amp socket, then the plug used

must be to BS 1363 standard, and the wires should be wired up in accordance with the

following colour code:

Green & Yellow ............... Earth or marked with a letter “E” or Earth symbol “ ”.

Blue ................................... Neutral or terminal marked with a letter “N”

Brown ............................... Live or terminal marked with a letter “L”

Wiring Connections For Single Phase Models

Connections Within Terminal Box

Delta Connection Star Connection

WARNING: THIS PUMP MUST BE EARTHED.

Before connecting the pump, check the voltage and phase supply required, this information

can be found on the junction box cover on top of the motor.

Installation should be carried out by a qualified electrician, using I.E.E approved cable and

fittings, and in accordance with I.E.E. Regulations. However, in the further interests of safety

we would emphasise the following,

IF IN ANY DOUBT, contact CLARKE International Service on 020 8988 7400

L1 L2 L3 L1 L2 L3

Maintenance

No regular maintenance is required other than regular inspection to ensure that leaves

and other particles are not covering the suction inlet, also check the pump for signs of wear

or damage.

If any signs of wear or damage are found, contact your nearest Clarke dealer.

If you suspect that your pump is blocked by mud, silt , leaves etc, disconnect from

the mains supply and backflush. This should dislodge any blockage and aid cleaning.

PARTS & SERVICE TEL: 020 8988 7400

or e-mail as follows:

PARTS: [email protected]

SERVICE: [email protected]

Trouble Shooting

The pump does not run 1. No mains supply 1. Check fuse - replace if

necessary (Check fuse rating).

2. Impeller seized / blocked 2. Disconnect pump from mains,

investigate cause and clear

blockage etc..

Pump runs but no output 1. Air in pump housing 1. Disconnect from the mains and

check all hose connections

are air tight etc.

2. Suction height too great 2. Check height is within spec. for

your pump, (see specs page 2).

Low or no Flow 1. Blocked inlet pipe 1. Check to see that no foreign

matter is fouling the intake

system and check the filter is

not blocked or obstructed.

2. Head too high 2. Check that head is within spec.

there is little likelihood of problems arising, but if water will not flow as it should then check

the following points:-

Should you still experience problems, then contact your Clarke dealer, or CLARKE

International Service Department for advice.

-7-

Maintenance

Once the pump is installed, it is maintenance free, however, if it is anticipated that

it will not be used for a long period - 3/4 months or so, it should be flushed completely

with clean water to avoid the possibility of scale build up. This will entail

disconnection from the system and pouring clean water into the outlet and reverse

flushing. If this happens regularly, it is recommended that gate valves be installed

close to the pumps inlet and outlet ports.

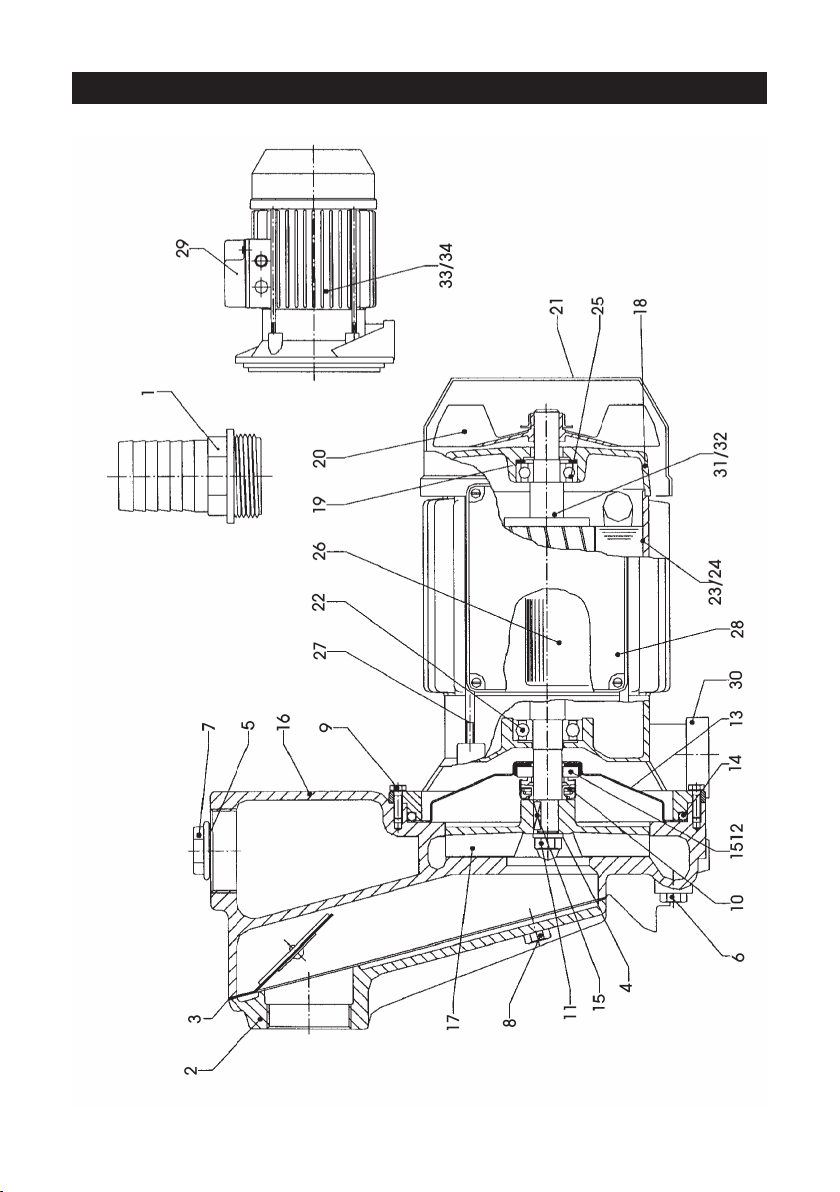

PARTS DIAGRAM (CPE15)

-9-

-10-

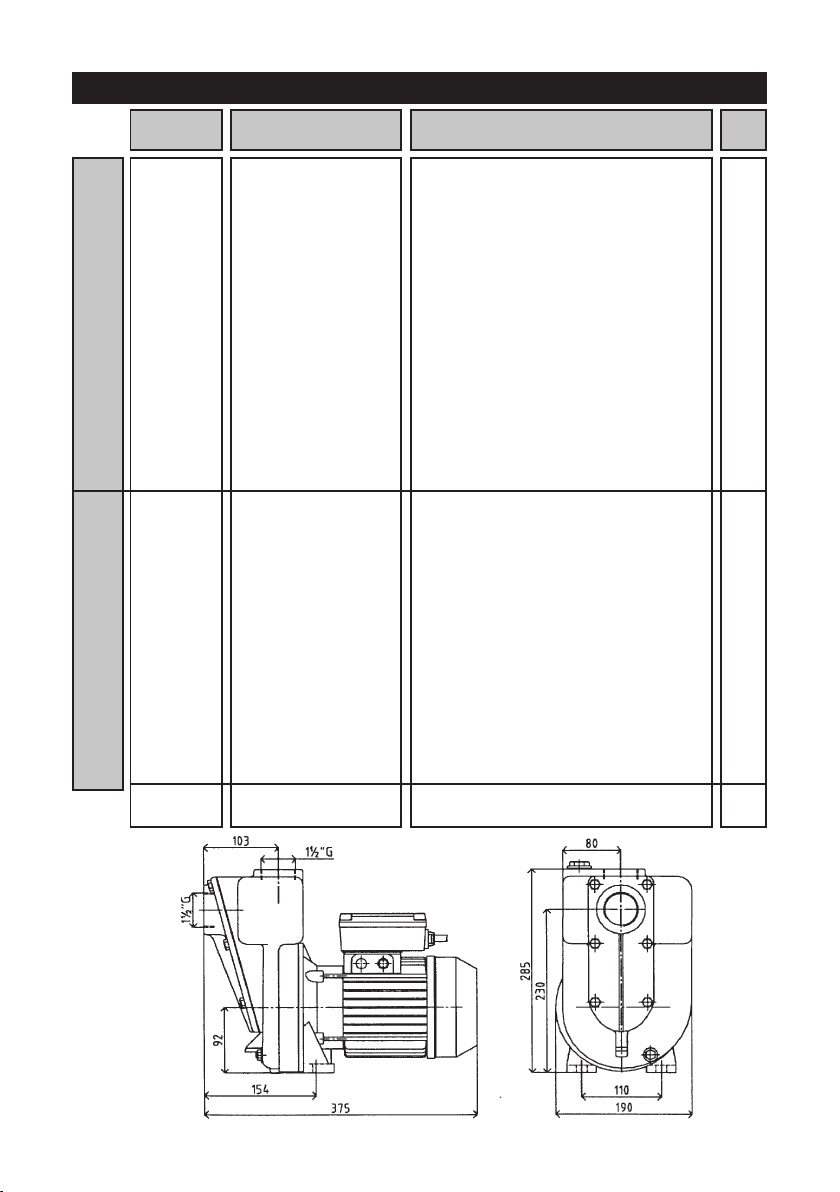

PARTS LIST (CPE15)

Index No Part No Description Qty

1GML330 Connection 1½” x 38 2

2 GM5853 Valve Body 1

3 GM6010 Check Valve 1

4 GM6162 Washer 1

5 GM6186 Flexolite Washer 1

6 GM6209 Tap ¼” 1

7 GM6213 Tap 1” 1

8 GM6230 Screw 6

9 GM6268 Screw 8

10 GM6334 Mechanical Seal 1

11 GM7103 Nut 1

12 GM7702 Counterface 1

13 GM7776 Cover Disk 1

14 GM8048 ‘O’ Ring 1

15 GMF156 Key 4x4x16 1

16 GMF458 Pump Body 1

17 GMF501 Impeller 1

18 GM5114 Rear motor Cover 1

19 GM5119 Elastic Washer 1

20 GM5293 Fan 1

21 GM5319 Fan Cover 1

22 GM5375 Bearing 1

23 GM5387 Motor Stator For CPE 15 A1 (1HP) 1

24 GM5493 Motor Stator For CPE 15 A3 (3HP) 1

25 GM5513 Bearing 1

26 GM6581 Condenser 20 For CPE 15 A1 1

27 GM6764 Vis 4

28 GM6963 Condenser Box For CPE 15 A1 1

29 GM7259 junction Box Cover For CPE 15 A3 1

30 GM7700 Motor Bracket 1

31 GM8640 Motor Shaft For CPE 15 A1 1

32 GM8641 Motor Shaft For CPE 15 A3 1

33 GMF313 Motor (1PH) 1

34 GMF490 Motor (3PH) 1

Motor Pump

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Pompa dell'acqua

Clarke

Clarke CSP1530 Manuale di istruzioni

Clarke

Clarke CBT1300SS Manuale di istruzioni

Clarke

Clarke TAM101 Manuale di installazione e funzionamento

Clarke

Clarke PSV7A Manuale di istruzioni

Clarke

Clarke PW2 Manuale di installazione e funzionamento

Clarke

Clarke SPE800 Manuale di istruzioni

Clarke

Clarke MSP12 Manuale utente

Clarke

Clarke PW2 Manuale di installazione e funzionamento

Clarke

Clarke CDDFTP Manuale utente

Clarke

Clarke PS75A Manuale di istruzioni

Clarke

Clarke ECP15A1 Manuale di istruzioni

Clarke

Clarke CPE15S Manuale di istruzioni

Clarke

Clarke TAM100 7230035 Manuale di installazione e funzionamento

Clarke

Clarke ECP20A1 Manuale di istruzioni

Clarke

Clarke C10 Manuale

Clarke

Clarke CHF2 Manuale di installazione e funzionamento

Clarke

Clarke ISP11A Manuale

Clarke

Clarke CPE30A3 Manuale di istruzioni

Clarke

Clarke CPE20A1 Manuale di istruzioni

Clarke

Clarke STP12 Manuale di istruzioni

Clarke

Clarke DWP210A Manuale di istruzioni

Clarke

Clarke CBB75 Manuale di istruzioni

Clarke

Clarke DWP300A Manuale di istruzioni

Clarke

Clarke PSV1A Manuale di istruzioni

Manuali Pompa dell'acqua popolari di altre marche

Neptun

Neptun NPHW 5500 Manuale utente

Sensidyne

Sensidyne Gilian BDX-II Istruzioni per l'installazione e il funzionamento

Draper

Draper 47808 Manuale utente

Trolla

Trolla 12820 Manuale utente

Sunfab

Sunfab SVH Series Manuale utente

WilTec

WilTec 50740 Manuale utente

Fieldmann

Fieldmann FVC 5015 EK Manuale utente

Everbilt

Everbilt EFSUB5-122HD Manuale utente

Graco

Graco Husky 3300e Manuale utente

esotec

esotec 101018 Manuale utente

moyno

moyno 2000 CC Manuale utente

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuale utente

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guida alla risoluzione dei problemi

DUROMAX

DUROMAX XP WX Series Manuale utente

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuale utente

Franklin Electric

Franklin Electric IPS Manuale utente

Xylem

Xylem e-1532 Series Manuale utente

Milton Roy

Milton Roy PRIMEROYAL Manuale utente
