Clas Ohlson CR-1902 Manuale utente

EnglishSvenskaNorskSuomiDeutsch

DIY Speaker Building Kit

Högtalare DIY-byggsats

DIY-høyttalerbyggesett

Kaiutinrakennussarja

Lautsprecher-Bausatz

Art.no Model

38-8019-1, -2 CR-1902 Ver. 20170329

English

DIY Speaker Building Kit

Art.no 38-8019-1, -2 Model CR-1902

Please read theentire instruction manual before using theproduct and

then save it for future reference. We reserve theright for any errors in

text or images and any necessary changes made to technical data. In

theevent of technical problems or other queries, please contact our

Customer Services (see address details on theback).

Safety

• This speaker can be used by children aged from 8 years and above

if they have been given supervision or instruction concerning use

of theappliance in asafe way and if they understand thehazards

involved. Cleaning and user maintenance shall not be made

by children unless they are older than 8 and supervised. Keep

thespeaker and its charger lead out of reach of children under

theage of 8.

• Thespeaker may be used by persons with reduced physical,

sensory or mental capability, lack of experience or knowledge

which could jeopardise their safety, provided they have been

instructed in thesafe use of theproduct and understand

thehazards involved. Never let children play with thespeaker.

• Thespeaker should not be taken apart or modiﬁed. Never try to

open thecasing of thespeaker. Thecasing houses dangerous

current-carrying non-insulated components. Contact with these

can lead to ﬁre or electric shock.

• Do not cover thespeaker. Adequate ventilation, with adistance

of at least 5cm between thespeaker and surrounding surfaces,

is necessary to prevent thespeaker from overheating.

• Place thespeaker on astable, ﬂat surface.

• Do not place thespeaker where it could fall into water or

other liquids.

• Do not place thespeaker in constant sunlight or near naked

ﬂames such as wood stoves, lit candles, etc.

• Never subject thespeaker to high temperatures, damp or dusty

environments, heavy vibrations or impacts.

• Protect your hearing. Listening on high volume for prolonged

periods can lead to permanent hearing loss.

• Thespeaker must only be repaired by qualiﬁed service technicians.

English

9101112

Product description

1. Speaker

2. Printed circuit board (with Blue-

tooth receiver, volume control)

3. Washer

4. Nut

5. Switch knob (on/off, Bluetooth

connection, volume)

Assembly

Batteries

Insert 3×AA/LR6 batteries (sold separately).

Note thepolarity markings on thebottom

of thebattery compartment to ensure

correct insertion.

Speaker cables

Connect thespeaker cables to

thespeakers.

Note: Be careful not to damage

thespeakers when connecting

thespeaker cables. Theblack cable ﬁts

into thenarrow connector, thered cable

ﬁts into thewide connector.

6. Handle

7. Speaker housing

8. Speaker cable (long)

9. Speaker cable (short)

10. Speaker

11. Battery compartment

12. Batteries

English

Speakers

Slide thespeakers into their brackets.

Position thespeakers as shown

in thepicture. Thespeaker with

theshort cable goes on theleft and

thespeaker with thelong cable goes

on theright.

Handle

Fold in thehandle reinforcement ﬂaps and interlock thelocking

tabs. Carefully push theends of thehandle through theholes in

thehousing. Make sure that theends go through both theouter

layer of thehousing and thehandle reinforcement ﬂaps.

PCB

1. Slide thePCB into theslot on thespeaker housing. Make sure that

thetwo lugs on theedge of theboard slot into thetwo small holes

on theside of thespeaker housing. Thesmall LED light (Bluetooth

indicator) should also line up with its hole. Note: Be careful not to

damage thecircuitry or any of thecomponents on thePCB.

2. Put thewasher onto theshaft of theswitch and fasten thePCB

in place with thenut. Take care not to overtighten thenut and

damage thespeaker housing.

3. Fit theswitch knob onto theend of theshaft.

English

4 5

Battery holder and PCB cable connection

1. Place thebattery holder on themagnetic plate as shown with

thecables at thetop.

2. Connect thespeaker cables and thebattery cables to

thePCB as shown. Note: Be careful when connecting

thecables to thePCB, they only ﬁt one way.

Folding thebox together

Battery cables Speaker

cables

1. Fold ﬂap 1 and 3 inwards.

2. Fold ﬂap 2 inwards.

3. Fold ﬂap 4 and 5 inwards.

4. Fold ﬂap 6 inwards.

5. Close thebox with ﬂap 7.

English

Battery holder and PCB cable connection Operating instructions

Note: TheDIY speaker kit can be powered by batteries (sold separately)

as explained above, or through theincluded Micro-USB cable.

To power thespeaker via theMicro-USB cable:

1. Carefully connect theMicro-USB cable to thePCB and pass

thecable through thehole in theback of thespeaker housing.

2. Connect theMicro-USB cable to acomputer or other USB charger.

Bluetooth connection

1. Switch thespeaker on by turning theknob clockwise.

2. Thespeaker will emit ashort audible signal and theLED Bluetooth

indicator light will ﬂash.

3. Activate Bluetooth on thedevice to be paired with thespeaker.

4. Thespeaker will appear on your device as CR-1902, select it and

pair it with your external Bluetooth device.

5. Once connection has been established theLED indicator on

thespeaker will shine asteady blue.

6. Start playback on your external Bluetooth device. Set thedesired

volume levels both on theexternal device and thespeaker. Other

playback settings can be controlled from theexternal device.

7. Switch thespeaker off by turning theknob anti-clockwise.

Care and maintenance

• Wipe thespeaker clean with adry cloth as and when required.

• Remove thebatteries if thespeaker is not to be used for along time.

English

Troubleshooting guide

Thespeaker

will not

switch on.

If under battery power

• Are thebatteries dead? Replace if necessary.

• Are thebatteries inserted correctly?

If under USB power

• Is theUSB cable intact and correctly connected

to thecomputer/USB charger?

• Make sure that theUSB charger is undamaged

and securely plugged into awall socket.

• Is thewall socket live?

No sound. • Check thevolume level of both thespeaker and

theconnected device.

• Make sure that theBluetooth connection has

been properly established.

• Is there interference from other Bluetooth devices?

Switch off any other Bluetooth devices nearby.

• Test theplayback from your external device before

connecting it.

• Try using another ﬁle for playback. Theﬁle you are

attempting to play may be corrupted.

Responsible disposal

This symbol indicates that this product should not be

disposed of with general household waste. This applies

throughout theentire EU. In order to prevent any

harm to theenvironment or health hazards caused by

incorrect waste disposal, theproduct must be handed

in for recycling so that thematerial can be disposed

of in aresponsible manner. When recycling your

product, take it to your local collection facility or contact

theplace of purchase. They will ensure that theproduct

is disposed of in anenvironmentally sound manner.

Specifications

Operation methods Batteries 3×AA/LR6 or USB DC 5V

Bluetooth 4.1

Range 10m

Power 2×3 W

Size 25.8×6.6×13 cm

Weight (incl. batteries) 445g

Svenska

Högtalare DIY-byggsats

Art.nr 38-8019-1,-2 Modell CR-1902

Läs igenom hela bruksanvisningen före användning och spara den

sedan för framtida bruk. Vi reserverar oss för ev. text- och bildfel samt

ändringar av tekniska data.Vid tekniska problem eller andra frågor,

kontakta vår kundtjänst (se adressuppgifter på baksidan).

Säkerhet

• Högtalaren får användas av barn från 8 år om de har fått instruktioner

om hur den på ettsäkert sätt ska användas och förstår faror och

risker som kan uppkomma. Rengöring och skötsel får utföras

av barn från 8 år ivuxens närvaro. Håll högtalaren och dess

laddkabel utom räckhåll för barn under 8 år.

• Högtalaren får användas av personer med någon form av funktions-

nedsättning, brist på erfarenhet eller kunskap som skulle kunna

äventyra säkerheten, om de har fått instruktioner om hur högtalaren

på ettsäkert sätt ska användas och förstår faror och risker som

kan uppkomma. Låt aldrig barn leka med högtalaren.

• Högtalaren får inte demonteras eller ändras. Försök aldrig öppna

högtalaren. Farlig spänning ﬁnns oskyddad på komponenter

under höljet. Kontakt med dessa kan leda till brand eller ge

elektriska stötar.

• Täck inte över högtalaren. Tillräcklig ventilation, med ettminsta

avstånd på 5 cm mellan högtalaren och omgivande ytor, är

nödvändig för att förhindra att högtalaren blir för varm.

• Placera högtalaren så att den står stadigt på enplan yta.

• Placera inte högtalaren så att den kan falla ner ivatten eller

annan vätska.

• Placera inte högtalaren iihållande solljus eller inärheten av öppen

eld som vedspis/kamin eller levande ljus.

• Utsätt aldrig högtalaren för höga temperaturer, dammig miljö,

starka vibrationer eller stötar.

• Skydda din hörsel. Lyssning med hög volym under lång tid kan

leda till bestående hörselskador.

• Högtalaren får endast repareras av kvaliﬁcerad servicepersonal.

Svenska

9101112

Produktbeskrivning

1. Högtalare

2. Kretskort (Bluetooth-mottagare,

volymkontroll etc.)

3. Bricka

4. Mutter

5. Ratt (på/av, Bluetooth-

anslutning, volym)

Montering

Batterier

Sätt i3×AA/LR6-batterier (säljs separat).

Se märkningen ibotten på batterihållaren

så att polariteten blir rätt.

Högtalarkablar

Anslut högtalarkablarna till högtalarna.

Obs! Var försiktig när du trycker fast

kablarna på högtalaren så att inte

högtalaren skadas. Den svarta kabeln

passar mot den smala anslutningen och

den röda mot den breda.

6. Handtag

7. Högtalarlåda

8. Högtalarkabel (lång)

9. Högtalarkabel (kort)

10. Högtalare

11. Batterihållare

12. Batterier

Indice

Lingue:

Altri manuali Clas Ohlson Altoparlanti

Clas Ohlson

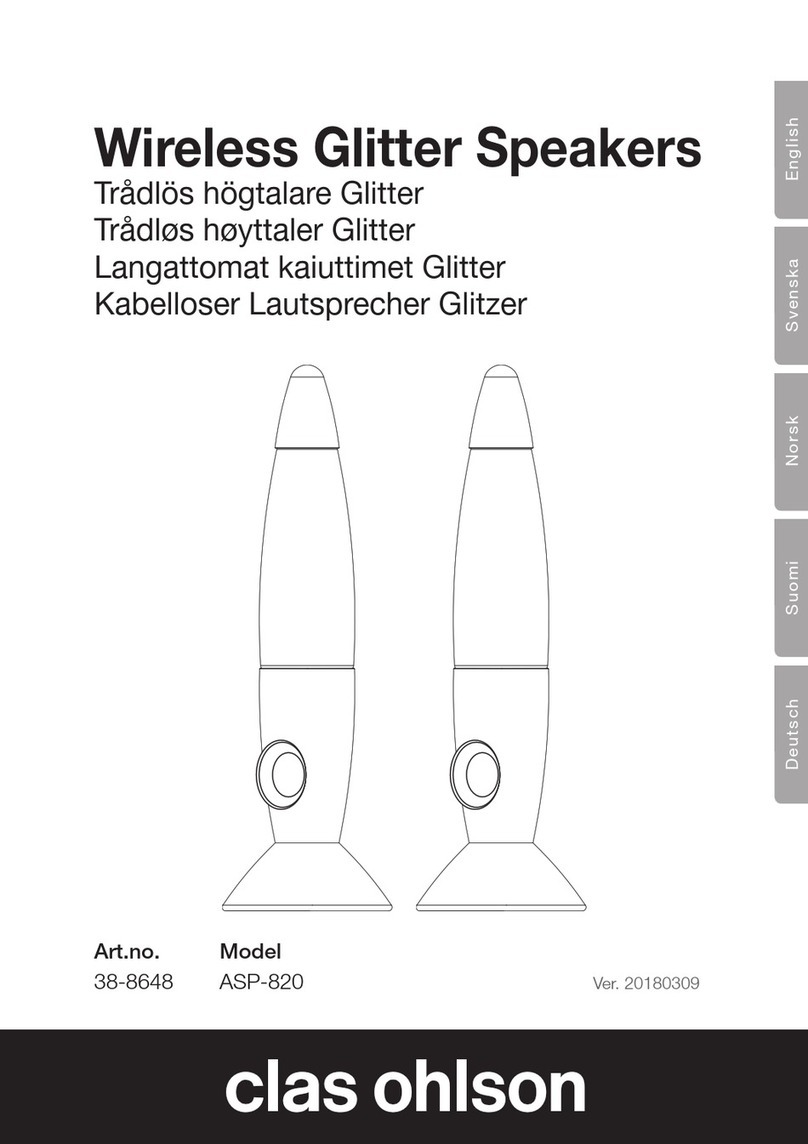

Clas Ohlson ASP-820 Manuale utente

Clas Ohlson

Clas Ohlson BC168 Manuale utente

Clas Ohlson

Clas Ohlson CK207 Manuale utente

Clas Ohlson

Clas Ohlson BS1 Manuale utente

Clas Ohlson

Clas Ohlson SG-8101 Manuale utente

Clas Ohlson

Clas Ohlson BT520 Manuale utente

Clas Ohlson

Clas Ohlson SC-04 Manuale utente

Clas Ohlson

Clas Ohlson CK008 Manuale utente

Clas Ohlson

Clas Ohlson DM93B Manuale utente

Clas Ohlson

Clas Ohlson CR-1834 Manuale utente

Clas Ohlson

Clas Ohlson iDeco Stereo 100BT Manuale utente

Clas Ohlson

Clas Ohlson DS-456 Manuale utente

Clas Ohlson

Clas Ohlson Y630 Manuale utente

Clas Ohlson

Clas Ohlson HZ-9450B Manuale utente

Clas Ohlson

Clas Ohlson Infinity CR-1618B Manuale utente

Clas Ohlson

Clas Ohlson CK308 Manuale utente

Clas Ohlson

Clas Ohlson A1 Manuale utente

Clas Ohlson

Clas Ohlson 620BT Manuale utente

Clas Ohlson

Clas Ohlson L-BTB7-RGB-RB22 Manuale utente

Clas Ohlson

Clas Ohlson V350 Manuale utente

Clas Ohlson

Clas Ohlson FG-M512E-B Manuale utente

Clas Ohlson

Clas Ohlson B100 Manuale utente

Clas Ohlson

Clas Ohlson FWIP-108 Manuale utente

Clas Ohlson

Clas Ohlson SP1380-UK Manuale utente

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente
