ClearCube CD8620 series Manuale utente

CD8620-Series/CD6620-Series

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 1of 5

Overview

Package

Contents

CD8620- or CD6620-series thin client

Pedestal and thumb screw

Power adapter and power cable

This Quick Start Guide

Specifications

Processor: Intel Atom D2550 Dual Core 1.86 GHz

Chipset: Intel NM10

Memory: 1 × SODIMM, DDR3, up to 4 GB

Graphics: Integrated in Atom D2550

Audio: HD Audio VIA 1708S

Network: All models: 10/100/1000BASE-T Ethernet (RJ45)

CD6620-series also includes one of the following:

1000BASE-SX, LC connector (fiber SFP module)

10/100BASE-FX, LC connector (fiber SPF module)

1000BASE-T Ethernet (RJ45 SPF module)

Smart Card Reader: Models CD8624 and CD6624 only

BIOS: AMI UEFI BIOS (16 Mb SPI ROM)

USB: 4 × USB 2.0, 2 × USB 3.0

Storage: Flash SATA SSD module, up to 32 GB

Power: DC in 12 V/4 A external power adapter

Dimension: 230 mm (H) × 210 mm (D) × 57 mm (W)

Continued on next page

CD8620-Series/CD6620-Series

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 2of 5

Overview, Continued

Features

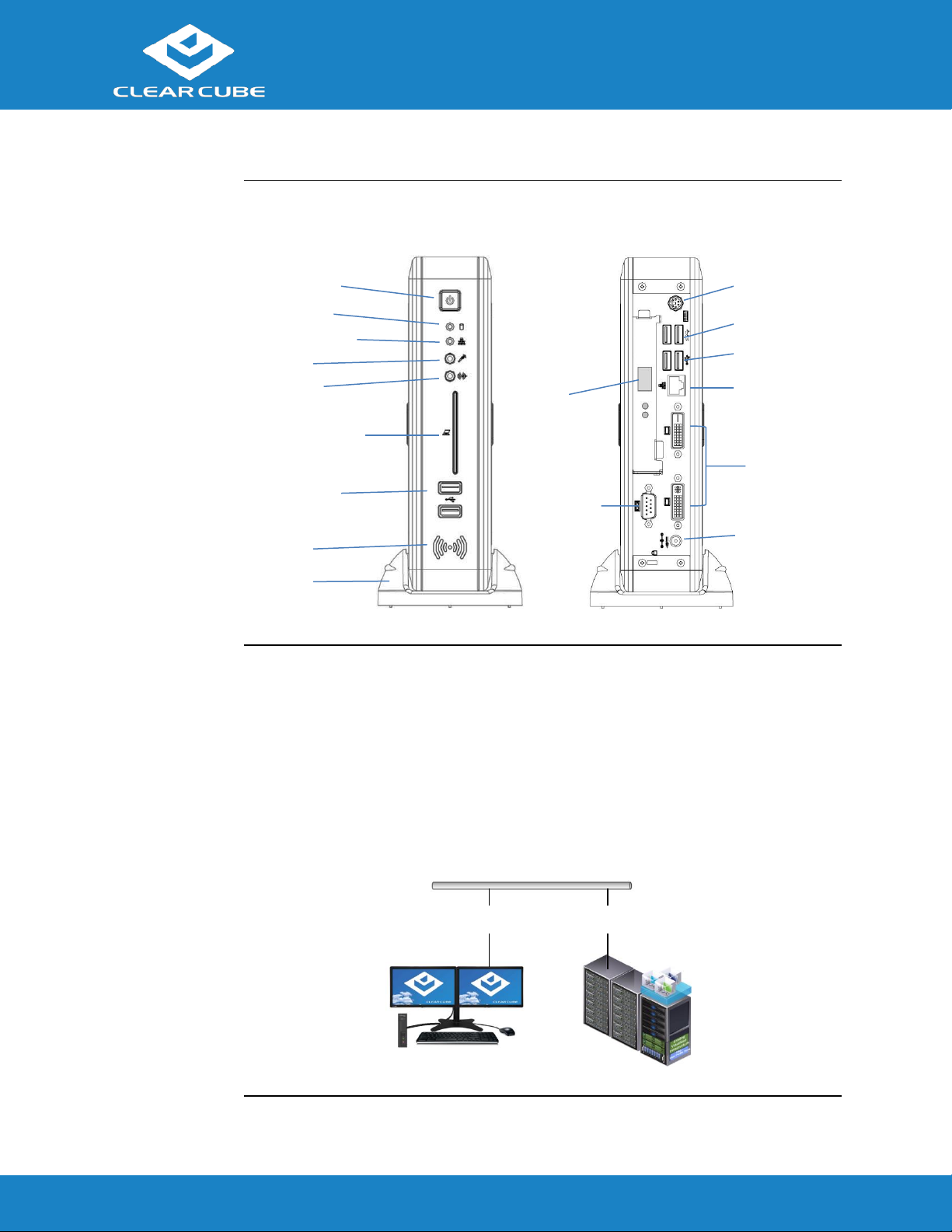

The pictures below show CD8620- and CD6620-series thin client features. Some features

vary by model.

Thin Client

Overview

A Cloud Desktop, or thin client, is a remote computing device that connects a user’s

monitors, keyboard, mouse, speakers, and other peripherals to remote PC blades (computers)

and to virtual desktops (VMs). As shown below, computing resources are typically located in

remote data centers.

Thin clients enable users to work on a blade or VM as if it is a local PC using a remote

connection protocol. See the documentation for the remote protocol application that you use

for additional information.

HDD activity

Power button

Network activity

Audio in

Audio out

Smart card reader

(CD8624 and CD6624)

USB 2.0 ports

Speaker

Pedestal

USB 3.0 ports

PS/2 port

USB 2.0 ports

RJ45 LAN port

DVI ports

DC jack

COM port

SFP adapter

(CD662x only)

Network Infrastructure

Thin Client with

Monitors and Peripherals

Chassis with

Blades and VMs

Copper and Fiber Ethernet

(Network Media Varies by Model)

CD8620-Series/CD6620-Series

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 3of 5

Thin Client Setup

Safety and

Precautions

Prevent ESD (electrostatic discharge) damage to smart card readers by

always discharging your body and smart card before using a reader (for

example, by touching a grounded, unpainted, metal object). ESD can vary

depending on many environmental conditions, including clothing that users

wear and how they handle smart cards. ESD damage can potentially cause

unsupported card reader behavior including failure. Always perform ESD prevention steps

before using the card reader.

Do not install the thin client in areas where it can become wet or be exposed to water.

Only use the power cord shipped with the thin client.

Ensure there is four inches of space surrounding the thin client. Inadequate ventilation can

damage the device.

Setting up a

Thin Client

The steps below show how to set up a thin client.

Step

Action

Carefully unpack the thin client and components. Ensure that you have

the following items:

Power cord (included)

USB mouse

USB keyboard

DVI monitors

Place the thin client in its pedestal and use the included thumb screw to

secure the pedestal to the thin client.

Connect a USB keyboard and mouse to the thin client (be sure that USB 2.0

and 3.0 connectors are connected to appropriate ports).

Connect an Ethernet cable to the Ethernet port on the rear of the thin client

and to the Ethernet port on the remote compute device or network device.

Models CD662x only: The network interfaces for the add-on SFP card (SFP

module) and the onboard RJ45 are both enabled. You can disable either

network interface from the BIOS.

Optionally, connect a printer to the thin client.

Continued on next page

CD8620-Series/CD6620-Series

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 4of 5

Thin Client Setup, Continued

Setting up a

Thin Client

(continued)

Step

Action

Connect the included power cord and AC adapter, and then plug the adapter

into the rear of the thin client. Continue by plugging the power cord into an

AC power outlet.

Power on the thin client by pressing the power button.

NOTE: The thin client displays the BIOS splash screen and a Windows

operating system animation, then the displays are blank. After several

moments, power off the thin client by pressing the power button, then power

it on again. A message is displayed showing that the Admin user password is

expired and must be changed. The existing Admin password is blank (an

empty value, as noted in User Accounts below).

If the thin client contains a smart card reader:

Install a smart card reader driver on the remote device to which users

connect. Drivers are available at www.clearcube.com/support.

Be sure that the Windows operating system Smart Card service

(SCardSvr) is running on the remote device to which users connect. See

operating system documentation for more information.

You can now use remote connection software to connect to a remote computing device.

User Accounts

Depending on configuration, thin clients can include Windows Embedded® Standard 7

operating system. The thin client boots to the Admin user and the default password is an

empty value (blank).

NOTE: Change administrator password immediately after logging in.

CD8620-Series/CD6620-Series

ClearCube Technology, Inc. www.clearcube.com (866) 652-3500 5of 5

Resources and Support

Additional

Information

ClearCube Sentral Administrator’s Guide describes how to use ClearCube Sentral to manage

thin clients, chassis, and related devices; perform connection brokering; and more.

Contacting

Support

Web site: www.clearcube.com/support

Email: support@clearcube.com

Phone: (512) 652-3400

Toll-free: (866) 652-3400

WEEE Disposal Guidelines

In the European Union, this electronic product falls under the European Directive (2002/96/EC) WEEE. When

it reaches the end of its useful life or is no longer wanted, dispose of it at an approved, designated recycling

or treatment facility. Check with your local authorities for proper disposal instructions. For assistance, contact

ClearCube at recycle@clearcube.com.

G0200168, Rev B 2014.07.17
