Commell FS-977 Manuale utente

FS-977

User’s Manual

Edition 1.2

all rights are reserved. The information in this document is subject to change

without prior notice to make improvements to the products.

This document contains proprietary information and protected by copyright.

No part of this document may be reproduced, copied, or translated in any

form or any means without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are

property of their respective owners.

Disclaimer

Taiwan Commate Computer Inc. shall not be liable for any incidental or

consequential damages resulting from the performance or use of this product.

Taiwan Commate Computer Inc. does not issue a warranty of any kind,

express or implied, including without limitation implied warranties of

merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the

specifications of the product described within it at any time without notice and

without obligation to notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any question please visit our website at http://www.commell.com.tw.

FS-977 User’s Manual 1

Packing List

Hardware

FS-977 Single Board Computer........................................ X 1

Cable Kit

34-pin FDD Cable ............................................................. X 1

40-pin IDE Flat Cable (UltraDMA/33)................................ X 1

1 x COM / 1 x LPT Port DB9 / DB25 Cable (VL only)........ X 1

2 x COM Port DB9 Cable (VL2 only)................................. X 1

1 x LPT Port DB25 Cable (VL2 only) ................................ X 1

Dual-USB Port Cable with Bracket.................................... X 2

PS/2 Keyboard and Mouse Cable..................................... X 1

40-pin UltraATA/100 IDE Cable........................................ X 1

Audio Cable ...................................................................... X 1

3-pin to 4-pin ATX cable.................................................... X 1

Printed Matter and Software

User’s Manual................................................................... X 1

Driver CD.......................................................................... X 1

FS-977 User’s Manual

Table of Content

Chapter 1. Introduction .............................................. 5

1.1 Product Overview...................................................................... 5

1.2 Specification.............................................................................. 6

1.3 Component Placement.............................................................. 9

Chapter 2. Hardware Setup....................................... 11

2.1 Jumper and Connector Location ............................................. 11

2.2 CPU and DRAM Setting ..........................................................14

2.3 CMOS Setting ......................................................................... 14

2.4 Watchdog Timer Setting .......................................................... 15

2.5 Embedded Solid State Disk..................................................... 16

2.6 Power and Fan Connector....................................................... 17

2.7 VGA Interface.......................................................................... 18

2.8 Ethernet Interface.................................................................... 19

2.9 Audio Interface........................................................................ 20

2.10 Switch and Indicator................................................................ 21

Chapter 3. BIOS Setup.............................................. 23

Chapter 4. Driver Installation................................... 25

Appendix. A I/O Port Pin Assignment....................... 27

A.1 IDE Port................................................................................... 27

A.2 Floppy Port.............................................................................. 28

A.3 Parallel Port............................................................................. 29

A.4 Serial Port ................................................................................30

A.5 USB Port ................................................................................. 31

A.6 IrDA Port.................................................................................. 31

A.7 VGA Port ................................................................................. 32

A.8 LAN Port.................................................................................. 32

A.9 AT Keyboard Port.................................................................... 33

A.10 PS/2 Keyboard and Mouse Port.............................................. 33

FS-977 User’s Manual 3

Appendix B. Flash the BIOS...................................... 35

B.1 BIOS Auto Flash Tool............................................................... 35

B.2 Flash Method........................................................................... 35

Appendix C. System Resources................................. 37

C.1 I/O Port Address Map............................................................... 37

C.2 Memory Address Map.............................................................. 38

C.3 System IRQ and DMA Resource.............................................. 39

FS-977 User’s Manual

Chapter 1. Introduction

1.1 Product Overview

FS-977 SBC (Single Board Computer) is an all-in-one industrial full-size PICMG

(PCI/ISA)-bus CPU card based on Intel mPGA478 Pentium 4 architecture. With Intel

Brookdale-G chipset, FS-977 offers the value solution with Intel NetBurst

micro-architecture, 533/400 MHz of FSB, 2 GB DDR200/266/333 DDR SDRAM,

support Hyper-Threading Technology (Pentium 4 processor at 3.06 GHz or higher),

Intel Brookdale-G GMCH built-in advanced 3D SVGA, and dual Intel PRO/100+ LAN

and USB 2.0 high speed I/O interfaces.

Based on Intel's long term supply chipset, FS-977 should be the ideal solution for long

life industrial applied computing platform with high computing capacity and cost effect.

The onboard dual Intel PRO/100+ LAN, M-systems DiskOnChip SSD (Solid State Disk),

and ISA 64mA high drive capacity also make FS-977 be the value Pentium 4 DDR

platform for:

Value Industrial Computing Platform: Intel mPGA478 Pentium 4 / Celeron CPU with

533/400 MHz FSB and 2 GB DDR200/266/333 SDRAM of system memory, FS-977

offers the high-end industrial computing platform with low cost Intel integrated solution.

Onboard Intel GV chipset support Hyper-Threading Technology give PCs a

turbo-charge, delivering the power users and PCs need to multi-task and increase

productivity. The long term support, onboard SSD, dual Intel LAN and ISA 64mA high

drive capacity also make FS-977 be the ideal solution for industrial server and

workstation, CTI (Computer Telephony Integration), VoIP (Voice over IP), and other

high-end applications.

Low Cost Multi-media Solution: Intel Brookdale-G chipset built-in advanced 3D VGA

controller offers the value integration solution for low cost multi-media computing

platform. Such as VoD (video on demand), DVR (Digital Video Recorder), digital video

broadcasting (DVB), streaming, surveillance, compression (MPEG), interaction server,

workstation and terminal appliances.

Redundant Network Reliability: dual Intel PRO/100+ 10/100 Mbps Fast Ethernet

interfaces for high reliability of redundant LAN, or external / internal dual direction

networking applications.

Hi-Speed USB 2.0 Interface: Intel ICH4 built-in USB 2.0 controller let FS-977 offer the

high speed USB 2.0 interface with 480 Mbps of data transfer rate. It makes FS-977 be

the platform to link with high-end USB 2.0 devices including digital camera, USB hard

disk, and other USB 2.0 based peripherals.

FS-977 User’s Manual 5

1.2 Specification

General Specification

Form Factor Full-size PICMG-bus CPU Card / Slot PC

PICMG version 1.0 (Rev. 2.0), PCI version 2.0 compliant

CPU Intel mPGA478 Pentium 4, Celeron @ 533/400 MHz FSB

Support Intel Hyper-Threading Technology

Support Northwood / Willamette Pentium 4 / Celeron CPU

Memory 2 GBytes DDR200/266/333 SDRAM on 2 x 184-pin DIMM

sockets. (No ECC/register DIMM support)

Chipset Intel 82845GV GMCH and 82801DB ICH4

BIOS Phoenix-Award 2Mb PnP flash BIOS

Green Function Power saving mode supported in BIOS with DOZE, STANDBY

and SUSPEND modes. ACPI version 1.0 and APM version 1.2

compliant

Watchdog Timer Generates NMI or system reset watchdog timer with 1 to 255

sec. / min. of time out value

Real Time Clock Intel ICH4 built-in RTC with lithium battery

Enhanced IDE PCI enhanced IDE interface supports dual ports up to 4 ATAPI

devices with UltraATA/100 supported

ISA High Drive ISA 64mA high Drive capacity with TI 245 buffer on address and

data bus

Multi-I/O Port

Chipset Intel 82801DB ICH4 and Winbond W83627HF-AW LPC

super-I/O controller

Serial Port Two RS-232 serial ports. Both with 16C550 compatible UART

and 16 bytes FIFO

USB Port Four USB 2.0 ports with 480 Mbps of data transfer rate

Parallel Port One bi-direction parallel port with SPP/ECP/EPP mode

Floppy One floppy port supports up to two FDD

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse PS/2 keyboard and mouse ports, AT keyboard port

FS-977 User’s Manual

Solid State Disk Interface

Flash Type M-systems DiskOnChip 2000, DiskOnChip Millennium, IDE Pro

and DiskOnModule (DOM) solid state flash disk

Package 32-pin DIP JEDEC (DiskOnChip)

40-pin IDE port (IDE Pro, DiskOnModule)

Capacity 576 MB of DiskOnChip and 512 MB of DiskOnModule

VGA Display Interface

Chipset Intel 845GV GMCH built-in 256-bit 3D VGA controller

Video Memory Auto detect dynamic video memory up to 64 MBytes

Display Type CRT, LCD monitor and analog display

Connector External DB15 female connector on bracket for CRT

Internal 16-pin header for analog VGA display

Ethernet Interface

Chipset Dual Intel PRO/100+ LAN interface

Primary LAN (LAN1): Intel ICH4 and Intel 82562ET

Optional secondary LAN (LAN2): Intel 82559ER

Type 10Base-T / 100Base-TX, auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector External dual RJ45 with LED on bracket

Audio Interface

Chipset Intel ICH4 built-in AC97 3D audio controller with codec

Interface Line-in, line-out, CD-in, Mic-out

Connector 10-pin header for line-in, line-out and Mic-out

4-pin header for CD-in

FS-977 User’s Manual 7

Power and Environment

Power Req. +5V, +12V, -12V DC input from PICMG backplane

Additional +12V on 4-pin connector for Pentium 4 PSU

ATX Function 3-pin ATX interface with 5V standby and power-on

Dimension 338 (L) x 122 (H) mm, standard PICMG form factor

Temperature Operating within 0 ~ 60oC (32 ~ 140oF)

Storage within -20 ~ 85oC (-4 ~ 185oF)

EMI CE/FCC class A certified

Ordering Code

FS-977VL Full-size PICMG mPGA478 DDR CPU Card Based on Intel 845GV and

ICH4, with 533/400 MHz FSB, Intel VGA, Single Intel PRO

100+ LAN,

Audio, Hi-Speed USB 2.0, DOC Interfaces and ISA 64mA High Drive

Capacity

FS-977VL2 Full-size PICMG mPGA478 DDR CPU Card Based on Intel 845GV and

ICH4, with 533/400 MHz FSB, Intel VGA, Dual Intel PRO/100+ LAN,

Audio, Hi-Speed USB 2.0, DOC Interfaces and ISA 64mA High Drive

Capacity

FS-977 User’s Manual

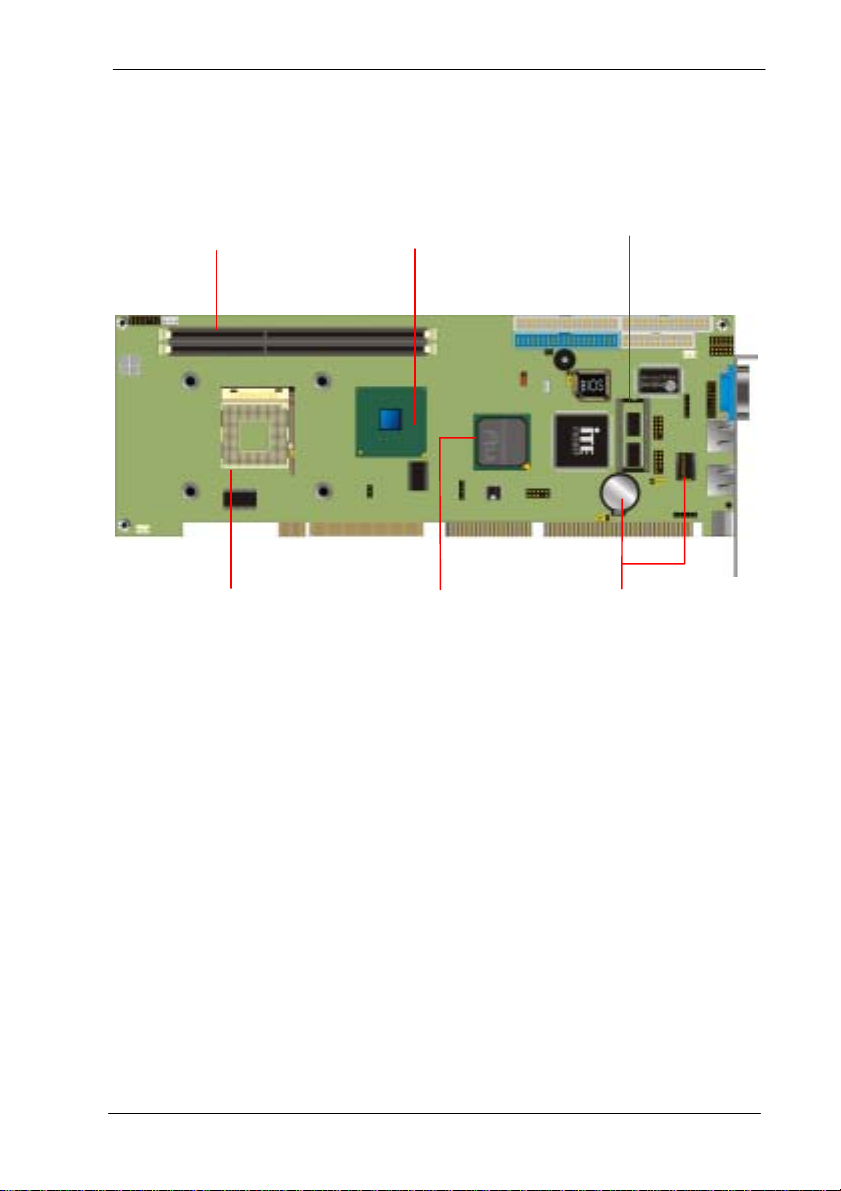

1.3 Component Placement

2 x 184-pin DIMM Socket

System Memory

2 GB DDR SDRAM

Intel 845GV GMCH

Built-in Intel Extreme

Graphics VGA Core

DiskOnChip

Socket

Intel 82801DB ICH4

Built-in USB 2.0 Port

AC97 3D Audio

mPGA478 CPU Socket

Intel Pentium 4 / Celeron

533/400 MHz FSB

Dual Intel PRO/100+ LAN

Intel ICH4 with 82562ET

and Intel 82559ER

FS-977 User’s Manual 9

Notes (This page left blank intentionally)

FS-977 User’s Manual

Indice

Altri manuali Commell Scheda madre

Commell

Commell LS-372 Manuale utente

Commell

Commell LV-678 Manuale utente

Commell

Commell LE-37DJIP Manuale utente

Commell

Commell HE-860 Manuale utente

Commell

Commell P2LXB Manuale utente

Commell

Commell P3SAE Series Manuale utente

Commell

Commell LE-578 Manuale utente

Commell

Commell LV-673 Serial Manuale utente

Commell

Commell LE-380 Manuale utente

Commell

Commell LE-37C-G Manuale utente

Commell

Commell LS-37B Manuale utente

Commell

Commell LE-575 Manuale utente

Commell

Commell LE-37D Manuale utente

Commell

Commell LV-6714 Manuale utente

Commell

Commell Pico-ITX LP-171 Manuale utente

Commell

Commell HE-875P Manuale utente

Commell

Commell LE-37M Manuale utente

Commell

Commell LS-377 Manuale utente

Commell

Commell ADP-TPM Manuale utente

Commell

Commell LP-175 Manuale utente

Commell

Commell LS-572 Manuale utente

Commell

Commell LV670 Series Manuale utente

Commell

Commell LP-173 Manuale utente

Commell

Commell FS-A70 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
