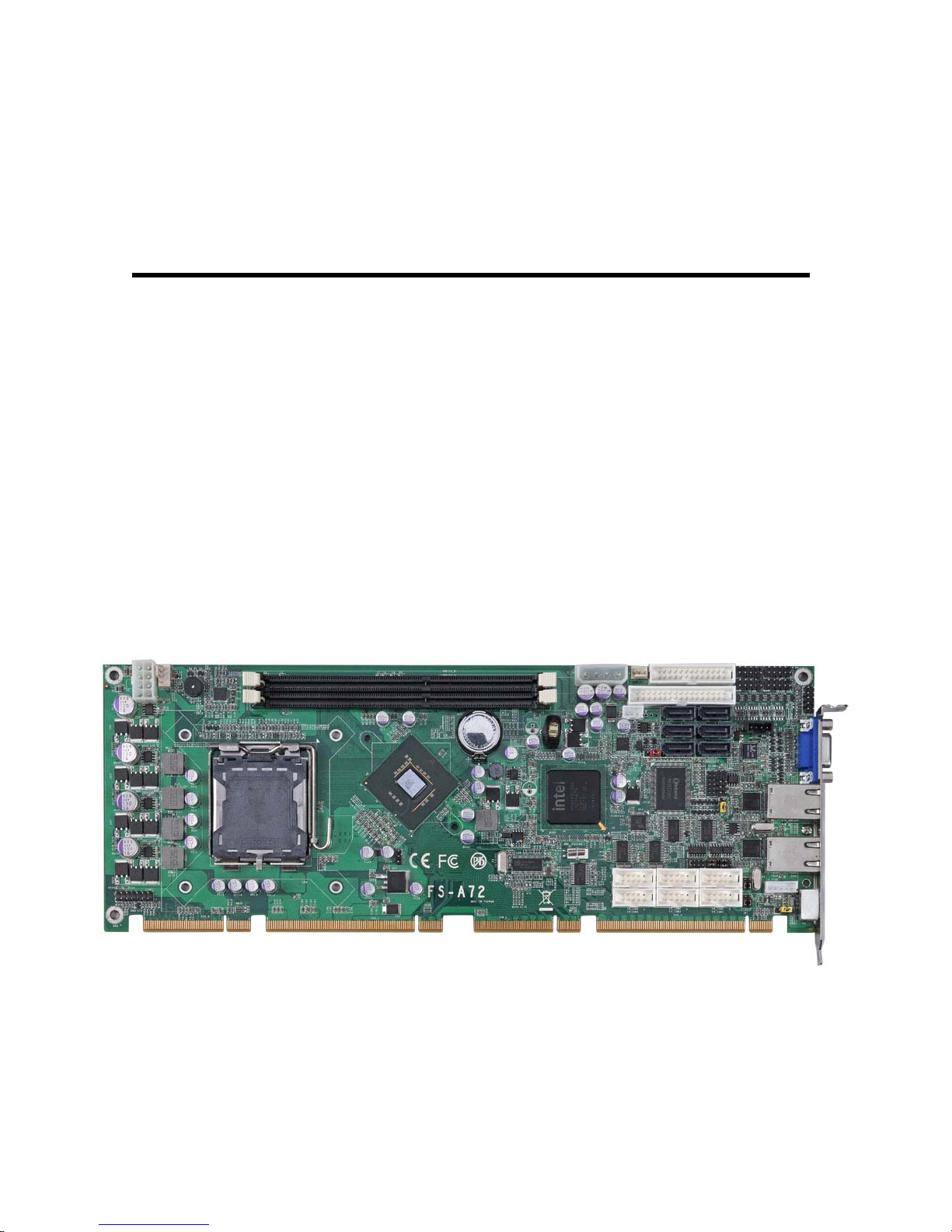

Commell FS-A72 Manuale utente
FS-A72
PICMG1.3 Full-size CPU Card
User’s Manual
Edition: 1.2
2014/05/14
FS-A72User’sManual
2
Copyright
Copyright 2009. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT.
FS-A72User’sManual
3
Packing List
Please check package component before you use our products.
Hardware:
FS-A72 PICMG1.3 Full-size CPU Card motherboard x 1

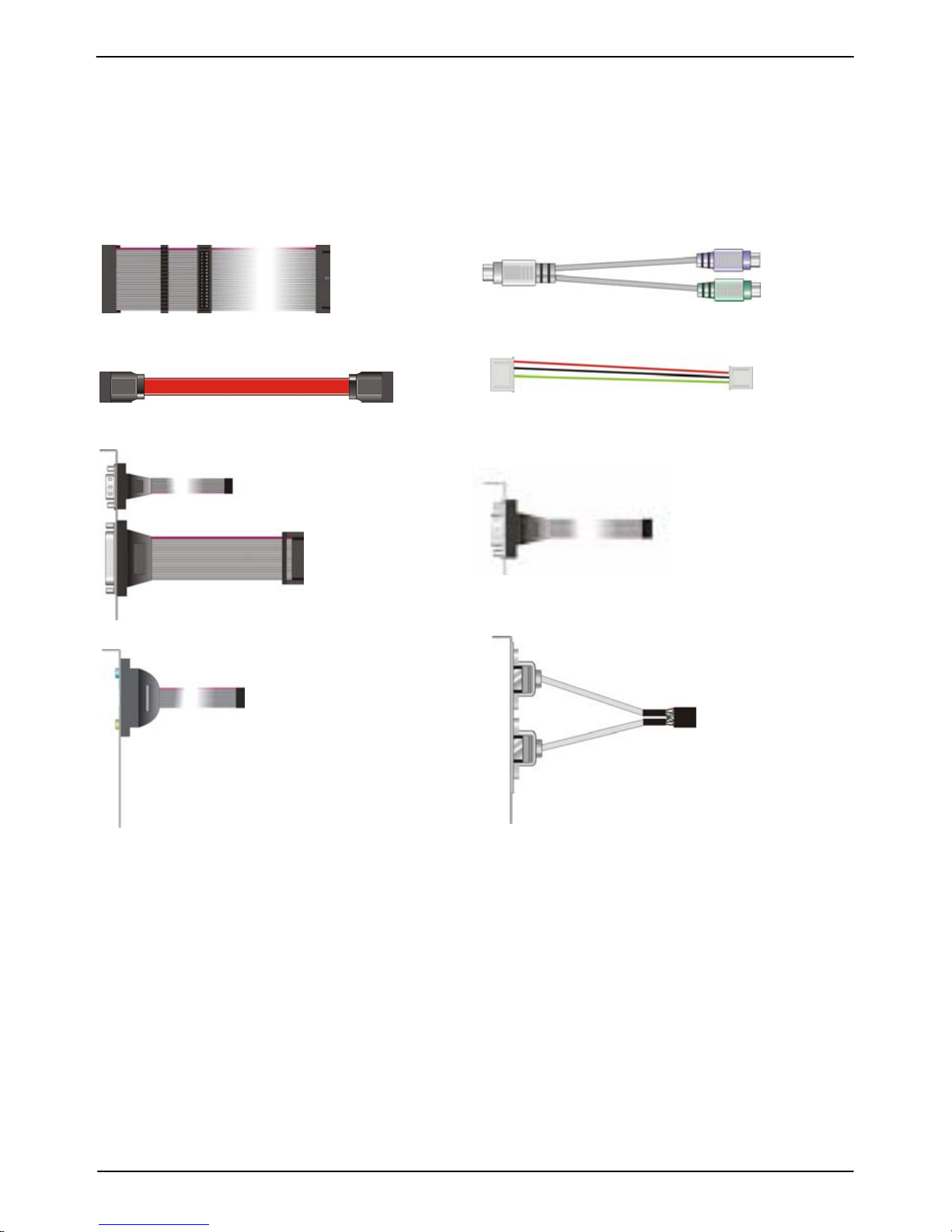

Cable Kit:
PS/2 Keyboard & Mouse Cable x 1
(OALPS2/MKN)/ (1040551)
Floppy flat Cable x 1
(OALFD)/ (1040095)
SATA-L Cable x 2
(OALSATA-L)/ (1040142) 4-pin to 3-pin ATX cable x 1
(OAL-ATX-C)/ (1040184)
DB25 & DB9 cable x 1
(OAL1S1P)/ (140041)
COM Port Cable x 1 (FS-A70G2-Only)
(OAL2SIP)/ (1040191)
Audio Port Cable x 1
(OALPJ-HD)/ (1040120) USB Cable x 2
(OALUSBA-1)/ (1040172)
Other Accessories:
Divers CD (including User’s Manual) x 1
FS-A72User’sManual
4
Index
Chapter1 <Introduction>............................................................7
1.1 <Product Overview> ......................................................................7
1.2 <Product Specification>.................................................................8
1.3 <Block Diagram>.........................................................................10
1.4 <Mechanical Drawing >...............................................................11
Chapter 2 <Hardware Setup>.................................................12
2.1 <Connector Location>..................................................................12
2.2 <Jumper Reference>.....................................................................13
2.3 <Connector Reference>................................................................14
2.3.1 <Internal Connectors> ..............................................................14
2.3.2 <External Connectors> .............................................................14
2.4 <CPU and Memory Setup>..........................................................15
2.4.1 <CPU installation>...................................................................15
2.4.2 <Memory installation>..............................................................16
2.5 <CMOS Setup>............................................................................18
2.6 <Serial ATA installation> .............................................................19
2.7 <Floppy Installation>...................................................................20
2.8 <LAN installation>.......................................................................20
2.9 <Onboard Display Interface>.......................................................21
2.9.1 <Analog Display>....................................................................21
2.10 <Audio Installation>...................................................................22
2.11 <GPIO and SMBUS interface>..................................................24
2.12 <USB Installation>.....................................................................25
2.13 <Power and Fan Installation>.....................................................26
2.14 <Serial Port>...............................................................................28
2.15 <Switch and Indicator>..............................................................31
Chapter 3 <System Configuration>.......................................33
3.1 <SATA configuration>..................................................................33
FS-A72User’sManual
5
3.2 <SATA RAID Configuration>......................................................34
3.3 <Audio Configuration>................................................................38
3.4 <Video Memory Setup>...............................................................39
Chapter 4 <BIOS Setup>.........................................................41
Appendix A <I/O Port Pin Assignment>................................43
A.1 <Serial ATA Port>........................................................................43
A.2<Floppy Port>...............................................................................43
A.3 <IrDA Port>.................................................................................44
A.4 <Serial Port>................................................................................44
A.5 <VGA Port>.................................................................................45
A.6 <LAN Port>.................................................................................45
A.7 <Parallel Port>.............................................................................46
Appedix B <System Resources>...........................................47
B.1 <I/O Port Address Map>..............................................................47
B.2 <Memory Address Map>.............................................................49
B.3 <System IRQ Resources>............................................................50
Appedix C <Flash BIOS>.........................................................51
C.1 <BIOS Auto Flash Tool>.............................................................51
C.2 <Flash Method>...........................................................................51
Appendix D <Programming GPIO’s>....................................52
Appendix E <Watch Dog timer Setting >..............................53
Contact Information...................................................................54
FS-A72User’sManual
6
(This Page is Left for Blank)
FS-A72User’sManual
7
Chapter1 <Introduction>
1.1 <Product Overview>
FS-A72 is the Full-size single board computer with last Intel desktop technology with
PICMG1.3 form factor. Based on Intel®Q45 and ICH10DO, the board integrates a new
Core 2 Quad / Core 2 Duo / Celeron processor 775-pin socket, DDR3 memory slot, Intel®
Graphic Media Accelerator 4500 technology, Serial ATA II with RAID function for a powerful
desktop system.
Intel®LGA775 processor
The Intel® Core 2 Quad / Core 2 Duo / Celeron processor now comes with a new form
factor with 775-pin PLGA package, for 800/1066/1333MHz front-side-bus, 12MB L2 cache,
for 65nm and 45nm manufacturing technology, the PLGA processor without pin header on
solder side can make user installing the processor on the socket easier.
Intel®Q45 and ICH10DO chipset
The Intel Q45 integrates DDR3 800/1066MHz for memory, and Graphic Media Accelerator
(GMA) 4500 technology for new graphic engine. It can provide up to 1024MB of frame
buffer when you install over 1GB of system memory. The ICH10DO integrates with up to 8
USB2.0 interfaces, and serial ATA II interface with RAID function.
FS-A72User’sManual
8
1.2 <Product Specification>
General Specification
Form Factor PICMG1.3 Full-size CPU Card motherboard
CPU Intel® Core™ 2 Quad / Core™ 2 Duo / Celeron® processor
With LGA775 socket
Package type: PLGA 775
Front side bus: 800/1066/1333MHZ (200/266/333MHz x 4)
Memory 2 x 240-pin DDR3 800/1066MHz SDRAM up to 4GB
Unbufferred, none-ECC memory supported only
Chipset Intel® Q45 (Northbridge) and ICH10DO (Southbridge)
BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.
of timeout value
Real Time Clock Intel® ICH10DO built-in RTC with lithium battery
Serial ATAII Intel® ICH10DO integrates 6 Serial ATA II interface
RAID 0, 1,5,10 Intel Matrix Storage Technology supported
Multi-I/O Port
Chipset Intel® 82801HDO( ICH10DO) with Winbond® W83627DHG
Controller
Serial Port Five RS-232 and one RS232/422/485 serial ports
USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Floppy Port One Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
Interface
Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel® Q45 GMA4500 (Graphic Memory Controller Hub)
Frame Buffer Up to 1024MB shared with system memory
Display Type CRT, LCD monitor with analog display
Connector External DB15 female connector on rear I/O panel
FS-A72User’sManual
9
Ethernet Interface
Controller Two Intel 82574L Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
Auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset Intel® ICH10DO with Realtek ALC888HD Audio
Intel High Definition Audio compliance
Interface 2 channels sound output
Connector Internal 10-pin header for line-out, MIC-in, 4-pin header for CD-IN
Expansive Interface
PCI-Express One X16 and one X4 or four X1 on PICMG 1.3 Interface
PCI Four PCI bus master on PICMG 1.3 Interface
Power and Environment
Power
Requirement +5V, +12 DC input & 5VSB Requirement
Dimension 338 (L) x 126 (H) mm
Temperature Operating within 0 ~ 60P
O
p
C (32 ~ 140P
O
p
F)
Storage within –20 ~ 85P
O
p
C (-4 ~ 185P
O
p
F)
Ordering Code
FS-A72G Intel® Core™ 2 Quad, DDRIII, VGA, USB2.0, Mini-PCI, PCI,
COM Port, FDD, HD Audio, SATA, IrDA, 1 x Gigabit LAN
Support Four X1 & One X16 PCI Express interface
FS-A72G2 Same as above with secondary Gigabit LAN
FS-A72FG Intel® Core™ 2 Quad, DDRIII, VGA, USB2.0, Mini-PCI, PCI,
COM Port, FDD, HD Audio, SATA, IrDA, 1 x Gigabit LAN
Support One X4 & One X16 PCI Express interface
FS-A72FG2 Same as above with secondary Gigabit LAN
OHS-1U775S 1U CPU Cooler for LGA 775 with Backplane
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT
FS-A72User’sManual
10

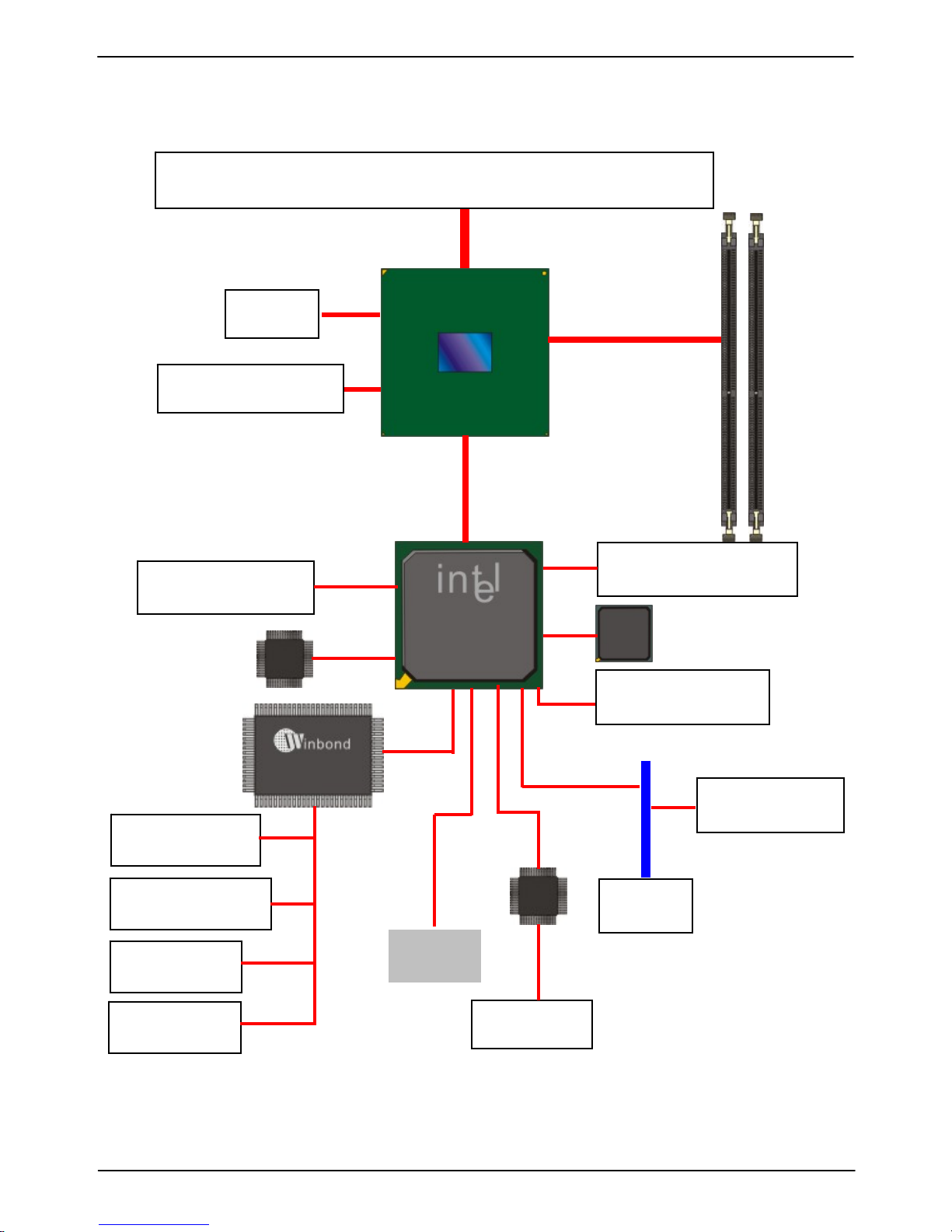

1.3 <Block Diagram>
Intel®Core™ 2 Quad / Core™ 2 Due/ Celeron®processor
Intel Q45 2 x 240-pin DDR3
800/1066MHz up
to 4GB
PCI bus
2 x Serial ports
1 x Floppy port
8-bit GPIO
8 x USB2.0 ports
4 x PCI Slot
HD Audio ICH10DO
6 x Serial ATAII ports
Intel 82574L
2 x GLAN
IrDA
BIOS
SPI
COM3/4/5/6
CRT
4 PCI-Express x1
PCI-Express x16
Indice
Altri manuali Commell Scheda madre
Commell
Commell P3SAE Series Manuale utente
Commell
Commell LP-173 Manuale utente
Commell
Commell PMSA Manuale utente
Commell
Commell HE-860 Manuale utente
Commell
Commell LV-679 Manuale utente
Commell
Commell FS-97A Manuale utente
Commell
Commell LP-175 Manuale utente
Commell
Commell LV670 Series Manuale utente
Commell
Commell LE-37DJIP Manuale utente
Commell
Commell HS-872P Manuale utente
Commell
Commell LS-37B Manuale utente
Commell
Commell HE-B72 Manuale utente
Commell
Commell LV-6715 Manuale utente
Commell
Commell LV-6713 Manuale utente
Commell
Commell LS-576 Manuale utente
Commell
Commell LE-37I7S Manuale utente
Commell
Commell LE-37M Manuale utente
Commell
Commell LE-37G Manuale utente
Commell
Commell LP-172-G Manuale utente
Commell
Commell LS-572 Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
Biostar
Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione
