Commell P4LA Manuale utente

P4LA

Industrial motherboard

User’s Manual

Edition: 1.00

2006/05/30

P4LAUser’sManual

reserved. The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at Hhttp://www.commell.com.tw.

P4LA User’s Manual Packing List

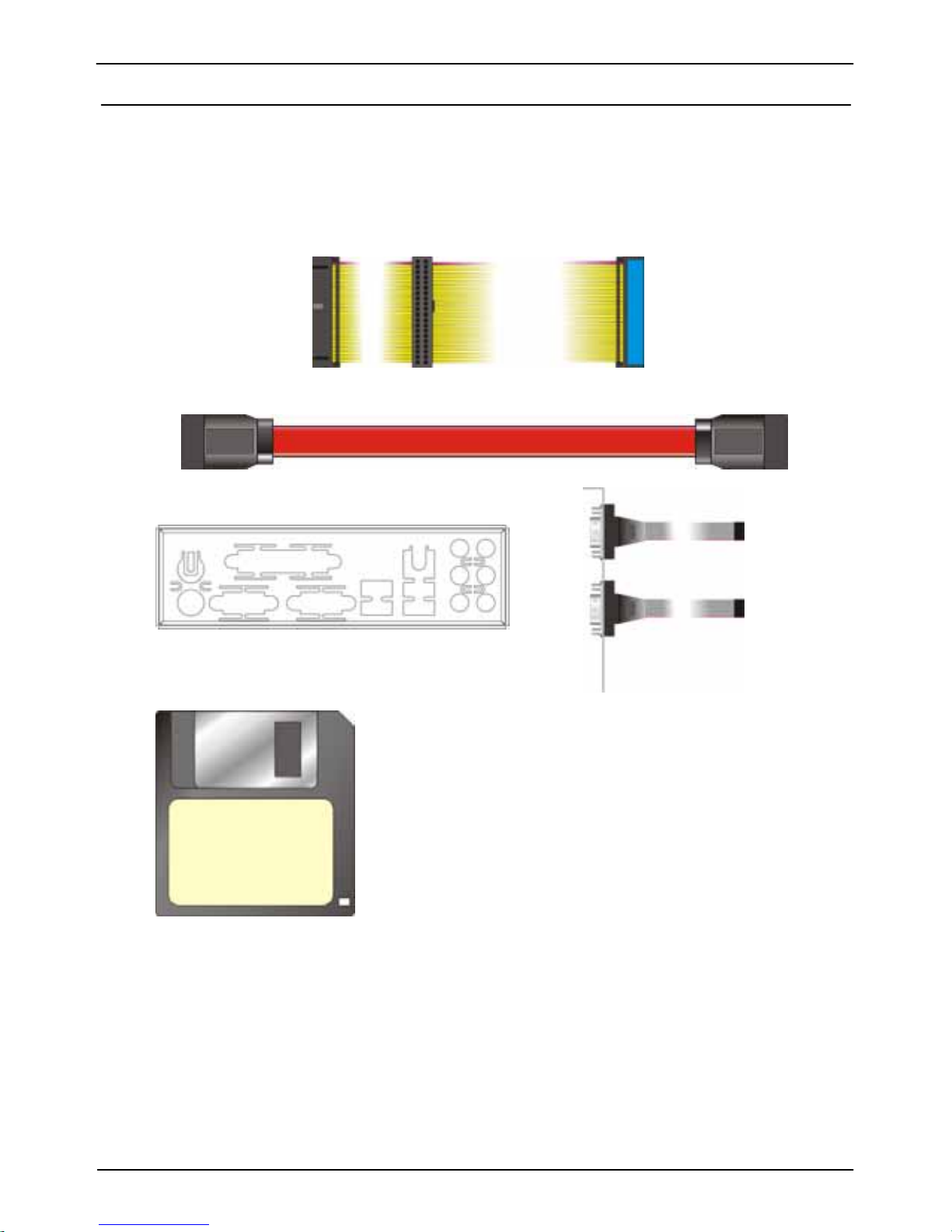

Packing List

Please check package component before you use our products.

Hardware:

P4LA industrial motherboard x 1

Cable Kit:

40-pin ATA100 IDE flat cable x 1

Serial ATA ribbon cable x 2

I/O Shield x 1 COM port Cable x 1

RAID drivers Disc for Windows 2000,

Windows XP and Windows Server 2003

Other Accessories:

Divers CD (including User’s Manual) x 1

User’s Manual x 1

P4LAUser’sManual Index

Index

Chapter1 <Introduction>.....................................................................7

1.1 <Product Overview>.................................................................................7

1.2 <Product Specification> ...........................................................................8

1.3 <Component Placement> ......................................................................10

1.4 <Block Diagram>.................................................................................... 11

1.5 <Mechanical Drawing >..........................................................................12

Chapter 2 <Hardware Setup>.........................................................13

2.1 <Connector Location>............................................................................13

2.2 <Jumper Reference> .............................................................................14

2.3 <Connector Reference>.........................................................................15

2.3.1 <Internal Connectors> ..............................................................15

2.3.2 <External Connectors> .............................................................15

2.4 <CPU and Memory Setup>....................................................................16

2.4.1 <CPU installation>...................................................................16

2.4.2 <Memory installation>..............................................................17

2.5 <CMOS Setup>......................................................................................18

2.6 <Enhanced IDE interface>.....................................................................19

2.7 <Serial ATA installation>.........................................................................20

2.8 <Floppy Installation>..............................................................................21

2.9 <LAN installation>..................................................................................22

2.10 <Audio Installation>..............................................................................23

2.11 <Display Installation> ...........................................................................25

2.12 <USB Installation>................................................................................26

2.13 <Power and Fan Installation> ..............................................................28

2.14 <GPIO interface>.................................................................................30

2.15 <Serial Port> ........................................................................................31

2.16 <Switch and Indicator>.........................................................................32

P4LAUser’sManual Index

2.17 <Expansion Interface>.........................................................................33

Chapter 3 <System Configuration>...........................................35

3.1 <SATA configuration>.............................................................................35

3.2 <SATARAID Configuration> ..................................................................38

3.3 <Audio Configuration> ...........................................................................42

3.4 <Video Memory Setup> .........................................................................43

3.5 <Display Properties Setting>..................................................................45

Chapter 4 <BIOS Setup>....................................................................47

Appendix A <I/O Port Pin Assignment>.................................49

A.1 IDE Port .................................................................................................49

A.2 <Serial ATA Port>...................................................................................49

A.3 <Floppy Port> ........................................................................................50

A.4 <IrDA Port>............................................................................................50

A.5 <Serial Port>..........................................................................................51

A.6 <VGA Port>............................................................................................51

A.7 <LAN Port>............................................................................................52

A.8 <SMBus>...............................................................................................52

A.9 <LPT Port >............................................................................................53

Appedix B <System Resources>................................................54

Appedix B <How to setting RS-422/485>..............................58

Appedix C <Flash BIOS>...................................................................59

C.1 BIOS Auto Flash Tool......................................................................59

C.2 Flash Method...................................................................................59

Appendix D <Programming GPIO’s>........................................60

Appendix E <What Dog timer Setting >..................................61

Contact Information..............................................................................62

P4LAUser’sManual

(This Page is Left for Blank)

P4LA User’s Manual Introduction

Product Overview 7

Chapter1 <Introduction>

1.1 <Product Overview>

P4LA is the motherboard with last Intel desktop technology with industrial motherboard

form factor. Based on Intel®945G and ICH7R, the board integrates a new Pentium 4

processor 775-pin socket, DDR2 memory slot, Intel®Graphic Media Accelerator 950

technology, PCI express interface and Serial ATA II with RAID function for a powerful

desktop system.

Intel®LGA775 processor

The Intel®Pentium 4 processor now comes with a new form factor with 775-pin PLGA

package, for 533/800/1066MHz front-side-bus, 2MB L2 cache, and for 90nm manufacturing

technology, the PLGA processor without pin header on solder side can make user installing

the processor on the socket easier.

Intel®945G and ICH7R chipset

The Intel 945G integrates DDR2 400/533/667MHz for memory, and Graphic Media

Accelerator (GMA) 950 technology for new graphic engine. It can provide up to 224MB of

frame buffer when you install over 256MB of system memory. The ICH7R integrates with up

to 8 USB2.0 interfaces (8 ports for P4LA), and serial ATA II interface with RAID function.

One Marvell E8053

One Gigabit LAN with Marvell E8053, P4LA comes with a powerful network function for the

system that requires large transfer data of NAS system or Server platform.

PCI-Express interface

P4LA integrates one x16, x4 and x1 PCI-Express interface, it can provide up to 8GB/s of

bandwidth, which AGP 8x can only provide up to 2GB/s.

Multimedia interfaces

P4LA also integrates 7.1 channel HD audio, PCI-Express, PCI and ISA interface, for these

flexible function, system integrator can built more powerful systems for many applications.

P4LA User’s Manual Introduction

Product Specification8

1.2 <Product Specification>

General Specification

Form Factor Industrial motherboard

CPU Intel®Pentium 4 /Pentium D/ Celeron D/ Core 2 Duo

processor with LGA775 socket

Package type: 775 pin PLGA

Front side bus: 533/800/1066MT/s (133/200/266MHz x 4)

Intel®Hyper-Threading Technology and Dual Core supported

Memory 4 x 240-pin DDR2 400/533/667MHz SDRAM up to 3GB

Dual-Channel technology supported

Unbufferred, none-ECC memory supported only

Chipset Intel®945G (Northbridge) and ICH7R (Southbridge)

BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Intel®ICH7R built-in RTC with lithium battery

Enhanced IDE Enhanced IDE interface supports dual channels and up to 2

ATAPI devices at Ultra DMA100

One 40-pin IDE port onboard

Serial ATAII Intel®ICH7R integrates 4 Serial ATA II interface

RAID 0, 1,5,10 Intel Matrix Storage Technology supported

Multi-I/O Port

Chipset Intel®82801GR ICH7R with Winbond®W83627THG controller

Serial Port Five internal RS-232 and one external RS-232 serial port

USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Parallel Port One LPT port on rear I/O panel

Floppy Port One Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface

Smart Fan One CPU fan connectors for fan speed controllable

VGA Display Interface

Chipset Intel®945G GMCH (Graphic Memory Controller Hub)

Core Frequency 400MHz

Memory Intel®DVMT 3.0 with up to 224MB shared with system memory

Display Type CRT, LCD monitor with analog display

Connector External DB15 female connector on rear I/O panel

P4LA User’s Manual Introduction

Product Specification 9

Ethernet Interface

Chipset 10/100/1000MT LAN interface with Marvell E8053

Type 10Base-T / 100Base-TX/1000Base-T,

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector one External RJ45 connectors with LED on rear I/O panel

Audio Interface

Chipset Intel®ICH7R with Realtek®ALC880 codec

Intel High Definition Audio compliance

Interface 7.1 channels sound output

Connector External Audio phone jack for Line-out, Line-in, MIC-in,

Surround, Center and Backsurround

Onboard audio connector with pin header (built-in amplifier for

speaker out)

Onboard CD-IN and S/PDIF connector

Expansive Interface

PCI-Express One x16 PCI-Express slot (compatible with x1 slot)

One x4 PCI-Express slot

One x1 PCI-Express slot

Up to 8GB/s of transfer bandwidth

Power supply: +3.3V, +12V

PCI Four-PCI slot (32-bit, 33MHz)

Power supply: +3.3V, +5V

ISA One ISA slot

Power and Environment

Power

Requirement Standard ATX 24-pin (20-pin is compatible) power supply

Additional +12V 8-pin(4-pin is compatible) power connector

Dimension 307mm x 244mm (L x W)

Temperature Operating within 0 ~ 60oC (32 ~ 140oF)

Storage within -20 ~ 85oC (-4 ~ 185oF)

Ordering Code

P4LA Support Intel Pentium 4 LGA775 with DDRII, Onboard VGA, One

Marvell Gigabit LAN ,8 x USB2.0, Realtek ALC880 HD Audio, 6 x

COM Ports, GPIO, SATA, CF and ISA slot.

The specifications may be different as the actual production.

For further product information please visit the website at http://www.commell.com.tw

P4LA User’s Manual Introduction

Component Placement10

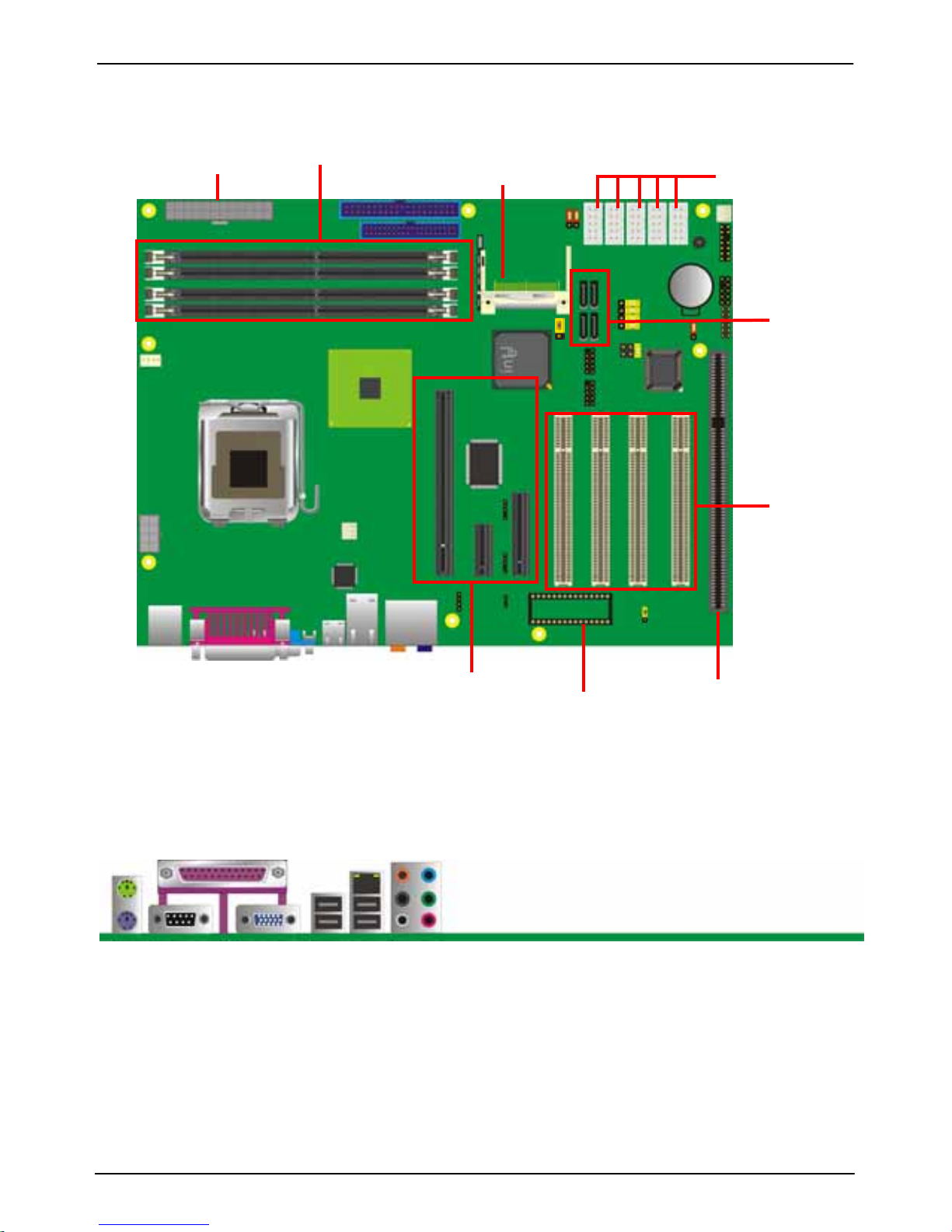

1.3 <Component Placement>

COM

ort

ISADOC

ATX

SATA II

DIMM

PCI-Ex

ress

PCI

LPT LAN

PS2

Serial

ort VGA

udio

Indice

Altri manuali Commell Scheda madre

Commell

Commell FS-977PRO Manuale utente

Commell

Commell LE-565 Manuale utente

Commell

Commell LP-177 Manuale utente

Commell

Commell LV-678 Manuale utente

Commell

Commell P4ELA Manuale utente

Commell

Commell LE-370 Manuale utente

Commell

Commell LV-673 Serial Manuale utente

Commell

Commell P2LXB Manuale utente

Commell

Commell P3SAE Series Manuale utente

Commell

Commell LS-37B Manuale utente

Commell

Commell LE-37D Manuale utente

Commell

Commell LV-669 Manuale utente

Commell

Commell HS-770 Manuale utente

Commell

Commell LE-365 Manuale utente

Commell

Commell FS-977 Manuale utente

Commell

Commell EE-260 Manuale utente

Commell

Commell FS-A70 Manuale utente

Commell

Commell LE-37N Manuale utente

Commell

Commell LP-173 Manuale utente

Commell

Commell P4BWA Manuale utente

Commell

Commell LV-67TK7 Manuale utente

Commell

Commell HE-B72 Manuale utente

Commell

Commell LV-67G Manuale utente

Commell

Commell LV-668 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
