CommScope SYSTIMAX 360 InstaPATCH 3603M UHD Manuale utente

SYSTIMAX®Solutions www.commscope.com

Instruction Sheet 860479179

Issue 5, August 2013

SYSTIMAX 360™InstaPATCH®Ultra High Density Modules

and Distribution Panel Instructions

(Used with 3603D UHD Shelf)

General

The SYSTIMAX 360™InstaPATCH®ultra high density (UHD) modules (3603M UHD) and 360 ultra high density

distribution adapter panel (3603P UHD) are used with the 3603D-1U-UP UHD shelf. The shelf provides secured,

enclosed slack trunk cable storage and features a removable cover. The modules are intended for indoor use,

but may be used outdoors in a suitable protective enclosure.

Ordering information is listed below:

Material ID Part No. Description

760111013 360-3M-4MPM1-48LC-LS

InstaPATCH®

360

UHD

LazrSPEED™

MM module 48 LC

760111039 360-3M-4MPM1-48LC-TS

InstaPATCH

360

UHD

TeraSPEED™

SM module 48 LC

760111153 3603P-24MPO UHD distribution adapter panel, 24 x MPO

SYSTIMAX 360™InstaPATCH

Ultra High Density Module

How to Contact Us

•To find out more about CommScope® products, visit us on the web at http://www.commscope.com/

•For technical assistance:

- Within the United States, contact your local account representative or technical support at

1-800-344-0223. Outside the United States, contact your local account representative or

Authorized Business Partner.

- Within the United States, report any missing/damaged parts or any other issues to

CommScope Customer Claims at 1-866-539-2795. Outside the United States, contact your

local account representative or Authorized Business Partner.

SYSTIMAX 360 Ultra High Density

Distribution Panel

860479179

Instruction Sheet www.commscope.com

Tools Required

•Phillips head screwdriver

•Lint-free tissue

•Isopropyl alcohol, 91% pure or higher.

Optional Tools

Material ID Description

760053199 Fiber optic connector cleaning and inspection kit

760053207 Fiber optic connector cleaning and inspection consumables

Parts List

Verify parts against the parts list below:

360 InstaPATCH UHD Modules (3603M)

Quantity Description

1 Ultra high density module

1 Trough assembly

2 #8 Pan head screws

1 Instruction sheet

1 Port label sheet

1 Cleaning instructions

1 Test report

Separately Orderable Cable Assemblies

Contact your SYSTIMAX®sales representative for more information on a wide variety of trunk cables and patch

cords that are compatible with this module.

Important Safety Cautions

•Isopropyl Alcohol is flammable, and can cause eye irritation on contact. If eye contact occurs, flush with

water for at least 15 minutes. In case of ingestion, consult a physician. Use only in well ventilated areas.

•Disconnected optical components may emit invisible optical radiation that can damage your eyes. Never

look directly into an optical component that may have a laser coupled to it. Serious and permanent retinal

damage is possible. If accidental exposure to laser radiation is suspected, consult a physician for an eye

examination.

•Wearing safety glasses during installation of this shelf is recommended. Although standard safety glasses

provide no protection from potential optical radiation, they offer protection from accidental airborne hardware

and cleaning solvents.

Precautions

•360 InstaPATCH modules contain fiber optic cable and passive optical components. When removed from

protective packing, they should be handled carefully and installed in appropriate racks for mechanical

support and protection.

360 UHD Adapter Panel (3603P)

Quantity Description

1 Ultra high density panel

1 Trough Assembly

2 #8 Pan head screws

1 Instruction sheet

1 Port label sheet

Page 2 of 6

www.commscope.com

860479179

Issue 5, August 2013

•360 InstaPATCH modules require virtually no maintenance to maintain their performance. They contain no

user-serviceable components, and any damage to the anti-tamper label or removal of top cover or front

adapter mounting panel will void the warranty.

•Fiber optic trunk cable and jumper performance is sensitive to bending, pulling, and crushing. Minimum

bend radius must be maintained during installation per the manufacturer’s specification. Appropriate pulling

socks must be used during installation, and pulling forces shall not exceed manufacturer’s

recommendations. Use caution to avoid kinking trunk cables.

•Care should be taken not to compromise the stability of the rack by installation of this equipment.

•To be installed in restricted access areas only.

Connector Cleaning

•360 InstaPATCH modules are pre-terminated, with protective dust caps installed on all adapters.

Connectors internal to the adapters are clean when purchased.

•Clean trunk cable and jumper connectors per manufacturer’s recommendations prior to connection to the

shelf.

•If trunk cables or jumpers are removed, replace provided dust caps on the adapters to protect the internal

connectors.

Step 1 – Configure Module

Note: 360 InstaPATCH modules must be configured as shown below for proper polarity. Identical modules are

used at both ends of trunk cable, but module orientation is inverted from end to end. Module at one end of trunk

cable must be oriented in “ALPHA” configuration, while module at opposite end of trunk cable must be oriented

in “BETA” configuration.

Orient module in the “ALPHA” or “BETA” configuration as shown in the figures below before installing module in

trough.

For 360 UHD adapter panels, configure with port numbering 1-24 in up position before installing trough.

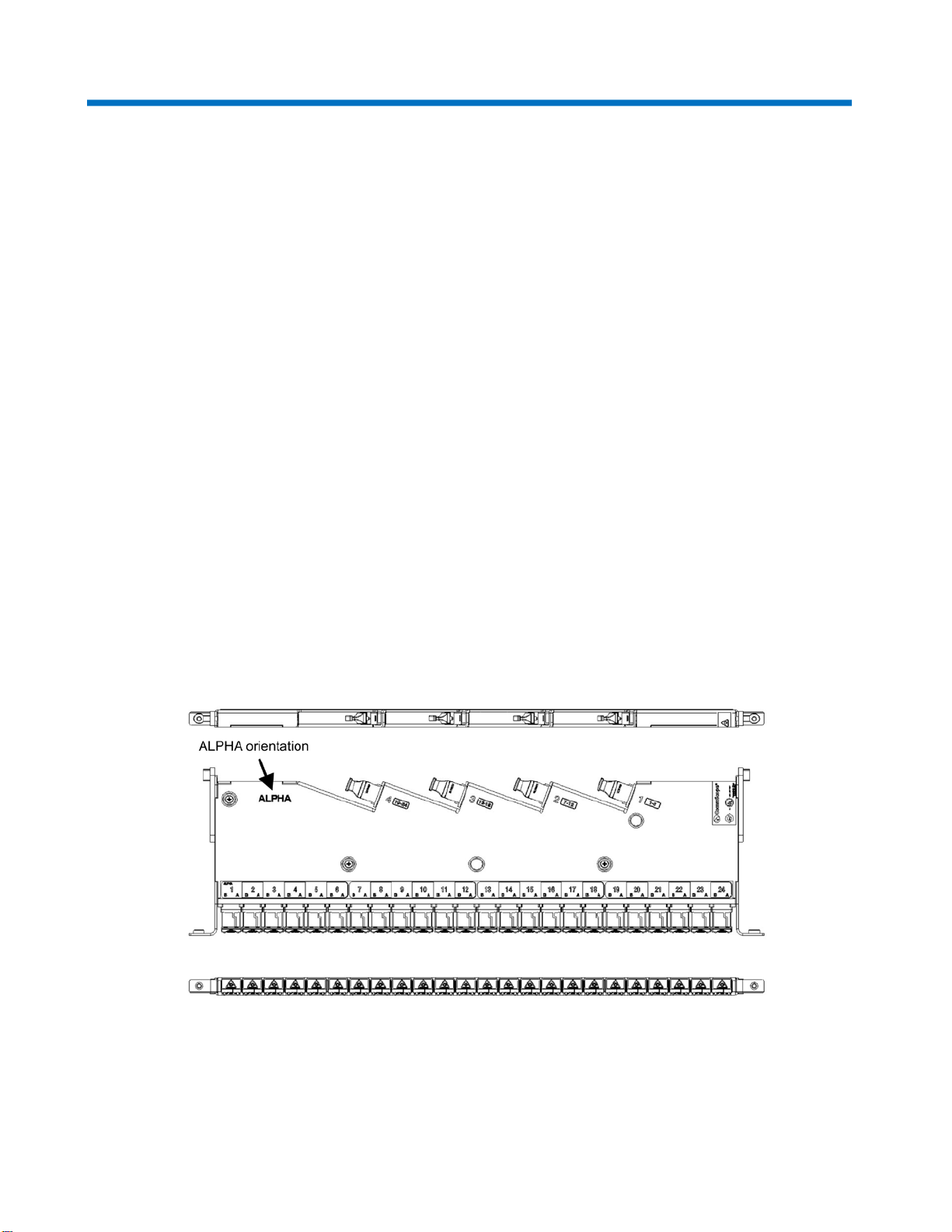

ALPHA Orientation

Page 3 of 6

860479179

Instruction Sheet www.commscope.com

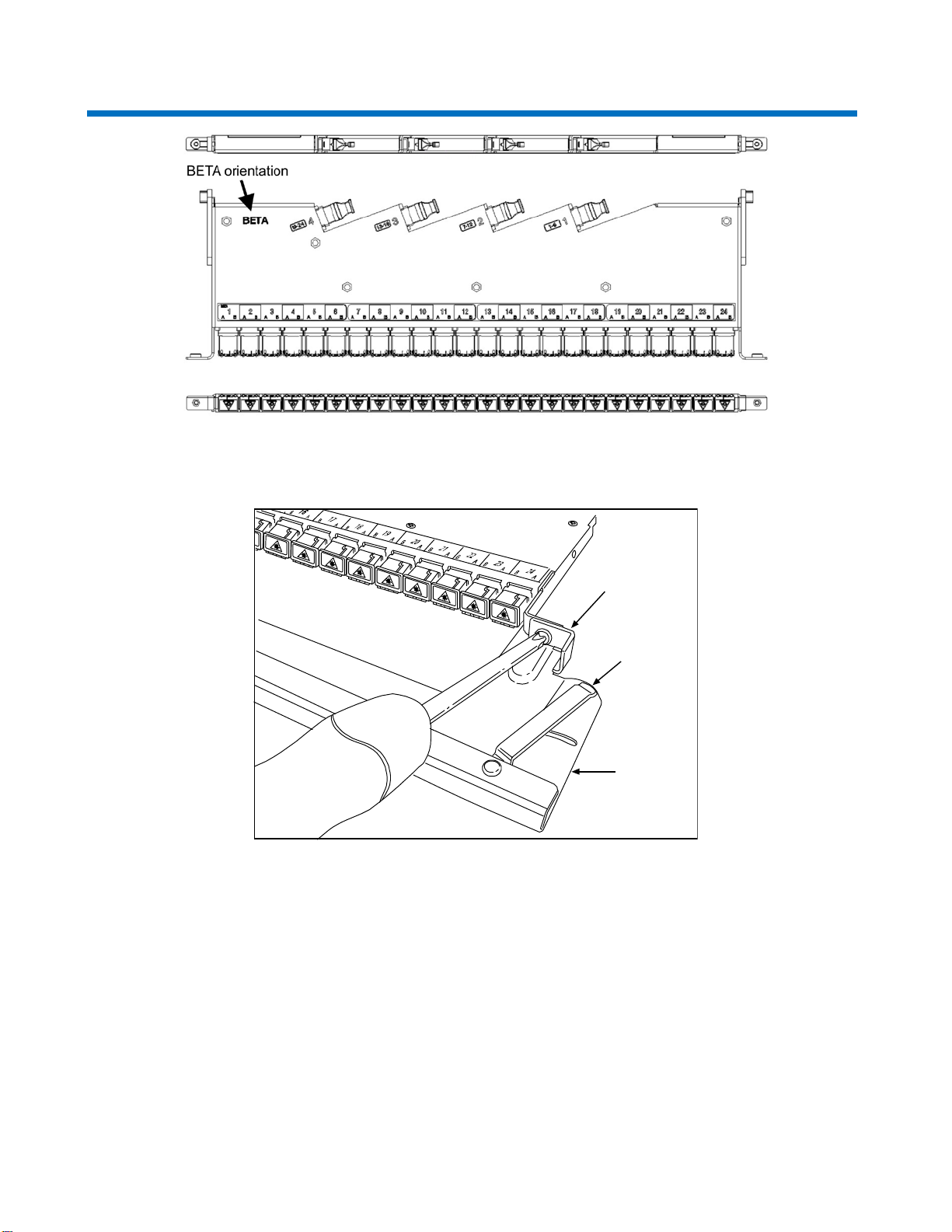

BETA Orientation

Step 2 – Install Module Trough

Trough

mounting

bracket

Spring

clip

Trough

1. Pre-terminated module (3603M): Place on work surface in required ALPHA or BETA orientation

per Step 1.

Adapter panel (3603P): Place on working surface with port labeling 1-24 in up position.

2. Orient module trough as shown with cable management spring clip facing up and secure trough to

module using two #8-32 pan head screws provided.

Page 4 of 6

www.commscope.com

860479179

Issue 5, August 2013

Step 3 – Port Labels

1. Port labeling may be printed on provided perforated label card using printable label template available on the

CommScope website: HUmycommscope.comUH and navigate to the UHD Module.

2. Remove printed labels from card at perforations.

3. Insert printed labels into label holders on trough through top edge opening.

Step 4 – Mount Modules/Panel in Shelf (Basic)

Note: This section contains only basic instructions for mounting UHD modules/panels in an UHD shelf. For

complete instructions on UHD shelf installation, UHD modules and panel installation, routing cables and patch

cords, and configuring cable management sleeve, see instruction sheet 860479229 provided with the UHD shelf.

Before installing modules/panels be sure any pre-installed cable sub-units are behind pivot mount panels and

provide enough clearance for panel installation.

Additionally some panel/module products may only have one pivot lock pin pre-installed (second pin shipped

loose). Install the second lock pivot pin by placing pin to side of module/panel engaging the oval retaining

features and aligning mount hole, then secure with the #8 flat head screw provided.

Module/Panel Installation

1. Insert panel/module at an angle

into one side of side of the shelf

so that pivot lock pin engages in

hole in pivot mounting bracket.

Be sure panel/module is

oriented with the trough opening

facing up. Install lowest panel

first.

Port Label

Trough in

“up” position

Pivot

mounting

bracket

Pivot lock pin

Page 5 of 6

860479179

Instruction Sheet www.commscope.com

2. Pivot other side of panel/module

down into shelf so that the pivot lock

pin is in back of the pivot mounting

bracket.

Note: Panel/module pivot lock pin

can only be inserted from the rear of

pivot mounting bracket.

3. Depress the lever arm on the pivot

mounting bracket and slide

panel/module forward until pivot lock

pin engages the hole in pivot

mounting bracket.

4. Release lever arm of pivot mounting

bracket to secure the panel/module

in place.

Subsequent panels, up to three total in

the 1U shelf, may be installed on top of

the base module/panel following the

instructions above for each panel using

progressively higher pivot pin positions.

Declaration Table

Listed below is the China ROHS Declaration Table applicable to the UHD modules and panel.

产品名称(Product Name): DM2 Module / MODG2 Module / DS2 Shelf / iPATCH Shelf 文件编号(Doc #)：FAPP-CROHSDS-1

光纤插头 (connector) X O O O O O

光缆(fiber cable) O O O O O O

标签 (label) O O O O O O

光纤插头适配器(connector adapter) X O O O O O

模块盒(module housing) O O O O O O

模块架 (shelf housing) O O O O O O

O: 表示该有毒有害物质在该部件所有均制材料中的含量在SJ/T 11363-2006规定的限量要求以下。

(O: indicates that the content of the toxic and hazardous substance in all the homogeneous materials of the part is below the

concentration limit requirement as described in SJ/T 11363-2006.)

X: 表示该有毒有害物质至少在该部件的某一均制材料中的含量超出SJ/T 11363-2006规定的限量要求。

(X: indicates that the content of the toxic and hazardous substance in at least one homogeneous material of the part exceeds the

concentration limit requirement as described in SJ/T 11363-2006.)

部件名称(Part Name)

有毒有害物质或元素 (Toxic and Hazardous Substances or Elements)

铅（Pb）

汞（Hg）

镉（Cd）

六价铬（Cr(VI)）

多溴联苯（PBB）

多溴二苯醚（PBDE）

Pivot lock pin

to rear of mounting

bracket

Lever arm

12345

Pivot lock

Holes in

pivot mounting

bracket

Page 6 of 6
