BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344 Page 1 of 10
A Top End Assembly
B Upright Extrusion
C Graphic Panel
D Base Cover
E Base
F M5 x 40mm Round Spacer
G M5 x 20mm Button Head Screw
H M5 x 20mm Flat Head Screw
I M4 x 8mm Button Head Phillips Screw
J T-25 Torx L-Wrench
K M5 Hex Wrench
A
x1
x2
x1
x1
x2
x1
x1
x4 x8 x4
B C
D
F
G H
I
J
K
x1
E
NOTE! Before getting started
If you plan on a constant power connection to
your Tablet, you will need to obtain a longer USB
cable, allowing you to route the cable through
the Upright Extrusion (B).
You will also need a AC Power Cord to connect
to a Power Cube. These Cables are not supplied
with the Stand.
To attach Enclosure to the Top End Assembly you
will need Phillips Head Screwdriver.
BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344
Step 1
Install the two Round Spacers (F) into the Base (E) using
two of the M5 x 20mm Flat Head Screws (H), tighten using
T-25 Torx L-Wrench (J).
Step 2
Locate the Upright Extrusions (B) on the Base (E). Make
sure extrusion has the flat edge facing forward. Install
the M5 x 20mm Flat Head Screws (H), tighten using T-25
Torx L-Wrench (J).
Note! Make sure screws in Upright Extrusion are tight.
F
Front
Front
Back
F
E
H
H
H
J
E
E
FF
E
H
B
H
J
Back
J
Page 2 of 10
BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344
Step 3
Prior to installing one of the Upright Extrusions (B) on
the Base (E) route extended USB cable (USB cable not
included) into the Upright Extrusion (B). Leave 9-10” of
the cable at the top of the Upright Extrusion (B).
Step 4
Install the Upright Extrusion (B) on the Base (E) using M5
x 20mm Flat Head Screws (H), tighten using T-25 Torx
L-Wrench (J).
Note! Make sure screws in Upright Extrusion are tight.
9-10” of
cable
H
B
B
B
B
E
E
H
J
Page 3 of 10
BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344
Step 5
Route USB cable and plug into charging cube (power
cable not included). Four 3/8” holes are provided in the
Base (E) for floor mounting (screws for floor mounting
not included).
Tip! To prevent A/C cord from disconnecting, tie a knot
in the cord.
Step 6
Route USB cable (USB cable not included) through Base
Cover (D) as shown.
E
D
D
Page 4 of 10
BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344
Step 7
Secure Base Cover (D) with M5 x 20mm Flat Head Screws
(H) using T-25 Torx L-Wrench (J).
Step 8
Install Graphic Panel (C) as shown.
D
H
J
J
C
H
Page 5 of 10
BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344
Step 8-a (Printer Tray Installation)
Cut the Graphic Panel (C) to the desired size and install
as shown in step 8.
Step 8-b (Printer Tray Installation)
Install Printer Tray (L) above the Graphic Panel (C) using
supplied screws (M) and tighten.
C
C
L
MM
M
M
M
Page 6 of 10
BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344
Step 9
Route the USB cable (USB cable not included) through
the hole in the center of Top End Assembly (A), install Top
End Assembly (A) using M5 x 20mm Button Head Screws
(G), tighten using T-25 Torx L-Wrench (J).
Step 10
Attach Tablet Enclosure (Tablet Enclosure for reference)
to 100mm mounting pattern using M4 x 8mm Button
Head Phillips Screws (I).
Tip! You can also install the Enclosure in portrait mode
(vertically).
G
G
G
G
J
J
I
I
I
G
A
Page 7 of 10
I
I
BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344
Step 10-a (Enclosure Installation)
Open the Enclosure (N) with the supplied Key (O). Insert
the Key (O) into the Lock (P) and turn a quarter turn
clockwise, you will hear a click sound, the Enclosure (N) is
open. Repeat with the second Lock. Remove the Key (O)
from the Lock (P) and open the Front Panel (Q).
Step 10-b (Enclosure Installation)
Connect the USB cable (USB cable not included) to the
Tablet (R). Install the Tablet (R) into the Enclosure (N).
Page 8 of 10
N
N
Q
O
O
O 90o
P
P
P
PP
P
N
R
BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344 Page 9 of 10
Step 10-c (Enclosure Installation)
Install the Front Panel (Q) in the cutouts on the side of the
Enclosure (N) and close it.
Q
N
N
Q
Step 10-d (Enclosure Installation)
Press the Front Panel (Q) to the Enclosure (N) to align the
Locks (P) with the holes for them and press the button on
the Locks (P). The Enclosure is closed.
N
P
P
Q
BrandMe Security Floor Stand
User Manual
©Compulocks Brands Inc. All Rights Reserved. www.compulocks.com | [email protected] | +1 800-948-0344
Graphic Panel Specifications
Maximum material thickness of .250”/6.35mm.
Option of using two pieces of .125”/3.18mm thick material
back to back.
34.75”
88.26cm
Shaded area represents
Visible Graphic Area when
panel is inserted into the
Extrusions on the Stand.
.375” or 9.53mm will be
covered by the Extrusions
on both sides of the
Graphic Panel.
Note! The Graphic slides
into the grooves of the
Extrusions of the Stand.
6.0”
15.24cm
Step 11
Adjust tilt tension by accessing the three screws on the
back of the Top End Assembly (A). Use M5 Hex Wrench
(K) to adjust screws.
K
A
5.25”
13.33cm
Page 10 of 10
Altri manuali compulocks Rack e supporto
compulocks
compulocks 660REACH Manuale utente
compulocks
compulocks Swell Manuale utente
compulocks
compulocks SlideDock 827BSLDK Manuale utente
compulocks
compulocks 201MGL Manuale utente
compulocks
compulocks BrandMe 140B Manuale utente
compulocks
compulocks Cling UCLGVWMB Manuale utente
compulocks
compulocks Swell Manuale utente
compulocks

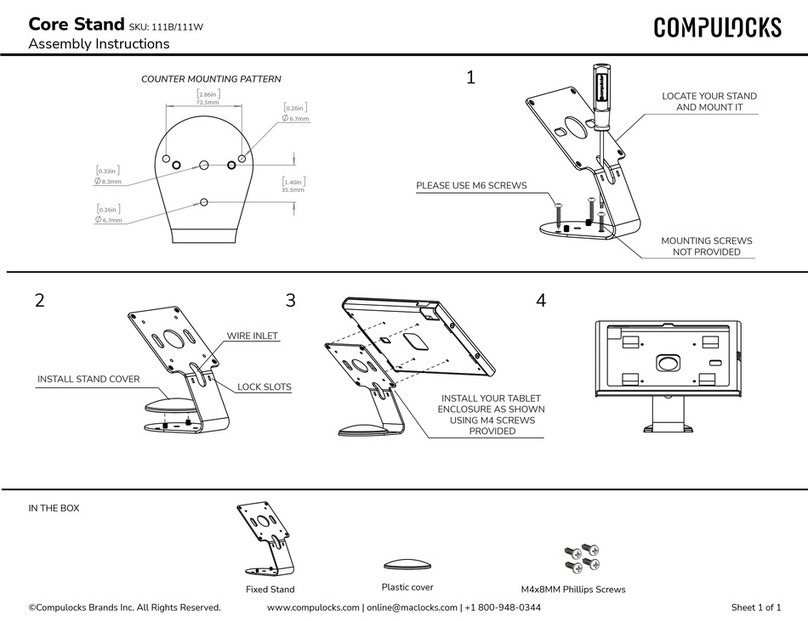

compulocks Core Manuale utente
