compulocks Rise 10 Manuale utente
234

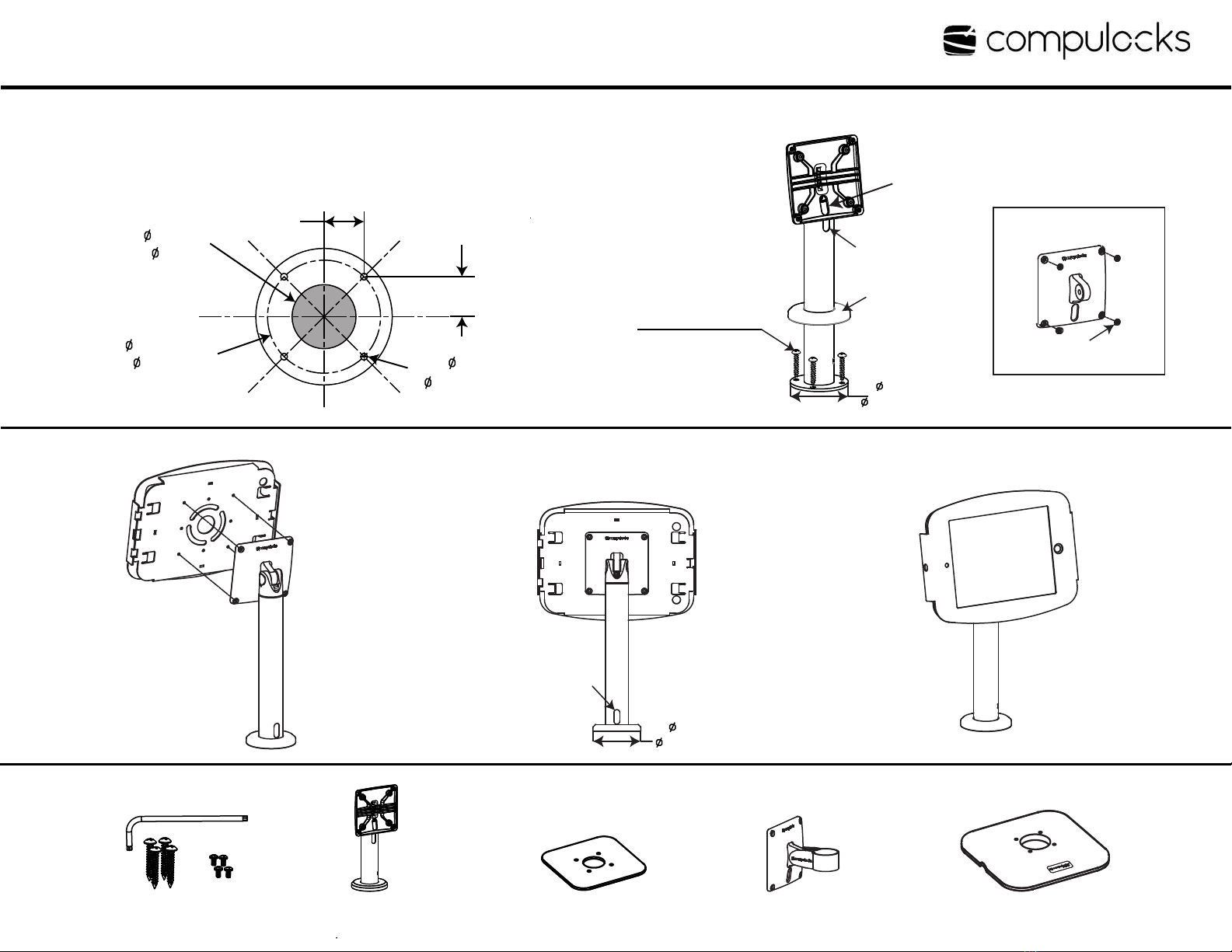

Installation On Counter Top
Assembly Instructions
Rise Pole Stand 10, 20 SKU: TCDP04, TCDP04W, TCDP01, TCDP01W
©Compulocks Brands Inc. All Rights Reserved.j
www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 1 of 2
IN THE BOX
Hardware Kit Fixed Pole Stand
23.80mm
.94 in
25.40mm
1.50 in
IF WIRING THRU
COUNTER
67.31mm
2.65 in B.C. 5.6mm
.219 in, 7/32 in
4X
23.80mm
.94 in
COUNTER MOUNTING PATTERN
1
IF MOUNTING
TO A MONITOR
REMOVE M4
PRESS IN NUTS
14 X 1 ½” SHEET
METAL SCREWS
COVER PLATE
WIRE INLET
WIRE PASS THRU
FROM ENCLOSURE
3.21”
81.53mm MOUNTING FLANGE DIAMETER
INSTALL YOUR TABLET
ENCLOSURE AS SHOWN
USING M4 SCREWS
PROVIDED WITH ENCLOSURE
WIRE
OUTLET
3.28”
83.32mm
COVER
DIAMETER
ASSEMBLY
COMPLETE
ACCESSORIES
Free Standing BaseAdhesive Base Single Add On Bracket
23

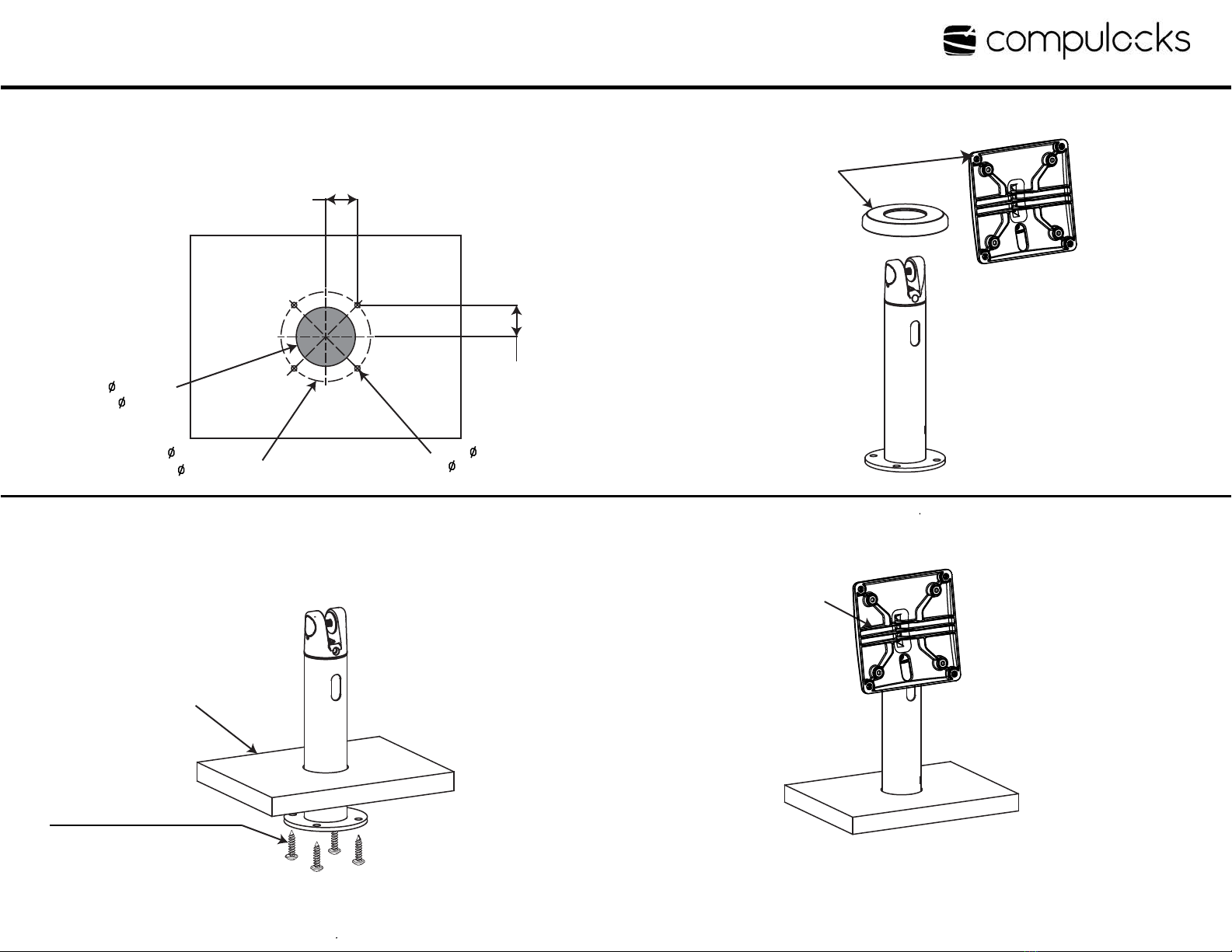

Installation Below Counter
Assembly Instructions
©Compulocks Brands Inc. All Rights Reserved.j
www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 2 of 2
1
BOTTOM VIEW OF COUNTER
23.80mm
.94 in
44.50mm
1.75 in
67.31mm
2.65 in B.C. 5.6mm
.219 in, 7/32 in
4X
23.80mm
.94 in
REMOVE 100mm PLATE
AND COVER PLATE
COUNTER
REINSTALL 100mm PLATE
ADJUST TILT TENSION
Rise Pole Stand 10, 20 SKU: TCDP04, TCDP04W, TCDP01, TCDP01W
SCREWS SHOULD
BE SHORTER THAN
COUNTER DEPTH
4 5 6
321

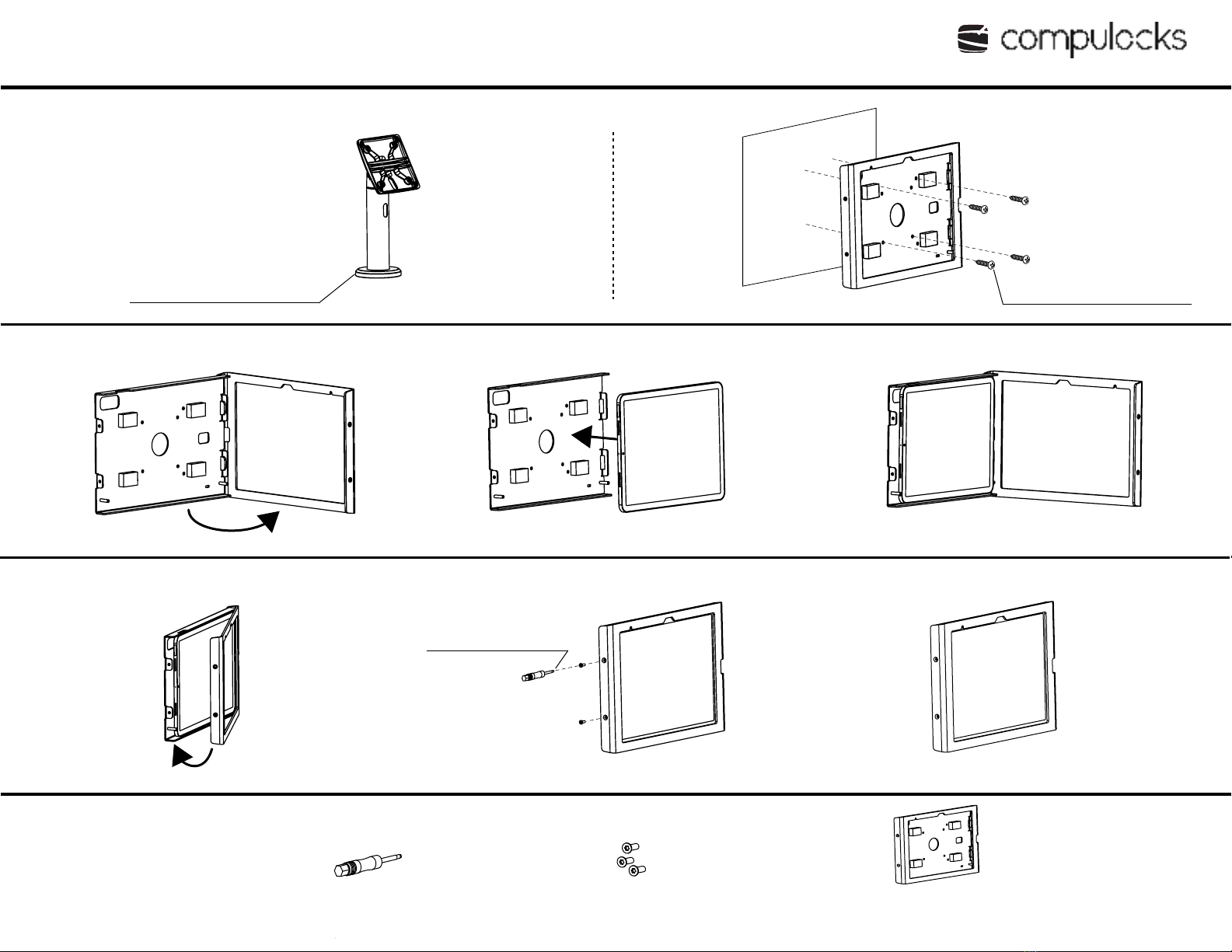

Assembly Instructions
Swell
IN THE BOX
©
Compulocks Brands Inc. All Rights Reserved.j
www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 1 of 1
Mounting options Or
WALL
FOLLOW STAND
MOUNTING INSTRUCTIONS
(SUPPLIED WITH STANDS)
Torx Screwdriver M3x10mm tamper proof screws Swell enclosure
WALL MOUNTING
(SCREWS NOT PROVIDED)
Secure with
M3 screws (provided)
