compulocks SlideDock 827BSLDK Manuale utente
Assembly Instructions
SlideDock Swing Arm SKU: 827BSLDK
©
Compulocks Brands Inc. All Rights Reserved.j
www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 1 of 2
Wall Mounting Hinge Adjustment
Hinge Adjustment Tilt Adjustment
ADJUST TILT TENSION SCREW
TO DESIRED TENSION
WITH WRENCH PROVIDED
ADJUST LARGE HINGE SCREW TO
DESIRED TENSION OF ARM
WITH WRENCH PROVIDED
AFTER CORRECT TENSION IS ACHIEVED
TIGHTEN THE SETTING SCREW WITH WRENCH PROVIDED.
DO NOT OVER TIGHTEN
STEP 1
STEP 2
ADJUST THE SECOND HINGE SCREW
TO DESIRED TENSION OF ARM
WITH WRENCH PROVIDED
AFTER CORRECT TENSION IS ACHIEVED
TIGHTEN THE SETTING SCREW WITH THE WRENCH PROVIDED.
DO NOT OVER TIGHTEN
STEP 4
STEP 3
2.75”
69.85mm
FIX TO SURFACE USING
APPROPRIATE SCREWS
(NOT INCLUDED)
Assembly Instructions
©
Compulocks Brands Inc. All Rights Reserved.j
www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 2 of 2

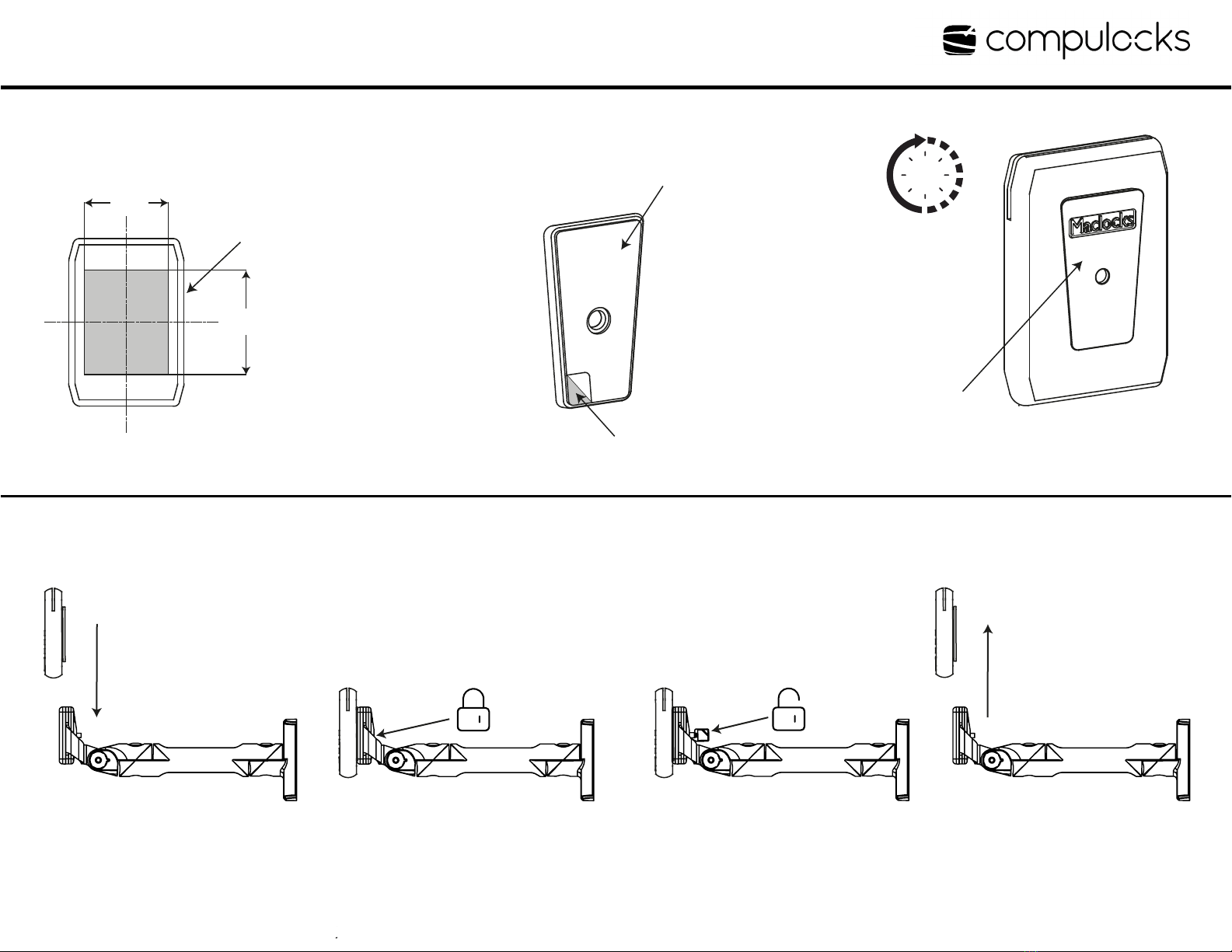

Device Bonding
SlideDock Swing Arm SKU: 827BSLDK
2.00”
50.8mm
2.50”
63.5mm
CLEAN A 2” (50.8mm) X 2.50” (63.5mm)
AREA CENTERED ON THE
BACK OF THE DEVICE
USING THE ALCOHOL PAD PROVIDED
PEEL COVER TO
EXPOSE ADHESIVE PAD
DOVETAIL
ADHERE DOVETAIL TO
BACK OF DEVICE
LET BOND SET FOR 12 HOURS
TO CURE FOR BEST PERFORMANCE
12
hours
Device Installation on Stand Device Removal From Stand
ROTATE 90O
