Connects2Vision

User Manual

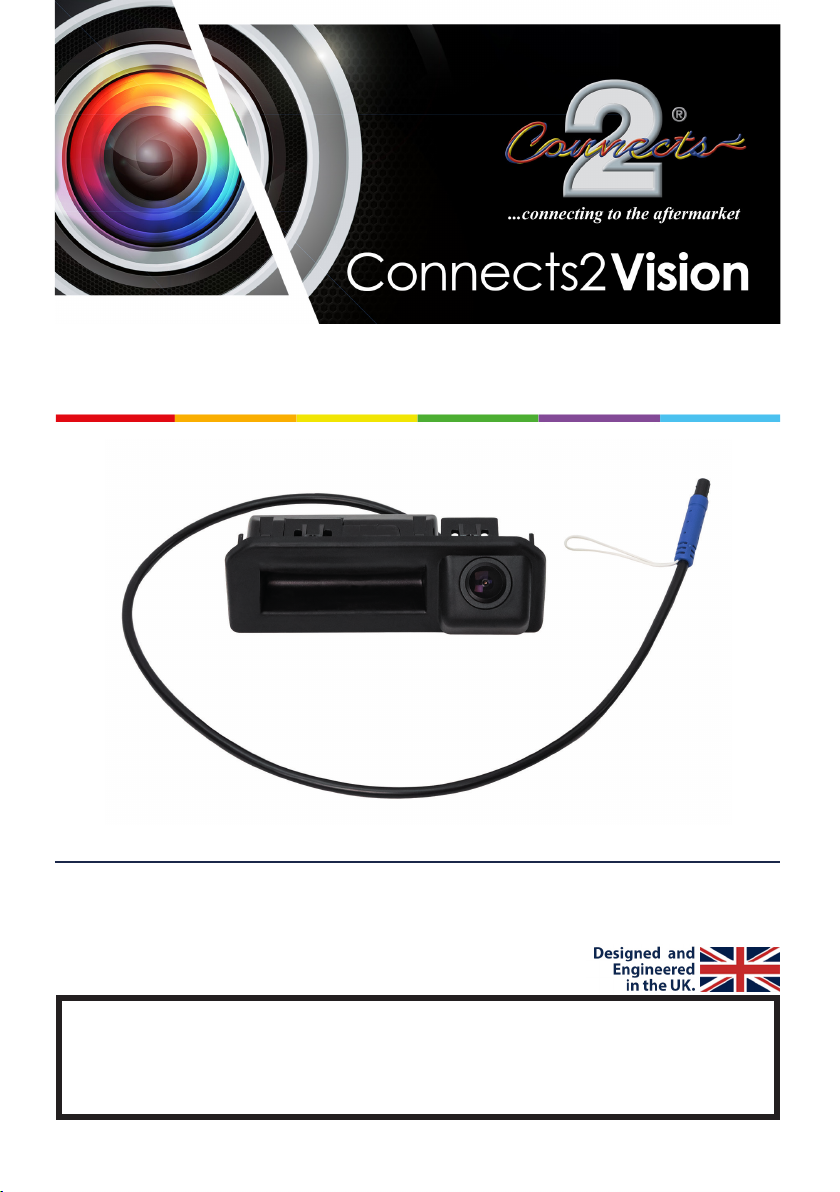

Boot Handle Reversing Camera

for select SEAT Vehicles

V1. 11/20

The information provided in this document is subject to change without notice due to manufacturer

changes and/or improvements to the product/s. This instruction manual is based on documented data

and research. The manufacturer of this product cannot be held responsible for any changes made to

the vehicle by the manufacturer or damages that may occur through the installation of this product in

accordance with the steps outlined herein.

DISCLAIMER

SEAT Arona 2017 >

CAM-ST1

APPLICATION

www.connects2.com

Connects2Vision

Connects2 want to provide a fast and suitable resolution should you encounter

any technical issues.

With this in mind, when contacting Connects2, try to provide as much

information as possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre:

support.connects2.com

• 1/3” CMOS sensor

• 720 x 480 resolution (NTSC)

• Wide Angle Lens

• 12V DC operating voltage

• IP67 rated waterproof

• Viewing angle: 90 ° vertical / 170 ° horizontal

• Parking Guidelines (removable)

PRIOR TO INSTALLATION

Read the manual prior to installation. Technical knowledge is necessary for

installation. Please ensure you use the correct tools to avoid damage to the

vehicle or product.

Connects2 can not be held responsible for the installation of this product.

SPECIFICATIONS

PRODUCT INFORMATION

CAM-ST1

This compact Reverse Camera ensures a high level of safety within a small

package. The CAM-ST1 features automatic switching to the camera feed

upon activation of reverse gear and also boasts removable parking guidelines.

This product is a perfect safety solution for the following vehicles:

SEAT Arona (KJ7) 2017 >

TECHNICAL SUPPORT

www.connects2.com 3

Connects2VisionINSTALLATION

1. Before installation, cut the loop on the camera to enable/disable camera

features.

Loop Cut - Lines On

Loop Uncut - Lines Off

6. Focusing now on the Camera Wiring Harness, connect the Black wire to a

suitable ground connection. Connect the Red wire to a switched +12V supply.

Then nally connect the Yellow RCA to the Head Units source of video input.

3. Connect the Power Adapter to the Extension Cable and begin to thread the

length toward the vehicles head unit.

4. Connect the ying wire found on the Extension Cable to a reverse trigger

signal (this can normally be found within the reverse light circuit).

2. Select a suitable location for the camera and ensure that the area is free

from any/all cabling, fuel or oil. Where possible, avoid locations subject to road

dirt and water spray.

5. Connect the Extension Cable to the main Camera Wiring Harness.

7. To test the camera connection, turn on the ignition and put the vehicle into

reverse. The camera feed will populate on screen with parking guidelines (if

loop has been cut).

If camera feed is unresponsive, please uninstall the wiring and reinstall carefully

in accordance with the above steps

For further help and support, please contact us directly at

support.connects2.com/tickets/technical

and ll out a support ticket with the full details of your issue.

www.connects2.com

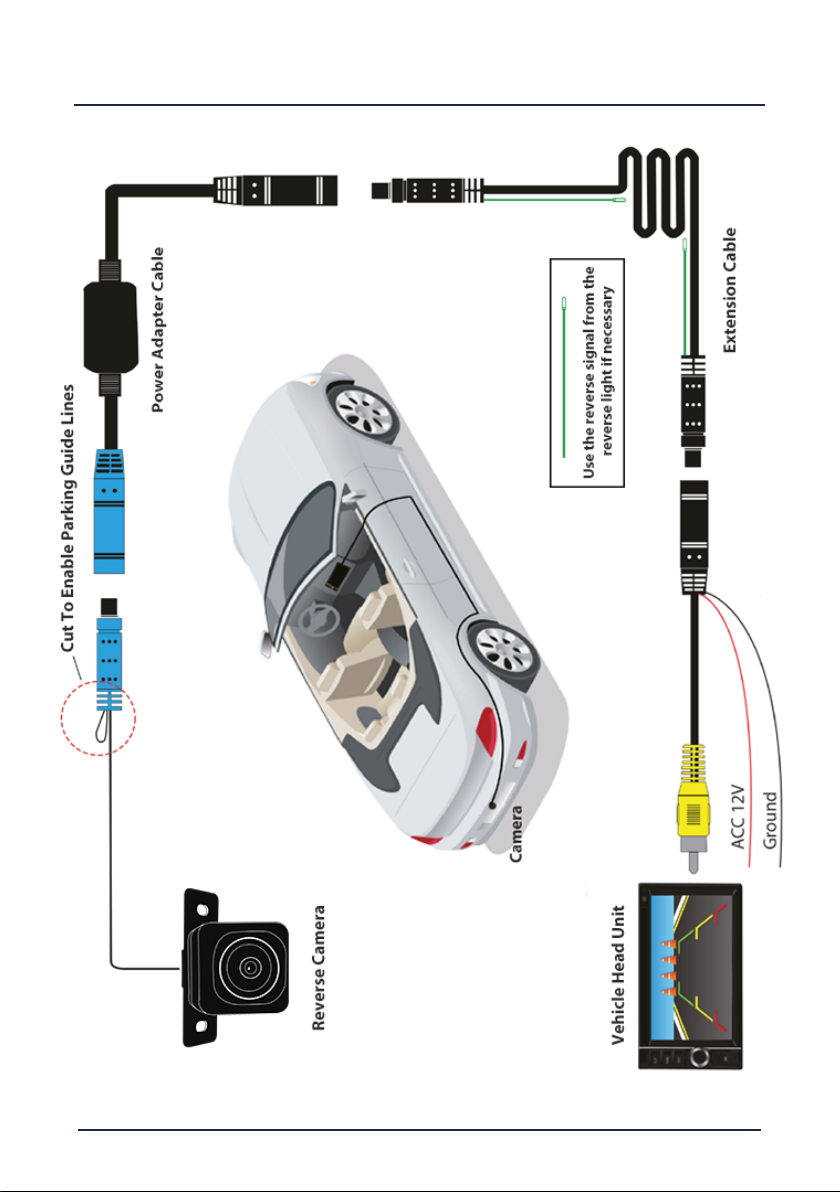

Connects2VisionWIRING DIAGRAM
