Cooper Security Scantronic i-sd02 Guida all'installazione

i-sd02

Speech Dialler

Installation and

Programming Guide

Page 2

Introduction

The i-sd02 module is designed to fit on the i-on40 control unit. The

i-sd02 allows the control unit to report alarm conditions over the

public switched telephone network (PSTN) using standard ARC

protocols such as Fast Format, SIA I, -II, –III, or extended SIA,

Contact ID, recorded speech messages, or SMS (Short Message

Service) texts to mobile telephones by way of the PSTN. In addition

the i-sd02 allows Downloader software to communicate with and

monitor the control unit.

Figure 1 shows the main features of the module.

1. Microphone 2. Speaker

3. Pins for ADSL filter 4. Telephone line connector

5. Off-hook LED 6. Record/Playback LED

Figure 1. i-sd02 Module

Installation

Safety Notice

Figure 2 identifies connectors for Safety Extra-Low Voltage (SELV)

and Telecommunications Network Voltage (TNV) circuits on the

control unit's main PCB. These terms are used in accordance with

the definitions in Safety Standard EN60 950.

Page 3

The Installer must ensure that TNV terminals are connected only to

other circuits designated as TNV circuits (for example, the PTSN)

and that SELV terminals are connected only to other circuits

designated as SELV circuits. Strict adherence to the installation

instructions will ensure that the equipment continues to comply

with the safety regulations to which it was approved.

1. SELV terminals

2. TNV terminals.

Figure 2. SELV and TNV Terminals

CAUTION: Make sure that the end station is not powered (either

mains or battery) before fitting the i-sd02.

Preparation

Before fitting the i-sd02 module, check whether the telephone line

you intend to use is shared with an ADSL (broadband) modem. If it

is, then remove the factory fitted jumpers from the i-sd02 and fit

filter ADSL01 as shown in Figure 3 .

ADSL01

Figure 3. Fitting ADSL01 to i-sd02

Page 4

Note: If the telephone line is NOT shared with an ADSL modem

then leave the factory fitted jumpers in place.

Installing the Module in the End Station

1. Enter Installer Menu (to prevent tamper alarms in step 2) and

remove mains power from the end station.

2. Open the end station lid and disconnect the battery.

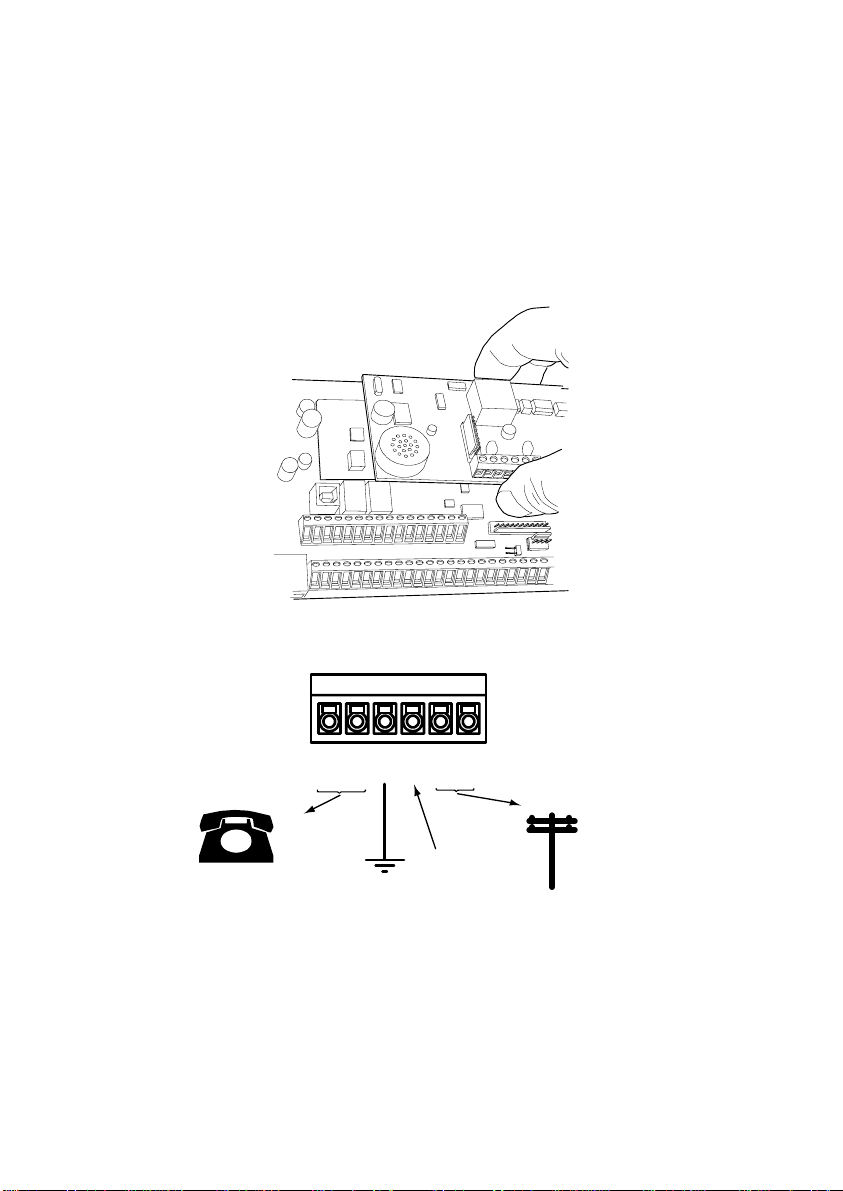

3. Fit the i-sd02 to the plug on module sockets (see Figure 4).

Figure 4. Fitting i-sd02 Module

4. Connect the module to the PSTN.

ABCEA1B1

See Not e

PSTN

WARNING: Telecommunications Network Voltage

A, B Connect to PSTN

A1, B1 Connect to local phone extension (if required)

E For added surge protection connect to a suitable protective earth.

C Note: (UK only) connect to ringing wire from PSTN and to ringing wire on extension

phone, if fitted.

Figure 5. Telephone Connection

Page 5

The person connecting the i-sd02 module to the PSTN must be

suitably qualified. Connect the i-sd02 telephone connector (see

Figure 5) ONLY to the PSTN or to other circuits designated as

Telecommunications Network Voltage.

5. If you want to record speech messages, please carry on from

step 6. If you are NOT going to record any speech messages,

reconnect the battery, fit the lid, and apply mains power.

Recording Voice Messages

The microphone for recording speech messages is on the i-sd02

module, as well as a small speaker that allows you to playback the

messages.

If you intend to record speech messages, and the user’s keypad is

already fixed at some distance from the central station, you may

wish to temporarily connect a second keypad to the end station.

This will enable you to program the system and easily

record/playback any speech messages.

6. If necessary, temporarily connect a keypad.

7. Reconnect the battery.

8. Apply mains power.

Alternatively, you can temporarily enable the control unit tamper

switch to act as a record/playback control, see below.

To enable the control unit tamper switch as a record/playback

control:

9. Start with the end station lid off and the tamper switch open.

10. At the keypad go into the Installer Menu – Communications –

Speech Dialler – Messages, select Use Lid Tamper .

11. At the control unit hold down the tamper switch. When the red

Record/Playback LED on the i-sd02 glows recite your message.

12. Release the tamper switch.

13. Pulse the tamper switch briefly.

The i-sd02 plays back your recording.

14. Go back to the keypad and press Xto leave the “Use Lid

Tamper Mode”.

Page 6

Programming

For details on programming the i-sd02 please refer to the

i-on40 Programming Reference. All the options necessary for

programming the module are in the Installer Menu under the

Communications option.

Note: The control unit hides the Communications - Speech Dialler

option if there is no i-sd02 fitted.

Finishing the Installation

Once programming is complete:

If you connected a temporary keypad earlier, then remove all

power (mains and battery) before disconnecting the keypad. Re-

apply mains and battery power afterwards.

NOTE: If you enabled the end station tamper switch to

control speech recording and playback then remember to

disable it BEFORE fitting the end station lid.

Re-fit the lid of the end station.

Test the module using the options in the Installer Menu - Test option.

Page 7

NOTES:

Page 8

Every effort has been made to ensure that the contents of this book are correct. However,

neither the authors nor Cooper Security Limited accept any liability for loss or damage caused

or alleged to be caused directly or indirectly by this book. The contents of this book are subject

to change without notice.

Printed and published in the U.K.

This manual applies to software used in the i-on40 control unit with version 2.xx.xx software.

www.coopersecurity.co.uk

Product Support (UK) Tel: +44 (0) 870 757 5400.

Available between:

08:15 and 17:00 Monday to Friday.

Product Support Fax: (01594) 545401

Part Number 11952877 Issue 1
