Corant Air-Q Manuale utente

for Setup and Operation

These instructions are also available at:

air-q.com/documents

Quick Reference Guide

Dear Customer,

We are very pleased that you have decided to monitor your

facilities‘ air quality and thank you for putting your trust in us and

in the air-Q.

Please read these brief operating instructions carefully. We can

only ensure that your new, smart measurement device will func-

tion properly if you follow these instructions. If something does

not work as expected, please do not hesitate to contact us. Our

contact details can be found on the last page of this operating

manual.

We provide you with a high-tech device that will ultimately give

you information about the air you breathe and will get even

smarter over time. We hope that you will enjoy our product.

Mario Körösi

Managing Director at Corant GmbH

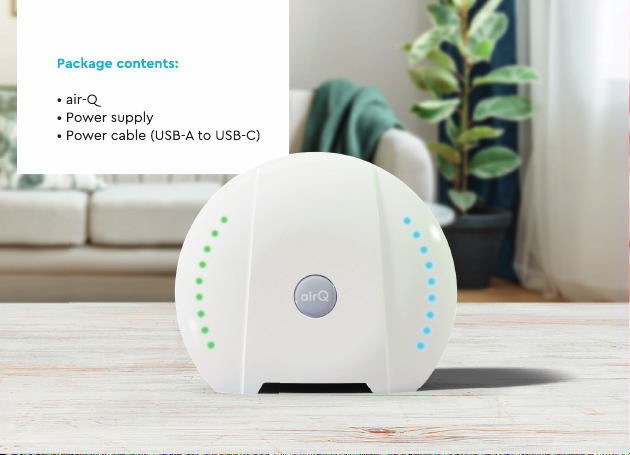

Package contents:

• air-Q

• Power supply

• Power cable (USB-A to USB-C)

Package contents:

• air-Q

• Power supply

• Power cable (USB-A to USB-C)

Application

The air-Q is an intelligent and highly accurate air analysis device for smart

home integration. It wirelessly connects to your Wi-Fi and can be conveniently

operated using the air-Q smartphone app or the web browser. Please note the

following to ensure that the air-Q works as intended:

• This air-Q that you have purchased is intended for indoor use only.

• The surface can be easily and carefully cleaned with a moist cloth

(without detergent) without damaging the blades.

• The air-Q is not suitable for use in humid rooms (> 95% air humidity).

• Do not cover the air-Q or otherwise close the air inlets.

• You should not remove the memory card (SD card) during operation.

Experienced users may remove the memory card in order to manually read

the data when the air-Q is turned off.

• Do not convert, modify, or open the air-Q.

• To obtain the best measurement results, we recommend that you use the

included power supply and power cable. Many cheap power supplies and

power cords unfortunately do not completely meet the USB standards and

sometimes distort the measurement results.

• Operate the air-Q only in accordance with the guidelines in these instructions.

Device overview > Front/side

green:

Health index

blue:

Performance index

Air inlets

underneath lateral slats

LEDs: provide status information and air quality data during continuous

operation. The fewer lights that are illuminated, the worse the air quality is.

The lights turn red if critical values have been reached. A loud warning tone

will also sound.

> from below

Cable duct

SD card

(All measurement data

is stored here.) Air inlets

Power cable

(USB-C, power supply

only, no data)

Reset button

lateral slats

Start-up/initial setup

1. Connect the air-Q to the included USB-C cable

and power supply.

2. The device will boot. Both LED strips (green and blue)

will indicate the booting process. This lasts approx. 15 to

20 seconds. The air-Q is now operational and is already

measuring and recording data. (An air-Q Wi-Fi hotspot is

now discoverable.)

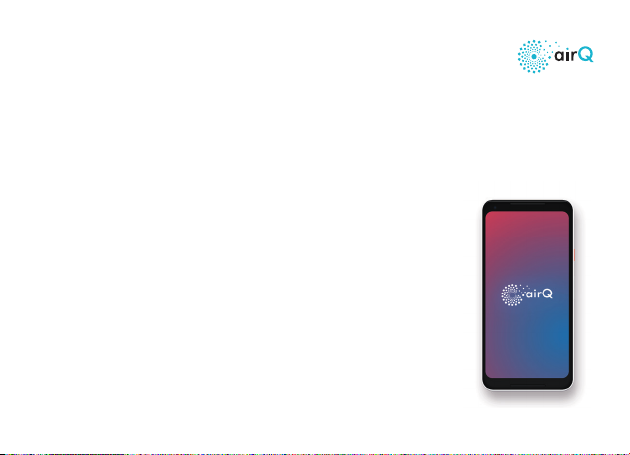

3. Download the air-Q app from the Google Play Store

(Android) or the Apple App Store (iOS) and open it.

4. Go through the air-Q app‘s con guration assistant and

con gure Wi-Fi access.

Reset/rmware updates

Conguration reset

All congurations (Wi-Fi, individual device congurations will be erased):

Press and hold the reset button for 4 seconds while switching it on (connect

the power cable on the power supply end). The LEDs indicate the progress in

white and will all turn green once the process has successfully completed.

Factory reset

All settings and data will be irrevocably deleted: Press and hold the reset

button for 10 seconds while switching it on (connect the power cable on the

power supply end). The LEDs indicate the progress in orange and will all turn

green once the process has successfully completed.

Firmware update

The air-Q will automatically obtain rmware updates if it is connected to a Wi-

Fi network with an internet connection. It can be started using the air-Q app.

Help

PROBLEM CAUSE SOLUTION

I can no longer access the

air-Q and am being asked for

my password.

The air-Q has a device pass-

word that protects it from

external access.

Perform a conﬁguration

reset.

The air-Q can no longer

connect to Wi-Fi.

The air-Q cannot ﬁnd a

known Wi-Fi network.

Run the conﬁguration assis-

tant in the air-Q smartphone

app and conﬁgure the Wi-Fi.

No data can be stored on the

SD card or no historical data

can be displayed.

Either there is no SD card

inserted into the air-Q or it is

defective or full.

Perform a factory reset. If

the problem persists, please

insert a new SD card (FAT32

formatted).
