Cornelius FCB VIPER Manuale utente

FCB VIPER DISPENSER

Viper Language Chip Kit

Installation Instructions

Release Date: January 16, 2009

Publication Number: 629096930INS

Revision Date: March 9, 2010

Revision: B

Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.

CONTACT INFORMATION

The products, technical information, and instructions contained in this manual are subject to change with-

out notice. These instructions are not intended to cover all details or variations of the equipment, nor to

provide for every possible contingency in the installation, operation or maintenance of this equipment.

This manual assumes that the person(s) working on the equipment have been trained and are skilled in

working with electrical, plumbing, pneumatic, and mechanical equipment. Appropriate safety precautions

should be followed and all local safety and construction requirements should be met.

To inquire about current revisions of this and other documentation, or for assistance with any Cornelius

product contact:

www.cornelius.com

800-238-3600

This document contains proprietary information and it may not be reproduced in any way without permis-

sion from Cornelius.

Printed in U.S.A.

Viper Language Chip Kit Installation Manual

INTRODUCTION

DOCUMENT OVERVIEW

Introduction

Version 2.xxx and Version 3.xxx User Interface board numbers require different

versions of the language chip. Version 3.xxx of the UI board introduced a larger

character font set which allows for better translation of terms into the appropriate

language.

KIT ORDERING

Software version of UI can be accessed by selecting MENU then UNIT DATA

from the main menu of the Viper unit and pressing the “VER” soft key.

Table 1

User Interface Software Version Language Chip Kit

2.xxx Traditional Chinese 629096930-TC

Simplified Chinese 629096930-SC

3.000 and above Traditional Chinese 629096931-TC

3.000 and above Simplified Chinese 629096931-SC

3.000 and above Korean 629096931-KR

3.005 and above Japanese 629096931-JP

3.000 and above Spanish 629096931-SP

Revision Date: March 9, 2010 www.cornelius.com Revision: B

Viper Language Chip Kit Installation Manual

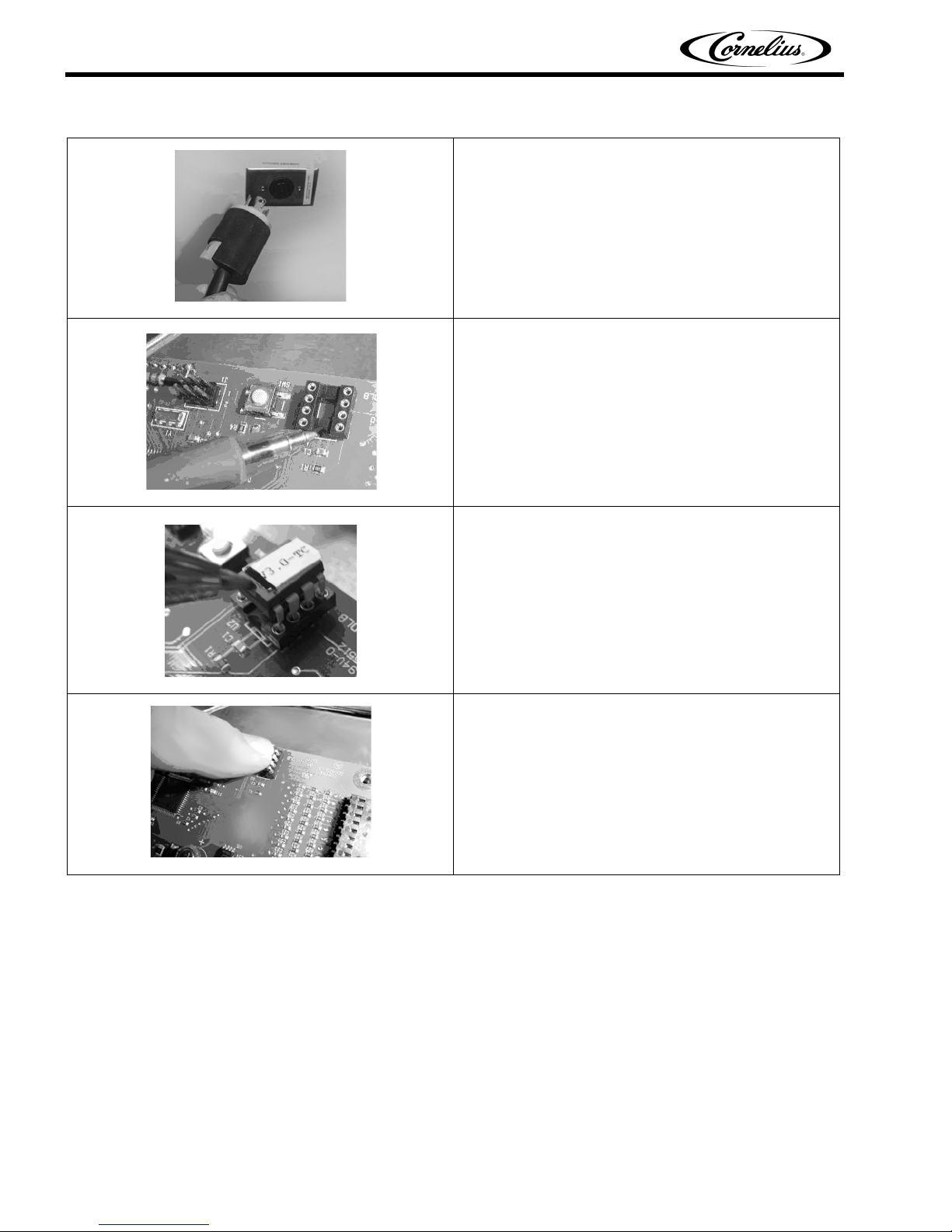

Remove power from the Viper unit.

Locate the 8-pin socket on the User Interface board.

Note that the notch on the socket indicates the

direction the language chip should be installed.

Locate the black bar on the label of the language chip;

it is near the small notch in the chip.

Gently insert the new language chip into the socket,

making sure that all the pins on the chip are aligned

with the holes in the socket and the black bar on the

chip label lines up with the notch in the socket.

Now gently apply finger pressure until the chip settles

firmly and completely into the socket. Be careful not to

damage the circuit board.

Viper Language Chip Kit Installation Manual

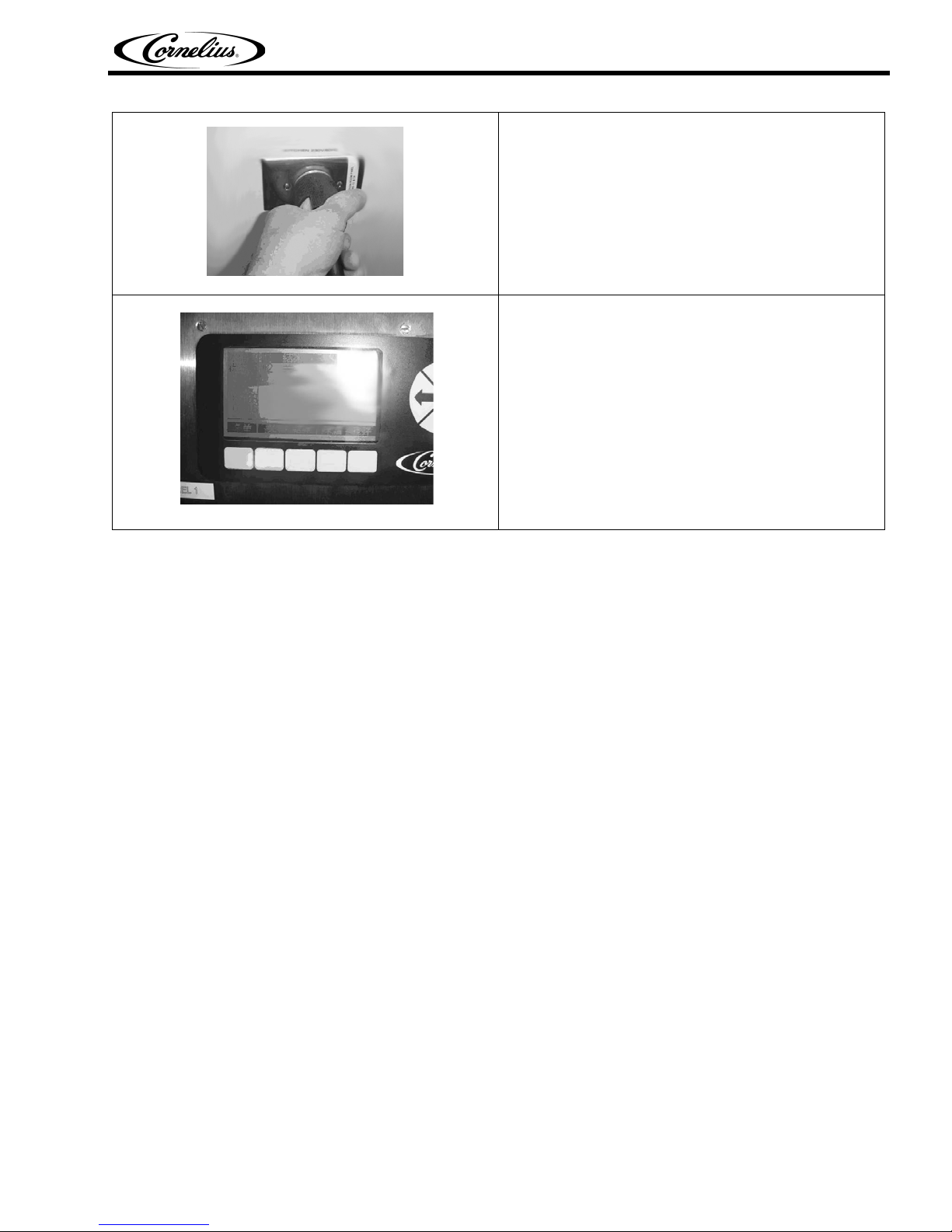

Re-apply power. The Viper unit should display the new

language.

Upon power-up and initialization, the new (native)

language will now be displayed.

If the up and down arrow keys are held simultaneously

for 5 seconds, the English language over-ride will

occur. This allows service technicians unfamiliar with

the native language to work in English. The unit will

revert back to the native language after 10 minutes of

no-activity on the User Interface. To revert back to the

native language sooner, the machine must be power

cycled.

Viper Language Chip Kit Installation Manual
