CCM0322, 0522 Service Parts Manual Manual Number 631806057
Nordic
Model CCM0322, 0522
Service Parts Manual
(Includes 50Hz. Units)
IMI CORNELIUS INC.
www.cornelius.com
Publication Number: 631806057
Revision Date: November 19, 2009
Revision: B
Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.
*
CCM Series Service Parts Table Of Contents
This parts list contains the service parts available for the CCM Series icemakers listed below:
CCM0322**1 Air and Water Cooled
CCM0322**5 Air and Water Cooled
CCM0522**1 Air and Water Cooled
CCM0522**5 Air and Water Cooled
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Exterior Page 2
CCM0322/CCM0522 Air Cooled Page 3
CCM0322/CCM0522 Water Cooled Page 4
Evaporator Page 5
Control Box Page 6
Fan Assemblies Page 7
Harvest Assist Components Page 8
Water Pump/Float Page 9
Website : www.cornelius.com
Telephone Number
800-238-3600 All Departments
The CCM Series Service Manual is available seperately, Part Number 631806061
Note: Model Number Suffix Indicates Machine Voltage As Follows:
1=115/60/1
2=208-230/60/1
3=208-230/60/3
5=230/50/1
Page 1
CCM0322/0522 Series Service Parts Exterior Panels
Item Stainless Steel Panels
No. CCM0322 1 CCM0322 5 CCM0522 1 CCM0522 5 Description
1 620204755 620204755 620204755 620204755 Front Panel
2 620204388 620204388 620204388 620204388 Right Hand Side Panel-
A
ir Cooled Only
620204391 620204391 620204391 620204391 Right Hand Side Panel-Water Cooled Only
3 620204390 620204390 620204390 620204390 Top Panel
4 620204321 620204321 620204321 620204321 Left Hand Side Panel
5 620204445 620204445 620204445 620204445 Front Panel Screw
6 620204441 620204441 620204441 620204441 Side Panel Screw
7 620204389 620204389 620204389 620204389 Rear Cover Panel
Model Number
Page 2
CCM0322/0522 Series Service Parts Air Cooled
Page 3
Item
No. CCM0322 1 CCM0322 5 CCM0522 1 CCM0522 5 Description
1 620204699 620204700 620204699 620204706 Compressor Kit-- See page 6 for Compressor Components
2 620204601 620204601 620204601 620204601 Filter Drier
3 620204618 620204618 620204616 620204616 Expansion Valve
4 620204611 620204611 620204611 620204611 Hot Gas Valve Body
5 620204613 620204614 620204613 620204614 Hot Gas Valve Coil
6 620204552 620204552 620204552 620204552 Bin Switch
7 620204354 620204354 620204354 620204354 Side Brace
8 620204351 620204351 620204351 620204351 Ice Deflector
9 620204290 620204290 620204290 620204290 Front Frame panel
10 620204535 620204535 620204535 620204535 Service Valve Cap
11 620204534 620204534 620204534 620204534 Service Valve Core
12 620204480 620204480 620204480 620204480 High Temperature Safety Control
13 620204459 620204459 620204459 620204459 Nylon Wing Nut
14 620204355 620204355 620204355 620204355 Control Box Cover
15 620204510 620204510 620204510 620204510 Water Pan
16 620204468 620204469 620204468 620204469 Purge Valve
17 620204474 620204474 620204474 620204474 High Pressure Control
18 620204478 620204478 620204478 620204478 Fan Cycle Control
Model Number
Page 3
CCM0322/0522 Series Service Parts Water Cooled
Item
No. CCM0322 1 CCM0322 5 CCM0522 1 CCM0522 5 Description
1 620204699 N/A 620204699 N/A Compressor Kit-- See page 6 for Compressor Components
2 620204601 N/A 620204601 N/A Filter Drier
3 620204618 N/A 620204618 N/A Expansion Valve
4 620204611 N/A 620204611 N/A Hot Gas Valve Body
5 620204613 N/A 620204613 N/A Hot Gas Valve Coil
6 620204552 N/A 620204552 N/A Bin Switch
7 620204354 N/A 620204354 N/A Side Brace
8 620204351 N/A 620204351 N/A Ice Deflector
9 620204290 N/A 620204290 N/A Front Frame panel
10 620204535 N/A 620204535 N/A Service Valve Cap
11 620204534 N/A 620204534 N/A Service Valve Core
12 620204480 N/A 620204480 N/A High Temperature Safety Control
13 620204459 N/A 620204459 N/A Nylon Wing Nut
14 620204355 N/A 620204355 N/A Control Box Cover
15 620204510 N/A 620204510 N/A Water Pan
16 620204468 N/A 620204468 N/A Purge Valve
17 620204474 N/A 620204474 N/A High Pressure Control
18 620204595 N/A 620204595 N/A Water Cooled Condenser
19 620204465 N/A 620204465 N/A Water Regulating Valve
Model Number
Page 4
CCM0322/0522 Series Service Parts Evaporator
Item
No. CCM0322 1 CCM0322 5 CCM0522 1 CCM0522 5 Description
1 620204304 620204304 620204756 620204756 Evaporator-Full Cube
1 620204305 620204305 620204757 620204757 Evaporator-Half Cube
3 620204758 620204758 620204323 620204323 Curtain
4 620204295 620204295 620204295 620204295 Water Distribution Tube
5 620204453 620204453 620204453 620204453 Thumb Screw
6 620204429 620204429 620204429 620204429 Washer
7 620204340 620204340 N/A N/A Curtain Stopper Clip
8 620204759 620204759 620204759 620204759 Insulation
9 620204760 620204760 620204760 620204760 Divider Panel
10 620204709 620204709 620204709 620204709 Evaporator Spillway
11 620204490 620204490 620204488 620204488 Evaporator Right Side Mounting Panel
12 620204489 620204489 620204487 620204487 Evaporator Left Side Mounting Panel
13 620204486 620204486 620204486 620204486 Evaporator Water Return
Model Number
Page 5

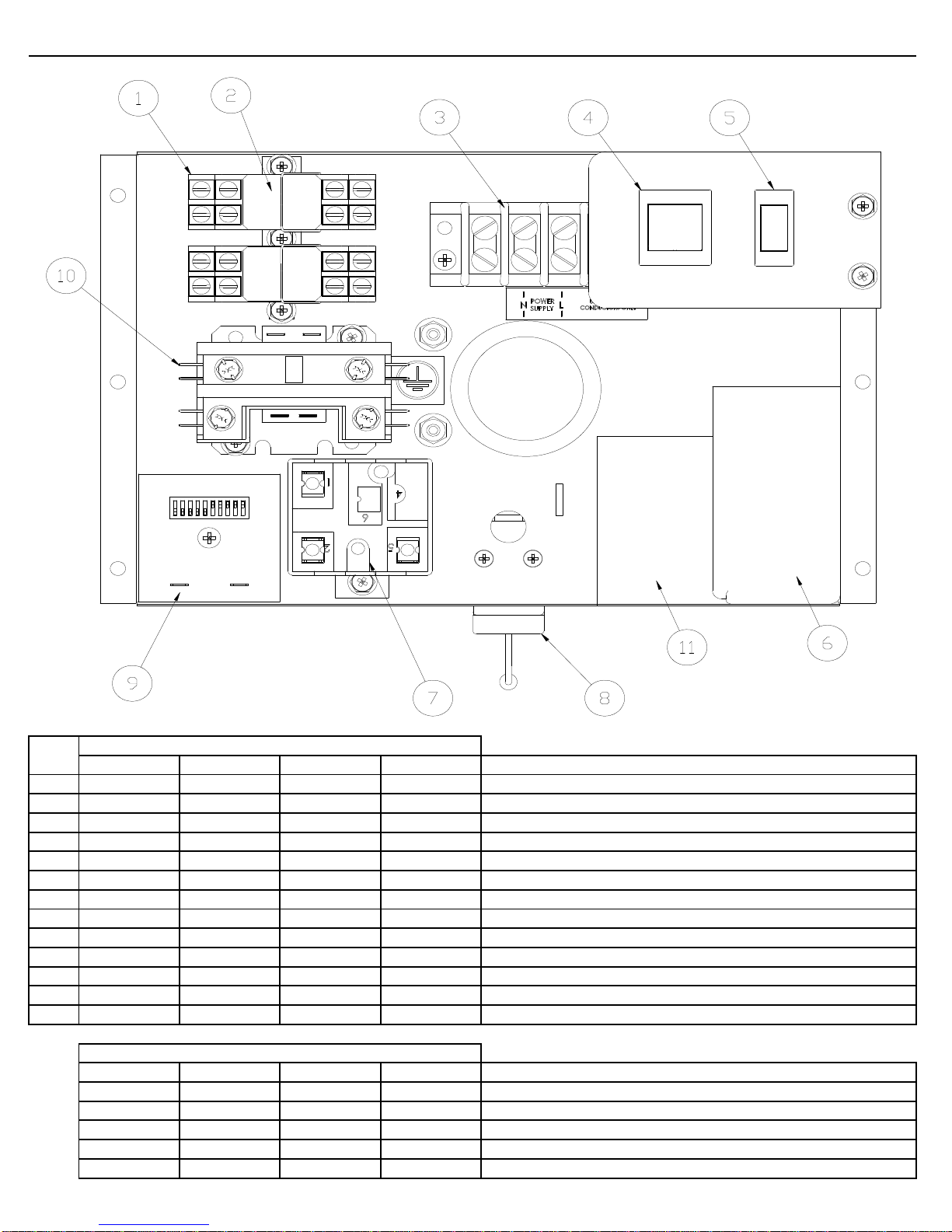

CCM0322/0522 Series Service Parts Control Box
Item
No. CCM0322 1 CCM0322 5 CCM0522 1 CCM0522 5 Description
1 620204548 620204548 620204548 620204548 Relay Socket
2 620204550 620204551 620204550 620204551 Relay
3 620204547 620204547 620204547 620204547 Terminal Board
4 620204557 620204557 620204557 620204557 On-Off Wash Switch
5 620204553 620204553 620204553 620204553 Purge Switch
6 620204656 620204657 620204656 620204657 Start Capacitor
7 620204660 620204680 620204660 620204683 Compressor Relay
8 620204476 620204476 620204476 620204476 Low Pressure Control
9 620204555 620204555 620204555 620204555 Timer
10 620204546 620204545 620204546 620204545 Contactor
11 N/A 620204667 N/A 620204667 Run Capacitor
12 620204480 620204480 620204480 620204480 High Temp Safety (Not Shown)
13 620204558 620204558 620204558 620204558 Water Pump Cord (Not Shown)
CCM0322 1 CCM0322 5 CCM0522 1 CCM0522 5
620204699 620204700 620204699 620204706 Compressor
620204656 620204657 620204656 620204657 Start Capacito
r
N/A 620204667 N/A 620204667 Run Capacitor
620204660 620204680 620204660 620204683 Rela
y
620204663 620204664 620204663 620204666 Overload
Specific Compressor Components
Model Number
Page 6

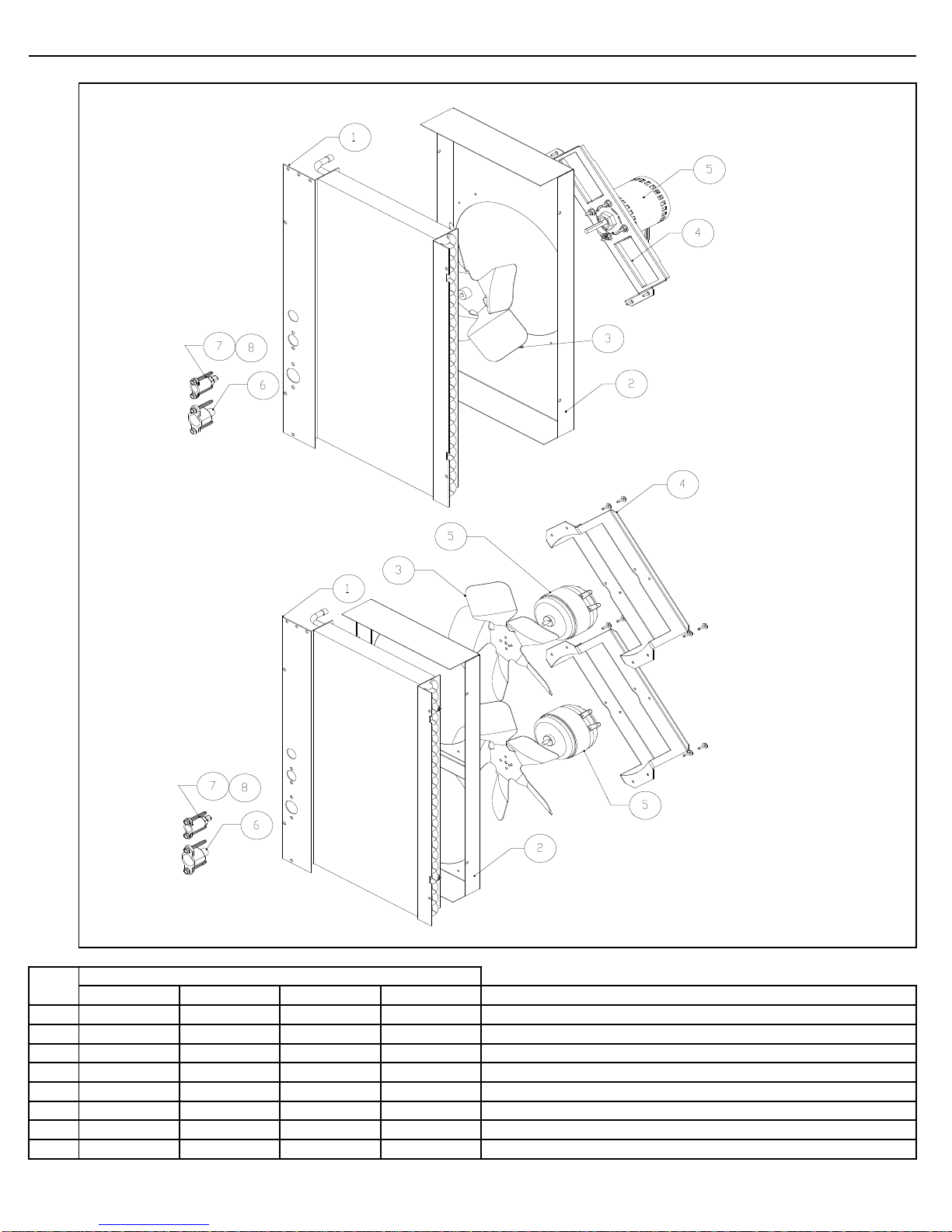

CCM0322/0522 Series Service Parts Fan Assemblies
Item
No. CCM0322 1 CCM0322 5 CCM0522 1 CCM0522 5 Description
1 620204593 620204593 620204593 620204593 Air Condenser
2 620204357 620204357 620204287 620204287 Fan Shroud
3 620204572 620204578 620204578 620204578 Fan Blade
4 620204356 620204761 620204761 620204761 Fan Motor Bracket
5 620204640 620204636 620204644 620204636 Fan Motor
6 620204813 620204813 620204813 620204813 Drain Fitting
7 620204530 620204530 620204530 620204530 Drop Adapter
8 620204533 620204533 620204533 620204533 Water Inlet Fitting
Model Number
CC
M
03
22
CC
M
05
22
Page 7
CCM0322/0522 Series Service Parts Harvest Assist
Item
No. CCM0322 1 CCM0322 5 CCM0522 1 CCM0522 5 Description
1 620204366 620204366 620204366 620204366 Bracket, Probe Motor
2 620204630 620204631 620204630 620204631 Gear Motor
3 620204569 620204569 620204569 620204569 Clutch Assembly 180 Degree
4 620204483 620204483 620204483 620204483 Snap Bushing
5 620204481 620204481 620204481 620204481 Snap Bushing
6 620204439 620204439 620204439 620204439 #6-32 x 1/2 Fillister Head Screw
7 620204484 620204484 620204484 620204484 Connecting Rod
8 620204424 620204424 620204424 620204424 Probe, Single Length
9 620204427 620204427 620204427 620204427 Plain Flat Washer
10 620204451 620204451 620204451 620204451 Shoulder Screw
11 620204516 620204516 620204516 620204516 Spacer, Cam Switch
12 620204556 620204556 620204556 620204556 Cam Switch
13 620204407 620204407 620204407 620204407 Insulator, Switch
14 620204434 620204434 620204434 620204434 Pan Head Machine Screw
15 620204452 620204452 620204452 620204452 Speed Nut Plate
620204311 620204312 620204311 620204312 Complete Assembly
Model Number
Page 8
