Creality CR-10 Max Manuale utente

3D Printer User Manual

V.1.6

CR-10 Max

CREATE REALITY，ACHIEVE DREAMS

CR-10 Max

Thank you for choosing our products.For the best experience,please read the instructions before operating the

Printer. Our teams wiss

always be ready to render you the best services. Please contact us via the phone number or e-mail address

provided at the end when you encounter any problem with the Printer.

For a better experience in using our product, you can also learn how to use the printer in the following ways:

View the accompanied instructions and videos in the storage card.

Visit our oﬃcial website www.creality.com to ﬁnd relevant software/hardware information,contact details and

operation and maintenance instructions.

Dear Consumers,

Firmware Upgrade

Please login the oﬃcial website https://www.creality.com/download, switch the language and select the relevant printer and

model and download the required ﬁrmware, you can use it after the installation is ﬁnished.

NOTES

Do not use the printer any way other than described herein in order to avoid personal injury or property damage.

Do not place the printer near any heat source or ﬂammable or explosive objects. We suggest placing it in a well-ventilated, low-dust

environment.

Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.

Please use recommended resin to in case damage of machine.

Do not use any other power cable except the one supplied. Always use a grounded three-prong power outlet.

Please do not open the plastic cover during usage, otherwise the printing will be interrupted.

Do not wear cotton gloves when operating the printer. Such cloths may become tangled in the printers moving parts leading to burns,

possible bodily injury, or printer damage.

Please wait a moment after the print is ﬁnished. And please wear gloves to take out the print by tools.

Children under 10 years should not use the printer without supervision.

This machine is equipped with a security protection mechanism. Do not manually move the nozzle and printing platform mechanism

manually while booting up, otherwise the device will automatically power oﬀ for safety.

Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used),

abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal

purposes. Creality will not be responsible for any violators' legal liability under any circustance.

Clean the printer frequently. Always turn the power oﬀ when cleaning, and wipe with a dry cloth to remove dust, adhered printing plastics

or any other material oﬀ the frame,guide rails, or wheels. Use glass cleaner or isopropyl alcohol to clean the print surface.

Contents

Introduction 01-01

General List 02-03

Device Installtion 04-04

Cable Connection 05-05

Software Installation 06-06

Loading Filament 07-07

V wheel leveling 08-08

Bed Leveling 09-10

Software Installation 11-11

First Printing 12-12

Circuit Wiring 13-13

1.Nozzle kit & auto leveling

2. X-axis limit switch

3. Printing platform

4. Touch screen

5. slot & USB port

6. Power switch

7. Power socket

8. Filament holder

9. Y-axis limit switch

10. Z-axis motor

11. Coupling

12. XL bed-leveling nut

13. Extruder (E) motor

14. Filament detector

15. X-axis motor

Storage card

Parameters

Model CR-10 Max

Molding Size 450 x 450 x 470mm

Molding Tech. FDM

Nozzle Number 1

Slice Thickness 0.1mm-0.4mm

Nozzle

Diameter 0.4mm 0.8mm

Precision ±0.1mm

Fliament φ1.75mm PLA

File Format STL/OBJ/AMF

Working Mode Online or Storage card offline

Slice Software Creality Slicer/Cura/

Repetier-Host/Simplify3D

Power Supply

Spec.

Motherboard 75W, 24V, input: 100-240V AC,

output: 24V；

Hotbed 750W, 24V, input: 100-240V AC, output ：

24V

Machine Power 750W

Hotbed Power 700W

Hotbed Temp. ≤100℃

Nozzle Temp. ≤250℃

Resume Print Yes

Filament

Detector Yes

Dual Z-Axis Yes

Auto Leveing Yes

Language

Selection EN/CN

Operating

System Windows XP/Vista//7/8/10 MAC/Linux

6 7 9 10 11 12

1. Introduction

No. Image Name Qty

1Wrench & Screw Driver 1

2Storage Card 1

3Spatula 1

4Pliers 1

5Nozzle Cleaner 1

6Cable Ties 2

No. Image Name Qty

Filament Holder 1

Filament Holder Tube with

Nuts 1

Power Cord 1

USB Cable 1

11 M4X20 Hexagon Socket Head

Cap Screws 10

12 T-type Fixed block 2

Gantry FrameBase Frame

Tool List

No. Image Name Qty

13 Spacer 1

14 Feeler Gauge 1

15 Spare Parts 1

16 M5x45 Sems Screw 4

Hexagon flat round head

M4X8

M4 T

Blue line claw

BL-Touch probe

-Nut

Printing Platform

Tool Box

Filament

Pull Rod

2.General List



Tips: the above accessories are for reference only, please refer to the physical accessories!

No. Name Qty

1 Pull rod 4pcs

2L-type pull rod

connecting fittings 2pcs

3 Eye bolt M6 x 35 4pcs

4 M6 nut 4pcs

5 Set screw M6 x 40 2pcs

6M5 x 12 Hexagon socket

button head screw 8pcs

7 M5 T-nut 4pcs

Pull rod details

M5 T-nut

Pull rod joint

Eye bolt M6 x 35

M6 Nut

Pull rod

M6X40

Screw rod

Pull rod

Eye bolt M6 x 35

M6 Nut

3.General List

1. Printing Platform Installation 2. Gantry Frame Installation

3. Gantry Frame Fixation

M4X20 Head Cap Screw 4pcs

M5X45 4pcs

Support Rod 4pcs

M6 x 40 Screw rod 2pcs

Eye Bolt M6 x 26 2pcs

M6 Nut 4pcs

M5 x 12 Screw 8pcs

M5 T-Nut 4pcs

M4X8

M4 T-Nut

2pcs

M4 x 20 6pcs

T block 2pcs

4. Support Rod

Installation

5. Filament Holder Installation

Hexagon flat round head

4.Device Installtion

Ribbon Cable

*Plug the power cord into a three-

hole power jack.

5.Cable Connection

Current

temperature of

hotbed

Current

temperature of

nozzle

Fan

Manual

Cooling

Automatic

Leveling

Refuel

Motor

Print in f

Moving

Language

Select “Print”

Set temperature

of hotbed

Set temperature

of nozzle

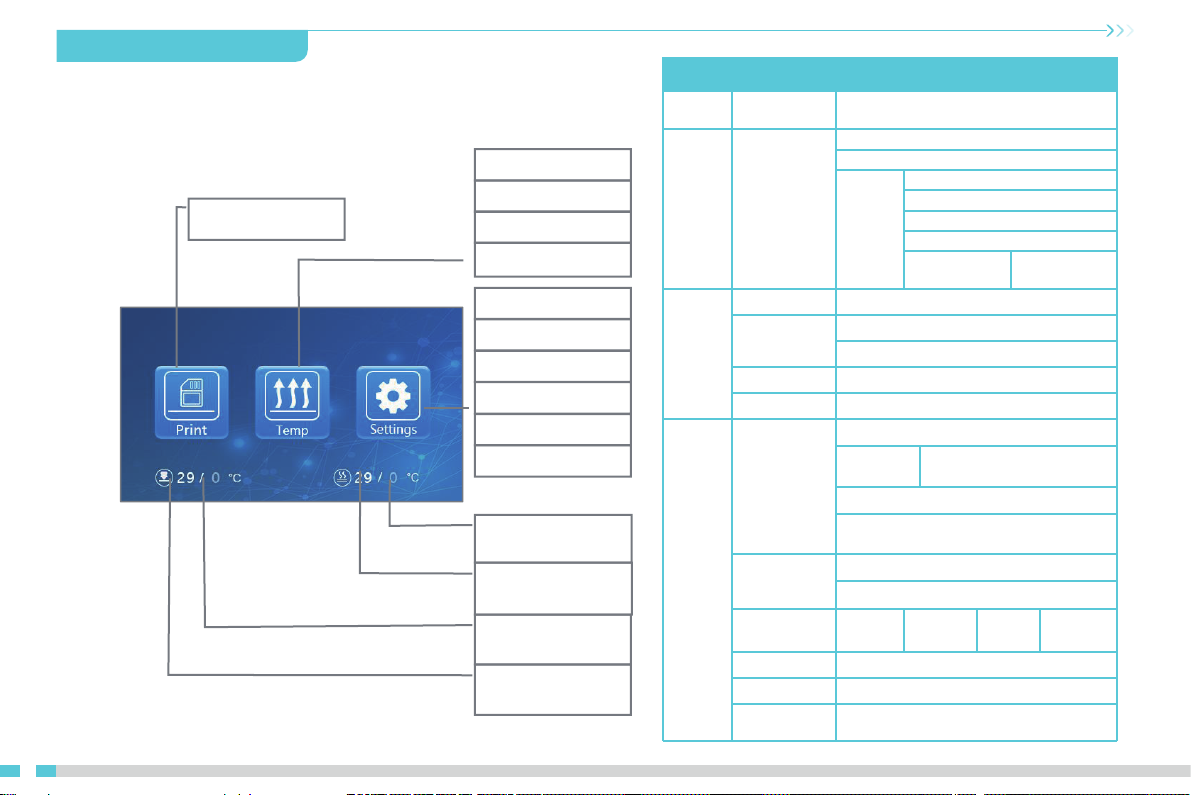

Screen Information

Main

Menu Sub Menu Explanation

Print Storage Card

Stop

Pause/Continue

Adjust

Print speed

Nozzle temp.

Hot-bed temp.

Fan

Temperature

up/Stop Continue/Stop

Temp

Automatic PLA \ABS（195°\240°）

Manual

Nozzle preheat

Hot-bed preheat

Cooling Yes\No

Fan On\Off

Setting

Leveling

Z-axis: Z home, +0.1mm, -0.1mm

AUX

leveling

Please click numbers (①~⑤) to

assisted leveling......

AUTO leveling (switch)

Platform measurement (measurement parameters)

Refuel

Withdraw

Feed

Moving X-axis Y-axis Z-axis Z home

Motor off Yes \No

Language English\Chinese

Printer info Device model, firmware version, printing size,

official website

6.Software Installation
