Creality CR-10 S5 Manuale utente
3D Printer User Manual
V.6.6
CREATE REALITY，ACHIEVE DREAMS
CR-10 S5
CR-10 S5
Thank you for choosing our products.For the best experience,please read the instructions before operating the
Printer. Our teams will always be ready to render you the best services. Please contact us via the phone number
or e-mail address provided at the end when you encounter any problem with the printer.
For a better experience in using our product, you can also learn how to use the printer in the following ways:
View the accompanied instructions and videos in the storage card.
Visit our official website www.creality.com to find relevant software/hardware information,contact details，
operation and maintenance instructions.
Dear Consumers,
Firmware Upgrade
Please login the official website https://www.creality.com/download, switch the language and select the relevant printer and
model and download the required firmware.
NOTES
1
2
3
4
5
6
7
8
9
10
Do not use the printer any way other than described herein in order to avoid personal injury or property damage.
Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust
environment.
Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.
Please use recommended resin to in case damage of machine.
Do not use any other power cable except the one supplied. Always use a grounded three-prong power outlet.
Please do not open the plastic cover during usage, otherwise the printing will be interrupted.
Do not wear cotton gloves when operating the printer. Such cloths may become tangled in the printers moving parts leading to burns,
possible bodily injury, or printer damage.
Please wait a moment after the print is finished. And please wear gloves to take out the print by tools.
Children under 10 years should not use the printer without supervision.
11
12
This machine is equipped with a security protection mechanism. Do not manually move the nozzle and printing platform mechanism
manually while booting up, otherwise the device will automatically power off for safety.
Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide
by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes.
Creality will not be responsible for any violators' legal liability under any circustance.
Clean the printer frequently. Always turn the power off when cleaning, and wipe with a dry cloth to remove dust, adhered printing plastics
or any other material off the frame,guide rails, or wheels. Use glass cleaner or isopropyl alcohol to clean the print surface.
Introduction 01-03
General List 04-04
Device Installion 05-06
Contents
08-08
Loading Filament
09-09
Platform Adjustment 10-10
07-07
11-11
12-12
Screen Information
First Printing
V wheel leveling
Software Installation

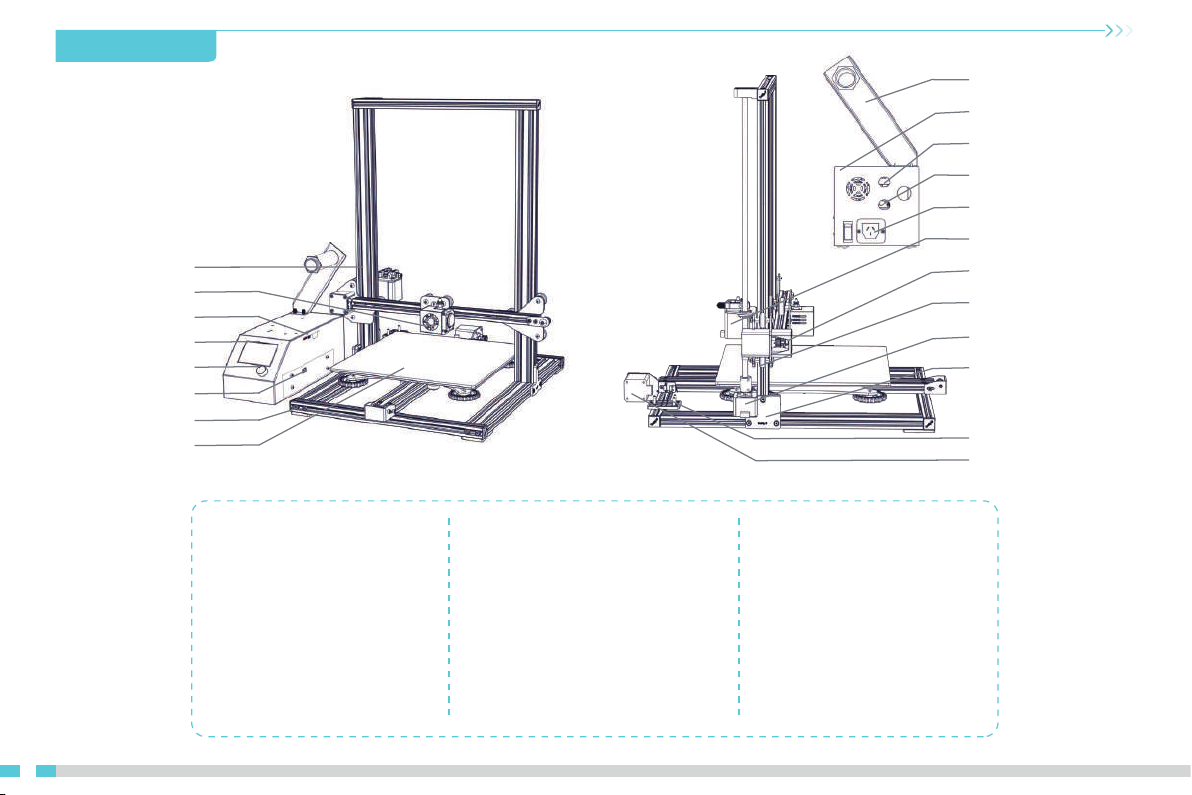

1. Introduction
01
1
1
9
10
11
12
13
14
15
16
17
18
19
20
2
3
4
5
6
7
8
2
3
Display Screen
TF Slot and USB Port
Nozzle Kit
Z Gantry Frame Platform
Filament Holder
Control Box
Nozzle Assembly
Connectiom
Platform Connection
Power Cable Connection
Extruder(E) Stepper
X Limit Switch
Z Limit Switch
Y Limit Switch
X Stepper
Z Stepper
Y Stepper
Control Knob
Voltage Selection
Base Frame
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2. Equipment parameters
02
Basic Parameters
Model CR- 10 CR- 10S CR- 10 S4 CR- 10 S5 CR- 10mini
Printing Size 300*300*400mm 300*300*400mm 400*400*400mm 500*500*500mm 300*220*300mm
Molding Tech. FDM
Nozzle Number 1
Slice Thickness 0.1mm- 0.4mm
Nozzle Diameter Standard 0.4mm
Precision ±0.1mm
Fliament 1.75mm PLA
File Format STL/OBJ/AMF
Working Mode Online or TF card offline
Slice Software Creality Slicer/Cura/Repetier- Host/Simplify3D
Power Supply Input:AC 115V/230V 50/60Hz
Output:DC 12V
Total Power 270W 270W 27 0W 270W 270W
Bed Temp. ≤100℃ ≤100℃ ≤60℃ ≤60℃ ≤100℃
Nozzle Temp. ≤250℃
Resume Print NO Yes Yes Yes Yes
Filament Detector NO Yes Yes Yes NO
Daul Z- Axis NO Yes Yes Yes NO
NOlanguage Selection NO EN/CN
Operating System Windows XP/Vista//7/8/10 MAC/Linux
Printing Speed ≤180mm/s，Normal 30- 60mm/s
03

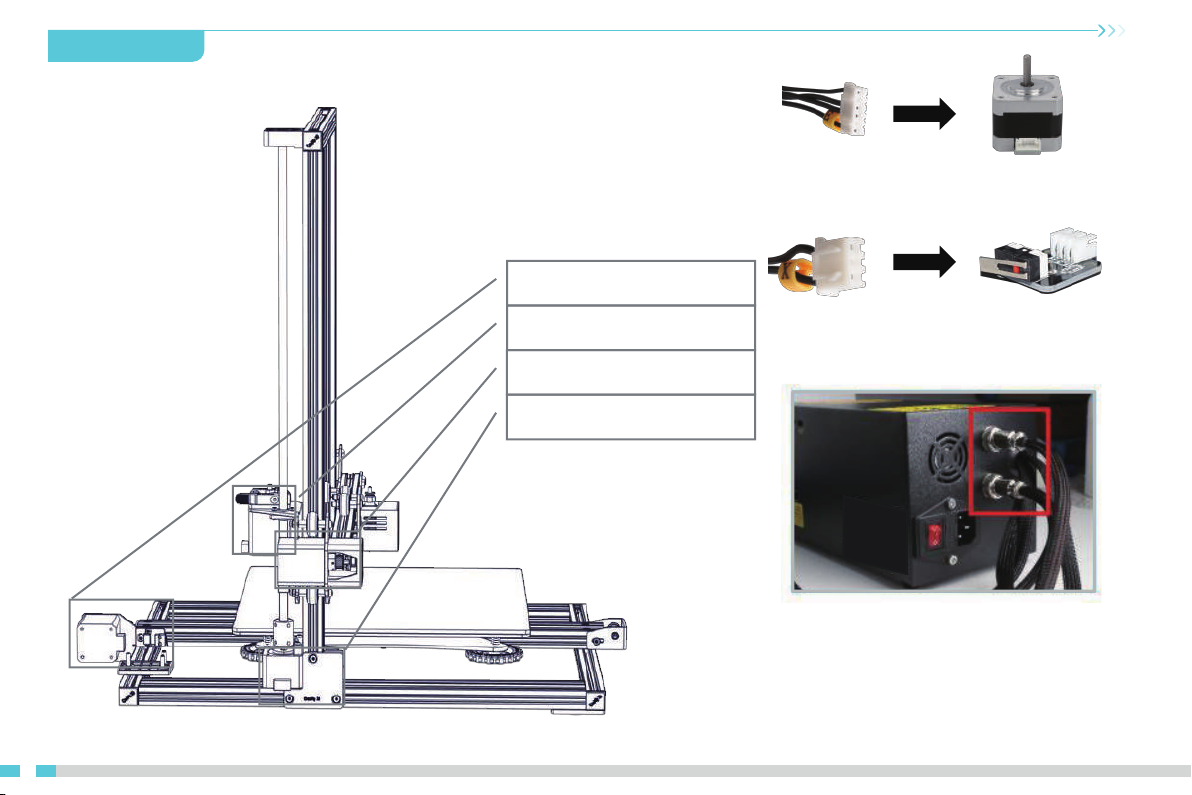

Connect the aviation connectors to the
ports with corresponding pins
Y Stepper and Limit Switch
Extruder (E) Stepper
X Stepper and Limit Switch
Z Stepper and Limit Switch
Connect the Stepper Motors according to
the yellow labels on the 6pin (4- wire) side.
Connect the Limit Switches according to the
yellow labels on the 3pin (2- wire) side.
• Select the correct input voltage to match your local
mains (230V or 115V)
• Damage can occur if voltage is set incorrectly.
• Make sure the power cable is connected.
3.Introduction
04

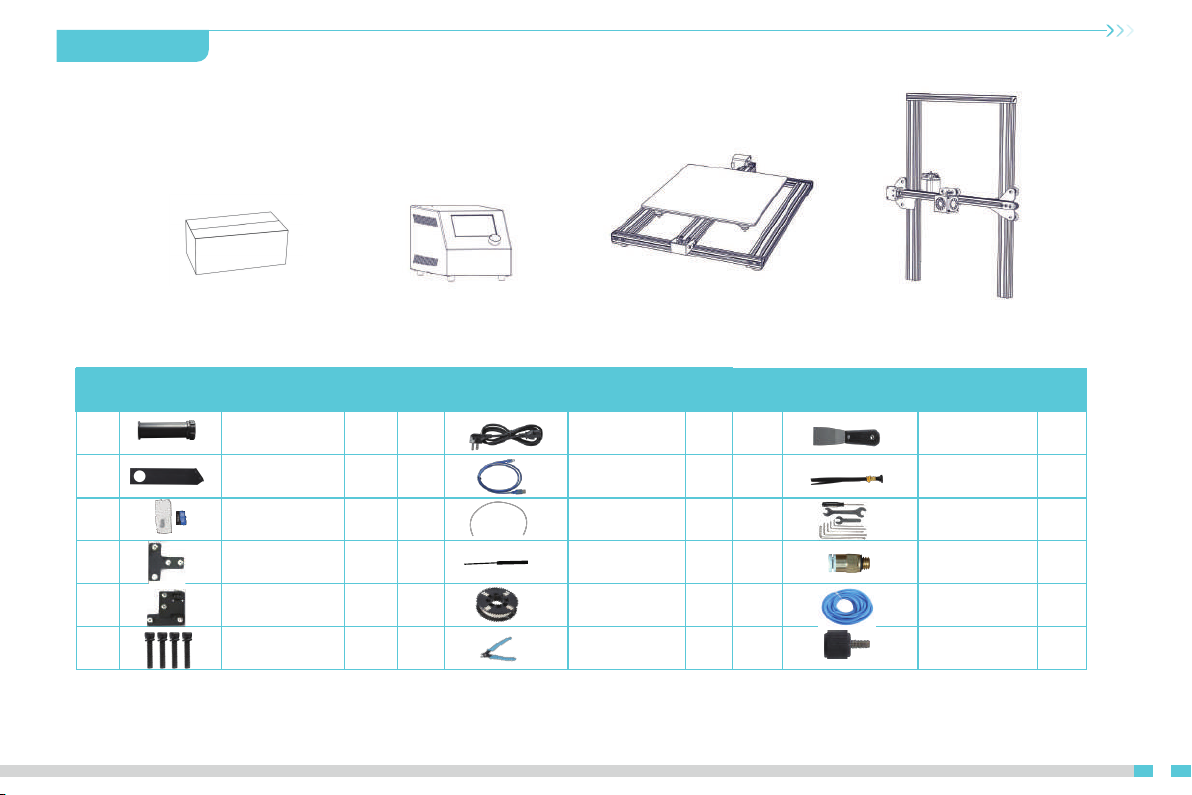

Tool list
Tool Box Control Box
No. Image Name Qty No. Image Name Qty No. Image Name Qty
1 Spool & Nuts 1 7 Power Cable 1 13 Spade 1
2 Spool Holder 1 8 USB Cable 1 14 Cable Ties 1
3
TF Card & Card
Reader 19 PTFE Tubing
(spare part) 115 Hex keys, Wrench
& Screwdriver 1
4 T- Bracket (Right) 1 10 Nozzle Cleaner 1 16 Spare Parts 1
5
T- Bracket
& Z Limit Switch
(Left)
111 Filament（200g） 1 17 Decorative Strip 1
6M5X25 Bolt & Lock
Washer 4 12 Diagonal Pliers 1 18 Thumb Screw 3
Base Frame Gantry Frame
*CR- 10 mini without T- Bracket (Right) & Decoration Strip.
4.General List
Tips: the above accessories are for reference only, please refer to the physical accessories!
05
Note: M ake sure that the nut for
prof ile has bee n turned by 9 0 °
before fastening the
T- shaped fixing block.
M5X25
4pcs *CR- 10 mini without T- Bracket (right).
Install the Gantry Frame
Install the T- shaped fixing block.
5.Device Installtion
